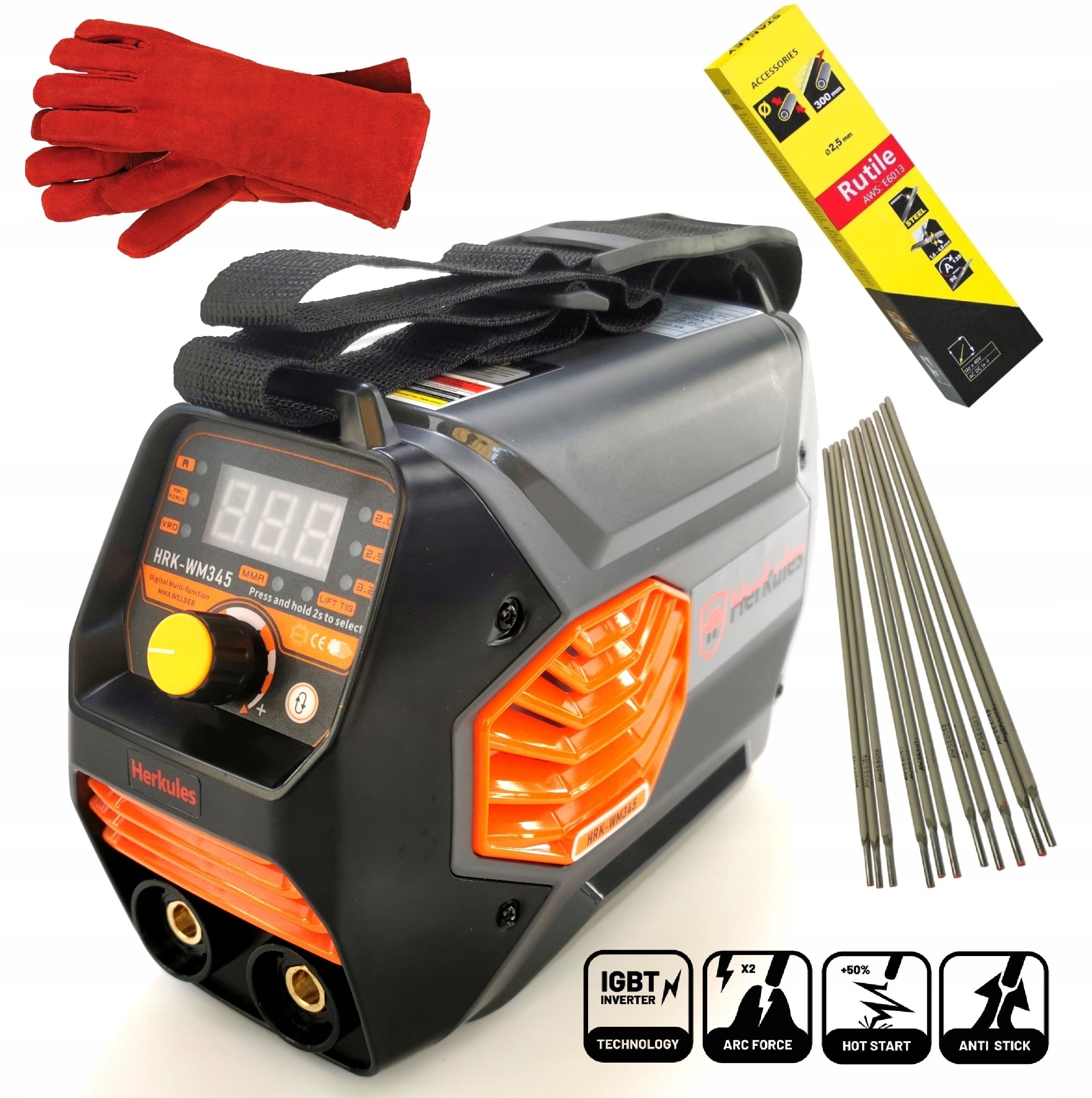

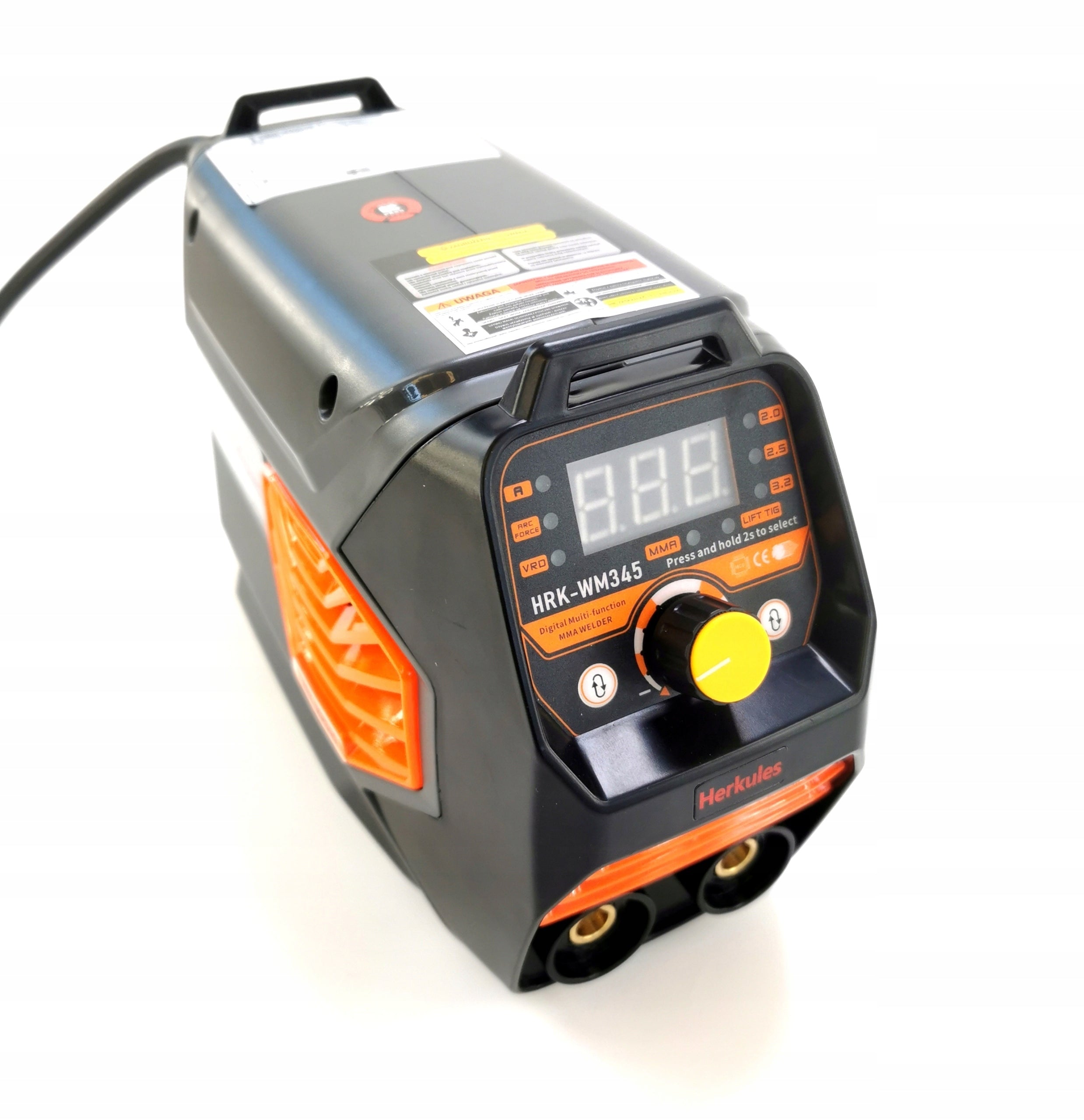

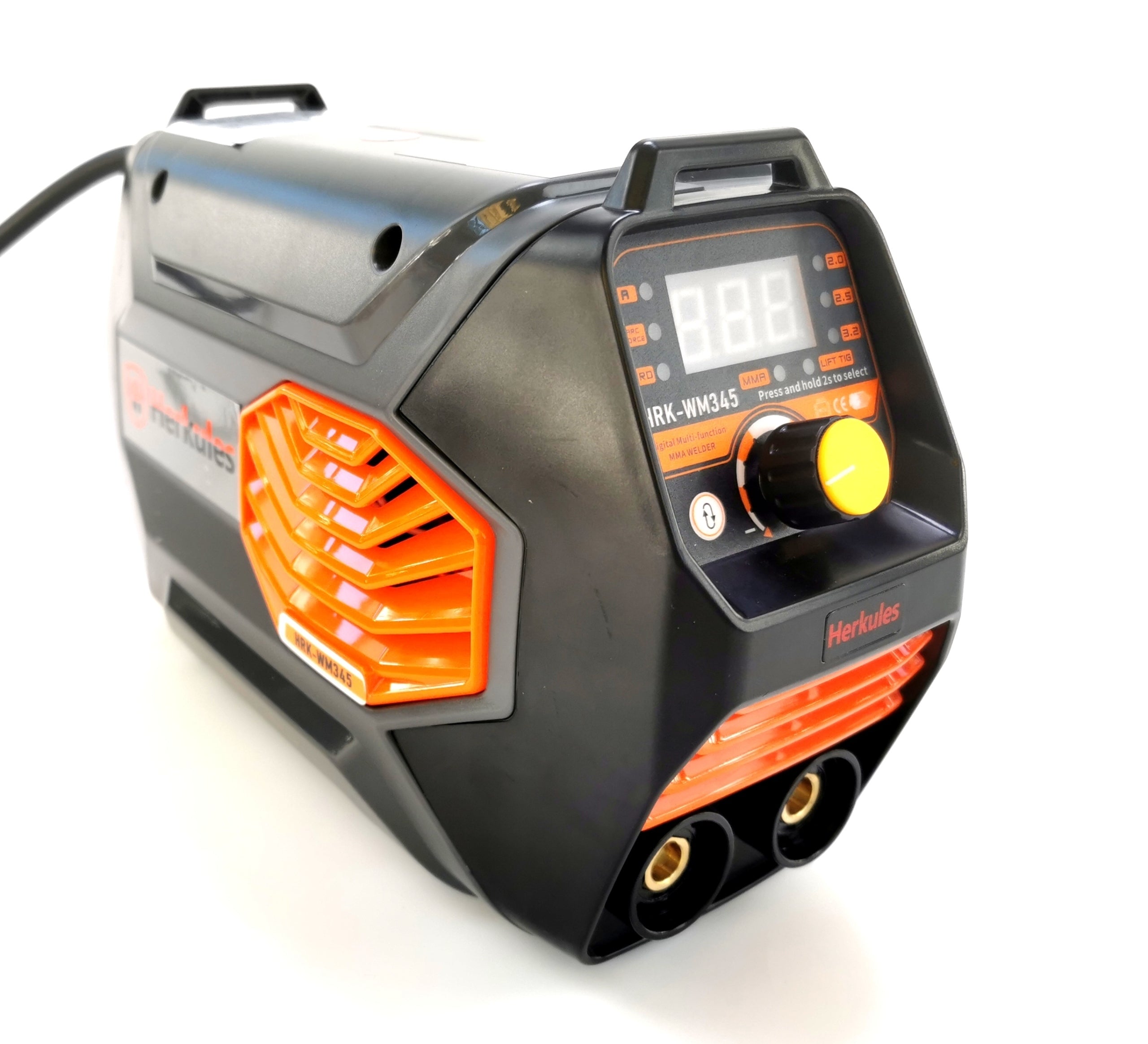

Suvirinimo inverteris Herkules 20-345A 230V MMA TIG LCD SYNERGY PRO

Trumpai apie prekę

Prekė: Suvirinimo inverteris Herkules 20-345A 230V MMA TIG LCD SYNERGY PRO. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Herkules
• Modelis: HRK-WM345

Welding machine HERKULES HRK-WM345

The latest model from the line of welding machines of the excellent construction brand HERKULES. The equipment of this brand enjoys reliability aesthetics and quality of workmanship while maintaining budget prices.

Equipped with the latest generation of IGBT technology

Features: ANTI STICK, HOT START, ARC FORCE, ANTI SHOCK and TIG LIFT

Smooth adjustment from 20-345A LCD display with adjustable operating modes

Fan and thermostat adapted for continuous operation

Arching by rubbing, does not stick to the electrode

Supported electrodes from 2.0 - 5.0

For welding various types and grades of metals and alloys: non-alloy and alloy steels, cast iron, nickel, copper and alloys

Welder adapted to work with most generator sets equipped with AVR power from 5000W.

The strongest, robust, easy-to-use welding machine, appreciated by specialists as one of the best hobby welding machines.

MULTIFUNCTIONAL - 6 adjustable functions

The HRK-WM345 model welder made in the latest technology of high-throughput IGBT transistors combined with the largest capacitors of 470 millifarads on the market is a real welding expert. Welding machine designed for both total weld laymen and seasoned welders.

5 ADJUSTABLE FUNCTIONS welding allows seasoned welders to adjust: WELDING CURRENT TO A SPECIFIC ELECTRODE DIAMETER, ARC FORCE, HOT START, ANTI-STICK AND VRD. If we want to weld without setting these parameters, it is enough to reset the device and the welding machine will select all the parameters itself. The welder only has to set the amperage and the welding machine will display the diameter of the electrode itself.

ARC FORCE (automatic) stabilizes the arc regardless of its length. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

HOT START (automatic) popularly called hot start allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to ignite the electrode faster.

ANTI-STICK (automatic)cuts off/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder not to glue the electrode to the material.

VRD stands for "Voltage Reduction Device" and it is a voltage lowering system on the welding torch when welding is not performed. This increases operator safety by minimizing the risk of electric shock. The corresponding voltage is restored when the arc is reignited.

The welding machine housing is made of polymer composites, making the device extremely light. This solution also causes that the heat from the capacitors and the motherboard is not retained by the housing. All this contributes to even better cooling. Thanks to such solutions, the designers of this welding machine could use the largest capacitors and high-throughput transistors IGBT perfectly cooperating with the motherboard controlling all functions and display.

Such solutions combined with four large air inlets and outlets in the housing ensure continuous welding operation without overheating and turning off the machine.

• Welding method: MMA / TIG LIFT
• Power supply: 230 V / 50 Hz
• Max power consumption: 6,4 kVA
• Welding current range: 20 - 345 [A]
• Welding current, 100% duty cycle: 204 A
• Welding current, duty cycle 60%: 345 A
• Rated duty cycle: 60 %
• Electrode diameter: 2 - 5 mm
• Insulation class: F
• Degree of protection: IP21S
• Power cord length: 140 cm
• Length of welding wire: 190cm
• Length of mass cable: 120
• Weight of the device: 2,5 kg

After its installation, the welding machine turns into a TIG welding machine while maintaining many parameters of expensive TIG devices.

IGBT 345A inverter welder

HERKULES POLAND HRK-WWM345

+ PRACTICAL HAND MASK

+ WELDING CABLES ( TUV certified)

+ BRUSH WITH HAMMER

+ HIGH-QUALITY LEATHER WELDING GLOVES XXL

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Herkules
Parametry	Power consumption	6.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	2.5 kg
Parametry	Welding range	20–345 A
Parametry	Welding cable length	190 cm
Parametry	Product weight with unit packaging	3 kg
Parametry	Manufacturer code	HRK-WM345
Parametry	EAN (GTIN)	5905935379656
Parametry	Packaging status	original
Parametry	Model	HRK-WM345
Parametry	Welding methods	MMA,PAW,SAW,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,EURO holders,LCD display
