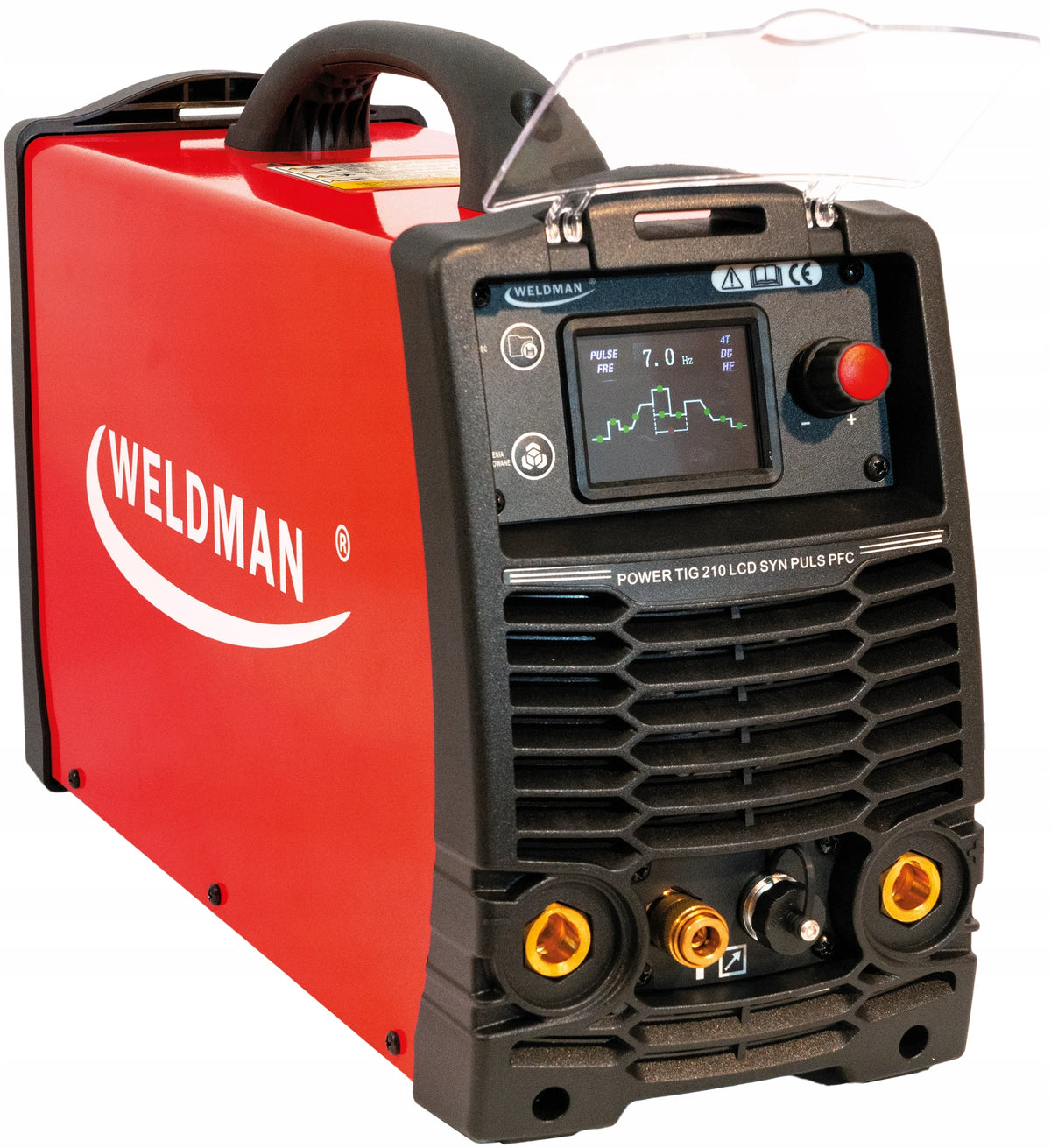

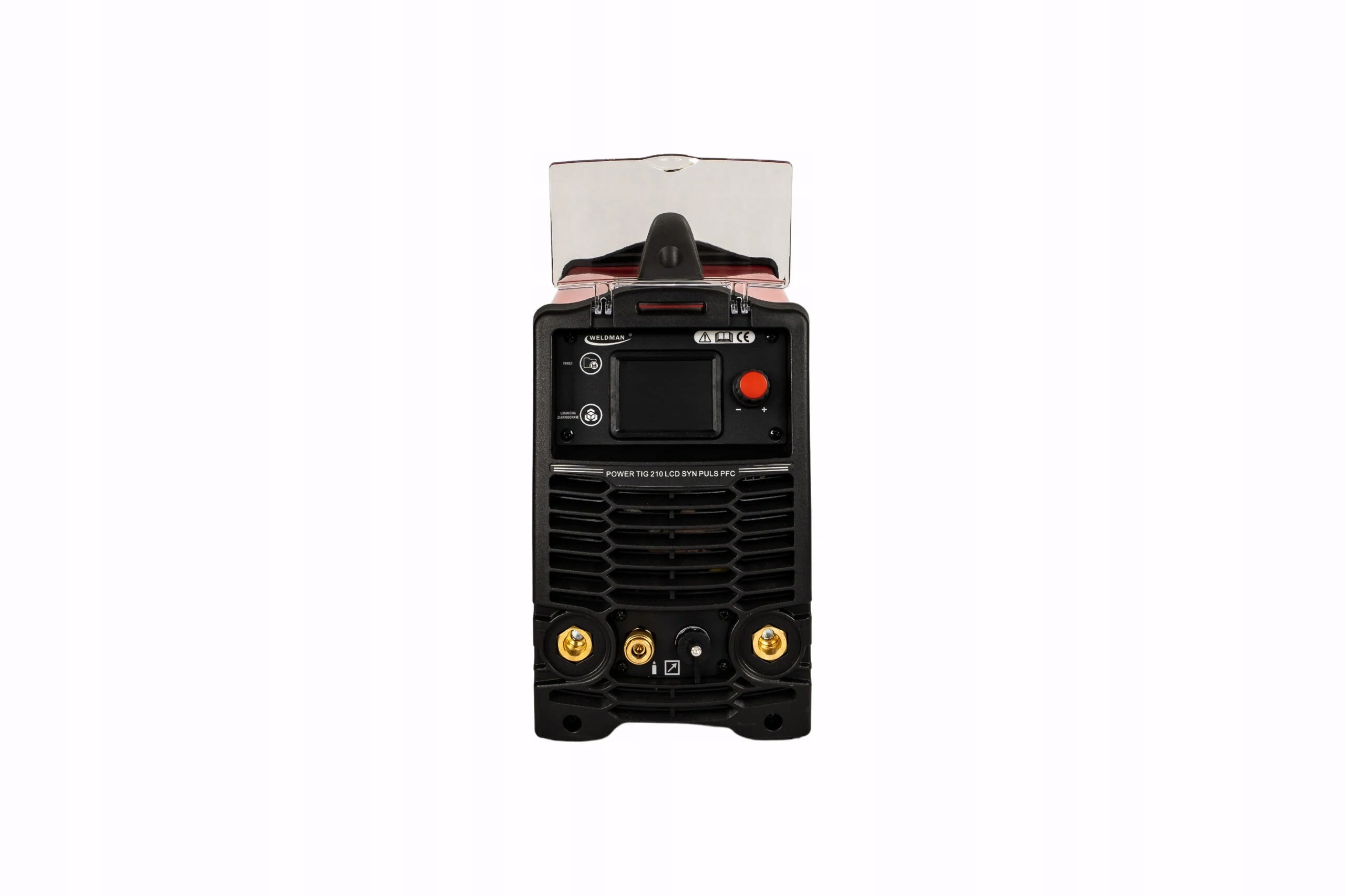

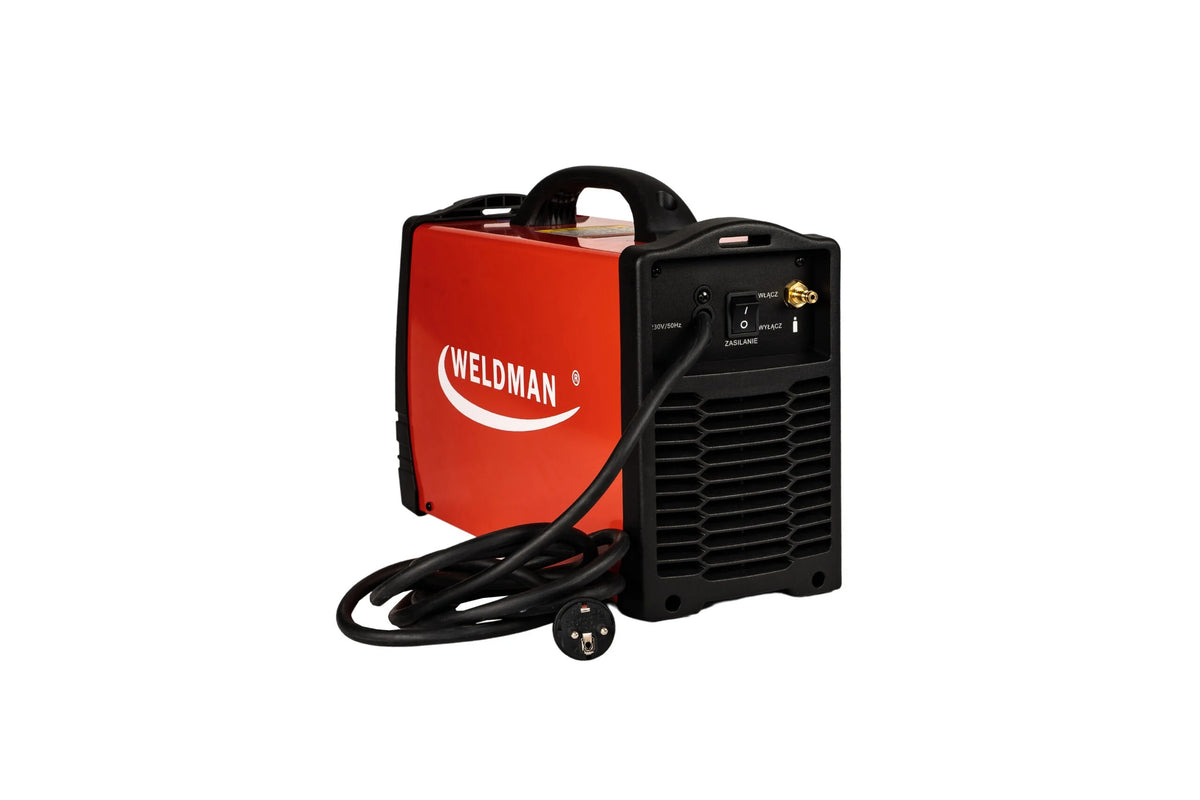

Suvirinimo aparatas WELDMAN POWER TIG 210 LCD, TIG DC/AC, 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN POWER TIG 210 LCD, TIG DC/AC, 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 104 413

TIG DC I AC/DC welder / Powered by 230V / POWER TIG 210 LCD AC/DC SYN PULS PFC

This POWER TIG 210 AC/DC device (from now on called a welding machine) was made on the basis of inverter technology, using IGBT and PWM and MCU components.

The welding machine is designed for welding by the following methods:

1) TIG DC

2) TIG DC PULSE

3) TIG AC

4) TIG AC PULSE

5) MMA DC

6) MMA AC carbon steel, alloy steel, stainless steel, acid resistant, cast iron and copper.

The welder allows you to work in 2-bar/4-bar mode with contactless (HF) or contact (LIFT) arc ignition.

It has an adjustable ARC FORCE (gap pressure) and HOT START (hot start) function.

Latest PFC technology, power factor above 0,98. The welder has intelligent thermal protection, overload, undervoltage, overvoltage.

Setting all parameters of the device is carried out on the control panel, on which a multifunctional knob and a liquid crystal LCD display are placed. The above solution allows easy and quick setting and reading of all welding parameters.

The welder is designed for both home and professional users.

Equipment

The welder is equipped with:

• TIG WP 17 (DX50) 4 m welding torch

• mass cable 3m with clamp 200A (DX50)

• 3 m power cord with 230V plug

• cable for connecting PU gas 3,5 m with quick coupler type 21 and 2 clamps

The gas regulator is not included in the standard equipment.

• Code: 104 413
• Device type: POWER TIG 210 AC/DC
• Supply voltage [V]: 230
• Idle current voltage [V]: 45
• Welding current adjustment range [A]: TIG DC – 5-200 TIG AC – 10-200 MMA DC – 5-170 MMA AC – 10-170

• Protection class [IP]: 23
• Dimensions [cm]: 48x17x32
• Weight [kg]: 12

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	30%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Device weight	12 kg
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	12 kg
Parametry	Manufacturer code	POWER TIG 210 AC DC 104 413
Parametry	EAN (GTIN)	5902701751852
Parametry	Model	104 413
Parametry	Welding methods	MMA,TIG
