Trumpai apie prekę
Prekė: Suvirinimo aparatas WELDMAN MISTRAL 200, MIG/MMA/TIG, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: SET4-103 102
INCLUDES A SET OF WIRES FOR WELDING BY THE FOLLOWING METHODS: MIG/MAG/FLUX, TIG, MMA.
MANUFACTURER: WELDMAN || WELDING METHODS: MIG/MAG, MMA, TIG DC Lift || SELECTED ADVANTAGES: 3in1, INVERTER|| POWER SUPPLY: 230V 1ph
- full free support after purchase
- You can call us at any time and we will help you set the parameters and operate the device
- Weldman Mistral MIG TIG MMA
- MIG EURO welding torch
- TIG grip
- MMA Electrode Holder
- Bulk cable
- User manual PL
- Consumable parts for MIG handle
▶ ITEM DESCRIPTION:

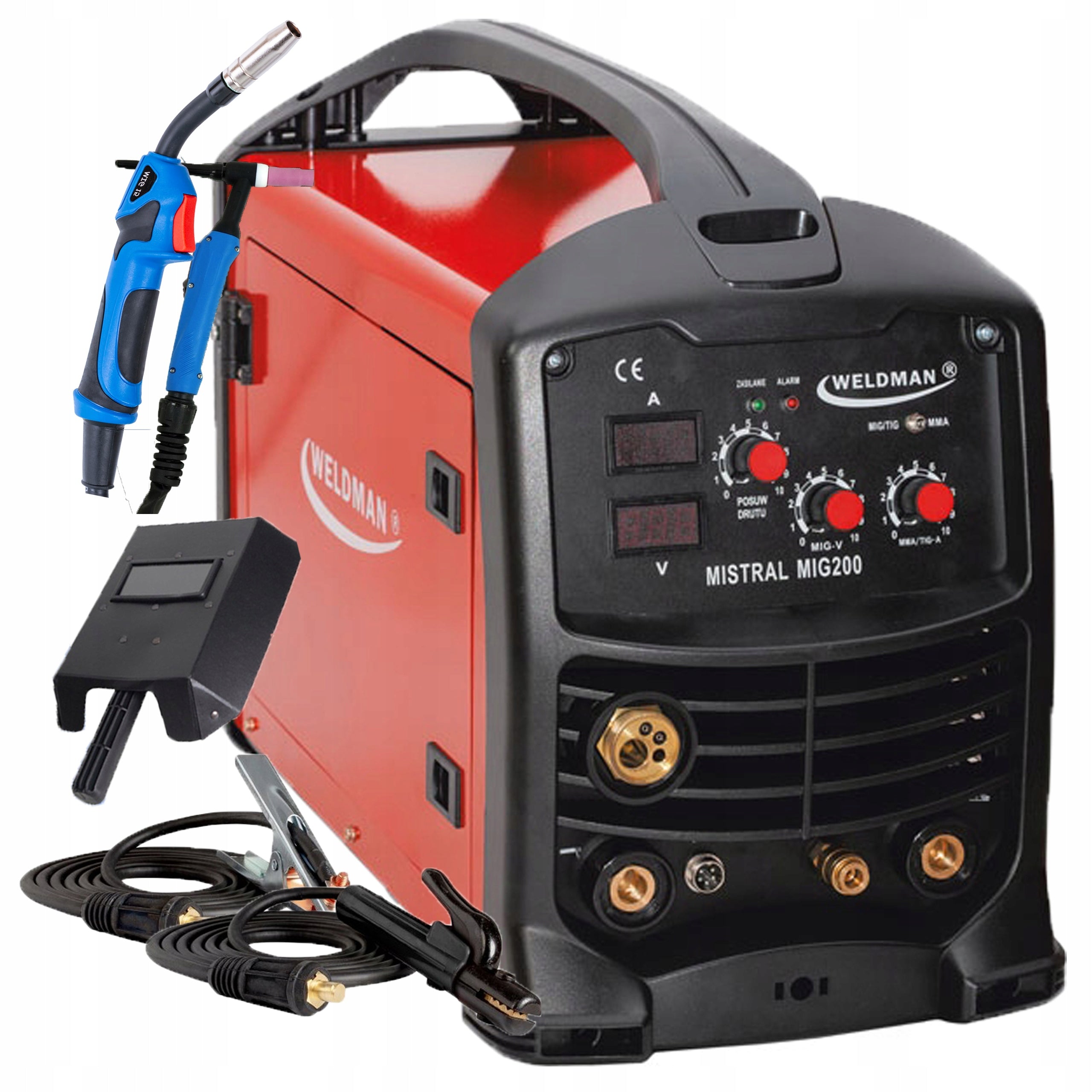

MISTRAL MIG 200 is an inverter semi-automatic welding machine for welding, by three methods:
- MIG/MAG - semi-automatic welding in gas shield,
- FLUX - semi-automatic welding with self-shielding wire,
- MMA - welding with wrapped electrode,
- TIG DC Lift - DC TIG welding in gas shield.
MISTRAL MIG 200 was constructed using IGBT transistors, which translates into good and stable welding parameters. The device is powered from a single-phase 230V network, and most importantly allows welding current up to 200 amps for all welding methods.
When designing this device, the appropriate harmony between the modern technologies used and the simplicity of execution was maintained. The result is a robust and reliable 3in1 MIG. Many users, as well as us, see here a similarity with the well-known and valued model Weldman MIDI MIG 220. However, the difference is that MISTRAL MIG 200 has been prepared factory for TIG welding.
MISTRAL MIG 200 is recommended for beginners, DIY enthusiasts as well as more advanced welders.

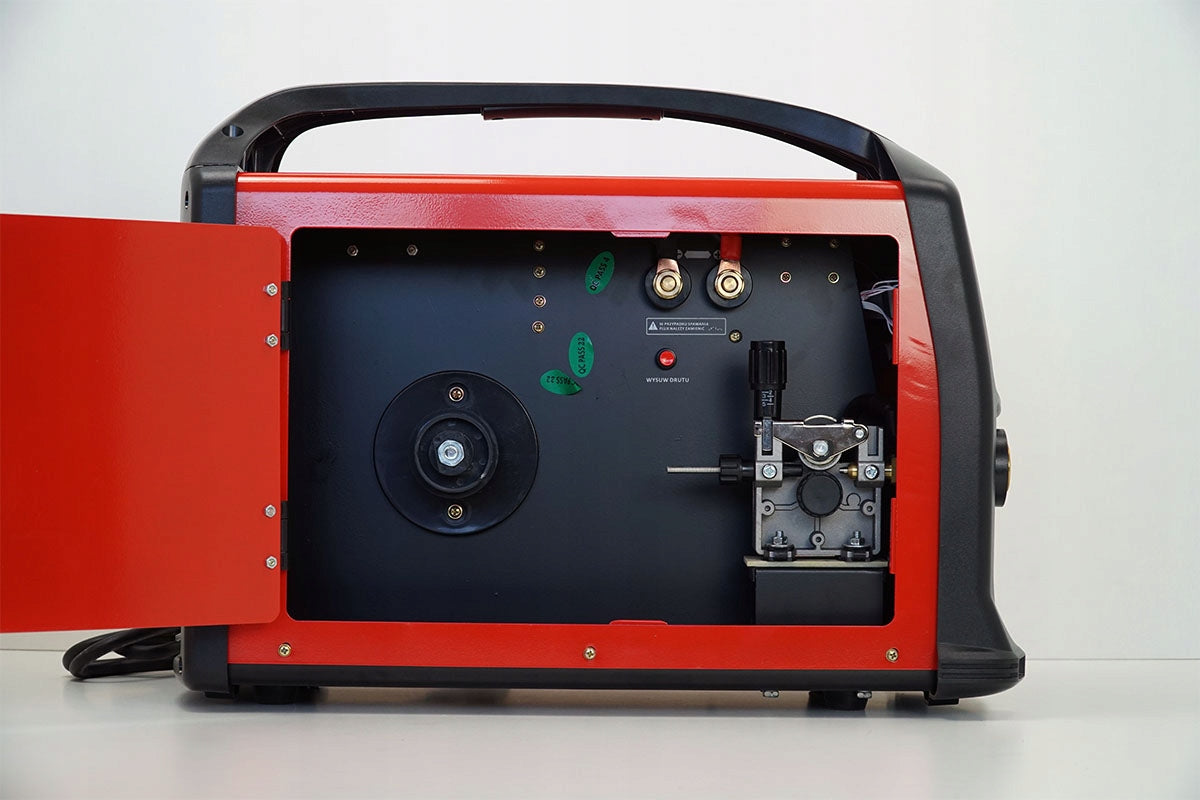

PROFESSIONAL FEEDER
Two-roll wire feeder with good driving mechanism. Smooth wire feeding ensures good and stable parameters
CHANGE IN WELDING POLARITY - WELDING WITH SELF-SHIELDING WIRE WITHOUT GAS
WELDMAN MISTRAL MIG 200 has the ability to change the polarity of MIG/MAG welding. Thanks to this, it can be welded using self-shielding wire - without the need for shielding gas.

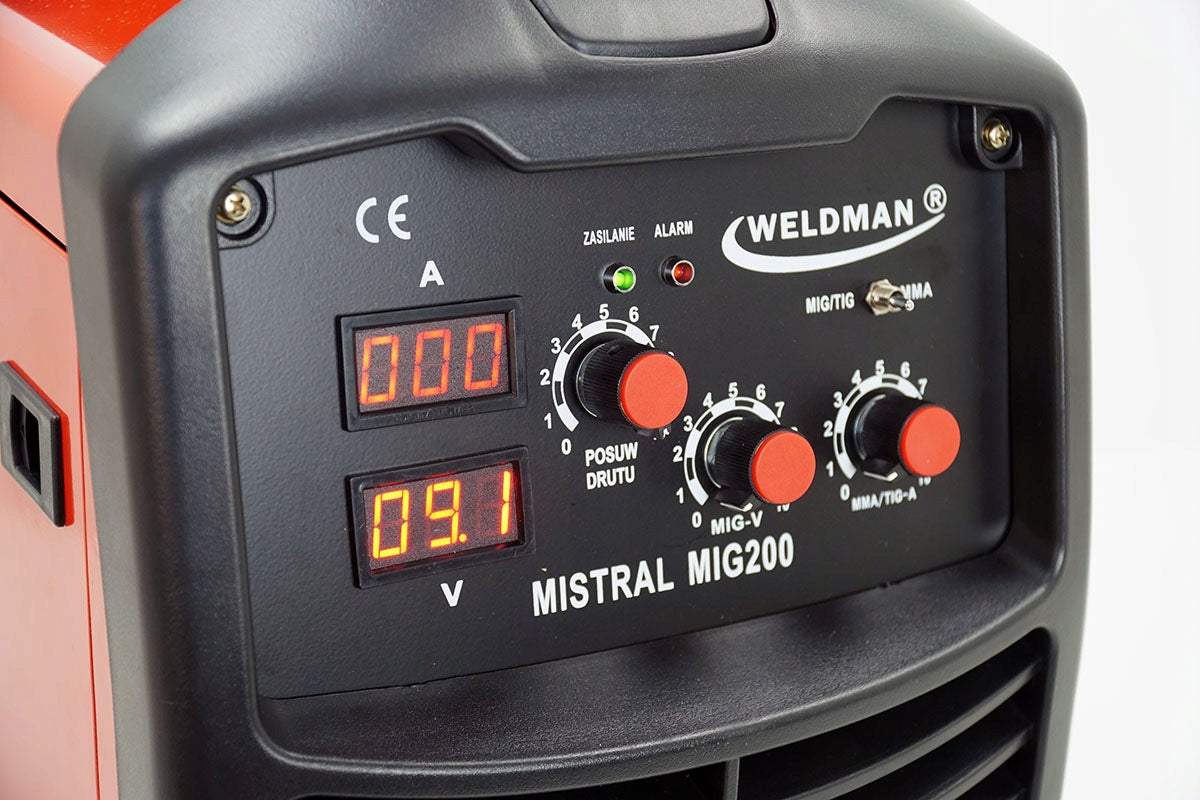

ALL PARAMETERS UNDER CONTROL
- smooth regulation of welding voltage (MIG/MAG),
- smooth regulation of wire feed speed (MIG/MAG),
- MIG/MAG wire extension test,
- two digital displays of parameters: welding voltage and current - show the measured, actual value of parameters during welding,
- smooth regulation of welding current (MMA/TIG).
BASIC:
- Supply Voltage: Single Phase 230V
- Technology: IGBT Inverter
- Network Security Requirement: 20A
- Degree of protection: IP 21S
- Dimensions: 580x280x420mm
- Weight 16,0kg
MIG/MAG WELDING PARAMETERS:
- MIG/MAG welding current: 50 - 200A
- MIG/MAG duty cycle: 60% 200A / 100% 155A
- MIG/MAG welding voltage: smooth adjustment 16,5-24,0V
- Wire feed speed: smooth adjustment
- Spool with wire: max 5kg (D200)
- Wire diameter: 0,6/0,8/0,9/1,0/1,2 mm
- Change in MIG/MAG welding polarity
WELDING PARAMETERS MMA:
- MMA welding current: 10 - 200A
- Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0
- MMA duty cycle: 60% 200A / 100% 155A
- MMA Welding Current Adjustment: Smooth
- Idle Current Voltage: 56V
WELDING PARAMETERS TIG:
- TIG welding current: 10 - 200A
- Output Current: DC Constant
- Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0
- TIG duty cycle: 60% 200A / 100% 155A
- TIG welding current regulation: smooth
- Arch ignition: contact - Lift
- Valve control: micro-switch in the handle
PHOTO GALLERY:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Welding methods | MIG/MAG |
| Parametry | Welding range | 20–200 A |
| Parametry | Manufacturer code | SET4-103 102 |
| Parametry | EAN (GTIN) | 5904624012577 |
