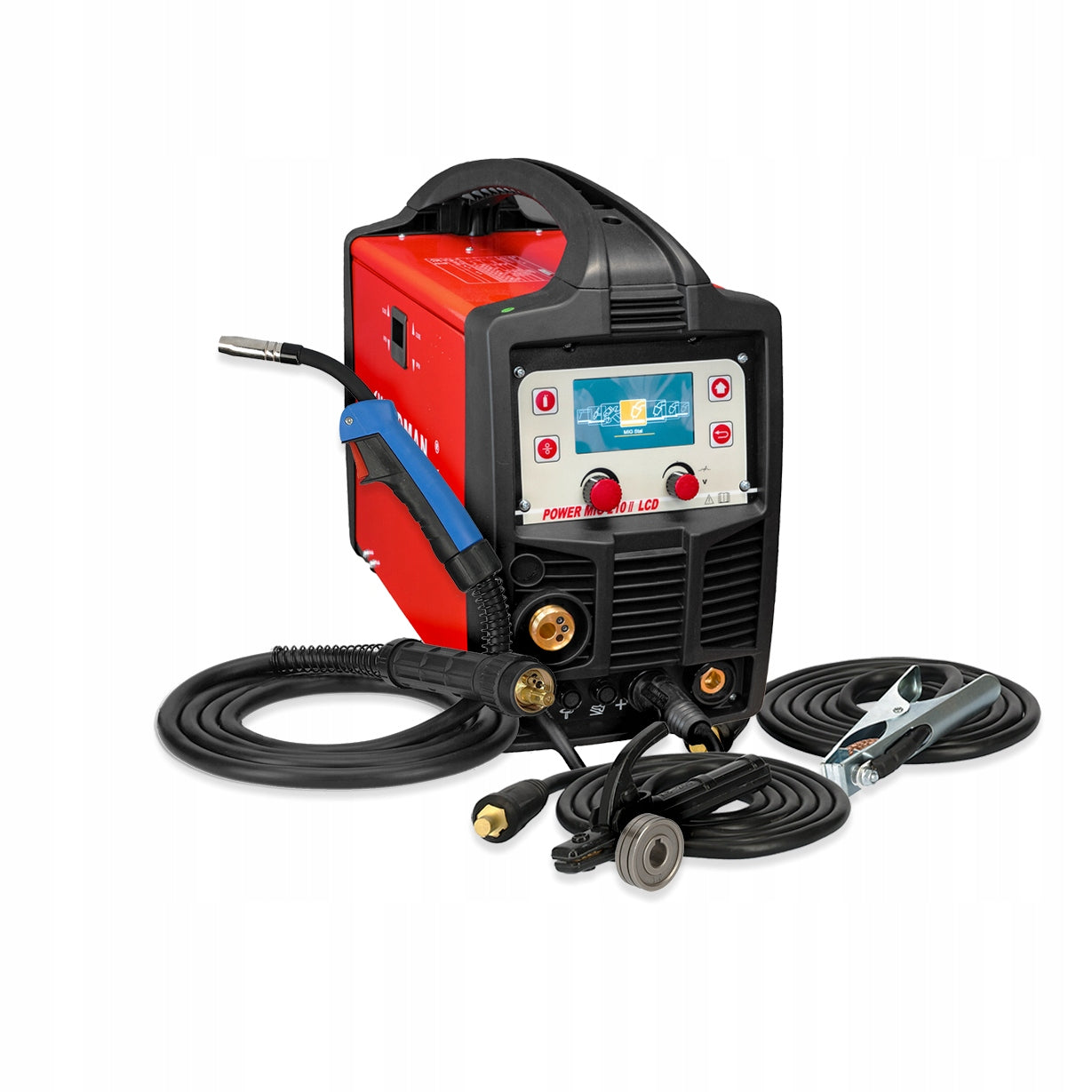

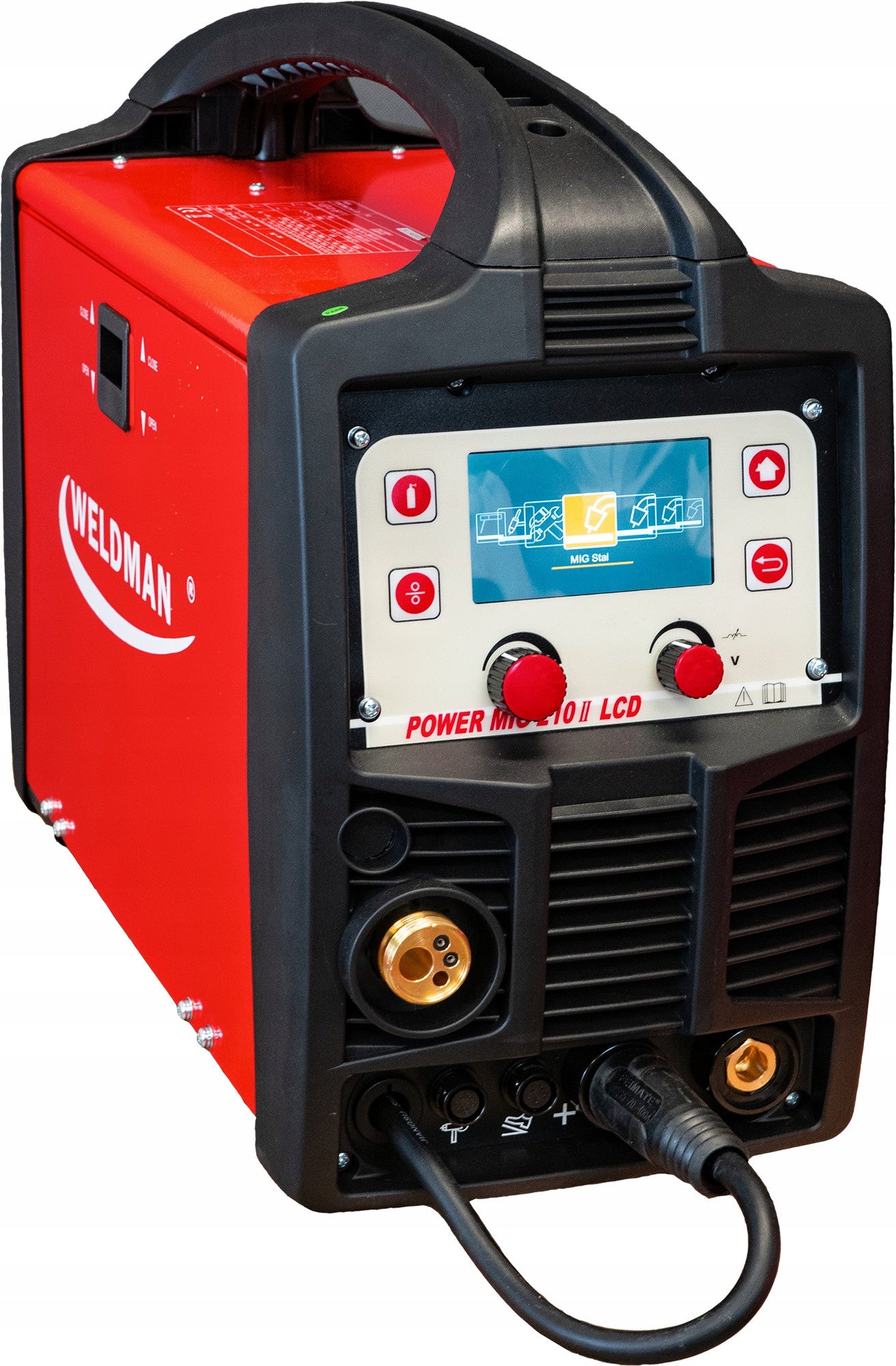

Suvirinimo aparatas WELDMAN MIG/MAG/TIG/MMA 200A IGBT su FLUX, sinergija, atminties funkcija

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN MIG/MAG/TIG/MMA 200A IGBT su FLUX, sinergija, atminties funkcija. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: spawarka inwertorowa 104 722
• Ilgis: 540 mm
• Plotis: 250 mm
• Aukštis: 440 mm

❇ Standard equipment:

• Weldman Power MIG 210 II LCD welding machine
• welding torch BINZEL MB-15 / 3 m
• mass cable with terminal 300 A (plug 35-70) / 3 m
• feeder roller 4RN (type C) fi 0,9 / 1,0 mm V-shaped (mounted)
• feeder roll 4RN (type C) fi 0,6 / 0,8 mm V-shaped
• gas pipe with internal diameter of 8 mm / 4 m
• gas connection (connector) for technical hose 8 mm
• power cord with plug 230 V / 2,3 m
• instruction in Polish

✅ The welder has a graphic menu, which facilitates operation and allows you to choose the type of welded material.

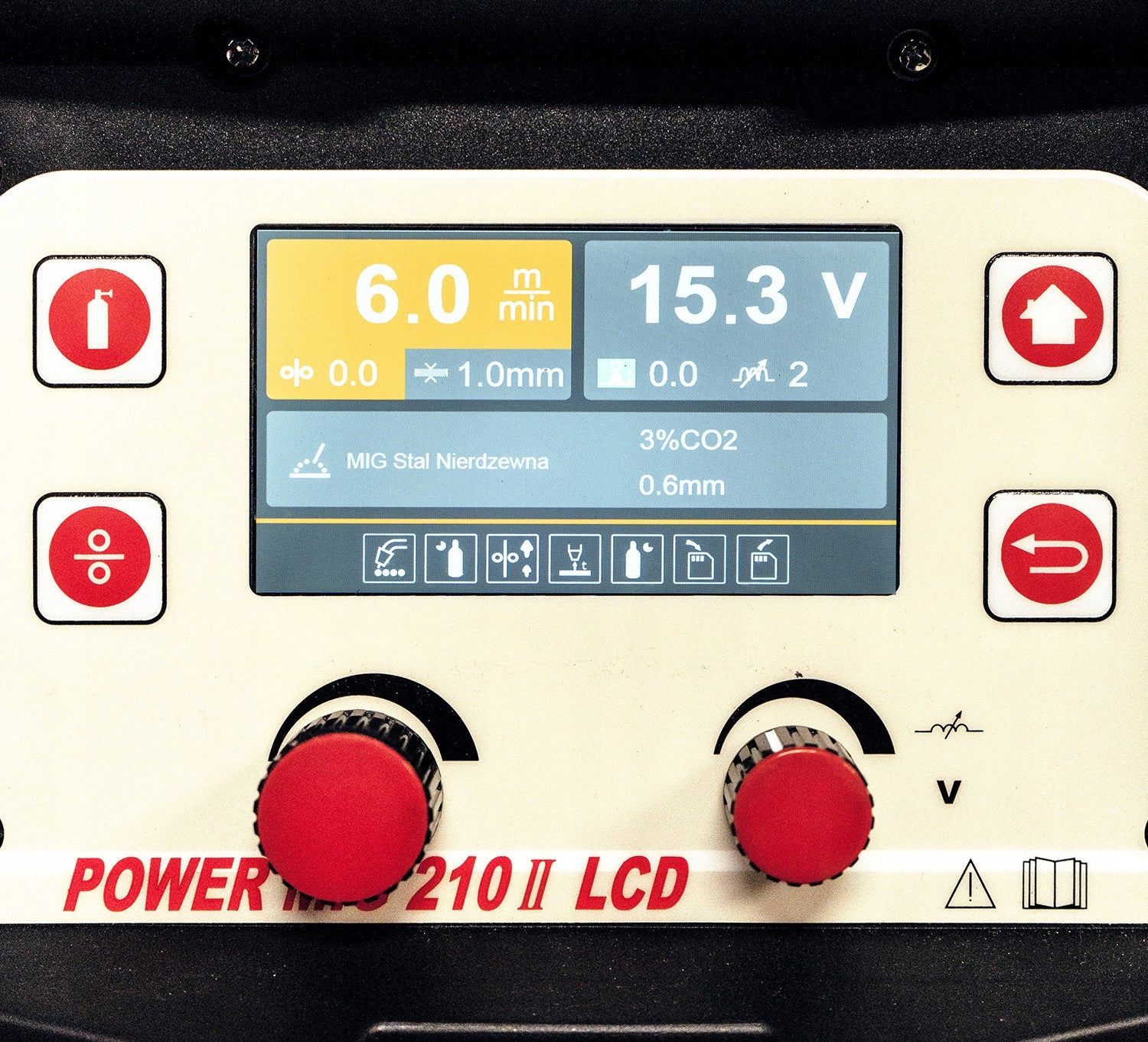

Front panel:

• LCD display
• Gas test button
• Wire feeder test button
• ewe knob: multifunctional menu knob – m.in. selection of functions, adjustment of welding current and wire feed speed (by pressing we approve the selection)
• Return button to the first page of the display
• Return button to the previous step
• right knob: welding current voltage regulation in MIG/MAG

✅ 4-roll wire feeder allows welding with a welding torch type spool gun.

✅ It also works in spot welding mode, 2-bar mode, as well as 4-bar.

✅ The welder has a graphic menu, which facilitates operation and allows you to choose the type of welded material.

Front panel:

• LCD display
• Gas test button
• Wire feeder test button
• ewe knob: multifunctional menu knob – m.in. selection of functions, adjustment of welding current and wire feed speed (by pressing we approve the selection)
• Return button to the first page of the display
• Return button to the previous step
• right knob: welding current voltage regulation in MIG/MAG

✅ 4-roll wire feeder allows welding with a welding torch type spool gun.

✅ It also works in spot welding mode, 2-bar mode, as well as 4-bar.

• VRD (reduction of idle voltage on the wrapped electrode to a safe level) - provides additional safety for the operator, especially when working in environments with high humidity.
• Arc Force - shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the electrode contacts the welded material.
• Hot Start - increases the welding current when arcing to facilitate the ignition of the electrode.
• Anti Stick - reduces welding current by preventing the electrode from sticking to the welded material.

Physical parameters:

• branded handle by Binzel,
• 4-roll wire feeder,
• euro connector ,
• thermal protection (which contributes to safe operation).

The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and significantly reduced energy consumption. The design and software combined with digital control, enables you to achieve excellent welding parameters and achieve high-quality welded joints.

• Height: 440 [mm]
• Width: 250 [mm]
• Weight: 19 [kg]
• Length: 540 [mm]
• Power supply [V]: 230
• Characteristics: Automatic retry of the number welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 4 roller
• Synergic control: Yes
• Soldering function: Yes
• Processes: MIG / MMA / TIG
• Welding current range [A]: MIG/MAG: 40-200; TIG DC: 10-180; MMA 10-180
• Current [A] / duty cycle [%]: MIG: 200 A/ 20%, 115 A/ 60%, 89 A/ 100%; TIG/MMA: 180 A/ 20%, 104 A/ 60%, 80 A/ 100%;
• Security [A]: 20
• Idle voltage [V]: 69
• Current adjustment: Smooth
• Function 2T/4T: Yes
• Additional Features: FLUX (Gas Free Welding), Hot Start, Anti Stick, Arc Force
• Degree of protection: IP21S
• Wire spool: 5,00 kg / D200
• VRD: Yes
• Inductance adjustment: Yes
• Welding range from [A]: 40
• Welding range up to [A]: 200

Specifications
