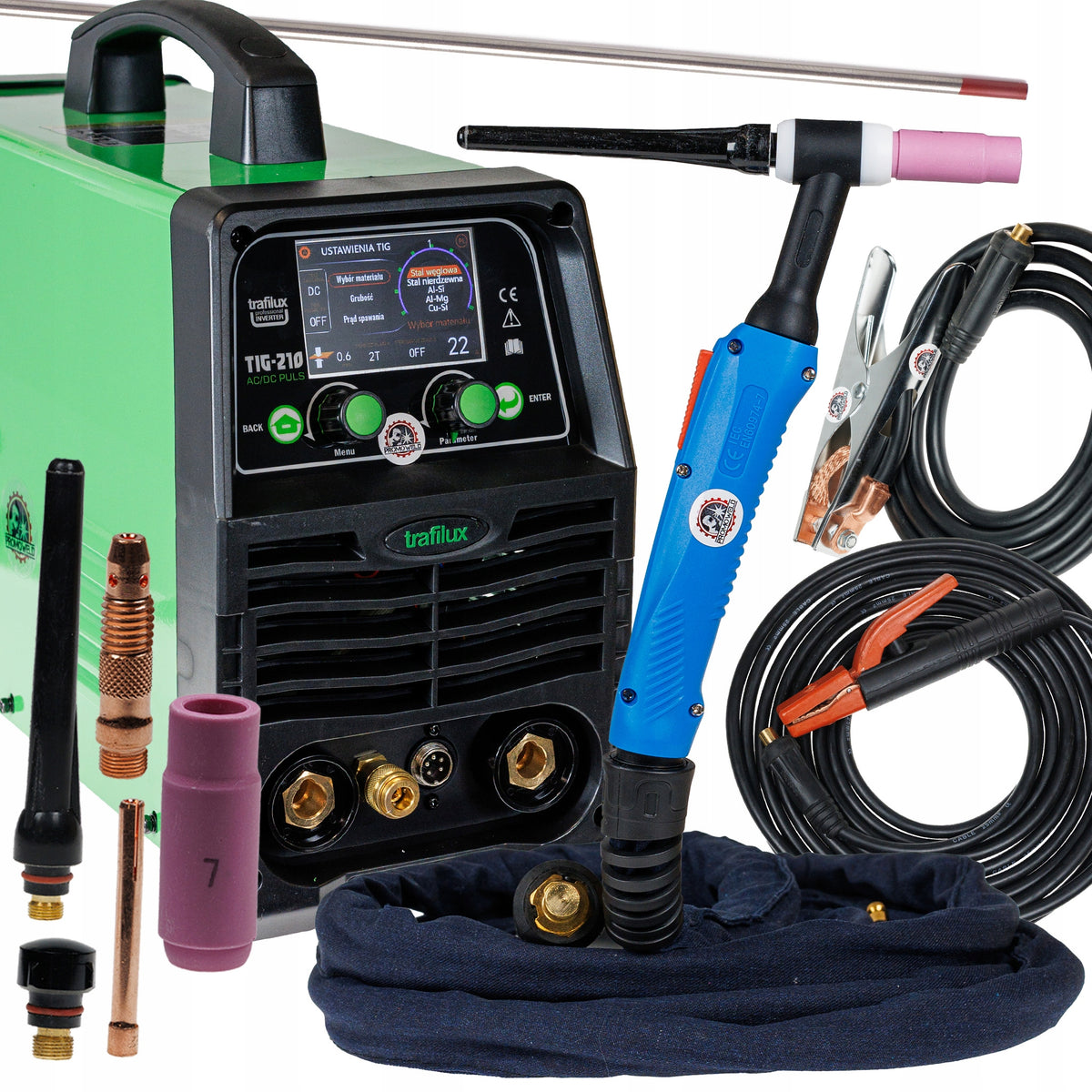

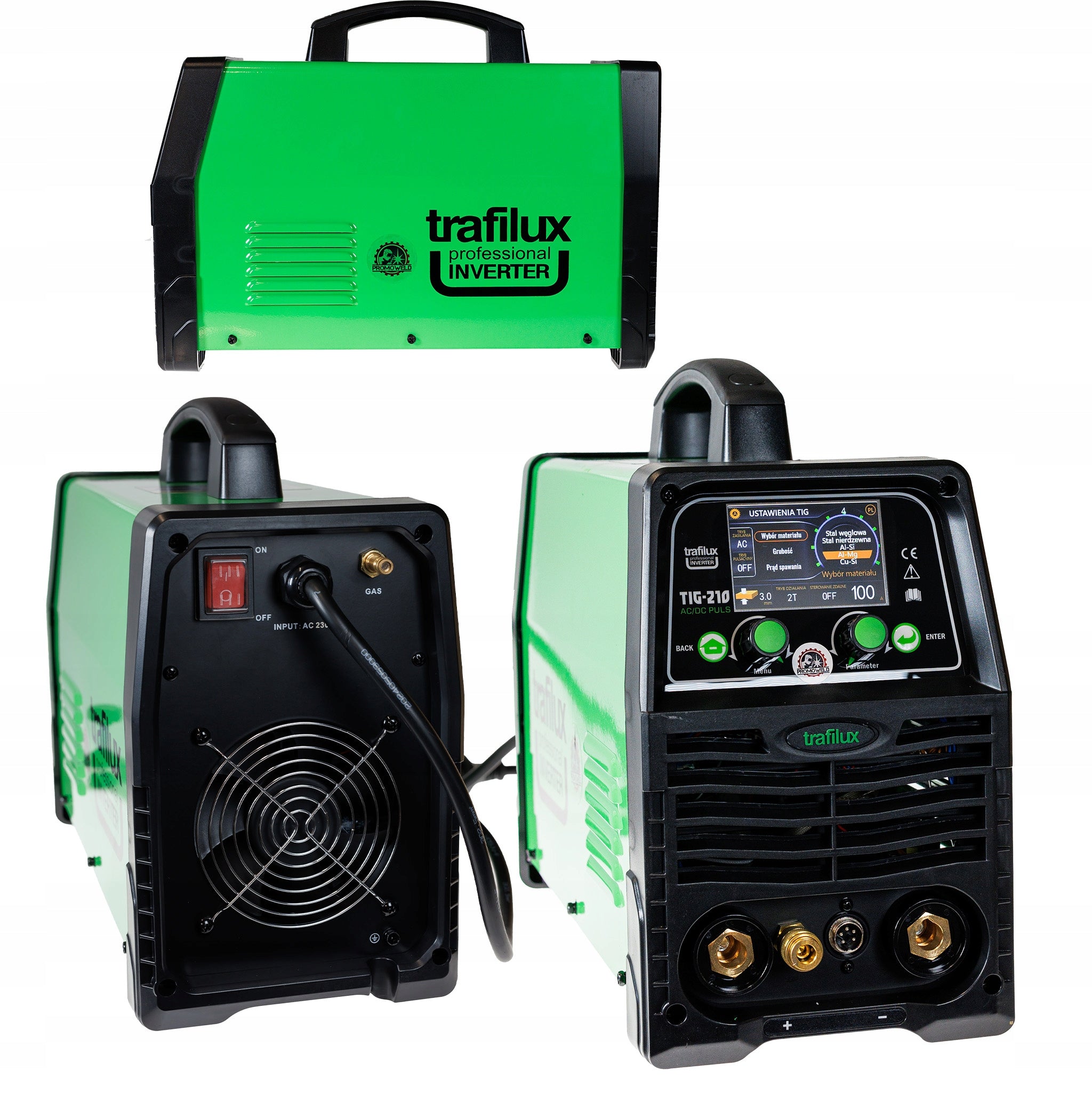

Suvirinimo aparatas TRAFILUX TIG 210 AC/DC Pulse su LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas TRAFILUX TIG 210 AC/DC Pulse su LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: Trafilux TIG 210 AC DC PULS HRSX_P1

• Menu in 5 languages
• Waveform change – 6 different waves
• Microprocessor with 18-channel memory allows the user to save any work programs
• Arch glow 2T – 4T
• Synergy – automatic selection of operating parameters.

It is an industrial microprocessor device equipped with a color LCD display, based on IGBT technology, adapted for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, all aluminum alloys.

The device is designed to carry out professional welding work. Thanks to the “LCD” control panel used, setting the operating parameters is easy and intuitive, even for less advanced users. The advantage of the device is high quality of workmanship, which translates directly into the result of welding work.

• AC/DC PULSE
• Full Synergy
• Professional mode 6 waveforms AC AUTO mode
• 4 languages to choose from including PL
• LCD display
• Synergy programs for: Black steel, AlMG, AlSi, INOX, CuSi3
• 18 channel memory
• Remote control via potentiometer holder or pedal
• 2T/4T SPOT - spot welding, BI-LEVEL

• ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake
• HOT START: hot start adjustment - facilitates the ignition of the electrode by providing more welding current with each arc.
• ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc
• SYNERGISTIC MODE - In auto mode, the device synergistically selects parameters based on user input such as material thickness, wire type, etc.

• TIG holder 26 - 4m
• Bulk cable 2m
• MMA electrode cable - 2m
• Tungsten electrode 2,4 mm
• Clamp sleeve and current connector
• Small cork + long
• Instruction in Polish

• Model: TIG 210 AC/DC PULSE
• Power supply / frequency 230/±15% 50Hz
• Working cycle@ 40°c 60% @ 200 A
• Working current TIG 10A - 200A
• HF or short-circuit mode
• Pulse Frequency 0,5-200 Hz
• Pulse Balance 5-95%
• AC balance 10-90%
• Gas advance 0-10 s
• Gas delay 0-10 s
• Security class IP 21
• Dimensions: 420x180x300mm
• Weight 9,2 kg

Specifications
