Trumpai apie prekę

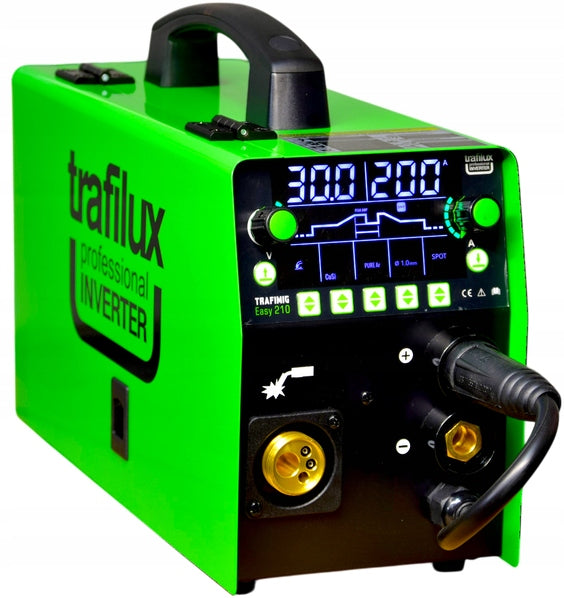

Prekė: Suvirinimo aparatas TRAFILUX HITMIG 210 EASY DUAL PULSE SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Trafilux
- Modelis: Easy 210 Dual Puls
- Ilgis: 460 mm
- Plotis: 220 mm
- Aukštis: 375 mm
✔ Professional inverter semi-automatic welding machine designed to work in workshop conditions giving the possibility of welding light structures. The device is characterized by compact size and low weight of 8kg. Extensive functionality of the device allows you to work in MIG/MAG, MMA, TIG lift modes.
✔ Synergistic semi-automatic machine with the possibility of double pulsation in the MIG/MAG method, thanks to which the quality of the weld does not differ from the weld obtained in the TIG method.

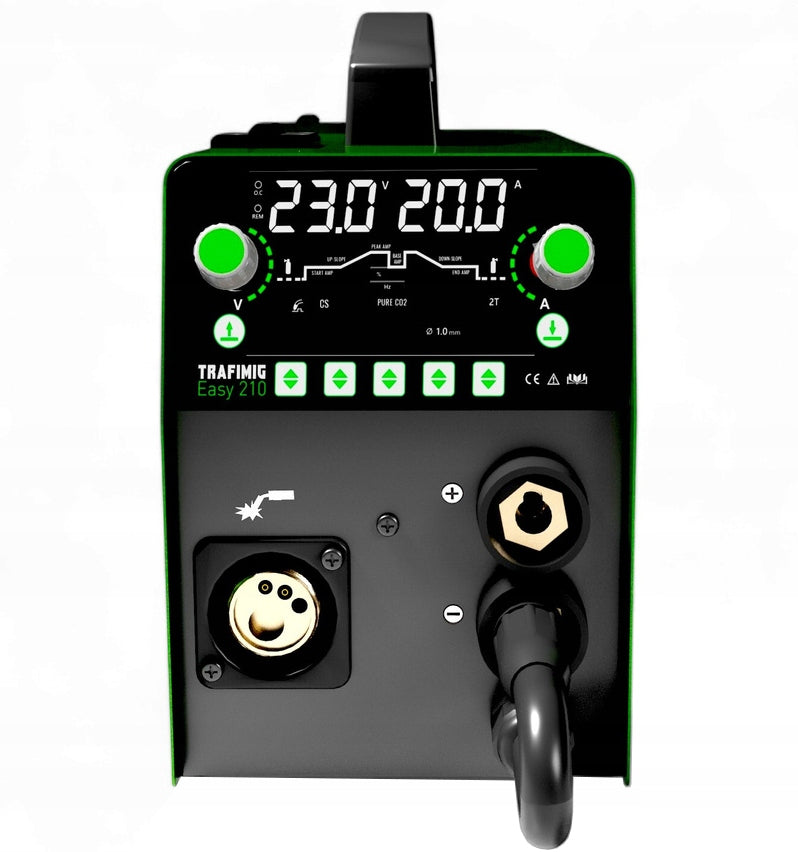

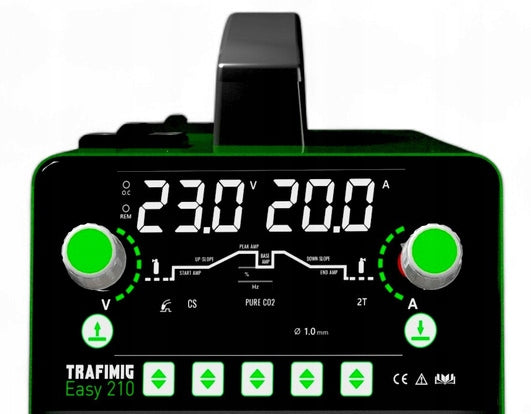

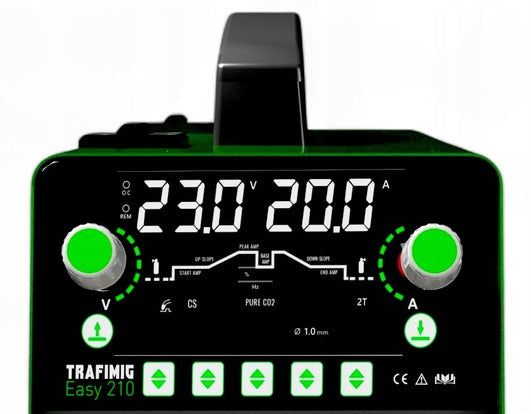

✔ Semi-automatic welding machine equipped with LED display, can work in modes:- 1 Pulse – single pulse, 2 Pulse – double pulse. MIG/MAG standard.
✔ Arc ignition modes 2 bar/4 bar, s2T, s4T (welding mileage graph as in TIG method). SPOT – possibility of spot welding and possibility of soldering CuSi3.
✔ The device can also work in the MMA method – giving the ability to adjust the value of current, arc dynamics ARC FORCE, HOT Start – hot start current facilitating the glow of the electrode. The device allows you to save operating parameters thanks to the built-in 18-channel memory.
✔ The design advantage of the device are transistors made in IGBT technology. A characteristic feature of this type of transistors is lower power consumption, less electromagnetic interference, with greater efficiency and a stronger and more stable welding arc.
- PULSE - DOUBLE PULSE - Synergy
- LED Display
- 2t/4t/SPOT/S2T/S4T
- 2 roller feeder
- Programs for INOX, AlSi, AlMg, CuSi3, CS.
- Large welding sockets
- Choosing the diameter of the wire
- Choosing a shielding gas mixture
Power supply / frequency: 230V±15%/50Hz
Operating cycle@ 40°C: 60% 200A - 230V
Operating current MIG: 20A - 200A
MMA working current: 20A - 200A
TIG operating current: 20A - 200A
Operating voltage MIG: 15 - 25V
Feeder Type: 2-Roll
Wire diameters: 0.8/1.0/1.2 mm
Protection class: IP 21
Dimensions (LxWxH): 460 x 220 x 375 mm
Weight: 8 kg
Welding machine Trafimig Easy 210 Trafilux
Holder MB24/3
Mass cable
Power plug 230V
Rollers Steel 0.8-1,0
Rollers ALU 1,0-1,2
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Trafilux |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 8 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Height | 375 mm |
| Parametry | Length | 460 mm |
| Parametry | Width | 220 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 10 kg |
| Parametry | Manufacturer code | TRAFIMIG 210 easy |
| Parametry | EAN (GTIN) | 5904044980050 |
| Parametry | Model | Easy 210 Dual Puls |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle |
