Trumpai apie prekę

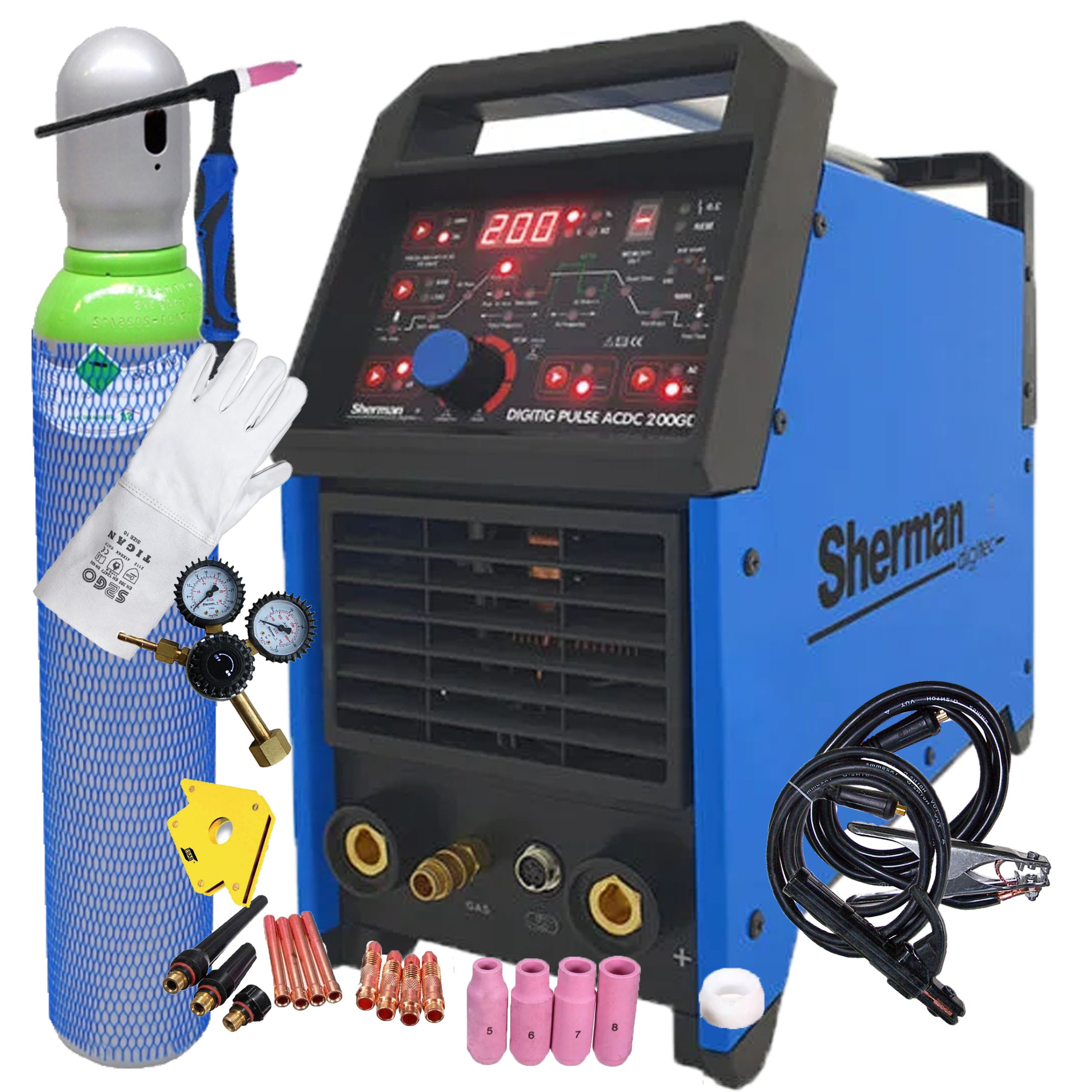

Prekė: Suvirinimo aparatas TIG AC/DC Sherman DIGITIG 200GD, 200A, aliuminiui ir MMA, 2-in-1 rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: SET1-SDIGITIGPACDC200GD
- full free support after purchase
- You can call us at any time and we will help you set the parameters and operate the device
Digital welding machine DIGITIG PULSE AC/DC 200GD is the latest generation device,
intended for professional use. It is made with IGBT technology and features
digital control. It is used for manual TIG welding of steel and non-ferrous metals with direct current and
alternating. The device is equipped with the option of MMA welding (wrapped electrode). In a wide
the scope is applicable to both production and service work. Welder
enables full digital adjustment and control of welding parameters of arc and pulse characteristics.
It features HF flashing, 2T/4T function, and a display indicating welding current. The device has
memory of the last setting, i.e. after turning it off and re-enabling it, are restored recently
set parameters and the ability to remember 10 sets of pulse and current parameter settings
welding. The set includes a TIG welding torch and a mass cable.
Has i.a. functions:
- TIG welding or wrapped electrode (MMA) welding
- DC or AC welding (both TIG and MMA)
- two-bar/four-point for TIG method
- memory
- HF contactless glow
- welding with or without PULSE. Pulse is mainly used for welding stainless steel. It allows you to significantly reduce the overheating zone of the material and get a very good melting. The weld is then narrower and prettier, reduces the risk of distortion of the weld element, less discoloration, etc.
- AC frequency adjustment responsible for arc focus
- Balance adjustment
- HOT START - increase the current at the start for easier arcing
- ANTI STICK - short-circuit protection function for both MMA and TIG methods
- ARC FORCE - stabilizes the arc regardless of its length
Moreover
- DIGITAL DISPLAY facilitates precise selection of welding current.
TECHNICAL DATA:
- Power supply voltage [V]: AC 230 50Hz
- Welding methods: TIG AC/DC, MMA
- Execution technology: IGBT
- Welding current [A]: TIG: 200/ MMA: 180
- Working cycle [%]: 40
- Voltage in foreign state. [V]: 59
- Max. power consumption [A]: TIG: 36,5 / MMA: 26,8
- Max. power consumption [kVA]: TIG: 4,2 / MMA: 6,6
- Welding Current Adjustment: Liquid
- Gas flow [s]: 0,1-1
- Gas flow [s]: 0-15
- Power build-up [s]: 0-10
- Power drop [s]: 0-25
- Initial current [A]: 10-200
- Base current [A]: 5 to 95% welding current
- Crater current [A]: 10-200
- Pulse frequency [Hz]: 0,5-200
- Pulse duration [%]: 10-90
- Frequency AC [Hz]: 40-200
- AC Balance [%]: 30-70
- Electrical amplitude [%]: ---
- ARC FORCE [A]: ---
- Mass [kg]: 18,5
- Dimensions (D x SZ x W) [mm]: 455 x 195 x 415
- Functions: Digital control, HF, 2T/4T, Current build-up, Current drop, Pulse, Gas preflow and outflow time adjustment, Electrode cleaning function, Welding current frequency adjustment, AC welding

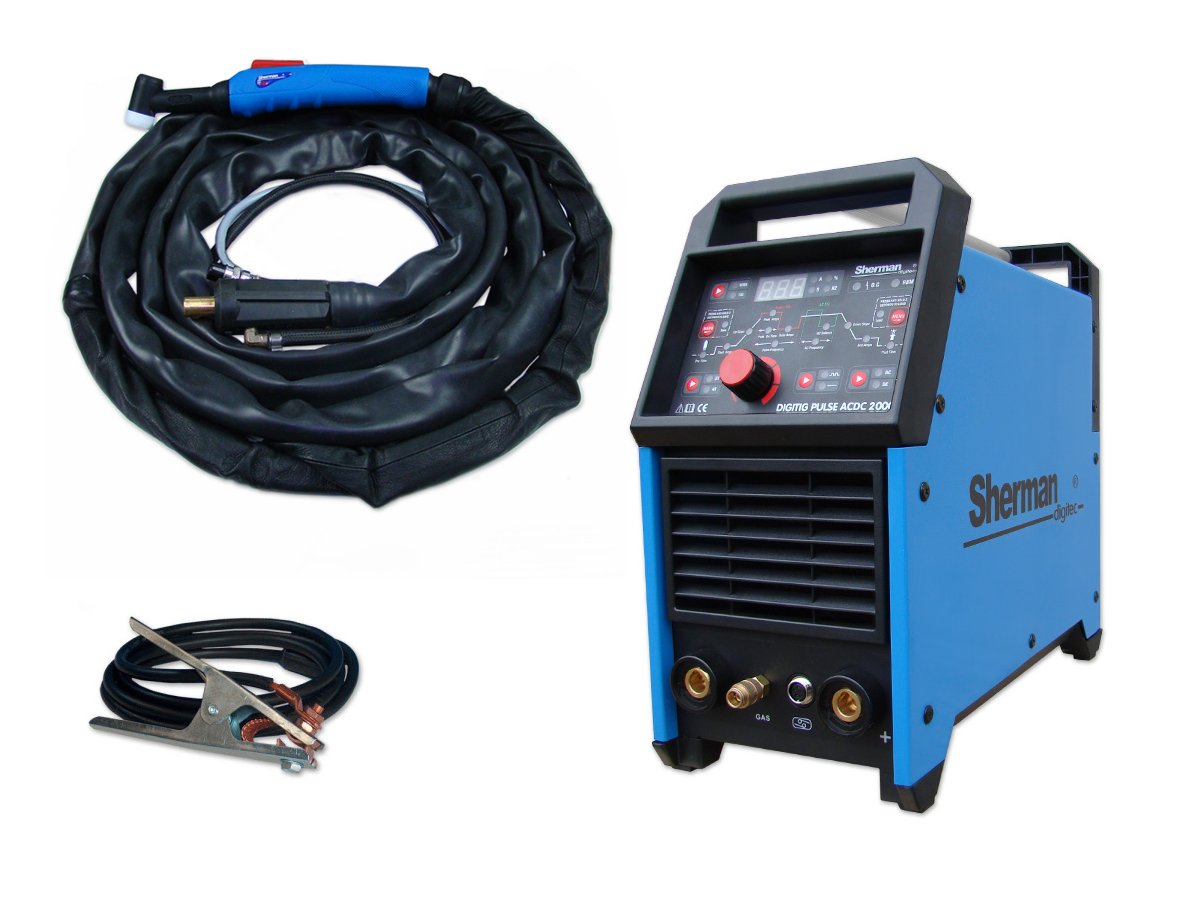

- Welding machine DIGITIG 200GD PULSE AC/DC
- TIG SR-26/4m welding torch
- Bulk cable
- ELECTRODE HOLDER
- User manual
+ Ar 8l WELDING KIT
- Ar 8l cylinder (argon) - certified, has all the approvals required by the filling points of the cylinder,
- Ar/CO2 gas reducer with two clocks,
- Magnetic angle
- Welding gloves
- gas line,
- welding gloves.
+ STARTER SET OF BURNER PARTS - TIG AC/DC
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 4.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 40% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 18.5 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 19 kg |
| Parametry | Manufacturer code | SET1-SDIGITIGPACDC200GD |
| Parametry | EAN (GTIN) | 5906372629144 |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
