Suvirinimo aparatas SPARTUS EASYMIG 217 Dual Pulse

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASYMIG 217 Dual Pulse. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYMIG217DP-PAK-15-3
• Ilgis: 490 mm
• Plotis: 225 mm
• Aukštis: 340 mm

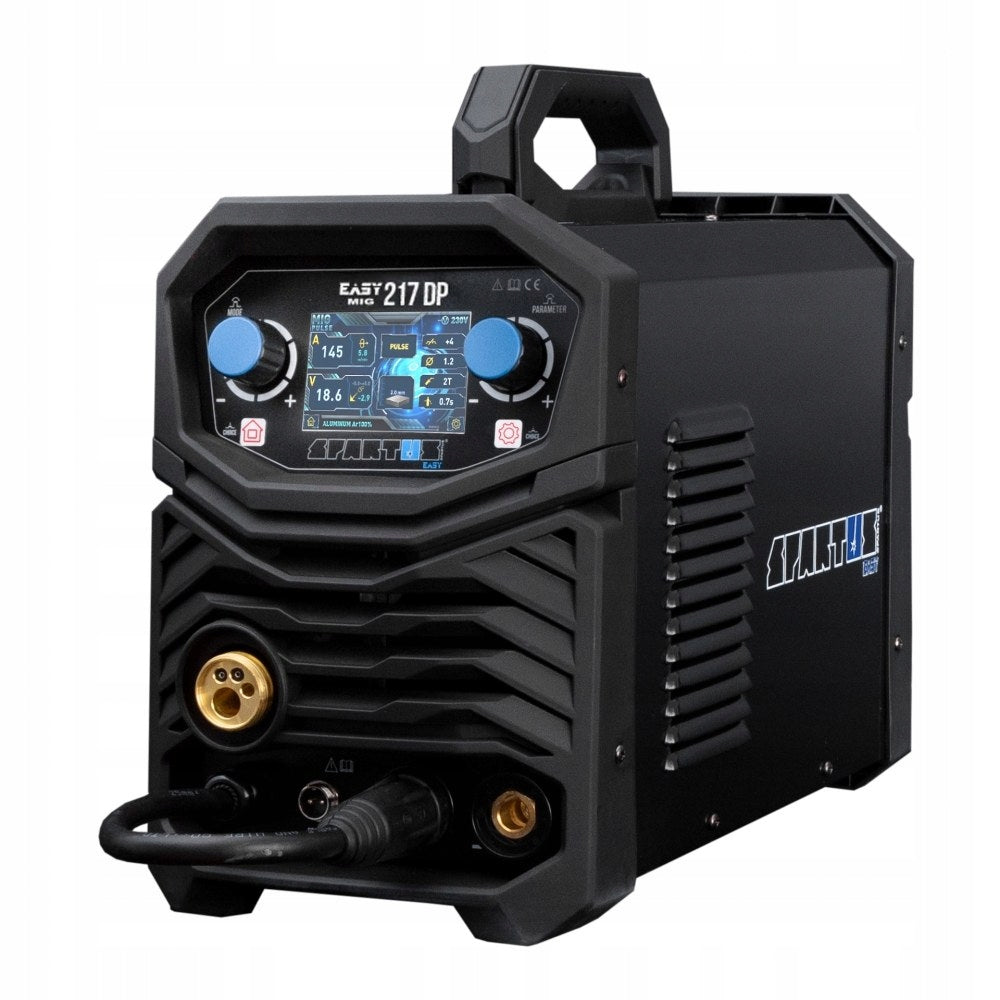

SPARTUS® EasyMIG 217DP is a modern, inverter semi-automatic welding machine based on IGBT transistors.

It enables:

synergistic MIG/MAG welding with double pulsation,

synergistic MIG/MAG welding with pulsation,

MIG/MAG welding in synergistic mode,

MIG/MAG welding in manual settings mode,

TIG Lift welding,

MMA wrapped electrode welding.

In addition, the device, thanks to the ability to change the polarity of welding, allows welding with self-shielding wire without gas.

The maximum welding current for MIG/MAG/TIG/MMA methods is 200A. The device is powered from a single-phase 230V network.

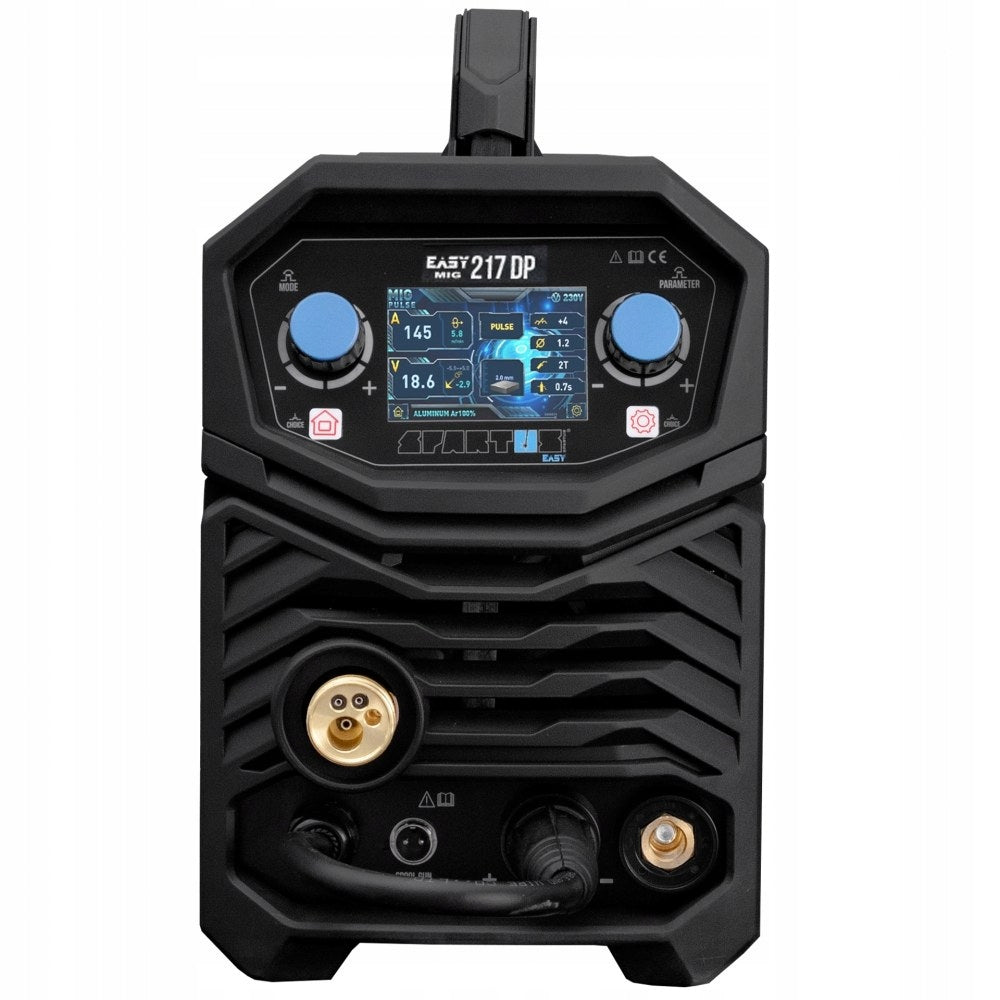

The modern LCD display allows you to easily and quickly set the welding current voltage and manage the functions of the device.

During the correction of parameters, the display determines the dependence of the weld shape in relation to the voltage and graphically indicates the recommended material thickness for the selected current.

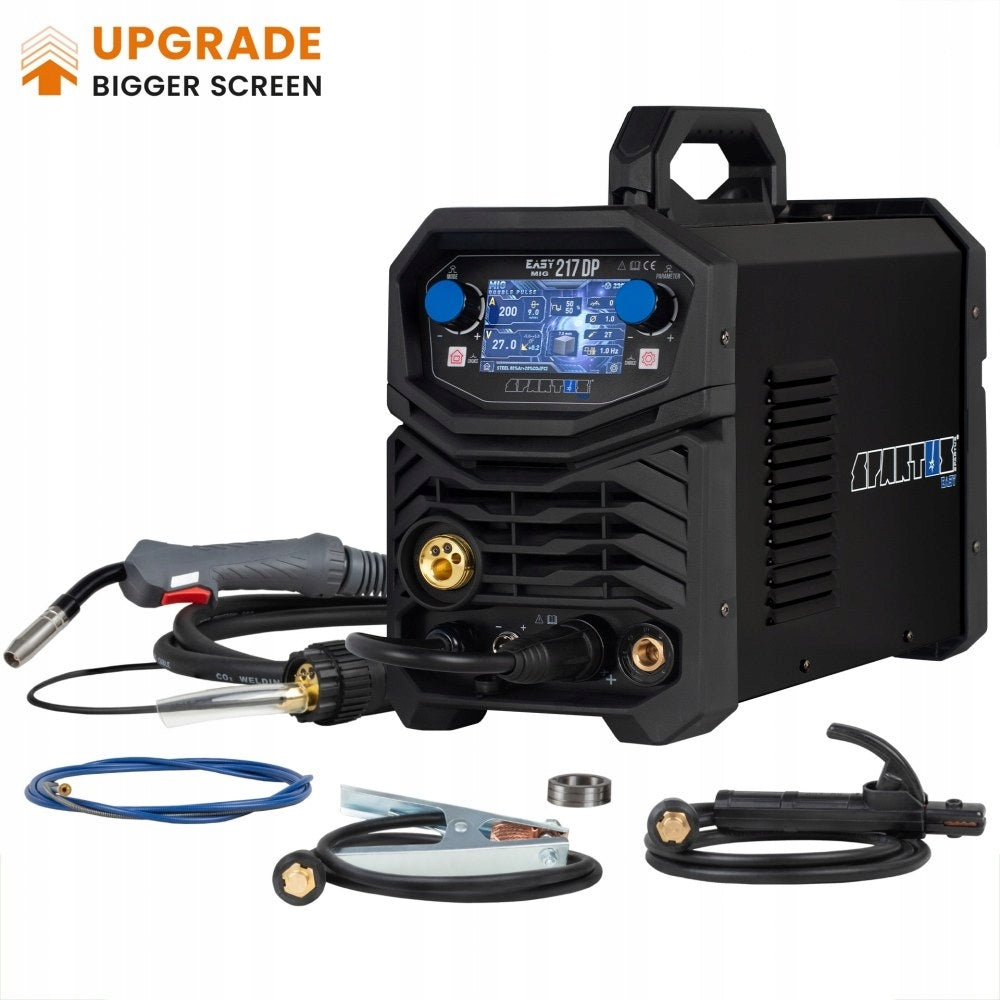

The set includes:

• ✅ SPARTUS ® EasyMIG 217DP welding machine

  ✅ MIG SPE 150 torch – 3 m

  ✅ Inserts for steel and aluminum wire

  ✅ Electrode holder

  ✅ Ground cable

  ✅ Gas hose

  ✅ User manual in Polish

SPARTUS EasyMIG 217 DP is a modern, inverter semi-automatic welding machine based on IGBT transistors. Enables: synergic MIG/MAG welding with double pulse, synergic MIG/MAG welding with pulse, MIG/MAG welding in synergic mode , MIG/MAG welding in manual setting mode, TIG Lift welding, MMA coated electrode welding.

Additionally, thanks to the ability to change welding polarity, the device enables welding with self-shielding wire without gas.

Why you should buy in ATER TECHNICAL GASES

⭐Original product – highest quality with full guarantee

⭐Fast shipping – order today, get by express

⭐Professional advice – we will be happy to help you choose

⭐Safe shopping – guarantee of satisfaction

✅ Guarantee- door-to-door manufacturer

Technical parameters:

• Supply Voltage: ~1× 230 V ± 10% 50 / 60 Hz
• MIG/MAG welding current: 30 - 200 A
• TIG Lift DC/MMA welding current: 10 - 200 A
• Working cycle: 60%
• Output operating voltage: 15.5 - 24.0
• Power consumption: MIG 37 A / TIG 28 A / MMA 43 A
• Feeder Type: Built-in, 2-Roll
• Wire spool: ≤ 5 kg / ∅200 mm
• Wire Diameter: 0.8 / 1.0 / 1.2
• Synergy: yes
• Manual settings (manual): yes (MIG/MAG)
• 2T/4T operating mode: yes
• Pulse: yes (single and double)
• Inductance regulation: yes
• Spool Gun: yes (optional)
• Polarity change: yes
• Arc Force: yes, 0-10
• Hot Start: yes, 0-10
• VRD: yes
• Power factor (cosφ): 0.73
• Efficiency η: 77%
• Insulation Class: H
• Degree of protection: IP21S
• Weight: 12 kg
• Dimensions: 490 x 225 x 340 mm
