Suvirinimo aparatas SPARTUS EASYMIG 210 LED MIG/TIG/MMA

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASYMIG 210 LED MIG/TIG/MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Matiw
• Modelis: P012453

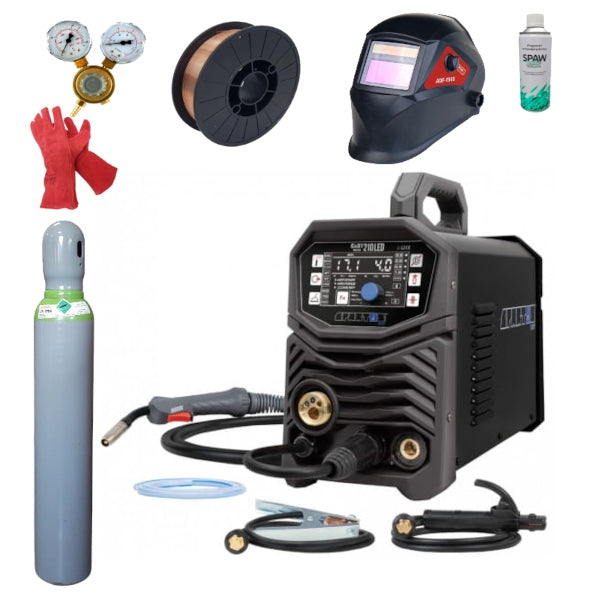

1. SET WELDING MACHINE MIGOMAT SPARTUS EASYMIG 210 LED SYNERGY MIG TIG MMA

2. 8L MIX CYLINDER FILLED WITH ARGON MIX 82% Co2 18%, PRESSURE 150 bar

3. CYLINDER REDUCER ARGON CO2 MINI 2 PRESSURE GAUGES

4. AUTOMATIC VISOR

5. MIG SG2 0,8 5kg WELDING WIRE

6. SPAWMIX ANTI-CHIPPING PREPARATION

7. MIG WELDING GLOVES

8. HOSE AND BANDS FOR CONNECTING GAS TO THE DEVICE

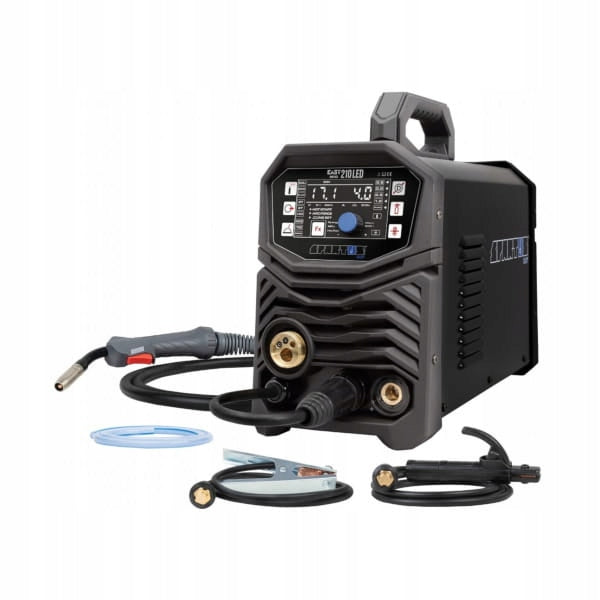

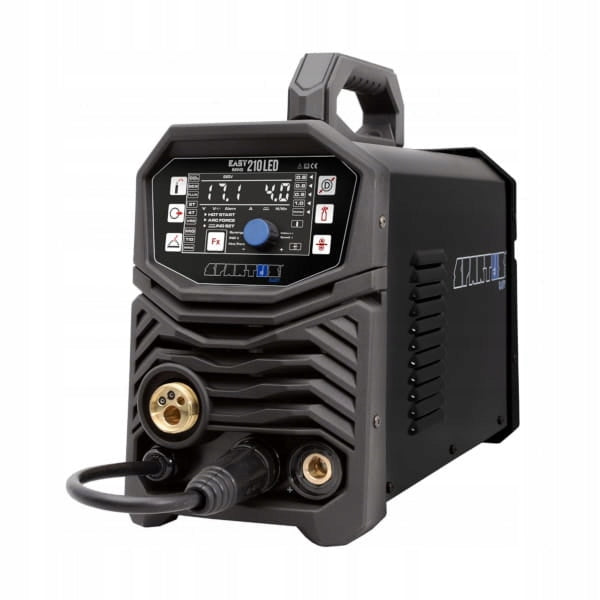

SET WELDING MACHINE MIGOMAT SPARTUS EASYMIG 210 LED SYNERGY MIG TIG MMA

SPARTUS EasyMIG 210LED is a small semi-automatic welding machine, constructed on the basis of IGBT transistors. It enables MIG/MAG, TIG Lift welding with current up to 200A and MMA up to 160A. It is powered from a single-phase 230V network.

EasyMIG 210LED is an intuitive welding device characterized by simplicity, which will certainly be appreciated by novice welders. Thanks to its light weight and compact design, it is perfect as a portable semi-automatic welding machine. Any renovation work in the field is an ideal task for this machine.

The simple and intuitive LED display allows for easy management of welding machine parameters.

EasyMIG 210LED is equipped with a simple synergistic system for MIG/MAG welding with steel wires with a diameter of 0,6 / 0,8 / 1,0 mm with the possibility of manual parameter correction. The device also has functions supporting the welding process for MIG/MAG methods:

- inductance – control of face width and depth of melting, reduces the number of welding chips

- possibility of welding in two modes: 2T/4T.

The device also works in manual mode, which allows you to set all welding parameters according to the individual requirements of the user.

External polarity change of welding in EasyMIG 210LED, allows welding with self-shielding wires without gas.

Built-in, two-roll feeder ensures stable feeding of welding wire. A small spool significantly relieves the machine, which is an undoubted advantage during transport.

EasyMIG 210LED enables TIG Lift 200A welding, with a high 60% duty cycle. The device works with TIG welding torch with valve (recommended SPE17V-4-H100-X-SK35)

The device also allows for basic MMA welding. Built-in functions to support this process are:

- Hot Start – so-called. hot start - facilitated glowing of the electrode

- Arc Force – arc dynamics adjustment – facilitated welding in forced positions

- VRD – reduced idle voltage, increased work safety.

PARAMETERS

- Supply voltage: ~1× 230V ± 10% 50 / 60 Hz

- MIG welding current: 50 - 200A

- MIG duty cycle: 60%

- Output voltage: 16.5 - 24V

- Feeder type: built-in, 2 - roller

- Wire feed speed: 2 - 12.5m/min.

- Wire spool: ≤ 5kg / ∅200mm

- Wire diameter: 0.6 / 0.8 / 1.0mm

- Synergy: yes

- 2T/4T operating mode: yes

- Arc Force: yes

- Hot Start: yes

-VRD: yes

- Power consumption: MIG 39 / TIG 29 / MMA 34

- Power factor (cosφ): 0.73

- Efficiency η: 77%

- Insulation class: H

- Degree of protection: IP21S

- Weight: 10kg

- Dimensions: 470 x 190 x 330mm

- Producer: Spartus

CONTENTS OF THE SET

- EasyMIG 210LED welder

- SPARTUS® MIG SPE 150 3m handle

- Guide roller 0.8 - 1.0V fi30

- Electrode holder

- Bulk cable

- Gas hose

- User manual

BOTTLE MIX - 18 MIX ARGON 82% Co2 18% 8L 150BAR FULL NEW

8l cylinder filled with compressed MIX-18 Argon 82%, Co2 18%, pressure 150 bar. Cylinder included with protective cap. The cylinder is designed for welding in protective gas shielding and for industrial applications.

MINI ARGON/CO2 CYLINDER REDUCER

Single stage cylinder reducer with two pressure gauges. The reducer allows you to adjust the pressure of the outflowing gas and provides a constant value of gas flow regardless of changes in inlet pressure. It is equipped with a safety valve, through which when the outlet pressure rises above the permissible excess gas is released from the outlet pressure chamber to the outside.

AUTOMATIC WELDING VISOR IDEAL ADF-1900 BLACK

Welding visor with variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity. Designed for MIG/MAG and MMA welding, equipped with a grinding function.

WELDING WIRE SPOOL MIG MAG SG2 0,8mm 5kg

Welding wire copper spool MIG MAG with the addition of manganese and silicon with a thickness of 0,8 mm, designed for MIG/MAG welding.

SPAWMIX ANTI-CHIPPING PREPARATION, MIG WELDING GLOVES, GAS HOSE, CLAMPS

Spawmix aerosol preparation for protecting burner elements against chipping during welding and for surface protection. Improves gas patency and current contact of the burner. Capacity: 400 ml.

Welding gloves made of high quality bovine split, resistant to mechanical damage, lined. Size 10.

Hose and clamps to connect the reducer to the device.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Matiw
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	10 kg
Parametry	Welding range	50–200 A
Parametry	Product weight with unit packaging	10 kg
Parametry	Manufacturer code	P012453
Parametry	EAN (GTIN)	5907056439707
Parametry	Welding methods	MIG/MAG,MMA,TIG
