Suvirinimo aparatas SPARTUS EASYMIG 210 LED, 200A, 3in1 (MIG/MMA/TIG lift)

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASYMIG 210 LED, 200A, 3in1 (MIG/MMA/TIG lift). Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: Easymig
• Ilgis: 470 mm
• Plotis: 190 mm
• Aukštis: 12 mm

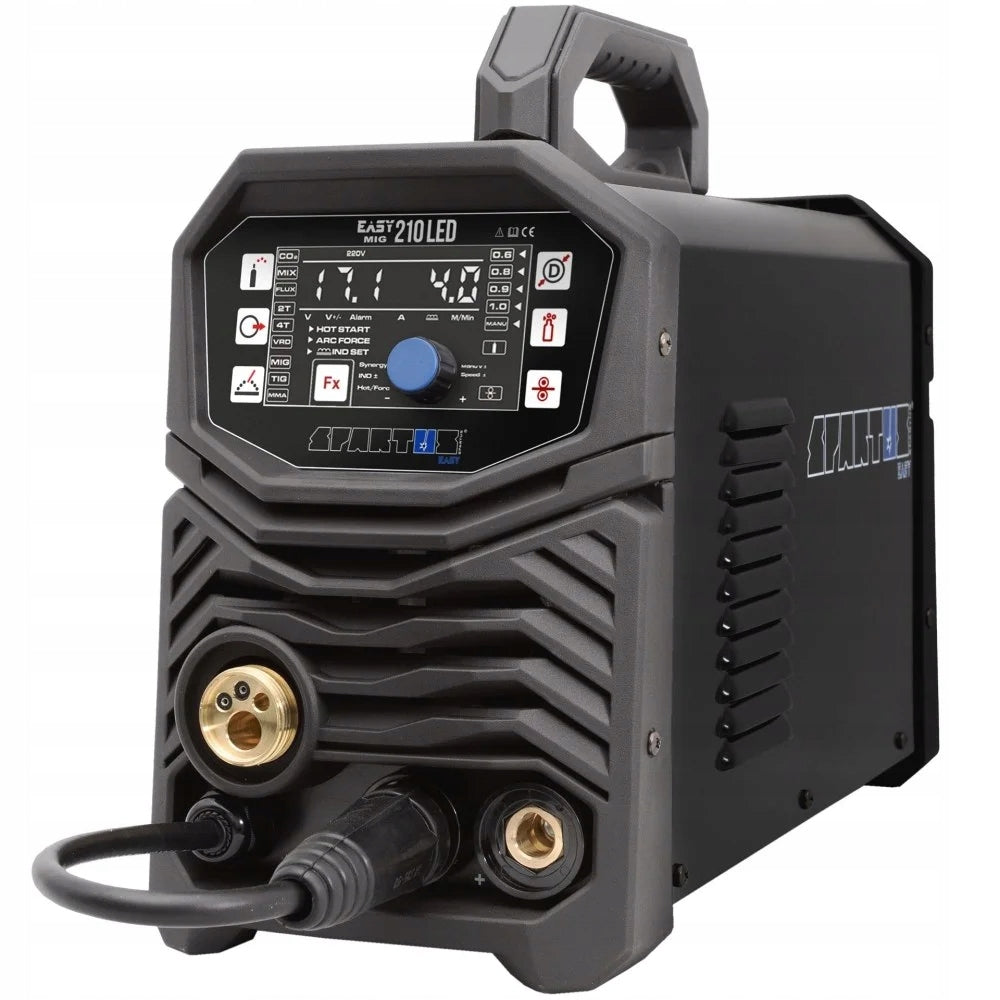

SPARTUS EASY MIG 210 LED - SOLID MIGOMAT WITH SYNERGY

Spartus EasyMIG 210 LED is a compact migomat powered by 230V, designed for comfort and efficiency in welding MIG/MAG, with the option of TIG Lift and MMA. Welding with 0,6 – 1,0 mm wires with a maximum current of 200A, which makes it perfect for car repairs, workshop work and hobby projects. It is equipped with a synergistic system (black steel), which precisely selects welding parameters (the possibility of slight correction), and a manual mode that provides flexibility for more demanding tasks. The advantages of the model include inductance adjustment limiting chipping, the ability to change polarity for welding without gas in the field, as well as the 2T/4T mode facilitating sessions with long welds. The welder offers a robust housing and a modern control panel - with a weight of 10 kg, it is easy to transport. It is an excellent choice for people who value practical technological solutions, simplicity of use and high quality of welds.

SYNERGISTIC WELDING WITH MANUAL OPTION - PRECISION AND FLEXIBILITY

The EasyMIG 210 LED welding machine has a synergistic system MIG/MAG, which automatically selects welding parameters for steel wires with diameters of 0,6, 0,8 or 1,0 mm and based on the type of shielding gas. This solution is especially useful for beginners or in routine tasks, where it reduces preparation time and errors, leading to repetitive, high-quality results. In addition, if necessary, it is possible to manually correct the parameters. Manual mode available in this model is, in turn, a tool for experienced welders who work with unusual materials, such as thin aluminum sheets or special alloys, requiring precise current and voltage balance. It is essential when standard synergies do not match personal preferences, e.g. Slower weld guidance for deeper penetration or faster for performance.

INTUITIVE LED PANEL - SIMPLICITY AND FULL CONTROL

Simple and intuitive control panel of the EasyMIG 210 LED welding machine with bright display is the key to easy and efficient welding. Large, ergonomic buttons allow you to choose the method (MIG/MAG, TIG Lift, MMA), mode (2T/4T/VRD), gas (CO2, MIX, without gas) or wire (0,6/0,8/1,0 mm) - even in welding gloves. The backlight on the panel clearly shows the active function, eliminating mistakes. The logical system with separate fields for voltage (in volts) and wire speed (in m/s) ensures readability of parameters, which speeds up work in the workshop or on the construction site. Smoothly operating potentiometer allows precise setting of current, voltage, inductance or Hot Start and Arc Force functions without annoying jumps. It is a solution for welders who value simplicity and reliability - from routine tasks to precise projects.

INDUCTANCE ADJUSTMENT - ARC CONTROL FOR IDEAL WELDS

Migomat Spartus 210 LED offers inductance adjustment, which allows you to adjust the characteristics of the welding arc to a specific task. This function controls the dynamics of metal transfer in the MIG/MAG process, allowing you to reduce spatter and improve arc stability, especially when welding with steel wires. Lower inductance provides a harder arc and deeper penetration, ideal for thicker materials, while higher gives a softer arc, reducing overheating of thin sheets, e.g. in body repairs. This solution is particularly useful for welders working with different thicknesses of steel or in forced positions where arc stability is crucial.

ADDITIONAL ADVANTAGES OF SPARTUS EASYMIG 210LED:

✅ IGBT Technology: Power and Stability IGBT (Insulated Gate Bipolar Transistor) technology ensures higher performance and reliability of the welding machine. It enables precise current control, reduces energy losses and increases work efficiency. The welder delivers a stable, strong welding arc, which translates into better weld quality and greater durability of the device

✅ 2-Roll Solid Feeder: Smooth Welding The device is equipped with a high-quality metal wire feeder with 2 rollers. It ensures even and precise wire feeding, which has a positive effect on the stability of the welding process. Its design allows you to work on D200 spools up to 5 kg.

✅ 3in1 device: Versatility and Functionality One device for efficient MIG/MAG welding, precise TIG DC and versatile MMA. Modern design and advanced technology ensuring the highest functionality in each method. Save space, time and money without compromising on quality and performance.

✅ 2T/4T Two-bar and Four-bar: Greater Working Comfort Choose between the classic two-bar (2T) mode for shorter welds, where welding starts and ends with the push of a button, and the four-bar (4T) mode, which allows continuous welding without the need to hold the button. The four-bar mode will be ideal for long welds and for working in forced positions.

✅ Flux Self-shielding Wire Welding: Ease of Use The method is ideal for welding various types of steel, ensuring mobility and efficiency without the need for a gas cylinder. It will allow you to work outdoors in harsh weather conditions, an excellent choice for field projects and repairs.

✅ Hot Start: Easier Lighting The Hot Start function automatically increases the current at the beginning of the process, which significantly facilitates the glowing of the electrode. Thanks to this, even when welding more difficult materials, such as stainless steel, you can achieve a stable arc from the very beginning. This eliminates the problem of the electrode sticking to the welded material, ensuring a smoother and more efficient welding start.

✅ Arc Force: Stability and Control Arc Force is a feature that allows dynamic adjustment of the short-circuit current, which facilitates the transfer of a drop of molten electrode to the welded material. Prevents arc extinction when electrode droplets come into contact with the welding lake, increasing arc stability and reducing the amount of chipping. Thanks to Arc Force, welding becomes more efficient and the quality of the weld improves significantly.

✅ TIG DC Lift: TIG Lift welding precision allows the arc to glow by touching the surface of the material with an electrode and then lifting it. The method is available in most modern inverter welding machines (MIG/MAG, MMA), using TIG handle with valve. Ideal for precision welding of various metals such as stainless steel and carbon steel.

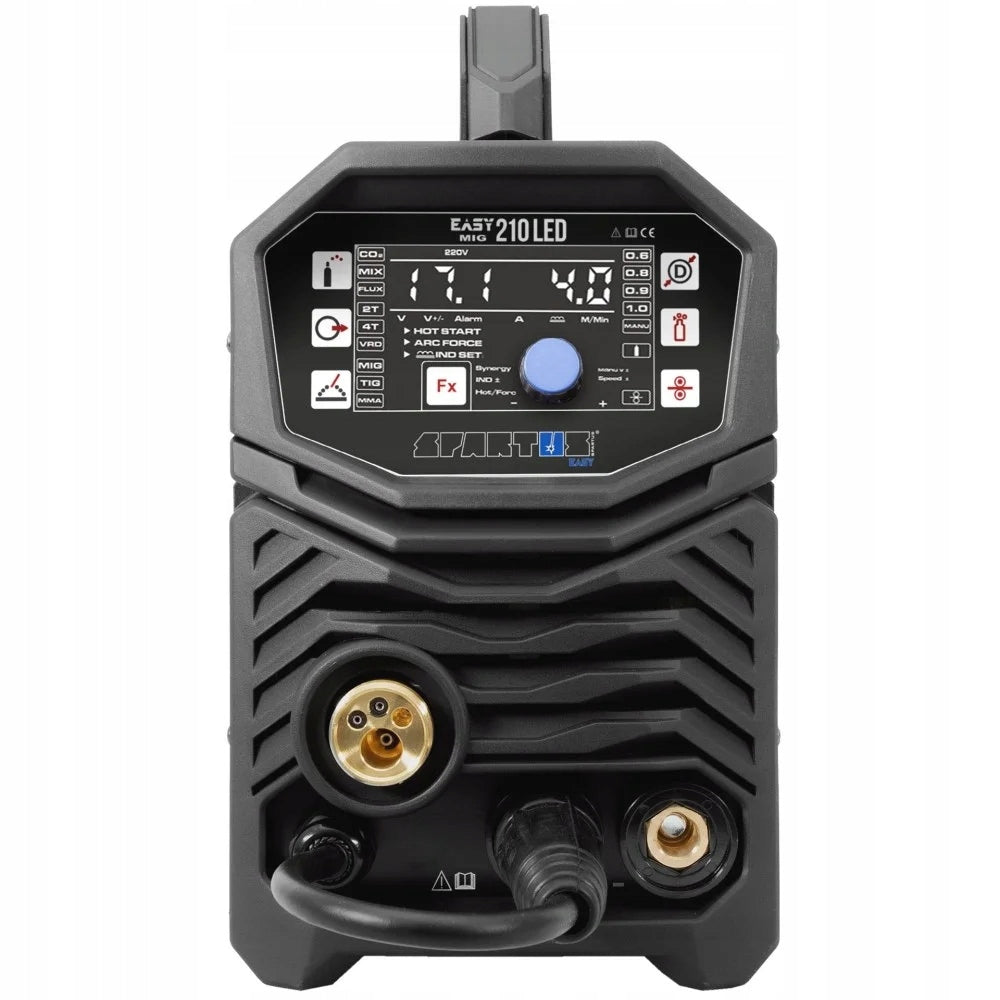

• A1 Parameter display
• A2 Welding method selection button: MIG/MAG / TIG Lift / MMA
• A3 Welding mode selection button: 2T/4T/VRD
• A4 CO2 gas selection button / MIX / without gas
• A5 Section button: MIG/MAG – MMA inductance – Hot Start, Arc Force
• A6 Wire diameter selection button 0.6 / 0.8 / 1.0
• A7 Parameter adjustment knob: voltage / current and voltage / wire feed speed / inductance / Hot Start / Arc Force
• A8 Gas outflow test button
• A9 Wire extension test button

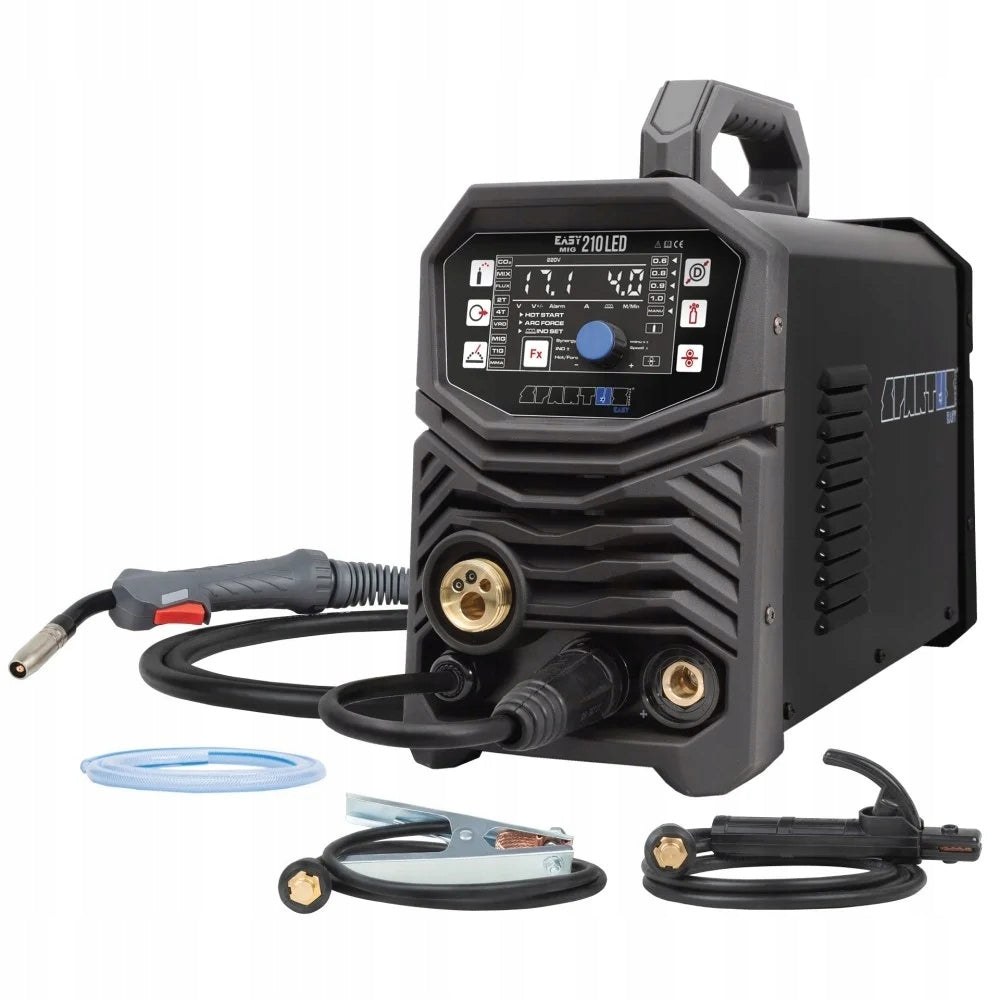

THE COMPLETE SET INCLUDES:

• Welding machine Spartus Easy MIG 210 LED - 230V
• Handle MIG SPARTUS® Easy 150 (Type MB 15) - 3 m
• electrode holder
• mass cable
• Gas hose
• Instruction manual in Polish
