Suvirinimo aparatas Sherman MIG 200A MMA TIG MAG Synergy 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman MIG 200A MMA TIG MAG Synergy 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: DIGI MIG 210 XS

MANUFACTURER: SHERMAN || WELDING METHODS: MIG/MAG, MMA, TIG Lift, FLUX, Soldering || SELECTED ADVANTAGES: Synergy MIG/MAG || POWER SUPPLY: 230V

➡ Versatility of welding methods: MIG/MAG, MMA, TIG LIFT, FCAW and solder welding.

➡ Synergistic programs and Manual mode: Use ready-made welding programs or adjust the settings yourself.

➡ Professional metal 2-roll feeder: Certainty of smooth wire feeding.

➡ Additional options: Weldable with Spoolgun handle.

➡ Burn Back: wire burning function to prevent the wire from melting to the current tip.

➡ Power supply from the mains 230V: Stable operation in all conditions.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 35% 200A, 100% 118A
• Protection: IP21S

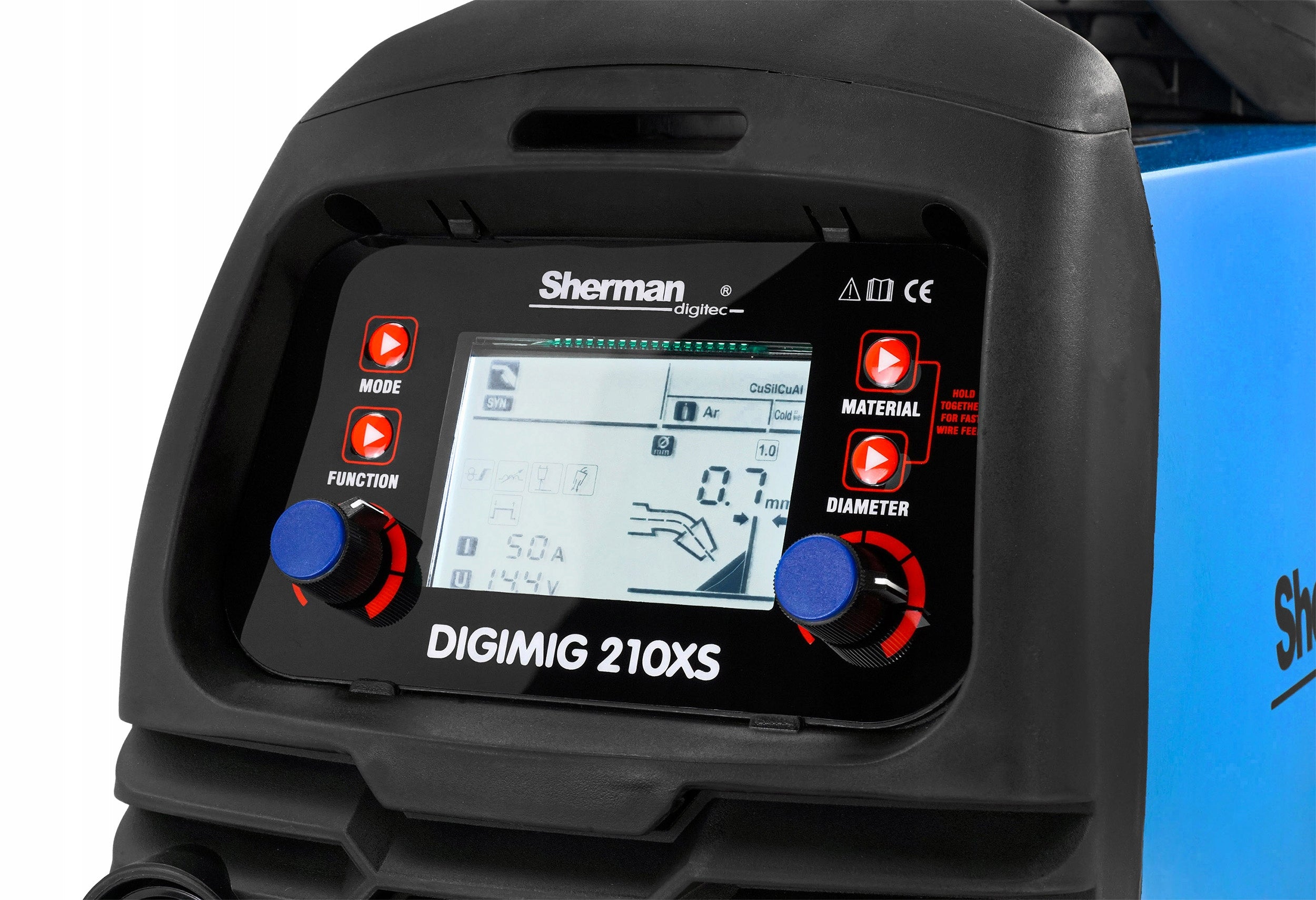

• LCD display
• Net weight: 13kg

MIG/MAG welding parameters:

• Welding Current: 20 - 200A
• Welding Voltage: 14,5 - 24V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm
• Wire spool weight: max. 5kg (D100, D200)
• Synergic programs: Fe CO2, Fe Ar/CO2, Flux, AlMgAlSi, Ss, CuSi/CuAl
• Correction of synergistic programmes: YES
• Manual Settings Mode: YES
• MIG/MAG spot welding: YES,
• Welding inductance adjustment: YES,
• BurnBack: YES,
• Adjusting the feeder access speed: YES,
• Other functions listed in the description.

MMA welding parameters:

• Welding Current: 10-200A
• Maximum electrode diameter: 3,2mm
• Idle Voltage: 63V

TIG welding parameters (optional):

• Welding Current: 10-200A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve*

*TIG handle with valve is available for sale at our other auctions

▶ Multifunctional welding machine based on IGBT power transistors

DIGIMIG 210 XS by SHERMAN is a technologically advanced welding device for welding using the following methods: MIG/MAG, MMA, TIG DC Lift, FCAW (self-shielded wire without gas) and for soldering galvanized sheets.

The machine has been designed for all kinds of welding work in locksmith workshops, repair and production. It is an ideal source for working in the automotive industry in repairing vehicle body parts, etc.

Excellent value for money. The machine is packed with functions that have been out of range in devices of this class so far. The design and software allow to obtain the highest quality weld when welding any weldable materials made of black steel, stainless steel, acid-resistant steel, aluminum alloys and copper.

Excellent welding characteristics

The device is made on the basis of modern power transistors and high quality control standards. The source is characterized by low power consumption and resistance to interference, which translates directly into excellent welding quality. The welder is powered from a single-phase 230V network.

ADVANTAGES OF THE DEVICE:

• welding machine from the manufacturer with many years of experience in the industry,
• excellent welding parameters and simple operation,
• has synergistic MIG/MAG programs with the possibility of correction,
• the display shows the influence of parameters on the shape of the weld face,
• possibility of soldering - has a special program for professional process,
• has dedicated programs for welding aluminum and stainless steels,
• possibility of welding in manual settings mode,
• is powered from a single-phase 230V network,
• has additional, advanced functions for welding,
• has a MIG EURO handle socket,
• TIG DC Lift welding (optional), MMA (MMA cables included).

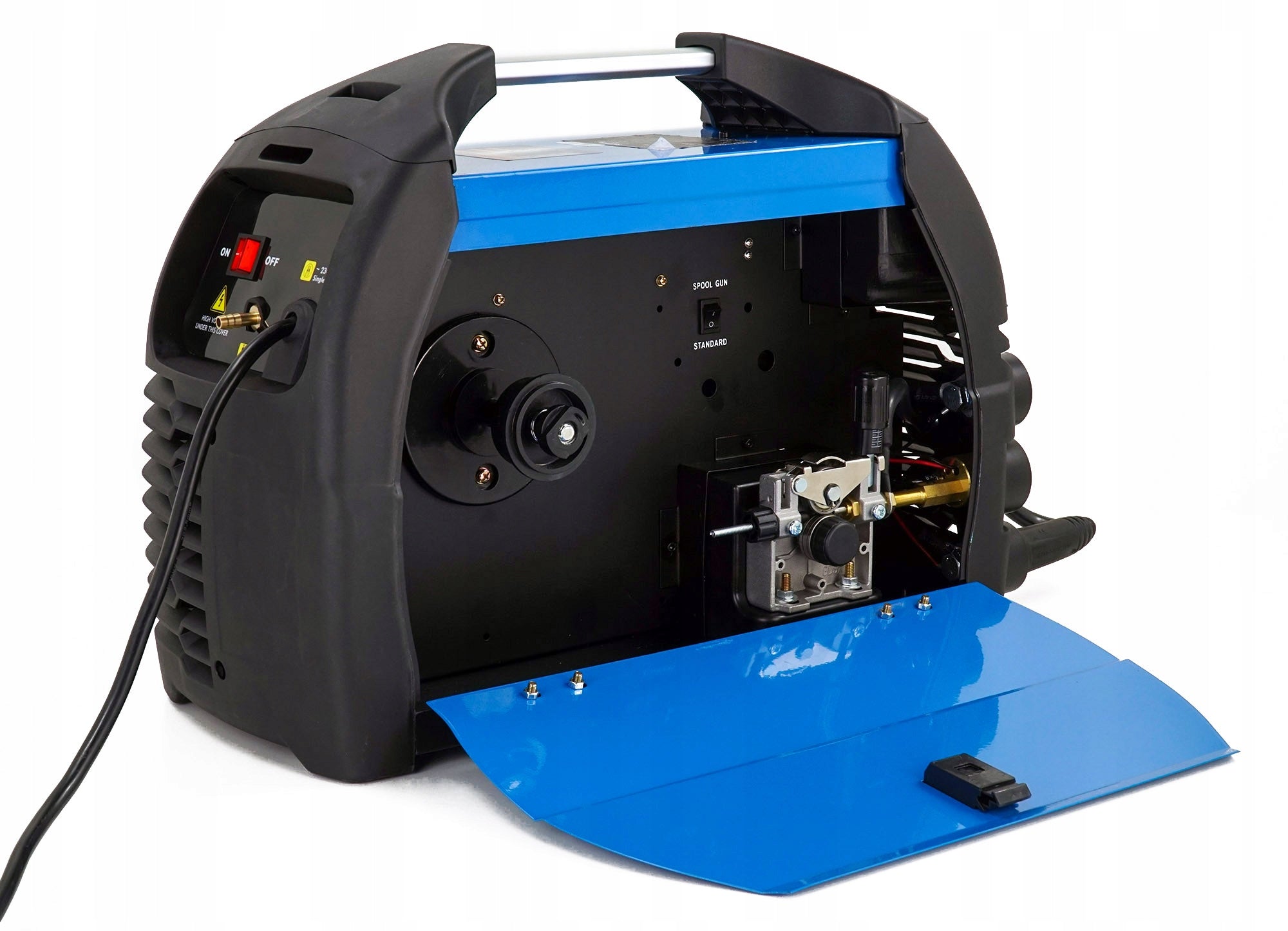

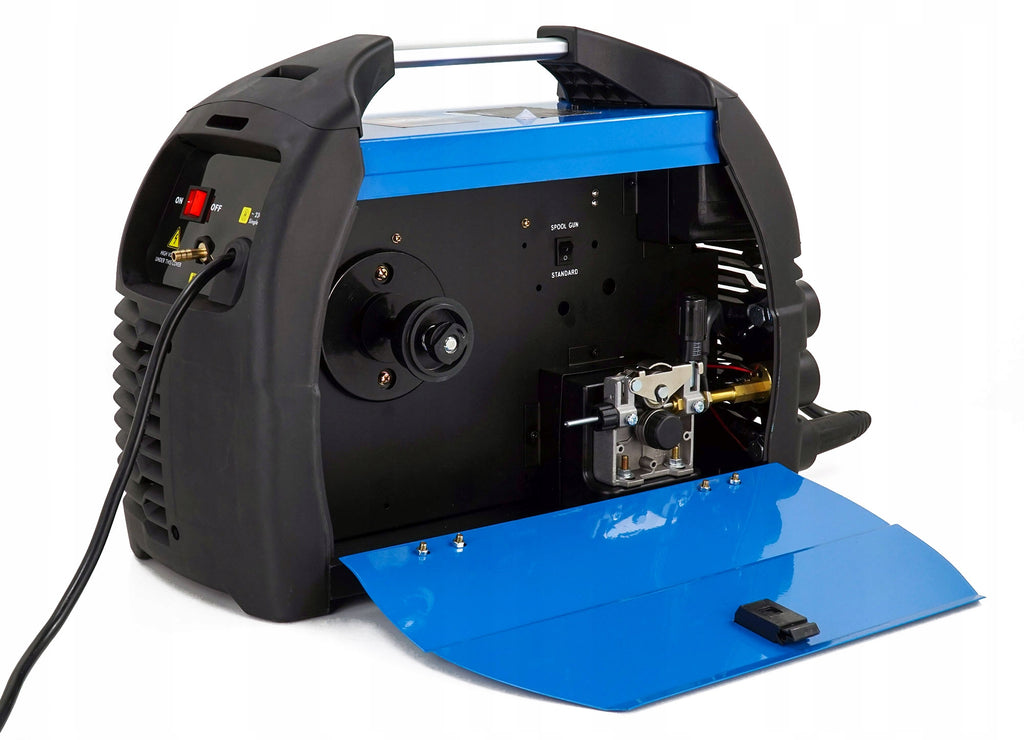

Professional 2R Wire Feeder

The feeder mechanism is one of the most important elements in the migraine, uneven wire feeding threatens worse weld quality and more welding chipping. Professional, 2-roll wire feeder is a guarantee of its smooth feeding to the current tip.

Possibility of welding with SPOOLGUN handle

The SPOOLGUN type holder has a built-in wire feeder and is adapted to use wires on the D100 spool (diameter 100mm). This is a great solution e.g. when it is necessary to increase the working range of the device - SPOOLGUN handles are generally available in versions 3m, 5m and even 8m.

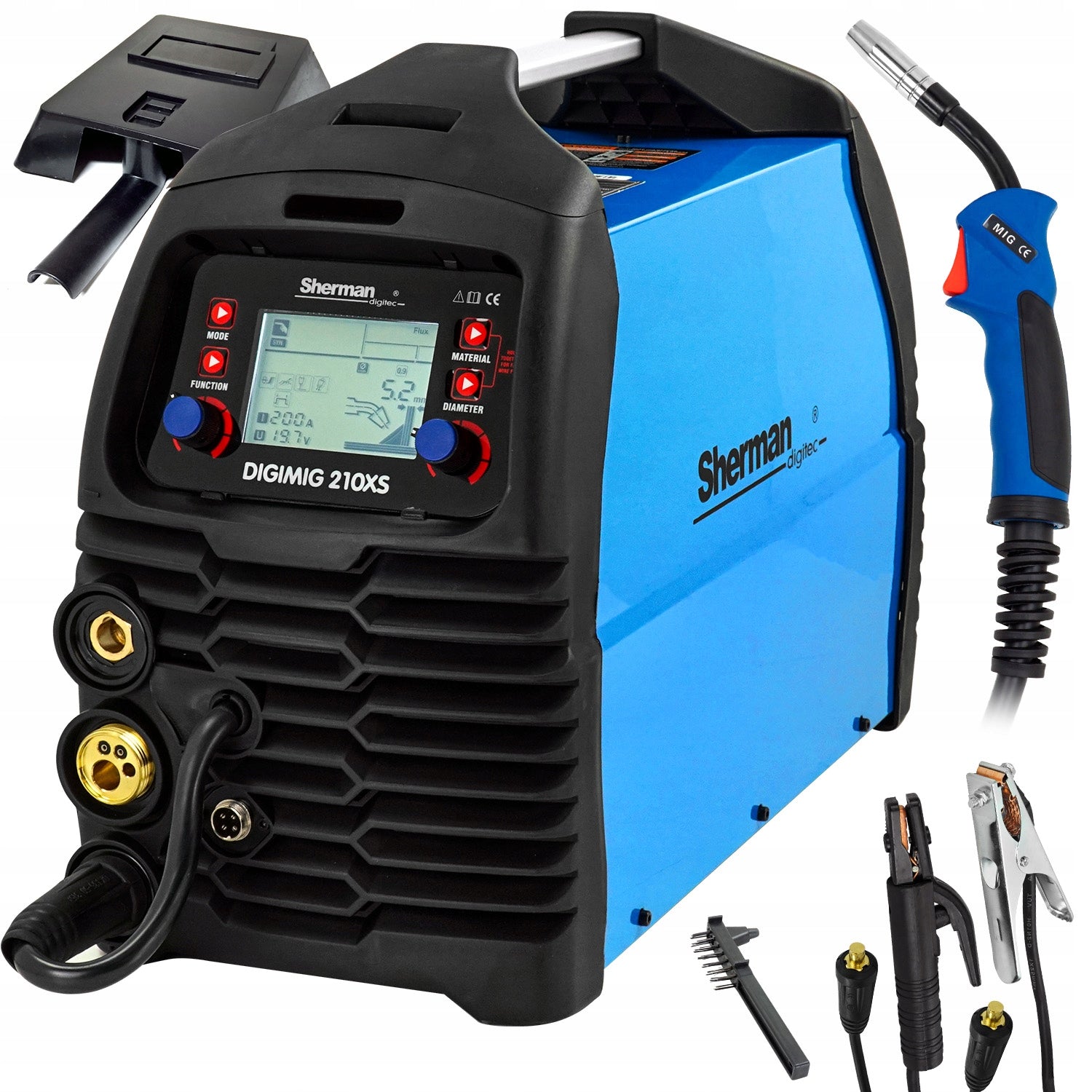

• Sherman DIGIMIG 210XS welding machine
• MIG EURO MB 15 3m welding torch
• MMA Electrode Holder
• Bulk cable
• User manual

Photo gallery

View the offered device from every possible angle. In our offers we focus on full exposure and transparency, which is why we show all the most important elements of the welding machine up close.

Specifications
