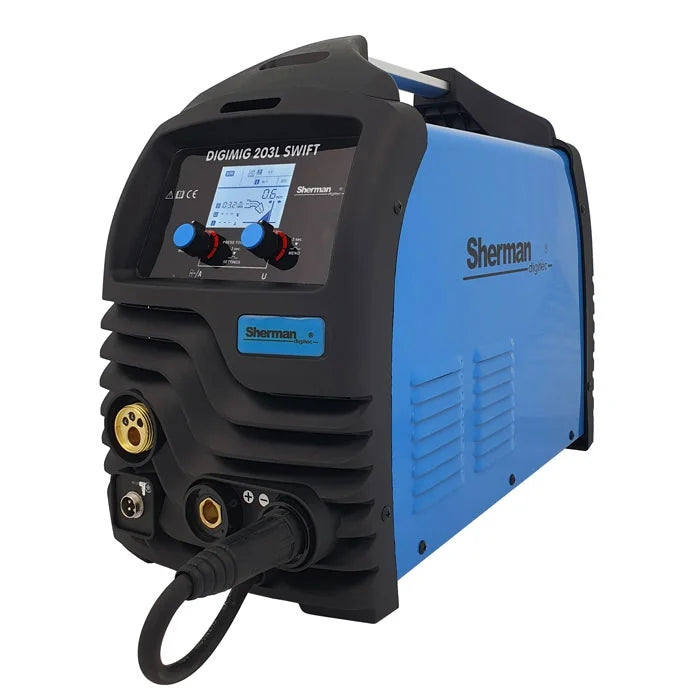

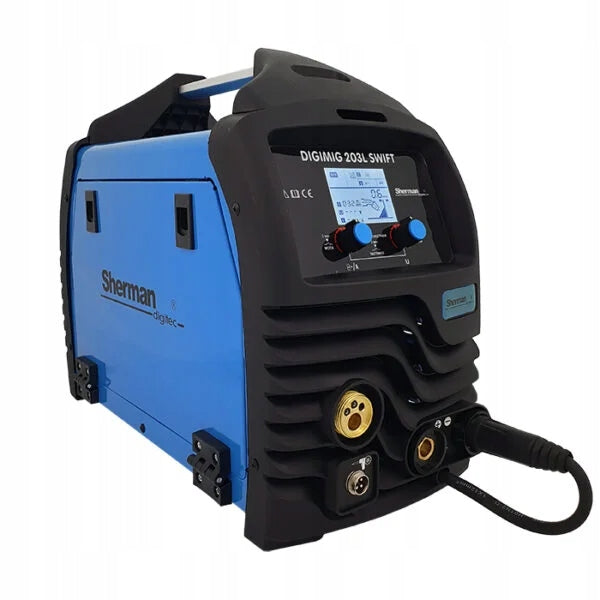

Suvirinimo aparatas SHERMAN DIGIMIG MIG 203L SWIFT, MIG/TIG/MMA, 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas SHERMAN DIGIMIG MIG 203L SWIFT, MIG/TIG/MMA, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: DIGIMIG 203L SWIFT

MANUFACTURER: SHERMAN || WELDING METHODS: MIG/MAG, MMA, FLUX, TIG DC, Soldering || SELECTED ADVANTAGES: Synergy MIG MAG, 2T/4T, ATC, Inductance adjustment, Spool Gun option || POWER SUPPLY: 230V 1ph

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

Physical parameters:

• Power Supply: 230V
• Welding Methods: MIG, MAG, FCAW, MMA, TIG Lift, Soldering
• Maximum welding current: 200A
• Working cycle: MIG 60% 200A, MMA 60% 160A, TIG 60% 600A.
• Network Security: 16A
• Maximum power consumption: 7,7kVA
• Net weight: 12kg
• Dimensions: 490x220x375mm
• Degree of protection: IP23S

MIG/MAG welding parameters:

• Welding Current: 50-200A
• Welding voltage (current): MIG: 16,5 - 24V
• Wire spool weight: 1kg, 5kg
• Wire spool diameter: D100/D200 (100mm/200mm)
• Welding polarity change: YES
• Wire feed speed: 2 – 20 m/min
• Wire burning time: 0 - 0,2s
• Max MIG current consumption: 32A
• Gas flow: 0 - 5s

TIG welding parameters:

• Welding Current: 5-160A

MMA welding parameters:

• Welding Current: 5-160A

EASY TO USE, SOLIDLY MADE MIGOMAT

Synergistic welding machine DIGIMIG 203L SWIFT is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (wrapped electrode), TIG Lift, and MIG/MAG methods. The MIG/MAG method can be used in manual and synergic mode, simplifying its operation and allowing the use of the welding machine by people with less experience and hobbyists. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.

The device allows you to connect of the Spool Gun (SG) type handle with a mini wire feeder mounted in it and a D100 spool of steel or colored wire.

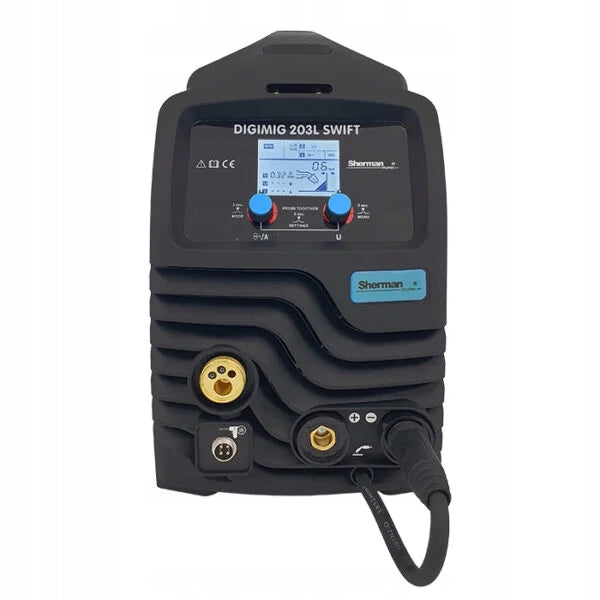

The welder is equipped with a easy-to-read LCD display. The welder is made in IGBT technology allowing for a significant reduction in weight and dimensions of the device and an increase in efficiency while reducing energy consumption. The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• manual settings mode,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• possibility of TIG DC Lift welding,
• possibility of using the Spool Gun handle,
• ATC function - controls heat, activates when thin materials are welded,
• MIG gas flow,
• MIG spot welding,
• access speed of the feeder.

Professional Wire Feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

CHANGE OF WELDING POLARITY ON THE MIG HANDLE

Fast and safe change of welding polarity possible from the position of the front panel of the device. Weld with reverse polarity with self-shielding welding wires that do not require shielding gas. A great option when you need to take the machine to work in the field, and you do not necessarily want to take a cylinder with you with accessories.

POSSIBILITY OF CONNECTING THE SPOOL GUN HOLDER

The device allows you to connect a Spool Gun holder with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. The MIG/MAG method can be used in manual and synergistic mode. Synergistic programs are available for steel, Al. alloys and for self-shielding wire welding.

REGULATION OF MIG/MAG WELDING INDUCTANCE

Full control over arc characteristics thanks to MIG/MAG welding inductance adjustment. Control the amount of chipping and the width of the weld face and the depth of melting.

Useful information

Work cycle

The work cycle is based on a 10-minute period. A 60% duty cycle means that a 4-minute break is required after 6 minutes of operation. The 100% duty cycle means that the device can work continuously, without interruptions.

ATC function

ATC is an advanced function of thermal control. It reduces the amount of heat transferred to the material by reducing the peak value of the welding current and stabilizing the arc. It is used for welding thin components below 1,5mm, facilitating welding, reducing material deformation and reducing heat affected zone.

Overheating protection

The IGBT module is protected from overheating by a protective installation that turns off the welding circuit of the device. The operation of the protection is indicated by the ignition of the symbol on the display. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again. Do not disconnect the power supply during this time, because the continuously operating fan cools the internal heat sinks of the device in order to lower the temperature faster.

Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The transport handle makes it easy to carry the device.

• Sherman MIG 203L SWIFT welder
• Welding torch MB-15 / 3m
• MMA Electrode Holder
• Bulk cable
• User manual

Specifications
