Trumpai apie prekę

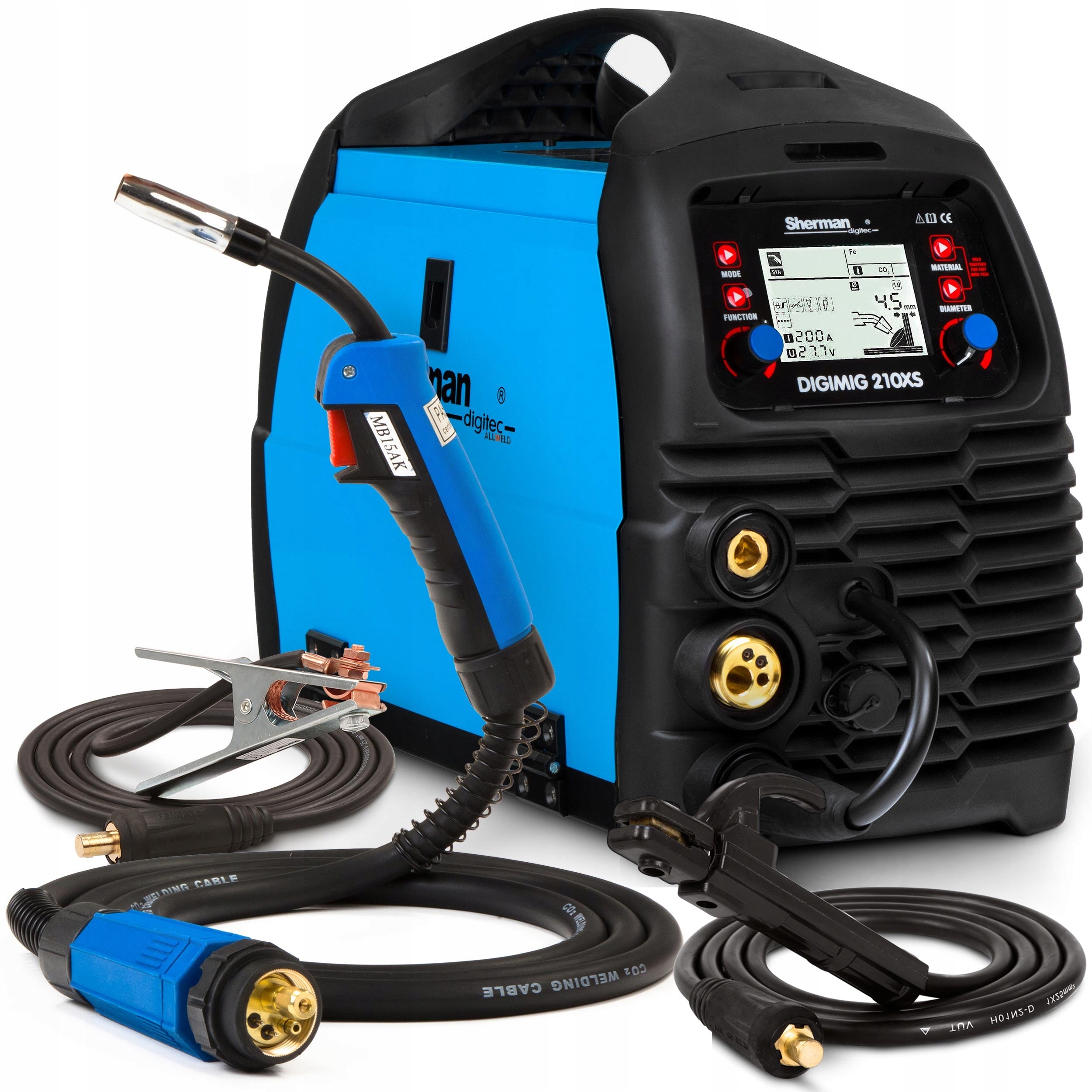

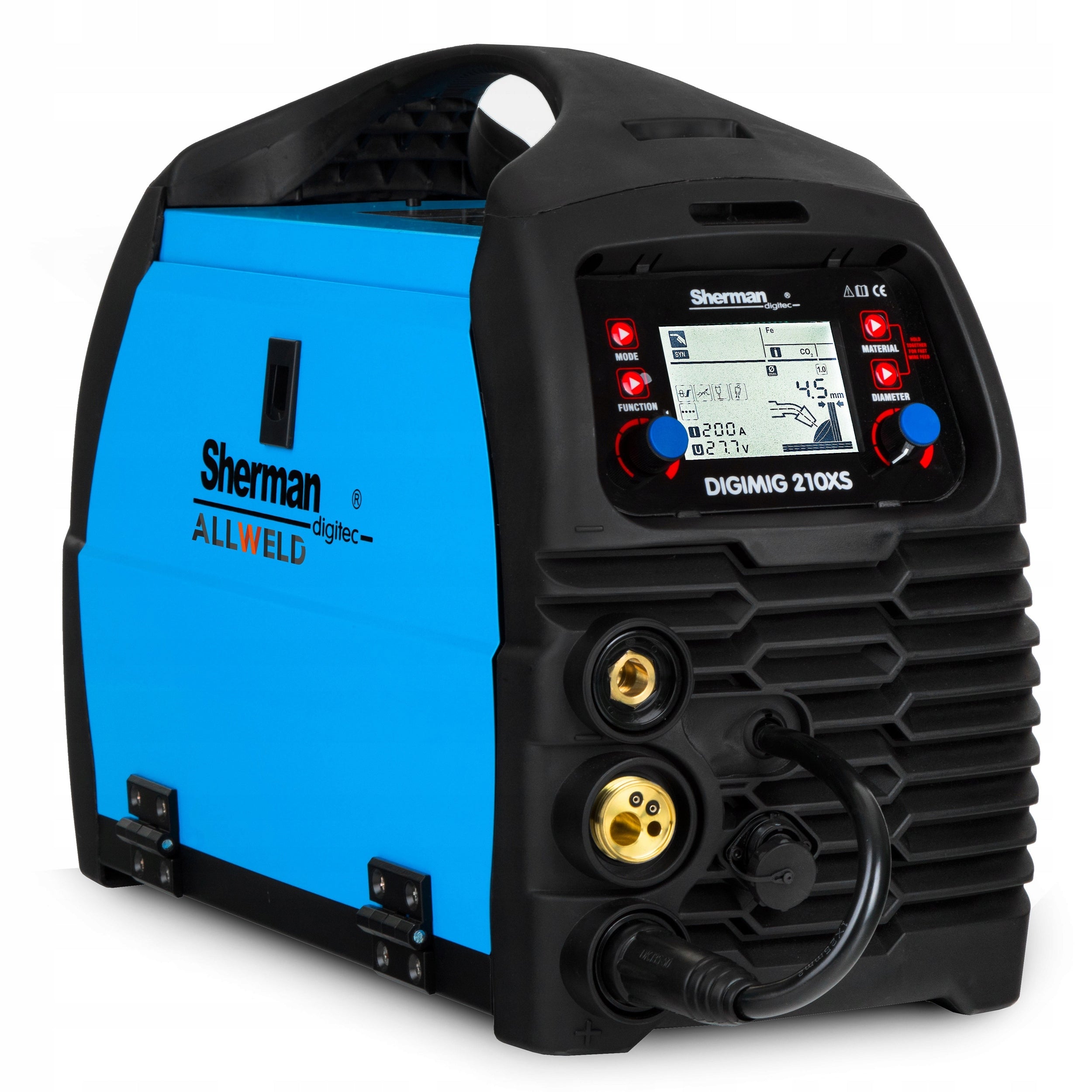

Prekė: Suvirinimo aparatas SHERMAN DIGIMIG 210XS MIG/MMA/TIG 230V 200A. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: DIGIMIG 210 XS
SYNERGIC SEMI-AUTOMATIC WELDING MACHINE SHERMAN ! 3in1 WELDING MACHINE WITH MANY FUNCTIONS
Manufacturer: SHERMAN ║ Welding methods: MIG/MAG, MMA, TIG, FLUX, SYNERGY ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 40%
- Power 200A and 40% duty cycle
- 3in1 MIG / MAG , MMA , TIG Lift welding machine
- Welding steel, metal color and aluminium
- Support for CO2, Ar and mixtures of these gases
- Synergy mode - automatic selection of settings for the welded material
- Synergistic programs for welding steel carbon, aluminium, steel stainless and copper
- Correction voltage welding in synergistic mode
- Manual selection parameters
- Weldable without gas FLUX
- Possibility to connect a handle type Spool Gun
- inverter technology IGBT
- Adjustable inductance in synergistic and manual mode - allowing for lutowelding
- fast extension function wire
- Adjustable wire burning time
- 2T/4T mode - for short and long welds
- ANTI STICK
- Adjustable SPOT function
- Voltage regulation system VRD
- Adjustable function POST GAS
- Adjustable function ARC FORCE
- Adjustable function HOT START
- Protection against overheating
- Memory last selected settings
Sherman 210 XS allows welding using MIG-MAG, MMA, TIG DC LIFT methods. The advantage is the possibility of welding with FLUX self-shielding wires thanks to the polarity change function. The device will be used in workshop and hobby works. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum. The welding machine enables the lutowelding process, thanks to which galvanized sheets can be freely combined. A special feature of the semi-automatic SHERMAN is the possibility of automatic selection of parameters welding (synergy). The welding machine itself selects parameters based on the set value of the welding current. The device also has a mode manual, with the possibility of manual settings. In this mode, the migomat allows you to change the welding current and the voltage value of the electric arc. This feature can be particularly useful for more experienced welders.
IGBT - a solution that provides a minimum of electromagnetic interference with small power losses in basic systems, enabling increased efficiency and reliability of the power source.
ANTI STICK consists in cutting off/minimizing the welding voltage and current in the event of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.
VRD - a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.
SPOT WELDING - for making even, point strains, with adjustable welding time. Mainly used for joining sheet metal "on the tab" or pre-connecting the structure.
HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.
2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process is stopped at the second press. This is a more convenient solution for longer welds.
REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.
LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.
ARC FORCE – it is used to improve the stability of combustion in the short arc and prevent the electrode from “sticking”. When a drop of metal separates from the electrode, the current is automatically raised to a given level - if there is a suitable switch (as in the "Professional" series). By lowering the “Electric arc force” to reduce energy consumption from a weak grid or increasing it in a strong grid, the stability of arc combustion is even much better improved.
SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph, 3ph
- Frequency: 50 Hz
- Maximum power consumption: 7,1 kVA
- Maximum power consumption: 32 A
TECHNICAL PARAMETERS
- MIG/MAG welding current: 20 ÷ 200A
- MIG/MAG welding voltage: 14,5 ÷ 24 V
- TIG Lift welding current: 10 ÷ 200 A
- MMA welding current: 10 ÷ 200 A
- MIG/MAG efficiency: 40%
- TIG DC, MMA efficiency: 35%
- Feeder: 2-roller
- Spool diameters with wire: 100, 200mm
- - Subwoofer Spool size: 5kg
- Wire diameter: 0,8/0,9/1,0/1,2 mm
- Speed feed wire: 2 – 20m/min
- Inductance: -10 – +10
- Time burn wire: 0 – 10 s
- Correction voltage welding: -3.0 – +3.0 V
- POST GAS: 0 – 2 s
- ARC FORCE (MMA): 0-10
- HOT START (MMA) 0 – 10
ADDITIONAL FUNCTIONS
- SYNERGY
- MODE MANUAL
- BRAZING
- 2T/4T
- VRD
- SPOT
- FLUX
- ANTI -STICK
- POST GAS
- ARC FORCE
- HOT START
- SETTING MEMORY
PHYSICAL PARAMETERS
- Housing protection: IP21S
- Cooling: fan
- Dimensions: 530 × 230 × 390 mm
- Weight: 13kg
BY BUYING FROM US YOU GET
- Sherman DIGIMIG 210 XS Synergy
- Welding torch MIG/MAG Type MB 15 - 3m
- Electrode holder - 2m
- Bulk holder - 2m
- Instruction in Polish
- Guarantee Card
- Sticker
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 7.1 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 40% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Device weight | 13 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 18 kg |
| Parametry | Manufacturer code | MIGOMAT SHERMAN DIGIMIG 210XS RSH #1 |
| Parametry | EAN (GTIN) | 5905214997700 |
| Parametry | Packaging status | original |
| Parametry | Model | DIGIMIG 210 XS |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
