Trumpai apie prekę
Prekė: Suvirinimo aparatas SHERMAN DIGIMIG 207 EASYLITE, MIG/TIG/MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: 207
- Ilgis: 375 mm
- Plotis: 220 mm
- Aukštis: 490 mm
Synergistic IGBT inverter, welding current 200A (60%), digital control, AC power supply 230V 50Hz, MIG, MMA, Lift TIG.

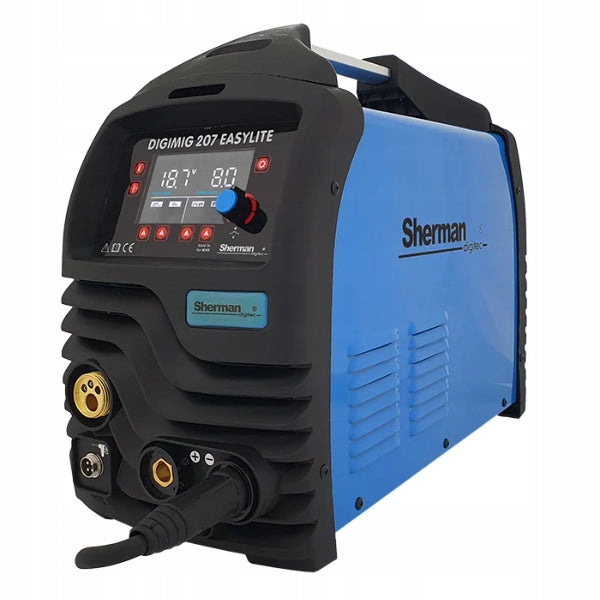

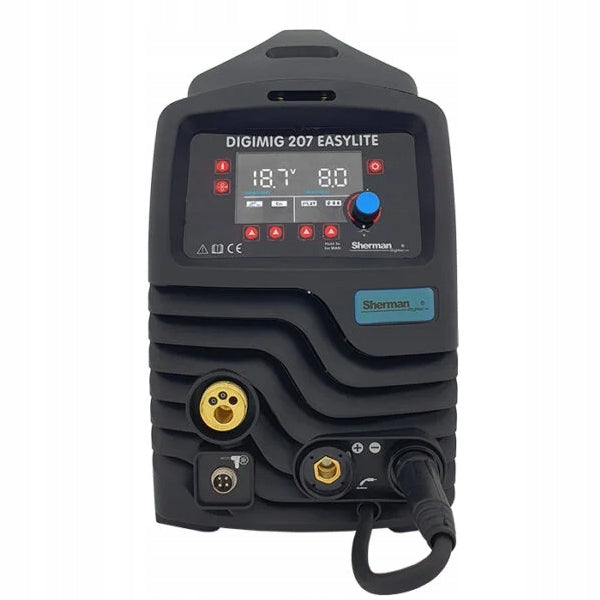

MIGOMAT WELDING MACHINE SHERMAN MIG DIGIMIG 207 EASYLITE SYNERGY TIG MMA
The DIGIMIG 207 EASYLITE synergistic welding machine is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (wrapped electrode), TIG Lift, and MIG/MAG methods. The MIG/MAG method can be used in manual and synergistic mode, simplifying its operation and allowing the use of the welding machine by people with less experience and hobbyists. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in protective gas shielding and self-shielding powder wires.
The welder is made in IGBT technology allowing for a significant reduction in weight and dimensions of the device and an increase in efficiency while reducing energy consumption.
The device allows you to connect a Spool Gun (SG) type handle with a mini wire feeder mounted in it and a D100 spool of steel or colored wire.
The welder is equipped with a color LED display, VRD function and adjustable Hot Start and Arc Force functions.
PARAMETERS
- Catalog number: 7812674
- Welding/cutting/other methods: lutowelding, MIG/MAG, MMA DC, TIG Lift DC
- Supply voltage [V]: AC 230
- Technology: IGBT
- Max MMA welding current [A]: 160
- Max welding current TIG DC [A]: 200
- Max MIG/MAG welding current [A]: 200
- MMA work cycle [%]: 60
- TIG duty cycle [%]: 60
- MIG/MAG duty cycle [%]: 60
- Voltage without load [V]: 65
- Wire feed speed [m/min]: 2 – 12,5
- MIG welding voltage [V]: 16,5 – 24
- Welding voltage correction: -1,0 – +1,0
- Max MMA power consumption [kVA]: 7,7
- Max TIG power consumption [kVA]: 7,7
- Max MIG/MAG power consumption [kVA]: 7,7
- Max MMA current consumption [A]: 32
- Max TIG current consumption [A]: 32
- Max MIG/MAG current consumption [A]: 32
- Wed. spool with wire ø [mm]: 100, 200
- Roll dimensions [mm]: 30x10x10
- Main method: MIG/MAG
- Features: 2T/4T, Arc Force, Gas Test, Hot Start, Spool Gun Option, 2-Roll Feeder, Inductance Adjustment, Gas Free Welding, Digital Control, Carbon Steel Synergy, Fast Wire Retract, Manual Settings, VRD, LED Display, Self-shielding Wire Synergy
- Network security [A]: 16
- Warranty period for companies [years]: 1
- Weight [kg]: 16,5
- Dimensions (D x SZ x W) [cm]: 49 x 22 x 37,5
- Producer: Sherman

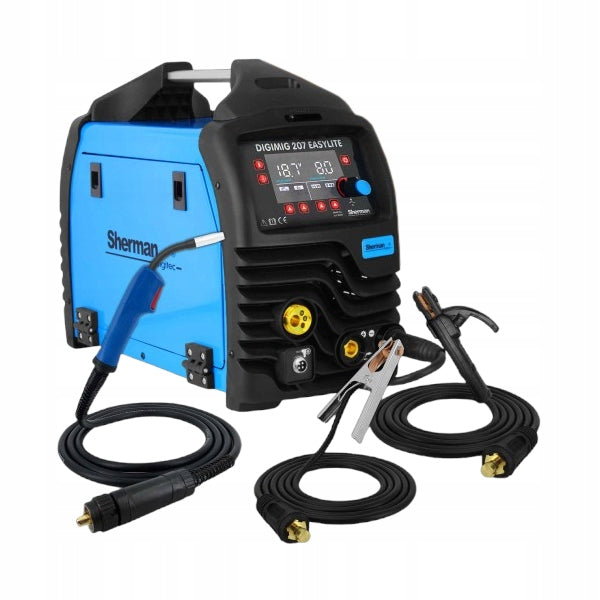

CONTENTS OF THE SET
- DIGIMIG 207 EASYLITE welder
- MIG TW-15/3m welding torch
- Electrode cable
- Bulk cable
- User manual
- Warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 7.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 12.14 kg |
| Parametry | Welding range | 50–200 A |
| Parametry | Height | 490 mm |
| Parametry | Length | 375 mm |
| Parametry | Width | 220 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 0.1 kg |
| Parametry | Manufacturer code | SHERMAN207EASYLITE |
| Parametry | EAN (GTIN) | 5903686617713 |
| Parametry | Model | 207 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
