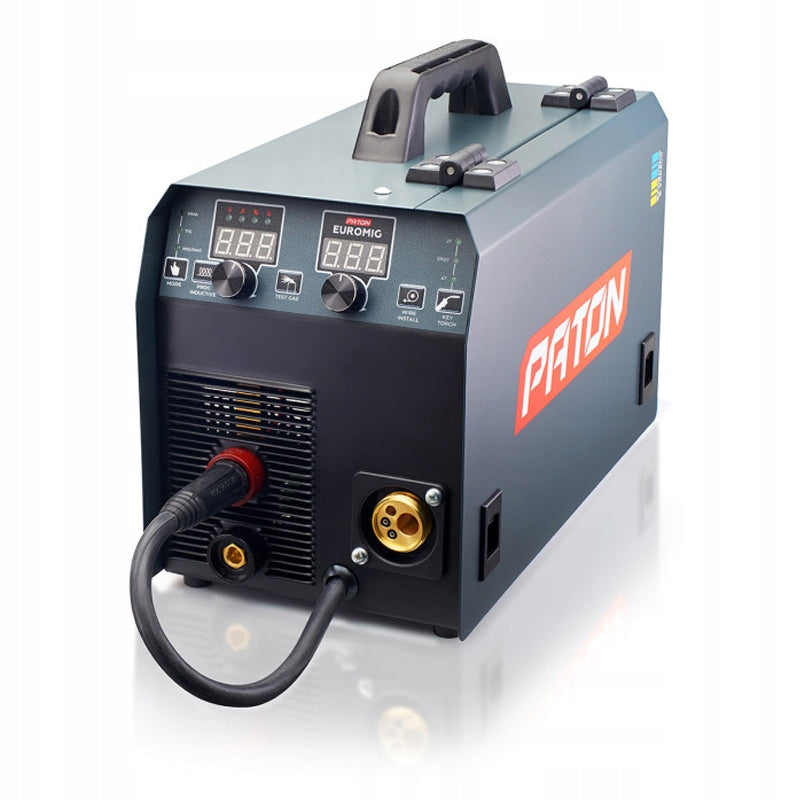

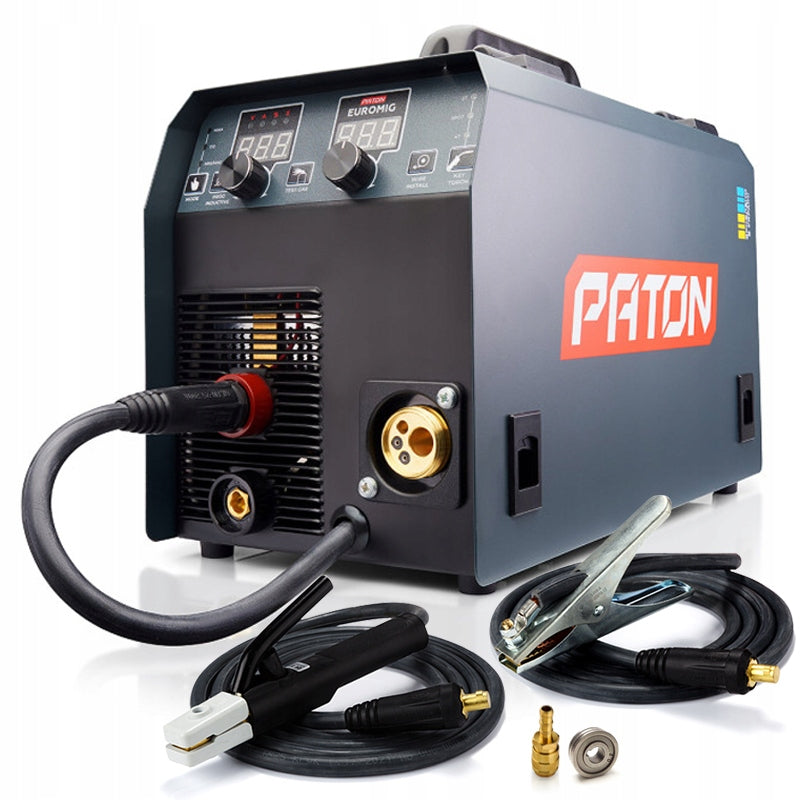

Suvirinimo aparatas PATON EuroMIG be dujų, MIG/MAG, MMA, TIG Lift, FLUX komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas PATON EuroMIG be dujų, MIG/MAG, MMA, TIG Lift, FLUX komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: Paton EuroMIG Bezgazowy

✔ Paton brand equipment is the No. 1 for customers who are not professionals, but want to weld like the best welders.

✔ The Paton plant has its own production of welding machines, which, unlike most welding equipment on the Polish market, does not take place in China, but in its own factory, which is located in Ukraine in Kiev.

✔ 3 years of DOOR-to-DOOR service period, also for companies.

✔ You don’t have to be a professional to weld like a professional!

⭐ By buying at this auction, together with the welding machine you will receive the following materials and accessories:

✅ MiG/MAG welding torch ABICOR BINZEL MB15 3m

✅ Self-shielded welding wire 0,8mm 4,5kg spool

✅ PATON 2,5mm 1kg

✅ Electrodes PATON 3mm 1kg

✅ Welding gloves

✅ Mass holder 3m

✅ Electrode holder 3m

✅ Wire feeder roll

✅ Quick coupler for gas

Are you still using your welding machine and worried about its durability? With PATON you do not have to worry about anything - whether you buy a device for yourself or for the needs of the company, PATON gives you 3 years of free DOOR-to-DOOR service period.

What does this mean?

After buying a welding machine, you can be sure for 36 months that no matter what happens to the device - we will pick up the welding machine from you and repair it within 3 years from the date of purchase.

⏩ The Paton EuroMIG device was made on the basis of the latest inverter technology, from components made in Europe.

⏩ The device uses state-of-the-art protection such as protection against excessive voltage, excessive current, overheating of the device, etc.

⏩ The welding machine can be successfully used for welding carbon steel, stainless, alloy, iron, black steel and aluminium using the following methods:

• MIG/MAG in protective gas shielding
• MIG/MAG without gas shield (self-shielded wire)
• MMA wrapped electrode
• TIG DC
• SPOT

• ✅ Increased duty cycle - 80%

  The duty cycle refers to the time during which the device can operate at maximum load without the risk of overheating. In the case of the Paton EuroMIG welding machine, the 80% duty cycle means that the device can work for 8 minutes for every 10-minute unit of time, allowing for more intensive use without the need for long cooling breaks. This makes the welding machine more efficient and efficient, especially in intensive working conditions.

• ✅ Each device undergoes a full inspection cycle

  Paton EuroMIG undergoes thorough and comprehensive quality tests before leaving the production line.

  Thanks to this, users can be sure that each device is functional and ready to work immediately after purchase. This process includes control of all key parameters such as performance, safety, as well as compliance with quality standards. This is an essential component for long-term reliability of the device.

• ✅ Unique design for efficient cooling and increased productivity in dusty environments

  The design of the Paton EuroMIG welding machine is designed to work in harsher environments such as dusty or hot environments.

  With its innovative cooling system, the device is able to maintain a stable operating temperature, which prevents overheating and ensures greater productivity. This solution allows for longer and more continuous operation in conditions that could limit the performance of other welding machines.

• ✅ Operation stabilization system for large, long-term voltage drops in the power supply network from 160V to 260V

  Paton EuroMIG welder is equipped with a system that allows it to operate in unstable power conditions, where the voltage can range from 160V to 260V.

  This voltage range means that the device is resistant to voltage fluctuations in the electrical network, which can occur in different locations, while ensuring continuity and stability of operation. Thanks to this, users do not have to worry about power loss or weld quality as a result of unstable power supply.

• ✅ The unique ratio of weight and dimensions to high power output

  Paton EuroMIG is characterized by an excellent ratio of weight and dimensions to power output.

  This means that the device is relatively light and compact compared to other welding machines with similar power parameters. This makes the welding machine easy to transport and operate, which is especially important in environments where mobility and convenience are crucial, e.g. on construction sites or in workshops. Thanks to this, users get a powerful tool that does not take up too much space and is easy to carry.

✅ highest reliability confirmed by the longest service period DOOR-to-DOOR

✅ easy settings of the welding machine

✅ digital setting method

✅ application from amateur to professional

✅ Electronic thermal protection system to protect all heat generating components from overheating

✅ Reliability with IGBT technology

✅ European production

✅ Ability to work on long extension cords as well as with a generator

✅ The devices have protection against voltage spikes and a stabilization system, enabling proper operation for the voltage range from 160V to 260V

✅ Twice the electricity requirement compared to traditional sources

✅ welding without gas with self-shielding wire

✅ equipment of the highest quality - handles included are German manufacturer ABICOR BINZEL

EuroMIG has a fully digital control system that ensures its multifunctionality and wide possibilities of tuning welding modes. Rated current up to 150A allows you to work with any electrodes with a diameter from 1,6 mm to 4 mm and solid welding wire with a diameter from 0,6 mm to 1,0 mm. A separate, closed welding wire chamber increases its protection against dust and other contaminants.

Paton EuroMIG is equipped with a 2-roll metal wire feeder, and the universal KZ-2 connector type "EURO" allows you to connect welding brackets from a wide range of manufacturers.

Combined with its high power and efficiency, the Migomat is lightweight and compact and comes with high-quality accessories, making it ideal for home repairs or field work.

⭐Functions that will make you do everything

▶ Paton MIGOMATES have the possibility of soldering, thanks to the function of changing the inductance in three degrees.

▶ Inductance control allows for accurate adjustment of parameters to the thickness of the welded material.

▶ PULSE FUNCTION

✔ PULS in TIG method – gives the welder full control of the heat introduced into the material – a great function for welding stainless steel and acid-resistant steel,

✔ PULS in MMA method – thanks to this it is easier to transfer the material from the electrode to the welding lake, better quality of the welded joint,

❓ FAQ - Frequently Asked Questions

❓ What welding methods does this migomat support?

The PATON EuroMIG welding machine is a semi-automatic welding machine that supports several methods:

• MIG/MAG – welding with gas shielded wire (steel, stainless steel, aluminium),
• MIG/MAG without gas (FCAW) – self-shielding wire welding, ideal for field work,
• MMA – classic welding with a wrapped electrode,
• TIG Lift – TIG welding with ignition by rubbing (after connecting the TIG handle).

It is a universal device for workshop, garage, construction and assembly work.

❓ What is the maximum welding current and what materials can be welded?

The EuroMIG model offers welding current up to 150 A and smooth adjustment in the range of 8 – 150 A.

Allows welding:

• structural steel up to approx. 5 mm,
• stainless steel up to approx. 4 mm,
• aluminium up to approx. 3 mm (after using the appropriate wire and gas).

The welder has a duty cycle of 80% at 150 A, which ensures the possibility of long-term operation without overheating. It is an ideal choice for workshop work, repairs, steel and bodywork structures. At lower currents (e.g. 100 – 120 A) welding machine can work practically continuously.

❓ What wires can be used in this migraine?

The welder supports wires:

• steel, stainless and aluminium,
• with a diameter of 0,6 to 1,0 mm,
• for 5 kg spools (⌀ 200 mm)

If necessary, self-shielding wire (FCAW) can be used without the use of gas – just change the polarity in the device.

❓ Does the welding machine have a pulse function?

Yes — PATON EuroMIG has a pulse welding function.

Pulse mode works in the following methods:

• MMA,
• TIG.

The pulse function allows for cleaner, more precise and aesthetic welds, especially when welding thin materials, aluminum and stainless steel. In addition, it reduces the amount of chipping and reduces the heating of the material, which protects the elements from deformation.

❓ What is the service and warranty?

PATON welding machines are manufactured in Europe and not in China, which guarantees high quality, durability and reliability. The EuroMIG model is covered by 3-year service care, implemented in Poland – in an authorized service center in Rzeszów. This is a guarantee of fast and professional technical support.

❓ What power will the unit power the migomat? How long can the extension cord be used?

The EuroMIG welder may be powered from a generator set provided that:

• the unit has voltage stabilization (AVR),
• its continuous power is a minimum of 3,5 to 4 kW,
• The recommended power is 4,5 - 5 kW with AVR if you plan to weld at full power (150 A).

The 3 kW unit with AVR is enough for typical workshop work with currents up to 100-120 A.

The welder can work with longer extension cords:

• up to 100 meters with a cross-section of 2,5 mm²,
• up to 245 meters with a cross-section of 6 mm².

⏩Detailed technical data:

• Power supply: 50/60 Hz, 230 V
• Nominal mains current required: 17-20 A
• Nominal welding current: 150 A
• Maximum welding current: 200 A
• Work Cycle: 80% at 150А, 100% at 134A
• Power supply voltage change intervals: 160 – 260 V
• Welding current adjustment intervals: 8 – 150A
• Welding voltage adjustment intervals: 12 - 23V
• Diameter of wrapped electrode: 1,6 – 4,0 mm
• Diameter of solid wire: 0,6 – 1,0 mm
• Number of pressure rollers: 2
• Hot-Start function: Adjustable
• Arc-Force function: Adjustable
• Anti-Stick function: Automatic
• Idle voltage reduction system: On/Off
• Idle current voltage: 12 / 75 V
• Arc current voltage: 110 V
• Nominal power consumption: 3,8 – 4,4 kVA
• Maximum power consumption: 5,5 kVA
• Energy efficiencý: 90%
• Cooling: Automatic
• Working temperature range: –25 ... +45 ºС
• Compliant standards: EN 60204 – 1:2006 EN 60974 – 1:2012 EN 60974 – 10:2014
• Dimensions (length, width, height): 390 x 194 x 295
• Weight: 9,2 kg
• Degree of protection: IP 33

⭐ Self-shielding wire 0,8mm 4,5kg spool

High-quality self-shielding welding wire (FCAW) with a diameter of 0,8 mm is the ideal solution for people who want to weld without the use of shielding gas. Thanks to self-shielding technology, the wire creates its own protective atmosphere during welding, which makes it perfect for outdoor conditions and field work.

The most important advantages:

• Welding without protective gas – ideal for outdoor work and harsh weather conditions
• Simple configuration – just change the polarity in the welding machine (negative polarization on the handle) to start working
• Universal diameter 0,8 mm – provides good control of the welding lake and ease of use
• Large spool of 4,5 kg – an efficient solution for larger projects
• Good weld quality – solid joints and stable arc
• Mobility – no need for gas cylinders makes the whole set much easier to transport and use in the field

An excellent choice for DIYers, farmers, mechanics and professionals working in the field.

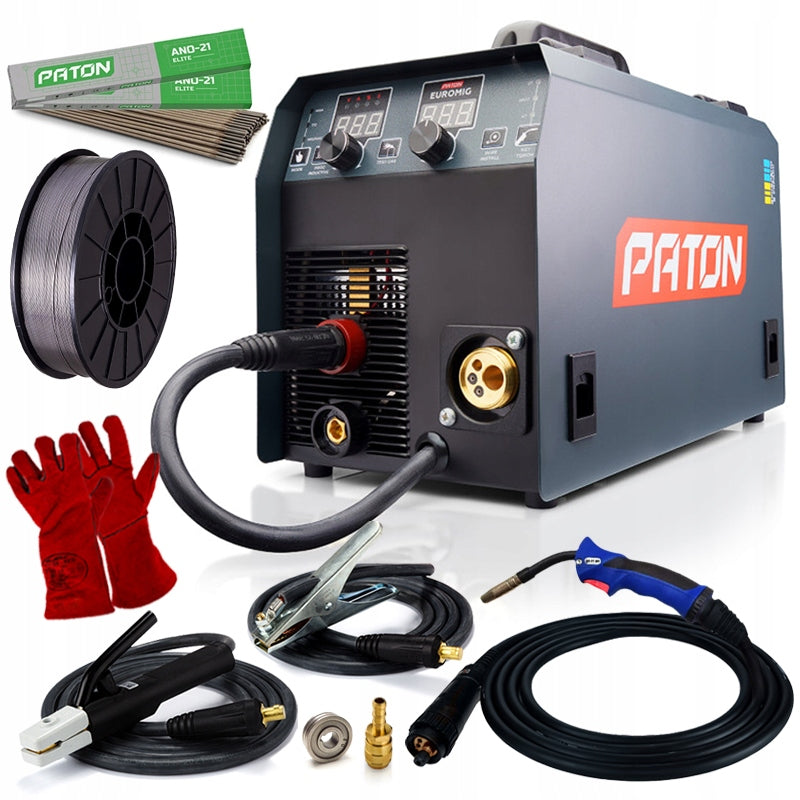

⭐ The purchased set includes:

• PATON™ EuroMIG migomat welder
• Electrode holder 3m
• Mass holder 3m
• Wire feeder roller 1x (0,6 – 0,8)
• Quick coupler for gas
• Electrodes PATON 2,5mm 1kg
• Electrodes PATON 3mm 1kg
• MIG/MAG ABICOR BINZEL MB15 3m
• Welding gloves
• Self-shielded wire 0.8mm 4,5kg spool
• Cardboard packaging
• User manual
