Prekė: Suvirinimo aparatas MIGOMAT V MIG 330 MMA IDEAL 4R 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: V-MIG 330
- Ilgis: 840 mm
- Plotis: 410 mm
- Aukštis: 720 mm
SEMI-AUTOMATIC WELDING MACHINE WITH GAS CYLINDER CHASSIS
Welding methods: MIG/MAG, MMA, FLUX | Important functions: High duty cycle, 2T/4T | Welding current: to 330A
IDEAL V-MIG 330 - EFFICIENT MIGOMAT FOR LARGE SPOOLS
Professional inverter semi-automatic welding machine for MIG-MAG welding with gas shielded welding wire, FLUX welding and MMA welding. Welding current 330A. Power supply 400V. Welding wire diameter 0,8-1,2mm. 4-roll wire feeder. It is perfect for welding steel, stainless steel, aluminum and its alloys.
DISCOVER THE ADVANTAGES OF THE V-MIG 330 WELDING MACHINE
- Durable housing
- rapid change of welding polarity,
- EURO socket
- digital displays
- 2-bar / 4-bar operating mode switch
- high duty cycle - it is difficult to heat this MIG, even when welding with larger currents
- stable wire feeding - stable welding parameters,
- no problems with wire feeding, when welding with aluminum wire and other soft wires,
- possibility of connecting a longer handle than the standard 3m.
GAS CYLINDER CHASSIS
Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.
- Degree of protection: IP 21
- Weight: 37 kg
TECHNICAL PARAMETERS
- Power: 11 kW
- Idle Voltage: 45 V
- Current at 60% operation: 330 A
- Diameter of aluminum wire: 0,8 - 1,2
- Self-shielding wire diameter: 0,8 - 1,2
- Steel wire diameter: 0,6 - 1,2
- Stainless steel wire diameter: 0,8 - 1,2
- Welding electrode diameter: 1,6 - 6,0
- Welding Current Adjustment Range: 50 - 330 A
POWER SUPPLY PARAMETERS
- Current taken from the mains: 11 A
- Rated supply voltage: 3x400 V; 50Hz (3ph)

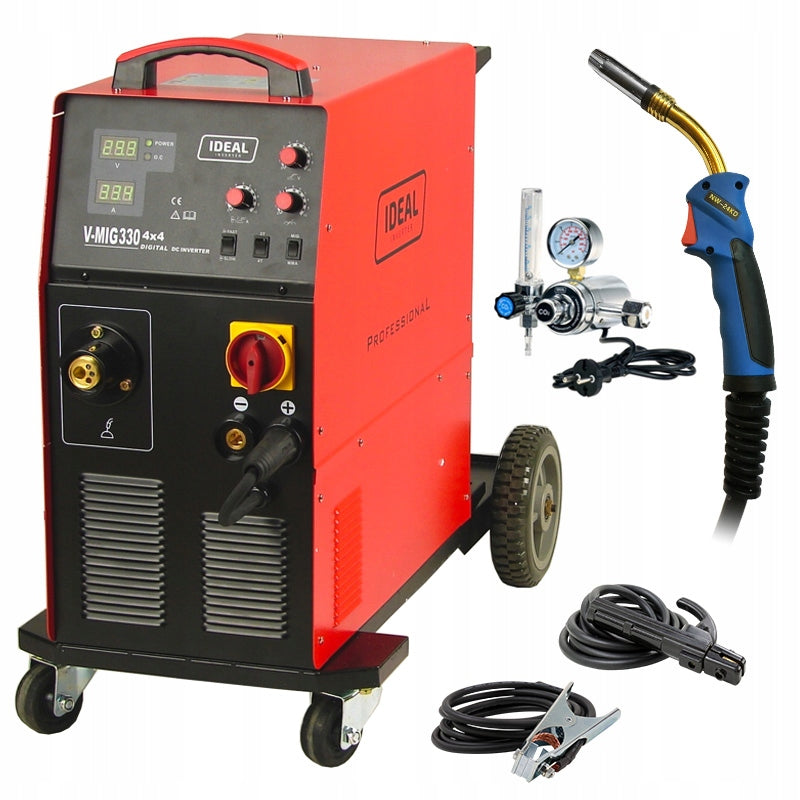

- Welding machine IDEAL V-MIG 330 4x4
- Welding torch MIG 24/3m - EURO
- Electrode holder
- Bulk cable
- CO2/AR reducer with heater
- User manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 13.7 kVA |
| Parametry | Supply voltage (V) | 400 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 26.3 kg |
| Parametry | Welding range | 50–330 A |
| Parametry | Height | 720 mm |
| Parametry | Length | 840 mm |
| Parametry | Width | 410 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 37 kg |
| Parametry | Manufacturer code | RS V-MIG 330 |
| Parametry | EAN (GTIN) | 5904624047357 |
| Parametry | Packaging status | original |
| Parametry | Model | V-MIG 330 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,EURO handle,LCD display |
