Suvirinimo aparatas MIGOMAT MAGNUM MIG 200 MAG IGBT SET

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MAGNUM MIG 200 MAG IGBT SET. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIGOMAT MIG 200 2 KN IGBT pw1

DISCOVER THE ADVANTAGES OF INVERTER TECHNOLOGY IN MAGNUM MIG 200/2 KN

Magnum devices from the MIG KN series have been proven constructions for many years. This is a good, reliable compact, which has two versions: 200 KN - a machine powered from a single-phase network of 230V and 200/2 KN - a machine that operates on both 230V and 400V power supply. The subject of this offer is the model 200/2 KN 230V 1ph/400V 2ph.

MIG 200/2 KN is based on IGBT transistors - it offers a stronger, more concentrated and more stable arc with less power consumption. It provides a minimum of electromagnetic interference, small power losses in basic systems to increase the efficiency and reliability of the power source. Thanks to its special design, the MIG 200/2 KN is in many respects a much more advantageous solution than devices based on MOSFET technology.

WELDING METHODS: MIG/MAG, MMA, FLUX

• Supply Voltage: 230V/1ph or 400V/2ph
• Maximum welding current: 200A
• Rated duty cycle: 60%
• Technology: IGBT Inverter
• Regulation of inductance
• Producer: Magnum

MAGNUM MIG 200/2 KN ALLOWS WELDING USING THE FOLLOWING METHODS:

• MIG/MAG - welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. It is a popular welding process that is characterized by high efficiency and good quality of the welded joint. Semi-automatic MIG/MAG welding is one of the most popular methods both in workshop conditions as well as in high-performance production. This method is also relatively easy to learn by novice users.
• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.
• MMA - the oldest variety of arc welding - the so-called. welding with a wrapped electrode. This is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded.

PROFESSIONAL WIRE FEEDER

Professional wire feeder profi 2R - is a reliable and precise wire feeding, so that the output parameters are stable, allowing you to achieve a high-quality welded joint.

MODERN TECHNOLOGIES, SIMPLICITY OF EXECUTION

Excellent combination of modern technologies, e.g. IGBT with simplicity of execution is the key to good welding parameters and reliability of the device.

FUNCTIONALITY

Thanks to the variable welding polarity of the MIG handle, self-shielding wire without gas can be welded. Regulation of MIG/MAG welding inductance means greater control of the welding process, which translates into control of the face shape and depth of melting, it also means better parameters during lwelding CuSi3. Stable chassis for gas cylinder and front steering axle, allow you to create a mobile welding kit.

INVEST IN PROVEN EQUIPMENT FROM A LEADING BRAND

Magnum is a brand whose founder has been operating on the welding market since the early 90s of the twentieth century. Over the years, Magnum devices have managed to develop an appropriate reputation among satisfied customers.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

• Power supply: 230V 1ph or 400V 2ph
• Welding methods: MIG, MAG, MMA, FLUX
• Maximum welding current: 200A (MIG/MAG/TIG) 180A (MMA)
• Working cycle: 60%
• Maximum power consumption: 7,4kVA
• Parameter display - shows the current value during welding
• Net weight: 14kg

MIG/MAG welding parameters

• Welding Current: 30-200A
• Welding voltage: smooth adjustment - 16,5-23V
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100/D200
• MIG/MAG welding inductance adjustment: YES
• MIG/MAG welding polarity change: YES
• Wire Retract: YES

MMA welding parameters

• Welding Current: 30-180A
• Welding Current Adjustment: Smooth

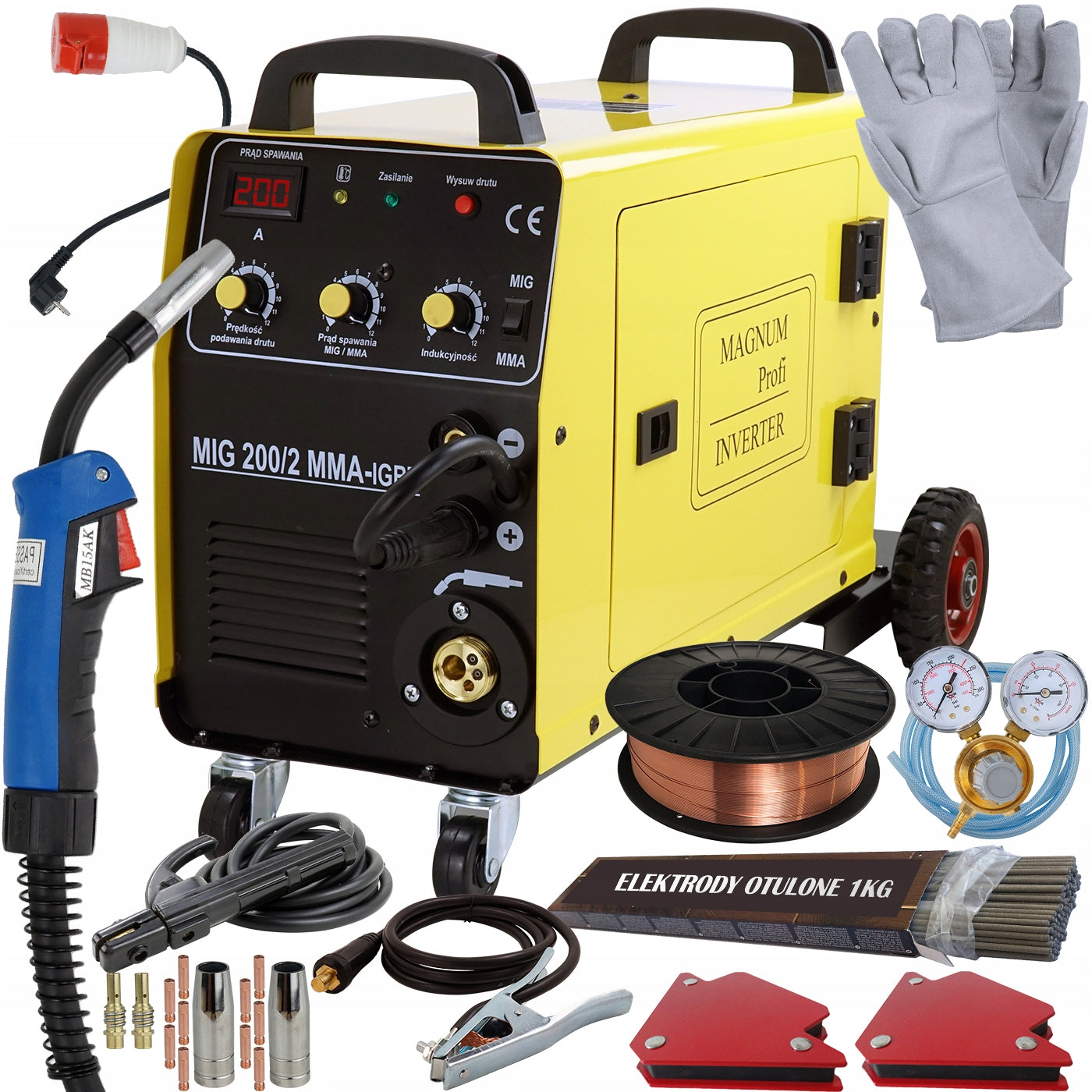

• Device Magnum MIG 200/2 KN
• Welding torch MIG EURO MB 15 3m
• MMA electrode holder
• Mass cable
• User manual

+ ADDITIONAL ACCESSORIES:

• welding disc
• brush-hammer
• 230/400V adapter

+ WELDING ACCESSORIES

• steel welding wire SG2 0,8mm x 5kg (D200),
• set of welding angles – 2pcs,
• welding gloves,
• starter set of parts for MIG burner (gas nozzle 2pcs, current tips 10pcs, current connector 2pcs. ),
• Ar/CO2 gas reducer with two clocks,
• MMA wrapped electrodes - 1kg,

PHOTO GALLERY:

Specifications
