Suvirinimo aparatas MIG/TIG/MMA 200A aliuminiui su balionu, vielomis ir TIG laikikliais

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/TIG/MMA 200A aliuminiui su balionu, vielomis ir TIG laikikliais. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103 102_pakiet5
• Ilgis: 580 mm
• Plotis: 280 mm
• Aukštis: 420 mm

Manufacturer:Weldman || Welding Methods: MIG, MAG, MMA, TIG (FCAW) FLUX || Power Supply: 230V || Maximum Welding Current: 200A || Operating Cycle: 60% ||

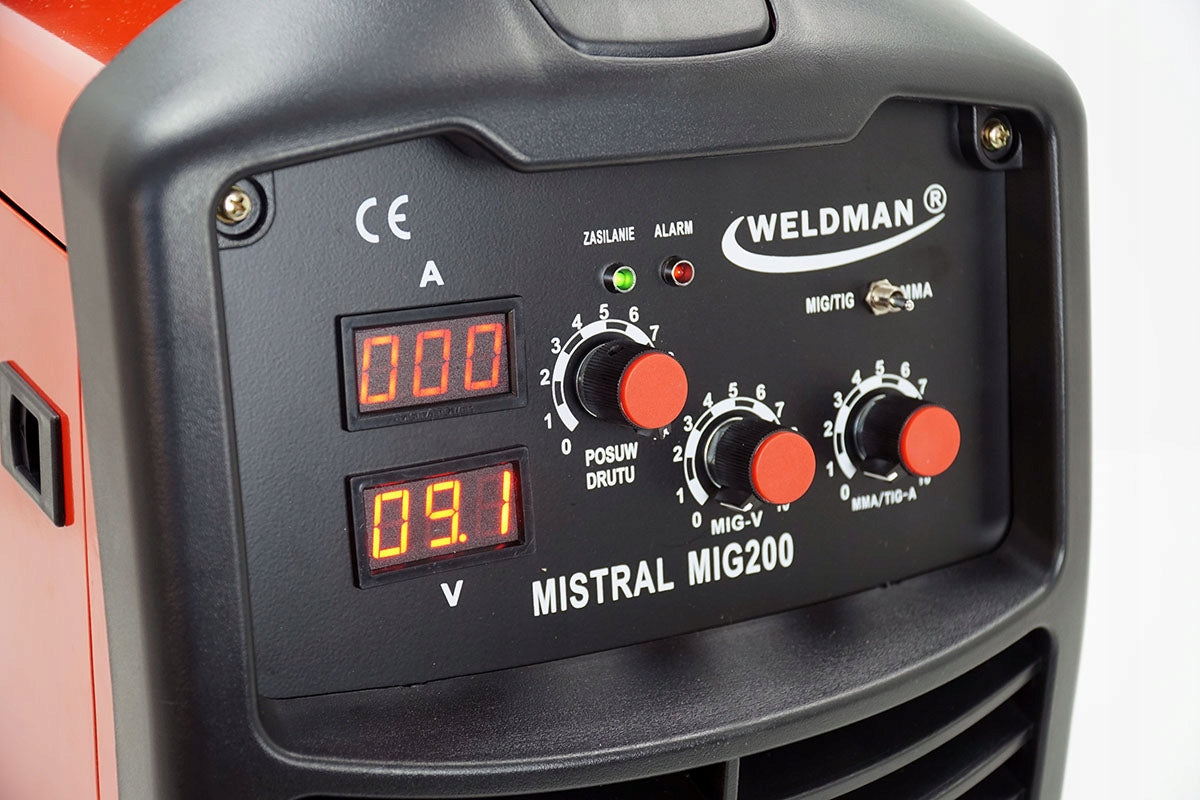

ALL PARAMETERS UNDER CONTROL

Clear and easy to use control panel, provides full control over welding parameters:

✅smooth regulation of welding voltage (MIG/MAG),

✅smooth adjustment of wire feed speed (MIG/MAG),

✅test MIG/MAG wire extension,

✅two digital displays of parameters: welding voltage and current - show the measured, actual value of parameters during welding,

✅smooth welding current regulation (MMA/TIG).

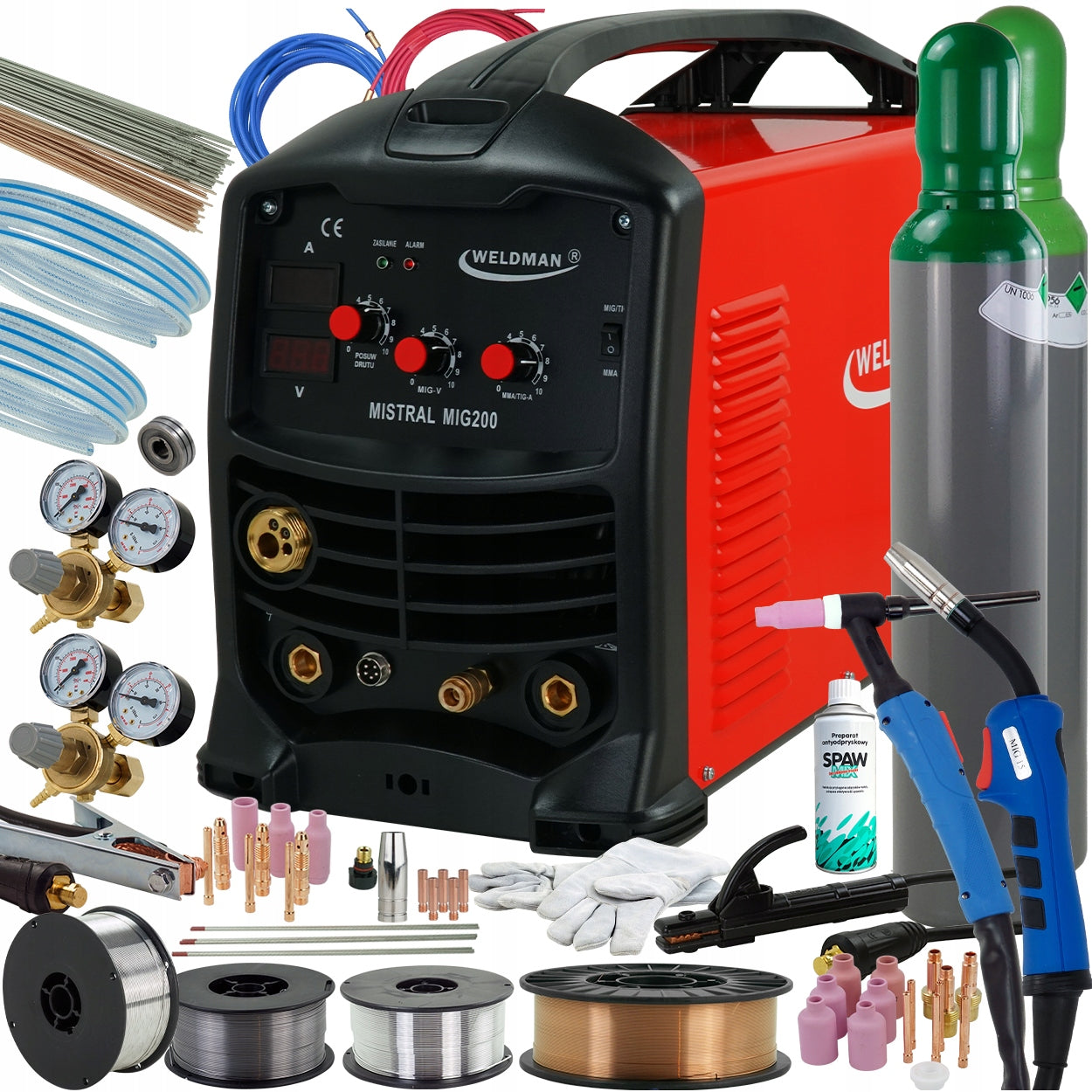

• Welding machine Weldman Mistral MIG 200
• MIG EURO MB15 3m holder
• TIG handle 4m
• MMA Electrode Cable
• Bulk cable
• Welding disc
• Brush-hammer
• User manual

+ ADDITIONAL ACCESSORIES

• anti-chipping preparation SPAWMIX 400ml,
• pack of wrapped electrodes for MMA welding - 1kg.

+ SET FOR WELDING MAGE WITH 8L CYLINDER

• Ar/CO2 8l cylinder - tested, has all the necessary approvals for the Ar/CO2 MIX mixture.
• reducer Ar/CO2 with two clocks + gas line,
• welding wire steel SG2 D200 0,8mm x 5kg,
• welding gloves,
• burner part starter kit.

+ TIG SET WITH 8L CYLINDER

• Ar 8l cylinder - tested, has all the necessary approvals for pure Argon,
• reducer Ar/CO2 with two clocks + gas line,
• TIG DC Part Starter Kit - 3pcs Tungsten Electrodes,
• TIG lens starter kit,
• TIG DC wire starter kit - black steel, stainless steel,

+ ALUMINIUM WELDING KIT

• roll for aluminium wire 0.8/1.0mm - 1pcs
• Aluminium welding wire 0,45kg 0.8mm (D100) - 1pcs
• Aluminum welding wire 0,45kg 1.0mm (D100) - 1pcs
• self-shielding wire for welding without gas FLUX 0,45kg x 0,8mm,
• Teflon guide insert blue for MIG holder 0.6/0.8mm - 1pcs
• cartridge Teflon guide red for MIG holder 1.0/1.2mm - 1pcs

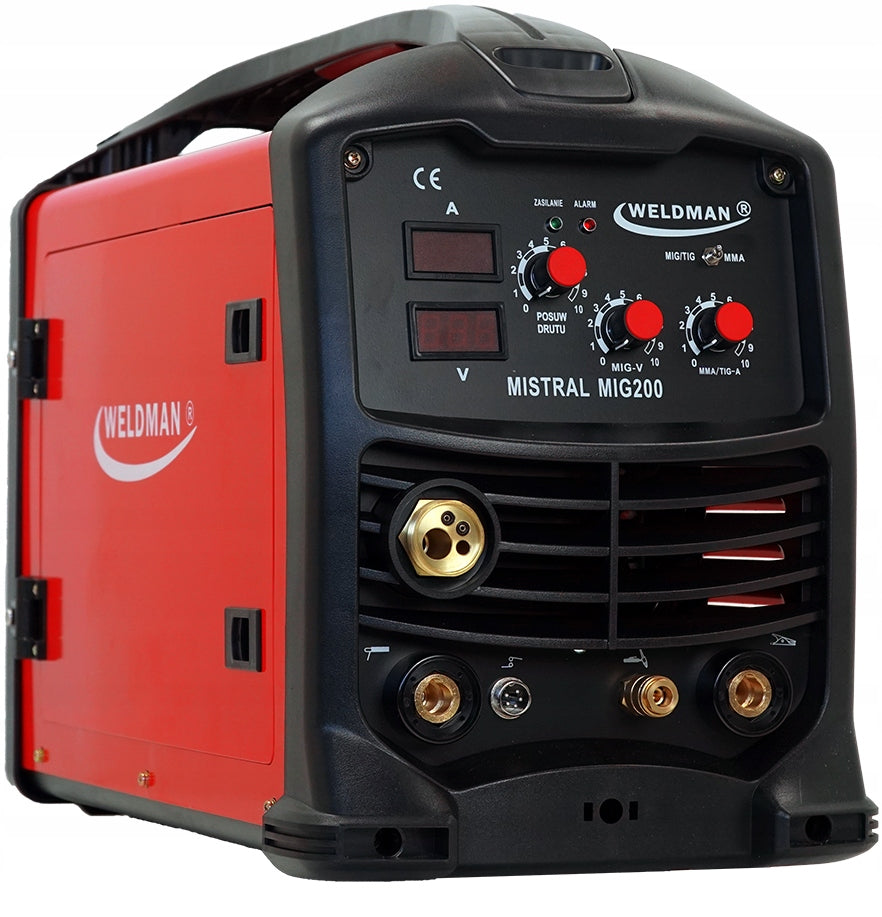

MISTRAL MIG 200 was constructed using IGBT transistors, which translates into good and stable welding parameters. The device is powered from a single-phase 230V network, and most importantly allows welding current up to 200 amps for all welding methods.

When designing this device, the appropriate harmony between the modern technologies used and the simplicity of execution was maintained. The result is a robust and reliable 3in1 MIG. Many users, as well as us, see here a similarity with the well-known and valued model Weldman MIDI MIG 220. However, the difference is that MISTRAL MIG 200 has been prepared factory for TIG welding.

MISTRAL MIG 200 is recommended for beginners, DIY enthusiasts as well as more advanced welders.

MISTRAL MIG 200 as one of the few devices in its class does not require the use of special TIG handles with a valve in the burner, which are connected directly to the reducer in the argon cylinder.

It has a built-in solenoid valve dedicated for TIG method. Thanks to this, it works with a standard TIG welding torch, where the source is controlled using a micro switch in the handle. After pressing the button on the TIG handle, the welding arc is initiated and the solenoid valve opens.

*Arc glow, as in most 3in1 migraines, is done rubbing with Lift support.

**We remind these less advanced users that it is a TIG DC source (direct current), which is why in the TIG method it will be used for welding various steel grades, including quality, but it will not be suitable for welding aluminum. Aluminum requires a TIG source, which gives AC current (alternating current) at the output. Aluminum will be able to be welded in the MIG method, after proper arming of the device.

• MIG/MAG - semi-automatic welding in gas shield,
• FLUX - semi-automatic welding with self-shielding wire,
• MMA - welding with wrapped electrode,
• TIG DC Lift - DC TIG welding in gas shield.

BASIC:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Network Security Requirement: 20A
• Degree of protection: IP 21S
• Dimensions: 580x280x420mm
• Weight 16,0kg

MIG/MAG WELDING PARAMETERS:

• MIG/MAG welding current: 50 - 200A
• MIG/MAG duty cycle: 60% 200A / 100% 155A
• MIG/MAG welding voltage: 16,5-24,0V smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)
• Wire diameter: 0,6/0,8/0,9/1,0/1,2 mm
• Change in MIG/MAG welding polarity

WELDING PARAMETERS MMA:

• MMA welding current: 10 - 200A
• Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0
• MMA duty cycle: 60% 200A / 100% 155A
• MMA Welding Current Adjustment: Smooth
• Idle Current Voltage: 56V

WELDING PARAMETERS TIG:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0
• TIG duty cycle: 60% 200A / 100% 155A
• TIG welding current regulation: smooth
• Arch ignition: contact - Lift
• Valve control: micro-switch in the handle

PHOTO GALLERY:

Choose a brand whose history dates back to the beginning of the twenty-first century. Weldman is a leading brand of welding equipment in Poland.

A wide range of Weldman devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Weldman brand most often due to its high quality, affordable price and reliability.

Specifications
