Trumpai apie prekę
Prekė: Suvirinimo aparatas MIG/MAG/TIG/MMA IDEAL 250A, inverterinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: EXMIG250PFC_pakiet2
- Ilgis: 760 mm
- Plotis: 320 mm
- Aukštis: 580 mm
| Manufacturer: Ideal | Methods: MIG/MAG, MMA , FLUX , TIG Lift | Synergy | Soldering | 250 A / 60% | 230 V | IGBT |

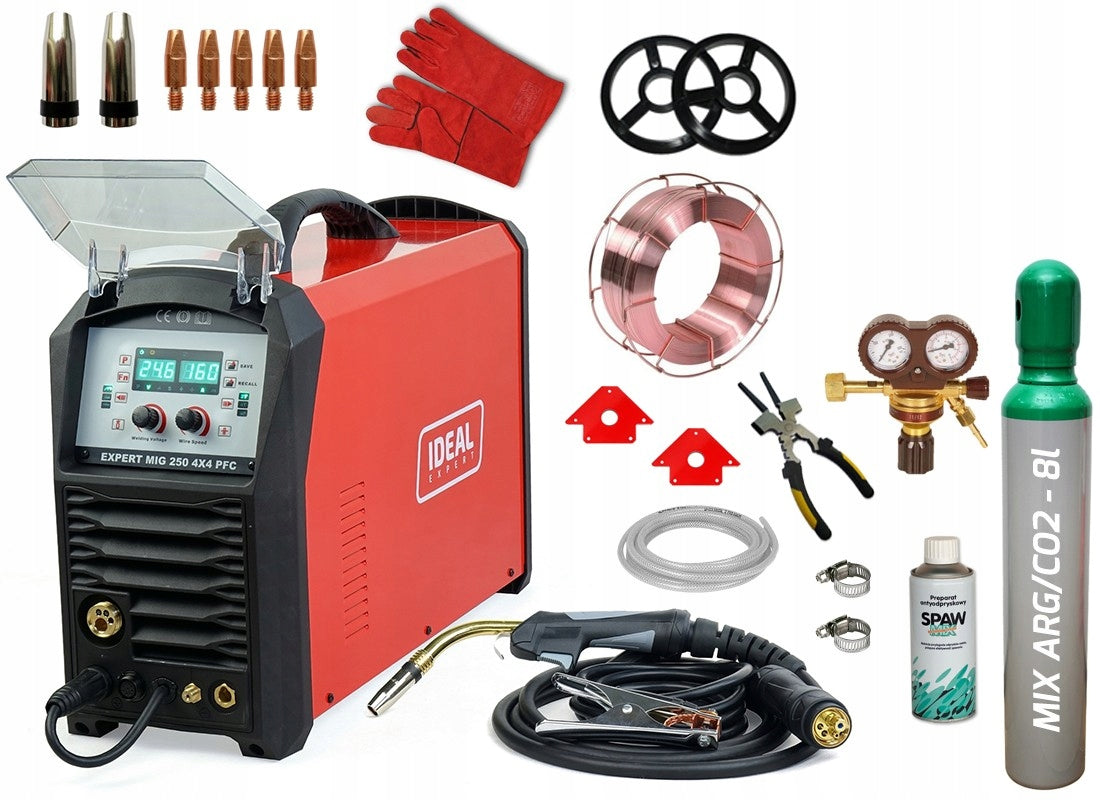

✅ This kit includes standard equipment and an extensive accessory package.
❇ Standard equipment:
- Ideal Expert MIG 250 4x4 PFC Synergic welding machine
- welding torch with EURO MB 24 - 3,0 m connector
- mass cable - 3,0 m
- instruction manual in Polish
❇ Accessory Pack:
- gas cylinder ARG/CO2 8 litres (new, full, 10-year legalization, valve cap)
- large reducer ARG/CO2 with two pressure gauges
- anti-chipping preparation 400 ml
- SG2 1,0 mm / 15,0 kg welding wire
- wire spool adapter
- magnetic angle 11 kg
- magnetic angle 22 kg
- welding gloves 1 pair
- Welding pliers
- gas nozzle 2 pcs.
- current tip 1,0 mm 5 pcs.
- hose for gas connection + clamps

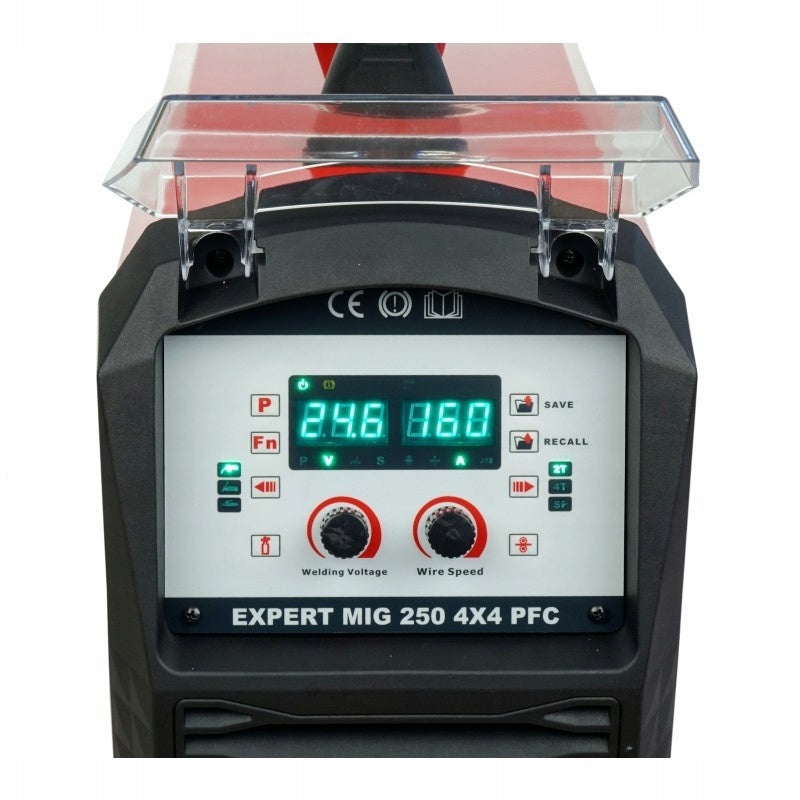

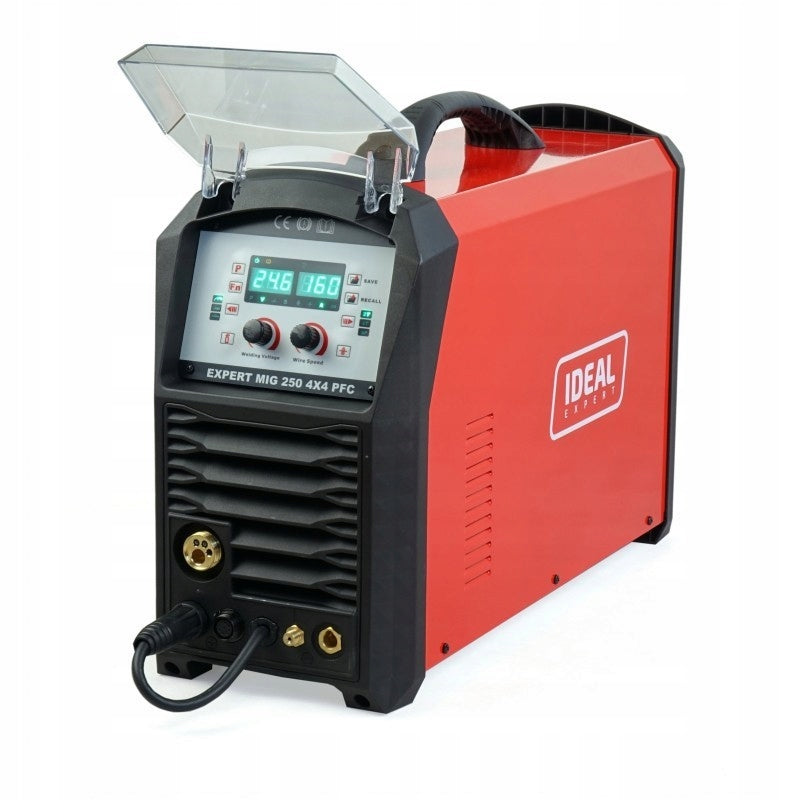

✅ The IDEAL Expert MIG 250 4x4 PFC Synergic is a microprocessor controlled semi-automatic welding machine for welding methods:
- MIG/MAG
- FLUX
- MMA
- TIG Lift
- lutowelding galvanized sheets.
✅ The welder has been designed for a wide range of applications: from maintenance work to car body repairs.
✅ Migomat is great for lutowelding of galvanized sheets, welding of stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.
✅ PFC (Power Factor Correction) – increased power factor, 30% less power consumption from the mains.
- Through the use of a 4-roller wire feeder, the device copes very well with 5-meter welding torches.
- The device is equipped with functions: 2-bar, 4-bar and point welding.
- We also have the ability to adjust: welding inductance, welding voltage corrections, gas before, gas after, wire burning and soft start.
- The device has a fan cooling system which significantly increases its efficiency.
- It is equipped with overload protection, over and undervoltage, to work with a generator (+/- 15%) which increases its reliability.
Power supply parameters:
- Single-phase power supply - 230 V.
- The device is not equipped with a power plug.
- Weight: 27 / 32 kg
- Height: 580 mm
- Width: 320 mm
- Length: 760 mm
- Power supply [V]: 230
- Characteristics: Automatic retry of the number welding current [A]: 250
- Cooling: with gas
- Type of wire feeder: internal 4 roller
- Processes: MIG / MMA
- Welding current range [A]: MIG/MAG: 40 - 250 A, MMA/TIG: 10 - 250 A
- Current [A] / duty cycle [%]: 250 A / 60%
- Security [A]: 25
- Power consumption: 7,8 [kW]
- Current adjustment: Smooth
- Function 2T/4T: Yes
- Degree of protection: IP23
- Wire spool: 15,00 kg / D300
- VRD: Yes
- Inductance adjustment: Yes
- Welding range from [A]: 40
- Welding range up to [A]: 250
Cylinder filled with high quality mixture Ar/CO2 designed for welding in protective gas shielding and for other industrial applications.
The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.
Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.
- Capacity [l]: 8
- Amount of gas [m3]: 1,3
- Mass [kg]: ~15
✴ Multifunctionality - The device can be used for MIG/MAG, TIG Lift, MMA and FLUX welding, which makes it versatile and useful in various applications.
✴ Wide range of applications - Suitable for a variety of jobs, from maintenance to car body repairs.
✴ Ability to weld various materials - Can be used for welding galvanized sheets, stainless steel, carbon and low alloy steels and aluminum.
✴ Increased Power Factor (PFC) - Allows for less power consumption from the mains, which can contribute to energy savings.
✴ Advanced functions and adjustments - Such as welding inductance adjustment, welding voltage correction, before and after gas, and soft start, ensure precision and control over the welding process.
✴ Performance and reliability - Thanks to the fan cooling system and overload, over and undervoltage protection, the welding machine is characterized by high efficiency and reliability in operation.
✴ Solid 4-roll wire feeder
✴ Welding functions - The device is equipped with 2-bar, 4-bar and spot welding functions, which allows you to adjust the operating mode to the specific needs and preferences of the user.
✴ Fan cooling system - It ensures efficient cooling of the welding machine, which increases its efficiency and stability of operation, especially for longer periods of use.
✴ Security - The welder is equipped with overload, overvoltage and undervoltage protection.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 7.8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 27 kg |
| Parametry | Welding range | 40–250 A |
| Parametry | Height | 580 mm |
| Parametry | Length | 760 mm |
| Parametry | Width | 320 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 27 kg |
| Parametry | Manufacturer code | EXMIG250PFC_pakiet2 |
| Parametry | EAN (GTIN) | 5905031037726 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle |
