Trumpai apie prekę
Prekė: Suvirinimo aparatas MIG/MAG MMA IDEAL TECNO MIG 220 IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: Spawarka Ideal TECNO MIG 220 XRT1
- Ilgis: 540 mm
- Plotis: 240 mm
- Aukštis: 385 mm
Manufacturer: Ideal ||Welding methods: MIG, MAG, MMA, FLUX || Power supply: 230V || Maximum welding current: 220A || Working cycle: 60% ||

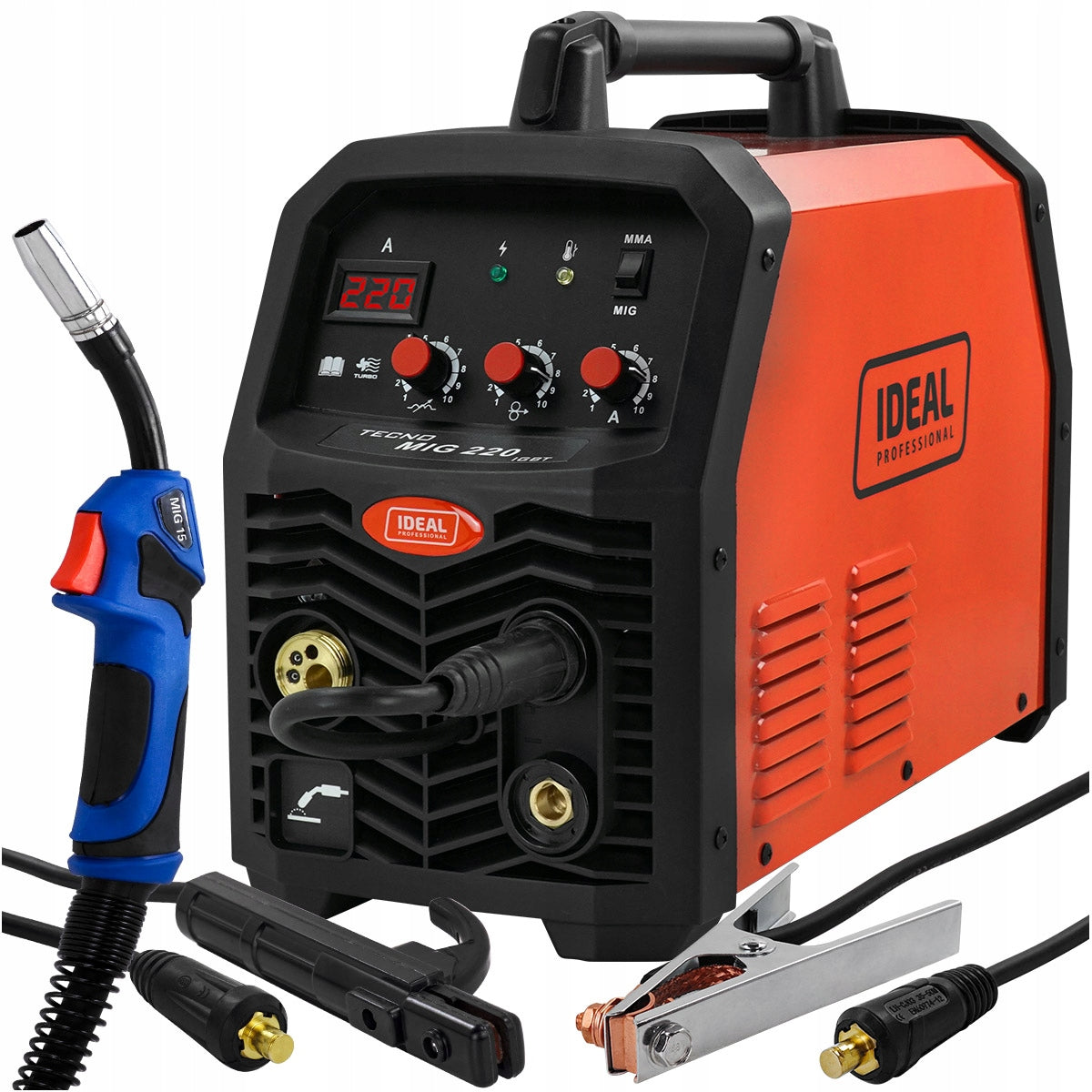

- Ideal TECNO MIG 220 IGBT welding machine
- MIG MB-15/3m welding torch
- MMA Electrode Holder
- Bulk cable
- User manual
+ ADDITIONAL ACCESSORIES FOR FREE
- welding disc,
- brush-hammer.
Ideal Tecnomig 220 MMA IGBT is a semi-automatic welding machine made in inverter technology with great utility values. It has been designed and made for various types of workshop work. It is used both in welding various types of details and steel structures, but also in automotive mechanics and sheet metal and varnishing plants.
GOOD PARAMETERS, MANY APPLICATIONS
- wide range of applications - MIG/MAG welding current in the range of 30-220 amps,
- powered from a single-phase 230V network,
- smooth adjustment of all welding parameters,
- regulation of MIG/MAG welding inductance - control of face width and depth of melting, reduction of welding chipping, better soldering CuSi3,
- EURO socket of MIG holder,
- variable welding polarity - the ability to work with FLUX self-shielding wire.

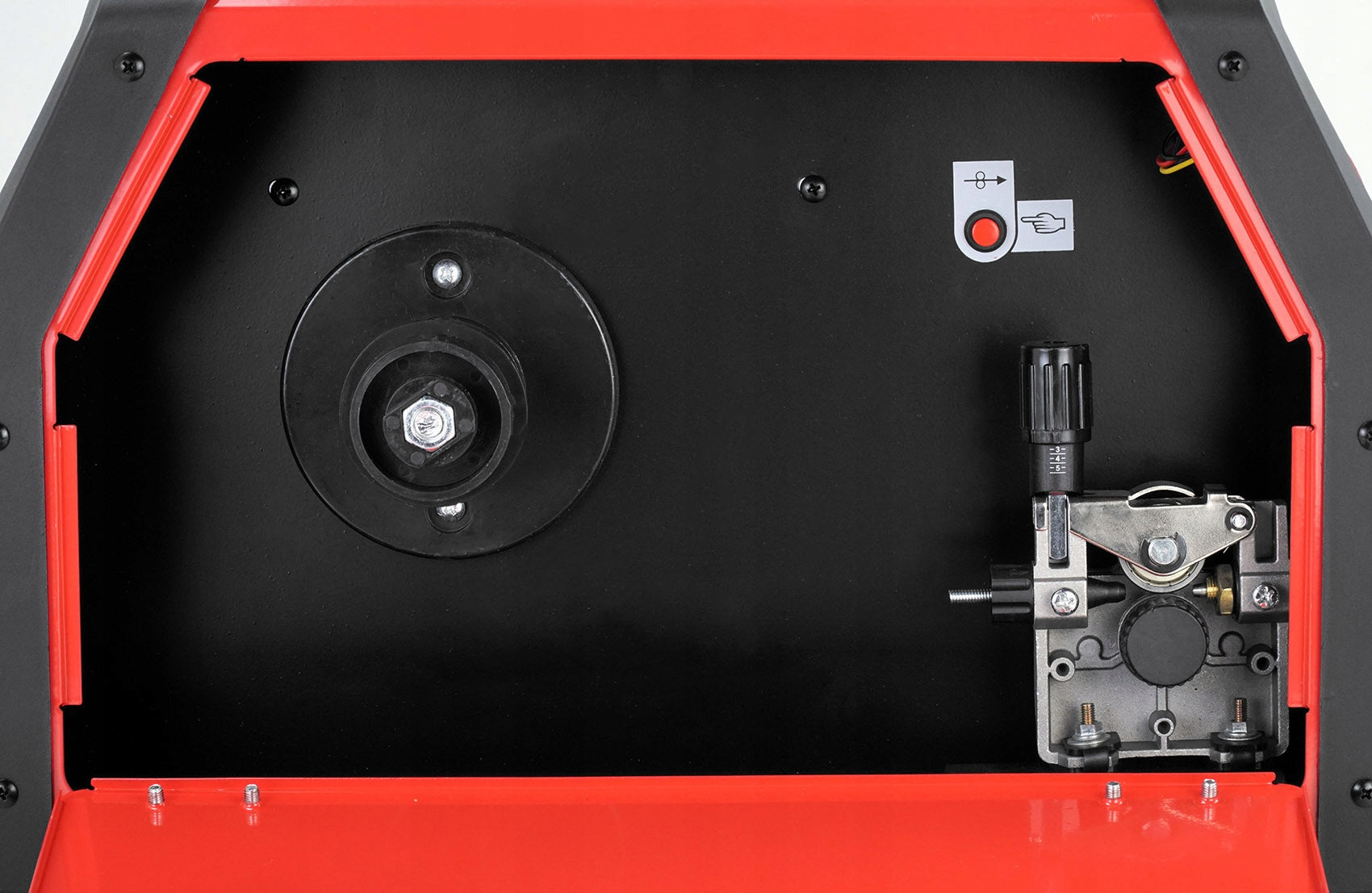

PROFESSIONAL WIRE FEEDER 2R
Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.
The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.
- Supply Voltage: 230V 1ph
- Technology: IGBT Inverter
- Degree of protection: IP 21
- Dimensions: 540x240x385 mm
- Current taken from the mains: 21,6A
- Power: 5,5 kW
- Weight: 15kg
MIG/MAG WELDING PARAMETERS:
- MIG/MAG welding current: 30- 220A - smooth adjustment
- MIG/MAG duty cycle: 60% 200A, 100% 130A
- MIG/MAG welding voltage: smooth adjustment
- Wire feed speed: smooth adjustment
- Welding inductance: smooth adjustment
- MIG/MAG welding polarity change: YES
- Spool with wire: max 5kg (D100, D200)
- Steel wire diameter: 0,6 - 1,0 mm
- Stainless steel wire diameter: 0,6 - 0,8 mm
- Diameter of aluminum wire: 0,8-1,0mm
- Self-shielding wire diameter: 0,8 mm
WELDING PARAMETERS MMA:
- MMA welding current: max. 180A
- Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0mm
- MMA Welding Current Adjustment: Smooth
- Idle Current Voltage: 50V
Gallery:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 6.76 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 30–220 A |
| Parametry | Height | 385 mm |
| Parametry | Length | 540 mm |
| Parametry | Width | 240 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 17 kg |
| Parametry | Manufacturer code | Spawarka Ideal TECNO MIG 220 XRT1 |
| Parametry | EAN (GTIN) | 5904624005074 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
