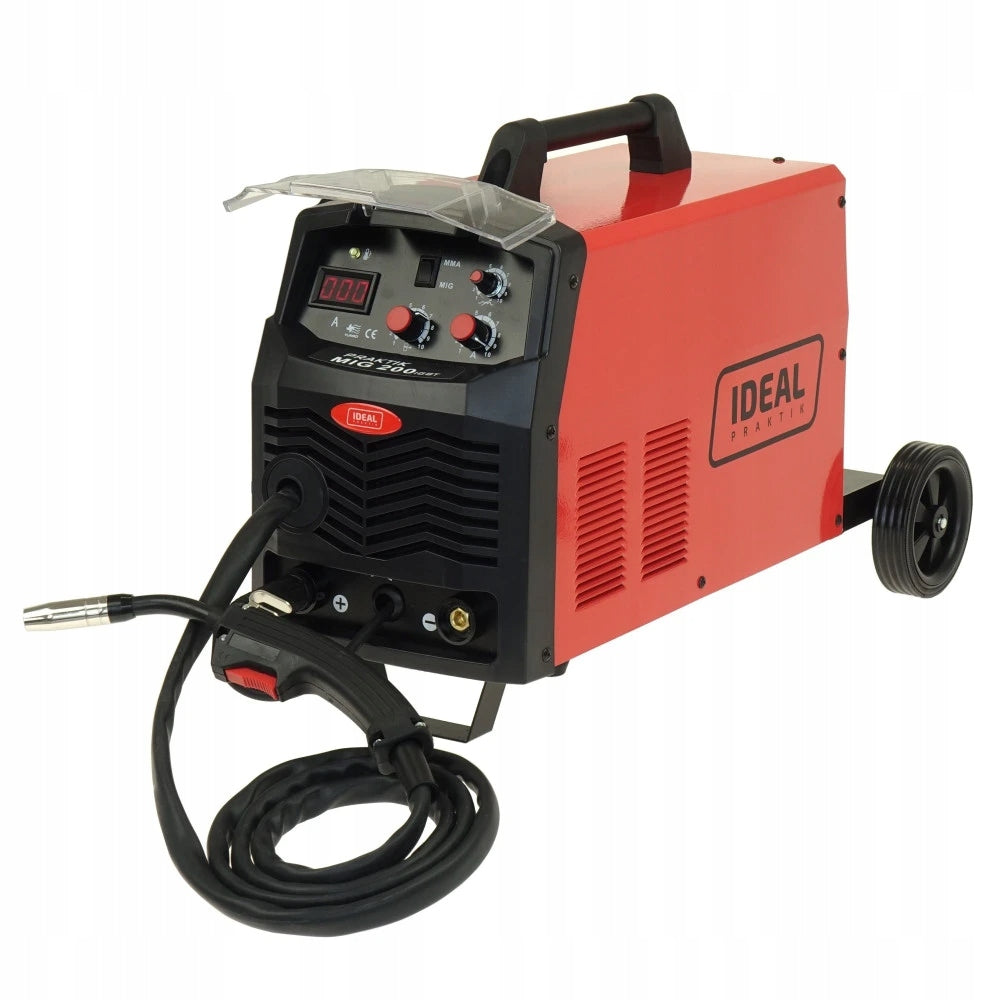

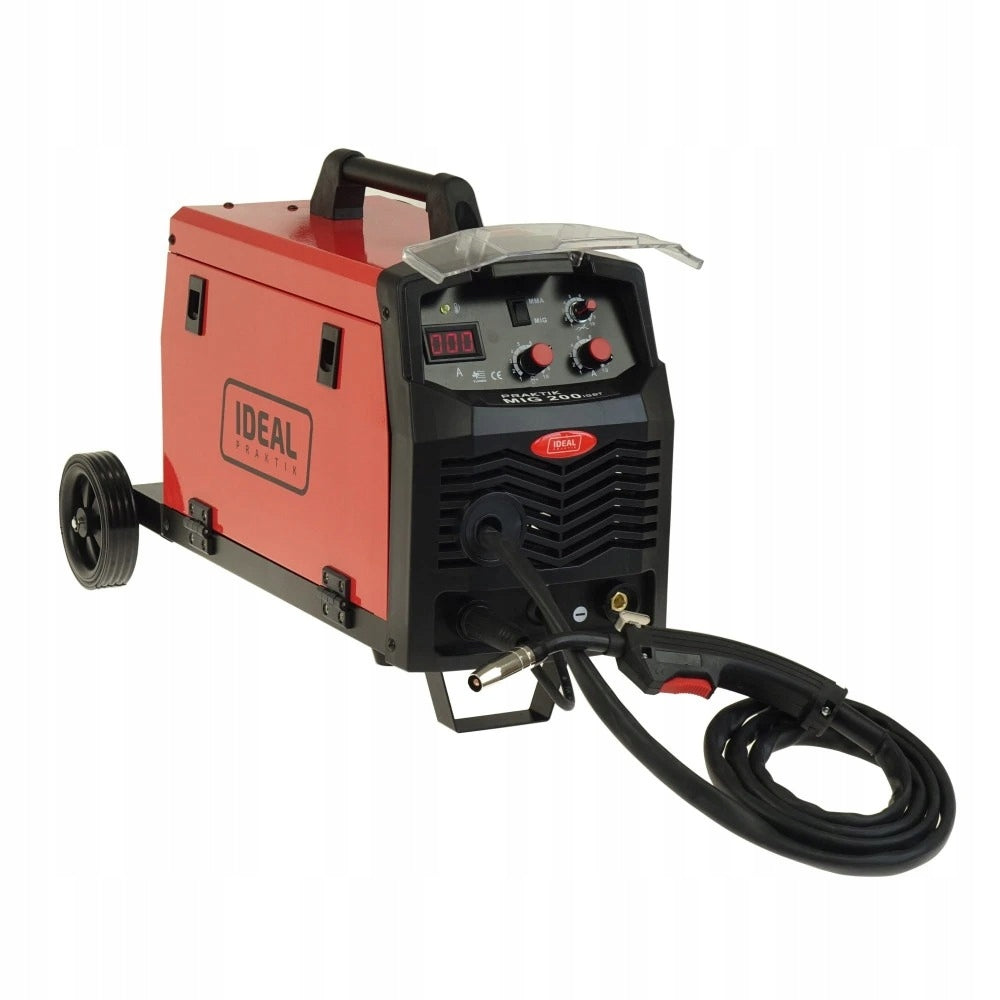

Suvirinimo aparatas MIG/MAG/MMA IDEAL 200A, IGBT, 230V, su priedais

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG/MMA IDEAL 200A, IGBT, 230V, su priedais. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 200 IGBT
• Ilgis: 472 mm
• Plotis: 225 mm
• Aukštis: 336 mm

| Manufacturer: Ideal | Welding methods: MIG/ MAG, MMA, FLUX | IGBT | Power supply: 230 V | Welding current: 200 A | Complete set |

• semi-automatic welding machine
• MIG holder MB-14 / 2,2 m (fixed)
• mass cable / plug 16-25 mm2 / 2 m
• electrode cable / plug 16-25 mm2 / 200 A / 2 m
• set of feeder rollers (type D) fi 0,6 mm / 0,8 mm V-shaped (mounted)
• instruction manual in Polish

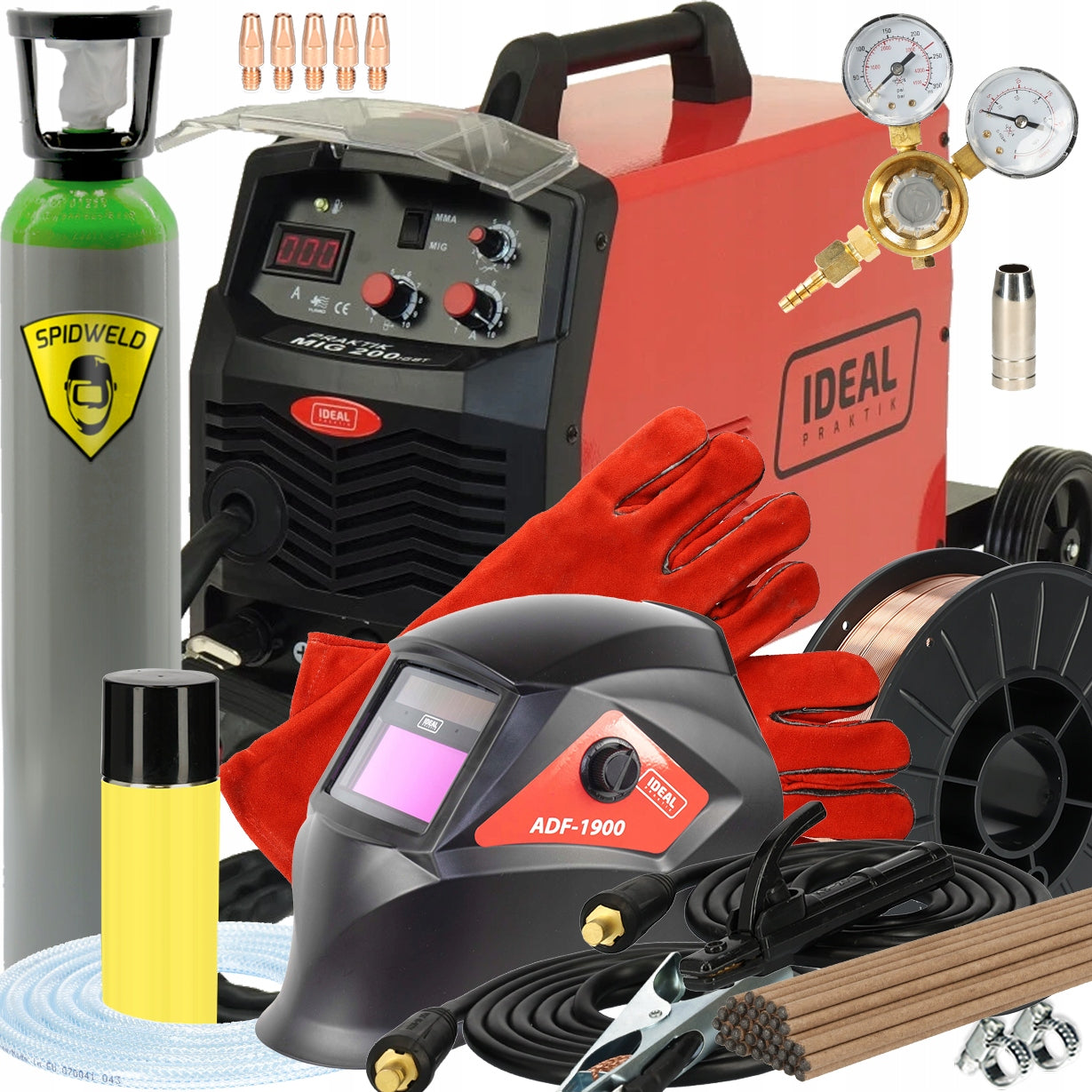

For this price, the accessory package with CYLINDER and VISOR:

• self-tinting welding visor
• 8l cylinder with Argon+CO2 mixture
• Argon+CO2 reducer two manometers
• anti-chipping preparation 400 ml
• welding gloves 1 pair
• gas nozzle 1 pc.
• current tip fi 0,8 mm 5 pcs.
• reinforced hose for gas 2 m
• Worm band for hose 2 pcs.

For this welding materials:

• Welding wire MIG SG2 0,8 mm / 5 kg
• Rutilium welding electrodes fi 3,2 mm / 1,0 kg

The Ideal ADF-1900 welding visor automatically dims when the arc is ignited and brightens when the work is finished – complete convenience. It protects the eyes from UV and IR radiation, and the ability to set sensitivity of sensors and lightening time allows you to adjust it to any task.

It has a variable degree of protection DIN 4/9 to 13, making it suitable for MIG/MAG and MMA welding, as well as in grinding mode – just one switch.

It works thanks to photovoltaic cell and replaceable battery CR2032, which guarantees long, trouble-free operation.

Lightweight, factory new cylinder with Ar/CO2 mixture. With the reducer and hose kit - simply plug in and operate. It has a basket that protects the valve in transit and in the workshop, so everything is safe. It is much lighter than converted cylinders, and at the same time maintains standards and quality, so it can be filled.

8 l capacity (about 1,3 m³ of gas) – a great supply for convenient operation without frequent replacements.

✴ Welding MIG/MAG, FLUX (without gas) and MMA – with one device you can do almost everything: from sheet metal to steel profiles.

✴ Power supply 230 V – just a simple outlet, you can weld in the garage, workshop or in the field.

✴ Welding current up to 200 A – nice, strong welds even with thicker elements.

✴ Simple operation – smooth regulation of current, wire speed and inductance, so you can easily adjust the parameters to work.

✴ MIG MB-14 (2,2 m) holder included – lightweight, handy and convenient to use.

✴ Welding without gas (FLUX) – just translate the polarity to work in the field without cylinders.

✴ Stable 2-roll feeder – equal wire feed and calm arc means less nerves when welding.

✴ For spools up to 5 kg (D200) – you are less likely to replace the wire and always easily accessible material.

✴ Sturdy construction – decent workshop equipment for years, not for one season.

Clear control panel

The panel offers smooth regulation of current, wire feed and inductance – you set exactly what the task requires. Large knobs and clear descriptions speed up setup and reduce the risk of errors. The adjustment range allows you to weld both thin sheets and thicker structural elements.

IGBT inverter technology

The use of IGBT transistors stabilizes the arc and reduces current fluctuations during operation. The result is a cleaner weld, less spatter and more control over the welding lake. Thanks to its high efficiency, the device is compact, lightweight (14,7 kg) and energy-efficient. You have a power supply 200 A at 230 V, which is enough for most workshop and home applications.

Wire feeder with matching handle

A good 2R feeder confidently guides the wire and gives an even, repeatable weld. No more wire jamming and uneven feeding. Smoothly set the voltage, wire feed and welding current. The MIG holder with a length of 2,2 m is permanently connected, so it is part of the set - you do not have to buy it separately!

Gas-free welding with self-shielding wire

You can change the polarity of the MIG/MAG, which allows you to weld without gas with self-shielding wire. You do it simply and quickly.

Place for a cylinder

Stable chassis supports the welding machine during operation and transport. The built-in cylinder platform makes it easy to set up and ensures that the entire set is properly balanced. Thanks to this, the bottle stands safely.

Rubber tires and wheels for easy transport

Large wheels make it easy to roll over thresholds, cables and uneven floors. You can easily set the equipment exactly where you need to work. The driving is light and predictable, which speeds up the organization of the position.

You do not need to assemble the chassis, if you want a lightweight, portable welding machine is no problem with this model!

Technical parameters

• single-phase power supply 230 V
• maximum spool with wire: 5 kg
• welding current 200 A
• 2-roll wire feeder, with 0,6-0,8 roll for steel wire
• diameter of welding wire 0,6-0,8 mm
• permanently mounted welding torch
• smooth regulation of welding current
• fan-cooled
• overload protection
• regulation of inductance

For MIG/MAG welding, adjustability:

• welding current
• Wire feed rates
• inductance

• semi-automatic welding machine
• MIG holder MB-14 / 2,2 m (fixed)
• mass cable / plug 16-25 mm2 / 2 m
• electrode cable / plug 16-25 mm2 / 200 A / 2 m
• set of feeder rollers (type D) fi 0,6 mm / 0,8 mm V-shaped (mounted)
• instruction manual in Polish
• self-tinting welding visor
• 8l cylinder with Argon+CO2 mixture
• Argon+CO2 reducer two manometers
• anti-chipping preparation 400 ml
• welding gloves 1 pair
• gas nozzle 1 pc.
• current tip fi 0,8 mm 5 pcs.
• reinforced hose for gas 2 m
• Worm band for hose 2 pcs.
• Welding wire MIG SG2 0,8 mm / 5 kg
• Rutilium welding electrodes fi 3,2 mm / 1,0 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	14.7 kg
Parametry	Welding range	30–200 A
Parametry	Height	336 mm
Parametry	Length	472 mm
Parametry	Width	225 mm
Parametry	Length of ground cable	150 cm
Parametry	Welding cable length	220 cm
Parametry	Manufacturer code	PMIG200V2 MAPR-14
Parametry	EAN (GTIN)	5905031000089
Parametry	Packaging status	original
Parametry	Model	PRAKTIK MIG 200 IGBT
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,welding mask included,infinitely adjustable welding current,LCD display
