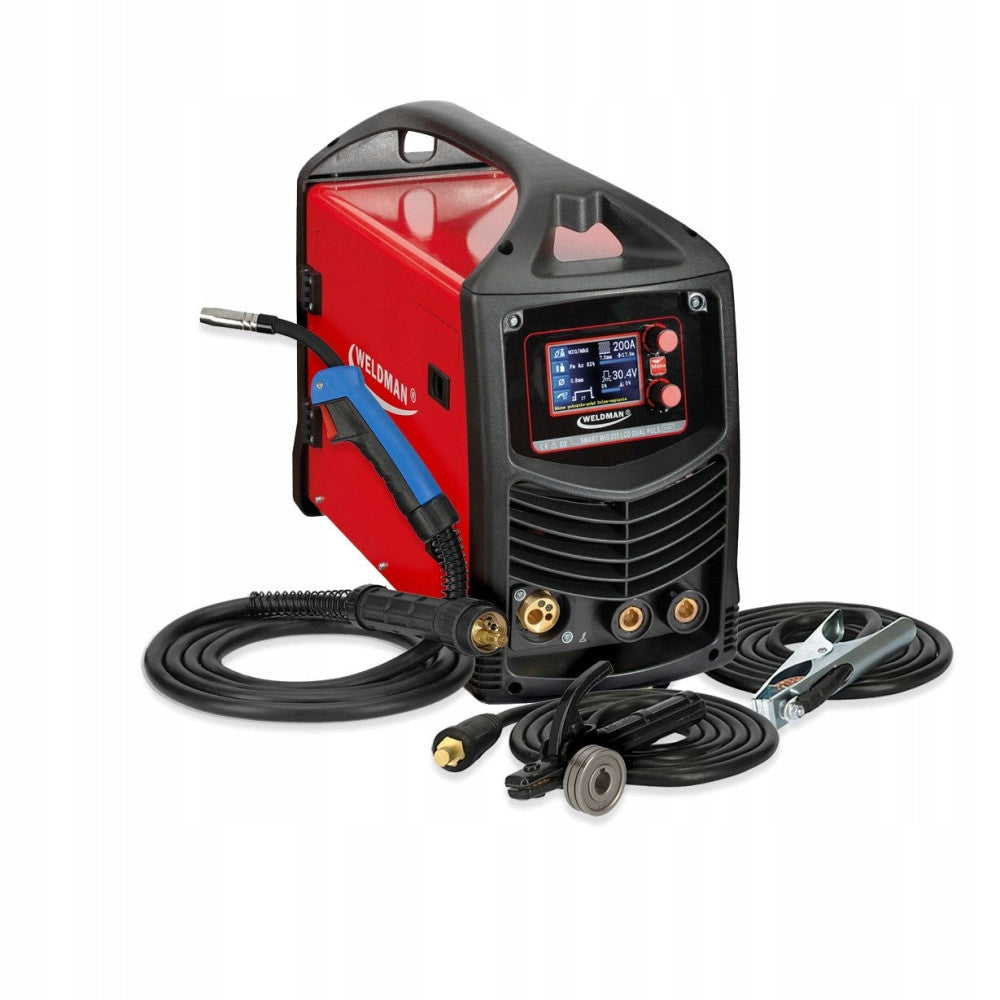

Suvirinimo aparatas MIG/MAG/MMA 200A su dviem pulso režimais WELDMAN komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG/MMA 200A su dviem pulso režimais WELDMAN komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: SMART MIG 235 LCD
• Ilgis: 540 mm
• Plotis: 260 mm
• Aukštis: 452 mm

• welding device
• welding torch type KD-24 3 m with Teflon insert
• feeder roll fi 0,8 / 1,0 mm V-shaped (mounted)
• feeder roll fi 1,0 / 1,2 mm U-shaped Aluminium
• welding wire 2,5 m with electrode holder 200A (DX 50)
• mass cable 2,5 m with terminal 300 A (DX 50)
• 2 m power cord with 230 V plug
• gas connection for technical hose 8 mm
• 230 V output socket on the rear panel
• instruction in Polish

Intelligent technology and unique voice support in Polish

Weldman Smart MIG 235 LCD Syn Dual Puls is one of the most modern welding equipment on the market that sets new standards in the field of user interaction. As one of the few welding machines, this offers innovative voice message option and in Polish, which in combination with a large, colorful LCD display makes operation extremely simple and intuitive. Made in IGBT inverter technology, it provides a stable arc and high energy efficiency, being an ideal solution for precise welding of low-carbon steel, alloy steel, cast iron and aluminum.

Advanced Dual Pulse and Full Synergy for Professional Welds

The device has been designed to obtain the highest quality welds, comparable to the TIG method, thanks to the dual pulse function. This system, available in both MIG and TIG methods, allows for excellent weld face formation and almost complete elimination of chipping, which is crucial when welding aluminum and stainless steel. Full synergy automatically selects welding parameters, and the built-in setting memory allows you to save your own configurations, which drastically reduces the time of preparing the machine for repetitive workshop tasks.

Process versatility and mobility without compromise

Despite its compact size, the Weldman Smart MIG 235 is a true welding centre supporting MIG/MAG, TIG Lift (with pulse), MMA and FLUX (gas-free welding). The device offers advanced adjustment functions such as Pre-gas and Post-gas, wire burning (Burn Back) and inductance control, making it an ideal tool for galvanized sheet welding. The mobile design supporting spools up to 5 kg (D200) and professional handle modes (S2T/S4T) make this welding machine ideal for both stationary workshops and field assembly work.

✅ Voice messages in Polish: A unique assistant system that facilitates configuration and informs about the status of the device.

✅ Dual Pulse: Guarantees aesthetic welds "with scale" and minimizes heat supply, protecting the material from deformation.

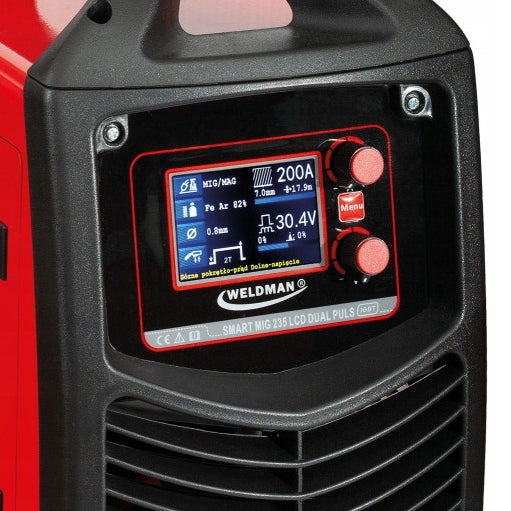

✅ Color LCD display: Clear and modern graphical interface allowing precise viewing of all parameters.

✅ Full Synergy: Intelligent support in the selection of current and wire feed, ideal for rapid material changes.

✅ S2T/S4T modes: Specialized welding start and end characteristics, crucial for demanding aluminium alloys.

✅ Soldering function: Thanks to the inductance adjustment, the device allows for safe connection of galvanized sheets with CuSi3 wire.

✅ Safety VRD: Idle voltage reduction system to protect the operator during MMA welding.

Technical parameters

• Power supply: 230 V
• Network security 230 V: 20 A
• Welding processes: MIG / MAG / MMA / TIG
• Minimum MIG welding current: 40 A
• Maximum MIG welding current: 200 A
• Minimum TIG welding current: 10 A
• Maximum TIG welding current: 180 A
• Minimum MMA welding current: 20 A
• Maximum MMA welding current: 180 A
• Working cycle (MIG/MAG, TIG, MMA): 60%
• Control: Synergistic
• Pulse function: YES
• Inductance regulation: YES
• Soldering function: YES
• Welding without gas: YES
• Wire feeder type: 2-roll
• Supported wire spool diameter: 200 mm
• 2-bar / 4-bar function: YES
• Point welding: YES
• Memory function: YES
• VRD function: YES
• Hot Start function: YES
• Length: 54 cm
• Width: 26 cm
• Height: 45 cm
• Weight: 17 kg
