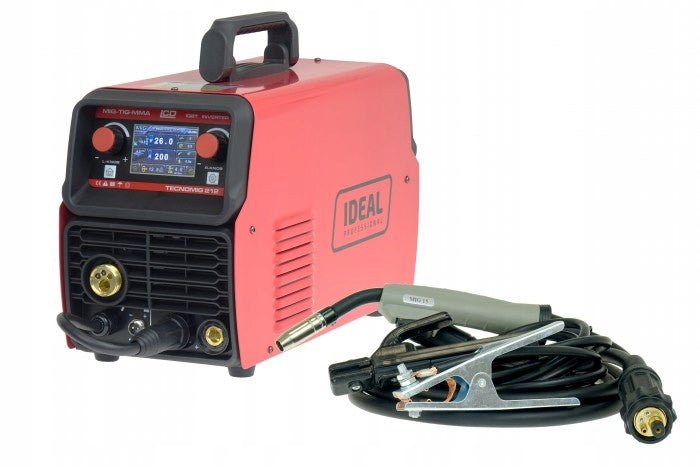

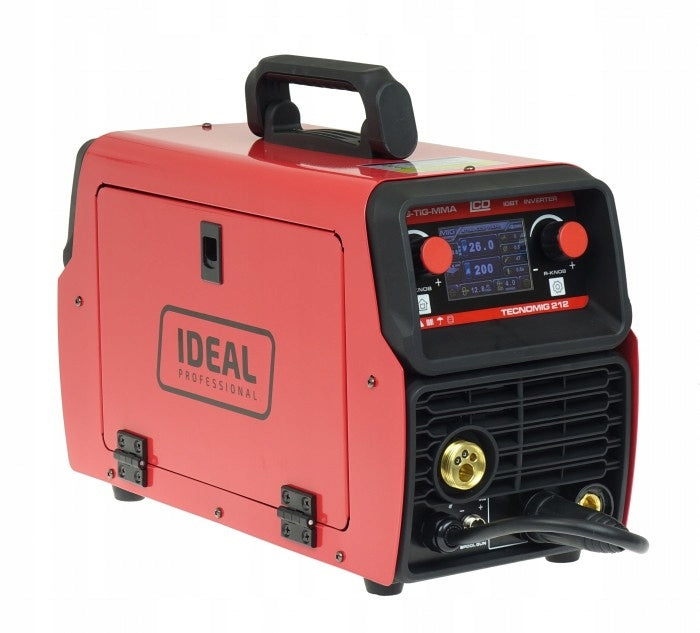

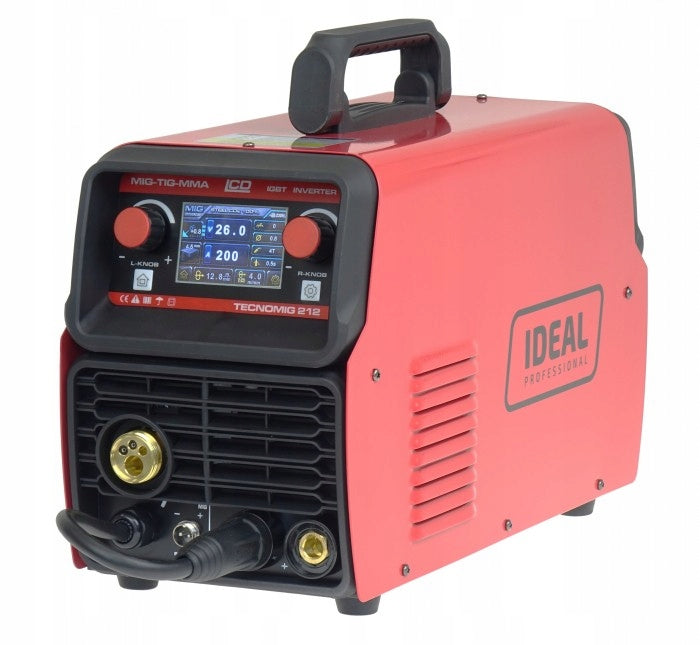

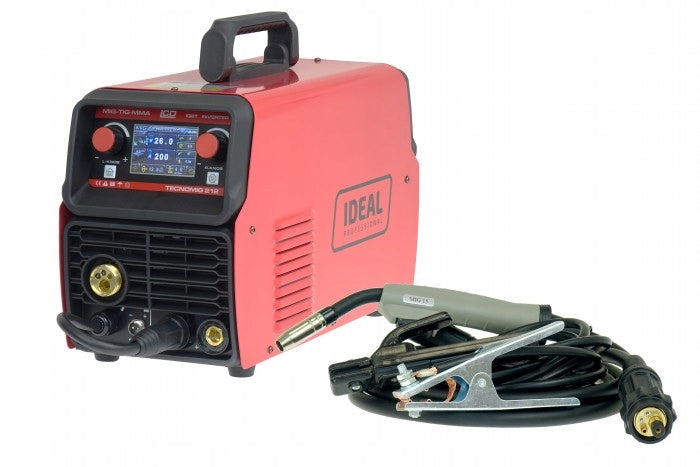

Suvirinimo aparatas MIG/MAG IDEAL TECNOMIG 212 LCD IGBT 230V 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG IDEAL TECNOMIG 212 LCD IGBT 230V 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: 5906112547349
• Ilgis: 460 mm
• Plotis: 225 mm
• Aukštis: 300 mm

Microprocessor-controlled semi-automatic welding machine for MIG/MAG, TIG LIFT, MMA and FLUX welding. The TECNO MIG 212 MIG/TIG/MMA SYNERGIC VRD ALU is designed for a wide range of applications, from maintenance work to car body repairs. TECNOMIG 212 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas. The device has three synergistic modes for welding carbon steels and one mode for aluminium. Using manual settings, you can customize the device for soldering. With the MIG/MAG method, we can choose the button function in the handle between 2T (without button lock)/4T (button lock for long welds) With the MMA method, we have the ability to turn on the VRD (VOLTAGE REDUCTION Device) function - reduces the idle voltage on the electrode to a safe value. Provides shock safety when working in humid environments. Quick synergistic adjustment of welding parameters via LCD display makes the device very easy to use.

Functions of the device:

• LCD display: welding current, welding voltage, wire feed speed, inductance adjustment, HOT START (MMA), ARC FORCE (MMA)
• 2-bar, 4-bar and spot welding
• regulation of inductance
• polarity change for FLUX welding without shielding gas
• overload protection, over and undervoltage protection, for operation with a generator (+/- 15%) which increases its reliability
• FLUX - welding without gas, self-shielding wire
• TIG LIFT
• MMA - welding with wrapped electrode
• Soldering of galvanized sheets
• MIG/MAG synergistic programs with the possibility of adjustment: gas before welding, gas after welding, wire access, wire burning, spot welding time, interruptions in spot welding
• synergy correction allows accurate adjustment of welding voltage values to wire feed speed
• IGBT
• HOT START
• ARC FORCE
• VRD
• 2 roller feeder - designed to work under medium load

Specification:

• current taken from the mains: 22 A
• rated supply voltage: 230 V
• protection of the power supply network: 25 C
• Power: 6,2 kW
• idle voltage: 50-60 V
• Maximum current: 200 A
• current at 60% operation: 200 A
• diameter of aluminum wire: 0,8-1,0 mm
• diameter of wire for soldering: 0,8 mm
• diameter of self-shielding wire: 0,8-1,2 mm
• diameter of steel wire: 0,8-1,0 mm
• diameter of welding electrode: 1,6-4,0 mm
• welding current adjustment steps: steplessly
• welding current adjustment range: 30-200 A (MIG/MAG) / 10-180 A (MMA) / 10-200 A (TIG)
• wire spool size: 0,45-5 kg
• degree of protection: IP 23
• weight of the device/set: 14/18 kg
• dimensions L x W x H: 460x225x300 mm

Composition of the set:

• TECNO MIG 212
• welding torch for eurodisconnector MB15 3m
• mass cable 1,5m
• electrode cable 2m
