Suvirinimo aparatas MIG/MAG 200A IDEAL Synergy 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG 200A IDEAL Synergy 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Migomat TECNO MIG 202 LED ZCOM0
• Ilgis: 455 mm
• Plotis: 170 mm
• Aukštis: 300 mm

Manufacturer: IDEAL || Welding methods: MIG/MAG, MMA, TIG, FLUX || Maximum welding current: 200A || Power supply: 230V

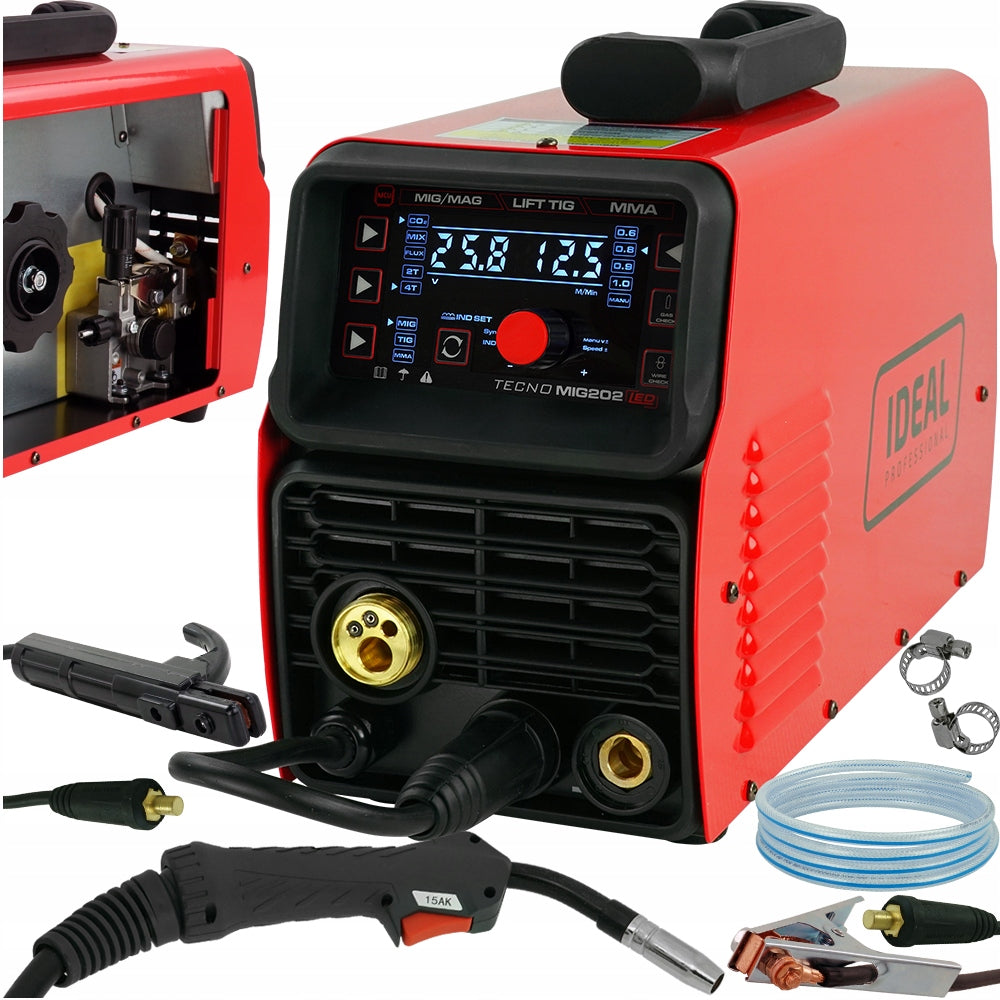

✔ TECNO MIG 202 LED welder

✔ MIG EURO MB welding torch 15 3m

✔ MMA Electrode Holder

✔ Bulk cable

✔ User Manual

⏩⏩FREE HOSE 2M AND CLAMPS⏪⏪

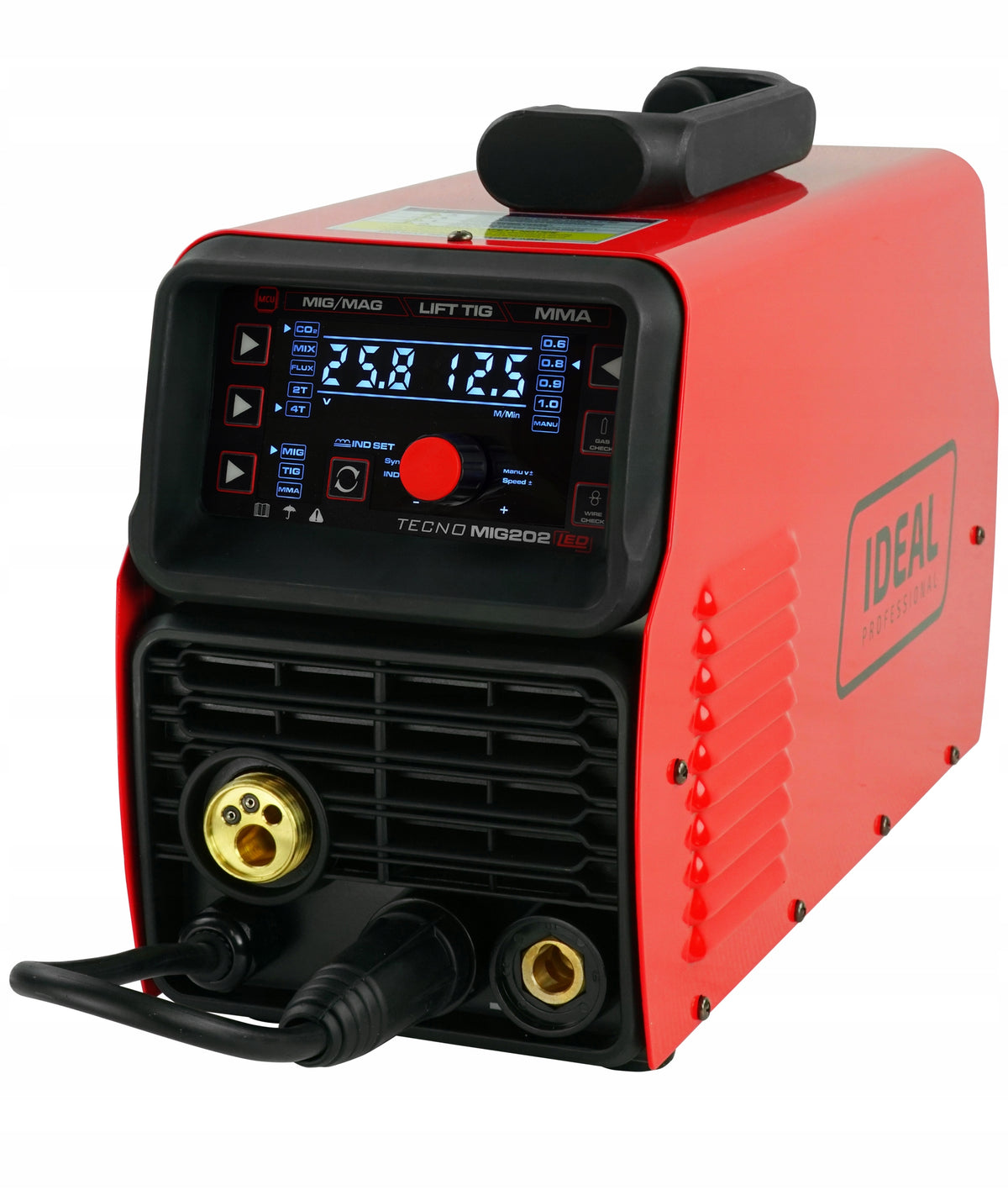

TECNOMIG 202 LED is currently one of the most interesting proposals in its class. The device enables welding using MIG/MAG, FLUX (self-shielded wire), MMA (wrapped electrode) and TIG DC Lift methods. The device is made in inverter technology using IGBT power transistors. Built-in microcontroller provides good and stable welding parameters. The welder is powered from a single-phase 230V network.

✅REGULATION OF WELDING INDUCTANCE - reduction of welding chips, control of face width and depth of melting. Thanks to the regulation of welding inductance, it is possible to lutoweld wire CuSi3 - used in bodywork repairs to connect galvanized car body sheets.

✅SYNERGIC MIG/MAG WELDING - a program that automatically selects the wire feed to the set welding current. Attention! The ability to choose the diameter of the welding wire and the type of gas - greater precision in the operation of Synergy.

✅ Operating modes 2T/4T - or two-bar and four-bar - choose the most convenient mode of operation in the MIG/MAG method depending on what weld you have to position,

✅ function VRD - Voltage Reduce Device - for MMA wrapped electrode welding - reduced voltage without load, good for welding in hazardous conditions.

Possibility of welding such materials as: alloy and non-alloy steels, aluminum alloys (MIG only), soldering of galvanized sheets.

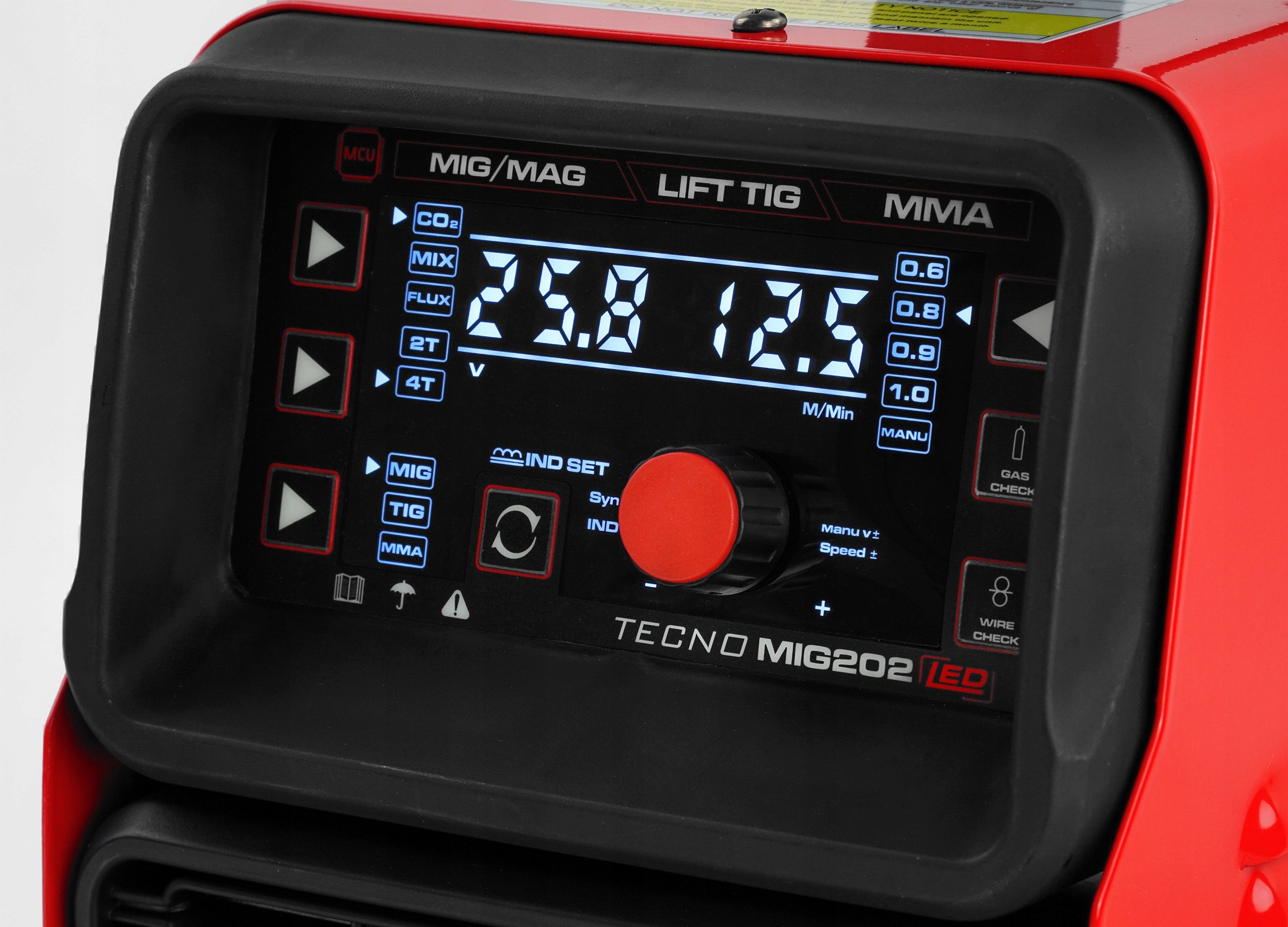

EASY-TO-USE, EASY-TO-READ CONTROL PANEL WITH LED DISPLAY:

IDEAL TECNOMIG 202 LED works in two MIG/MAG modes - in synergistic settings mode, where you can choose one of several welding programs. After selecting the program, the device automatically selects the wire feed to the set welding voltage. The user also has the ability to adjust the parameters to their own needs.

The ability to choose the manual setting mode, where parameters such as welding voltage and wire feed are set manually according to. individual needs of the user. Freedom of choice means great comfort during welding, regardless of the welding position, shielding gas and other factors, you will always choose the optimal welding parameters.

⏩PROFESSIONAL WIRE FEEDER 2R

Uneven wire feeding threatens worse weld quality and more welding chipping. TECNOMIG 202 LED is equipped with a professional wire feeder with a two-roll mechanism that ensures its smooth and reliable feeding to the MIG welding torch.

HIGH QUALITY EURO SOCKET

✅ The EURO socket used allows you to work with any MIG/MAG welding torch that complies with this international standard.

✅Quick change of welding polarity - welding in solid wire in gas shield or special self-shielding wire? A quick change of MIG/MAG polarity is the ability to quickly retool the device to current needs.

WHY CHOOSE IDEAL PRODUCTS?

The IDEAL brand is the result of many years of activity of specialists in the welding industry. IDEAL devices are distinguished by attention to quality and diligence. Representatives of the IDEAL brand are constantly looking for inspiration, among others, through regular participation in national and international welding fairs. More than 30 years experience in the design and manufacture of devices is noticeable in IDEAL products.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Current taken from the mains: 34A
• Maximum power consumption: 6,2 kW / ~7,6 kVA
• Network Security: 25A C
• LED Display
• Degree of protection: IP21S
• Dimensions: 455x170x300 mm
• Net weight: 10kg

MIG/MAG welding parameters:

• Welding Current: 50 - 200A
• Working cycle 60%: 200A
• Working cycle 100%: 155A
• Welding Voltage: Smooth Adjustment
• Wire diameter: from 0,6mm to 1,0mm
• Reel Size: D200
• Spool weight: up to 5kg
• MIG/MAG Inductance Regulation: YES
• Operating Mode: 2T/4T
• MIG/MAG manual setting mode: YES
• Wire Test: YES
• Gas test: YES

MIG/MAG synergy settings:

• Programs: CO2, MIX, FLUX
• Wire diameter selection: 0,6 / 0,8 / 0,9 / 1,0 mm
• Correction of synergy parameters: YES

MMA welding parameters:

• Welding Current: 10-160A
• Working cycle 60%: 160A
• Working cycle 100%: 124A
• Idle Voltage: 74 V
• VRD Function: YES

TIG welding parameters (optional):

• Welding Current: 10-200A
• Working cycle 60%: 200A
• Working cycle 100%: 155A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve
