Suvirinimo aparatas MIG 200M SHERMAN 200A 3in1 MMA TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG 200M SHERMAN 200A 3in1 MMA TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: Spawarka migomat Sherman MIG 200M HRS4

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

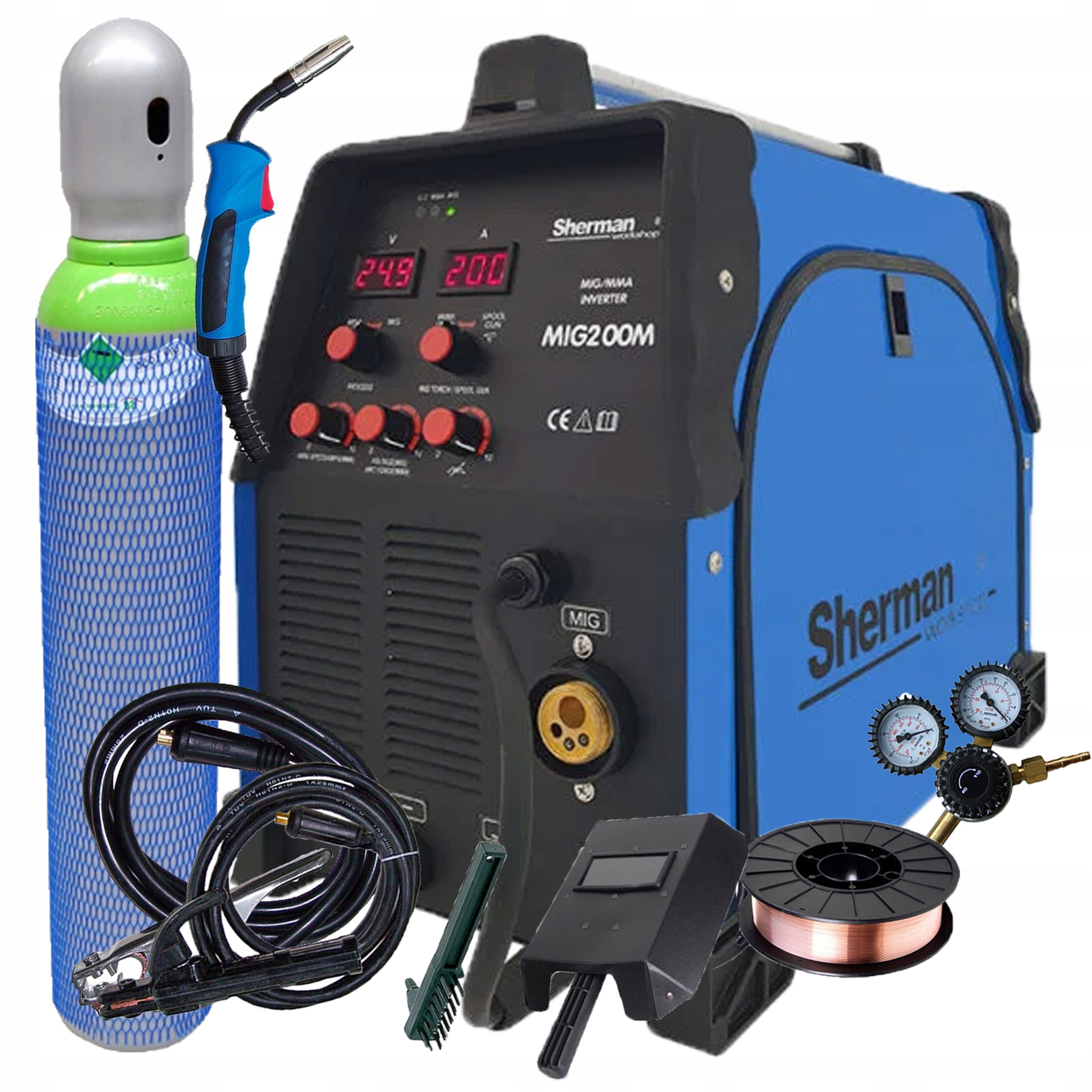

The set includes:

• MIG 200M SHERMAN welding machine
• MIG MB 15 3m holder
• Handle for MMA
• Mass Holder
• CO2/AR cylinder
• CO2/Ar reducer
• Welding wire 0,8mm/5 kg
• 3x Current terminals
• 2x Gas Nozzles
• MMA Welding Electrodes
• Gas hose
• Bulk cable
• Instruction
• Warranty card

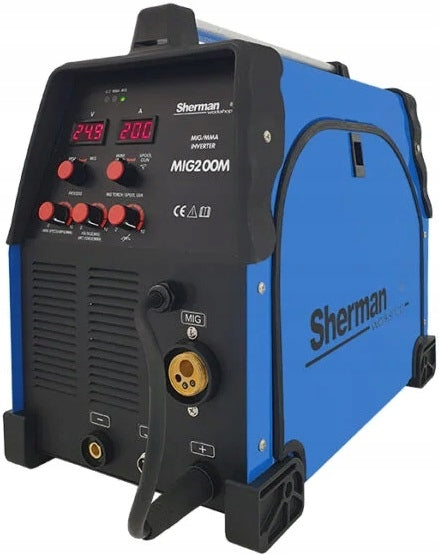

Inverter welding machine SHERMAN Workshop MIG 200M - is a semi-automatic welding machine MIG 200M is an inverter device made in MOSFET technology. It is used for manual welding of steel and non-ferrous metals using the MMA method (wrapped electrode) and the MIG/MAG method in protective gas shielding or self-shielding wire without the use of protective gases.

It can also be used for soldering thin (up to 3mm) galvanized sheets. It is used in closed or covered rooms, not exposed to direct influences atmosferycznych.W set include: welding torch for welding using the MIG/MAG method, cable with electrode holder, mass cable with tick clamp, welding disc and hammer with brush.

The device has a mechanism of change of polarity. It allows you to connect classic welding wires and welding with a wrapped electrode, turning a semi-automatic into an electrode welding machine, but also allows you to weld without gas with self-shielding wires (FCAW).

The device has a smooth regulation of welding voltage/current, wire feed speed and inductance. When welding using the MMA method, it allows the use of the ARC FORCE function. Works with D200 (5 kg) wire spools. It is powered from a single-phase 230V 50Hz network. Optionally, it is possible to connect a second Spoolgun type handle in parallel with a mini wire feeder mounted in it and a D100 spool of steel or colored wire, so that you can weld two different wires without having to change the welding machine. This solution saves time if you need to weld different materials or use different thicknesses of wires occasionally.

ADVANTAGES OF THE DEVICE:.

• Welding by MIG/MAG of steel and non-ferrous metals.
• Welding by the MMA method (wrapped electrode).
• ARC FORCE function.
• Soldering function of thin (3mm) galvanized sheets.
• Thermal protection system.
• Works with D200 wire spools (5kg)
• Made in MOSFET technology.

TECHNICAL DATA OF THE DEVICE:

• Catalog number: SINW-MIG200M.
• Power supply voltage: AC 230V 50Hz.
• Welding methods: MIG, MMA, soldering.
• Execution technology: MOSFET.
• Welding current: 200 A.
• Working cycle: 60%.
• - Subwoofer Power consumption: 37,4 A.
• - Subwoofer power consumption: 8,8 kVA
• Welding current adjustment: Liquid.
• Wed. wire spades: 200 mm
• speed wire feeding: 1,5 - 19 m/min.
• Weight: 21 kg.
• Dimensions: (D x SZ x W) 500 x 260 x 540 mm.

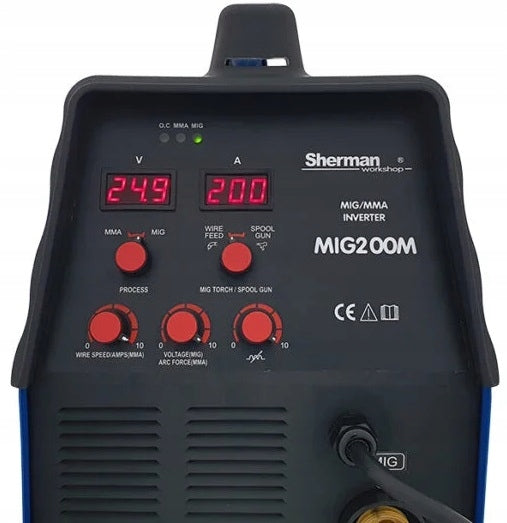

DESCRIPTION OF SWITCH AND KNOB FUNCTIONS:

1. Diode indicating the choice of the MIG method.
2. Diode indicating the choice of the MMA method.
3. Thermal protection diode.
4. Switch handle MIG / handle Spool Gun.
5. Welding method switch (MMA/MIG).
6. Welding current adjustment knob (MMA method) or wire feed speed (MIG method).
7. Welding voltage adjustment knob (MIG method) or ARC FORCE function (MMA method).
8. Inductance adjustment knob.
9. Negative polarity socket.
10. MIG handle socket.
11. Positive polarity socket.
12. Spool Gun handle control socket.
13. Polarity switch plug (only for MIG method).
14. Welding voltage display.
15. Welding current display.
16. Power switch.
17. Gas connector.
18. Fan.
19. QUICK FEED feeder start button.

The ARC FORCE function allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc. Reducing the value of the function gives a soft arc and a smaller depth of melting, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. With the high value of the ARC FORCE function set, you can weld by maintaining an arc of minimum length and a high melting speed of elektrody.Regulacja inductance (arch reluctance).

Inductance adjustment allows you to optimize the arc characteristics depending on the thickness of the welded element and the welding method and conditions. The function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. The thinner the met MIG/MAG welded element, the higher the inductance (soft arc - less melting), for thick elements vice versa (hard arch - greater melting). The standard neutral inductance setting is in the middle of the scale. Changing the inductance value also reduces the number of welding chips during welding in the CO2 shield. The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob. Adjusting this parameter also allows soldering of thin (up to 3 mm) galvanized elements with wires made of copper alloy CuSi3 in the cover of the mixture Ar/CO2 20/80%. In this case, we do the opposite by setting a low inductance for small soldering currents.

TIG LIFT function - allows TIG welding after using the TIG handle with valve, available at our auctions. The cost of the holder is PLN 190
