Suvirinimo aparatas MIDI MIG 220 WELDMAN MIGFLUX

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIDI MIG 220 WELDMAN MIGFLUX. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: Midi MIG 222 Synergia
• Ilgis: 520 mm
• Plotis: 220 mm
• Aukštis: 400 mm

@Welder Migomat MIDI MIG 220 WELDMAN MIGFLUX

WELDMAN

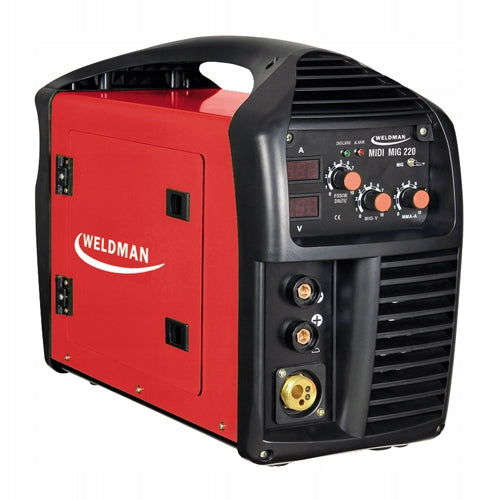

Semi-automatic welding machine powered by single-phase MIDI MIG 220 made in IGBT inverter technology for welding using the MIG/MAG method (in gas shield) or FLUX (without gas shield) and for welding with DC electrodes.

Designed for welding with welding wires with a diameter of 0,6-1,0 mm, self-shielding wires of 0,9 mm and electrodes wrapped with a diameter of up to 4 mm of low carbon steel, low alloy steel (MAG), alloy steel (MIG), aluminum and cast iron.

Max spool 5 kg D200.

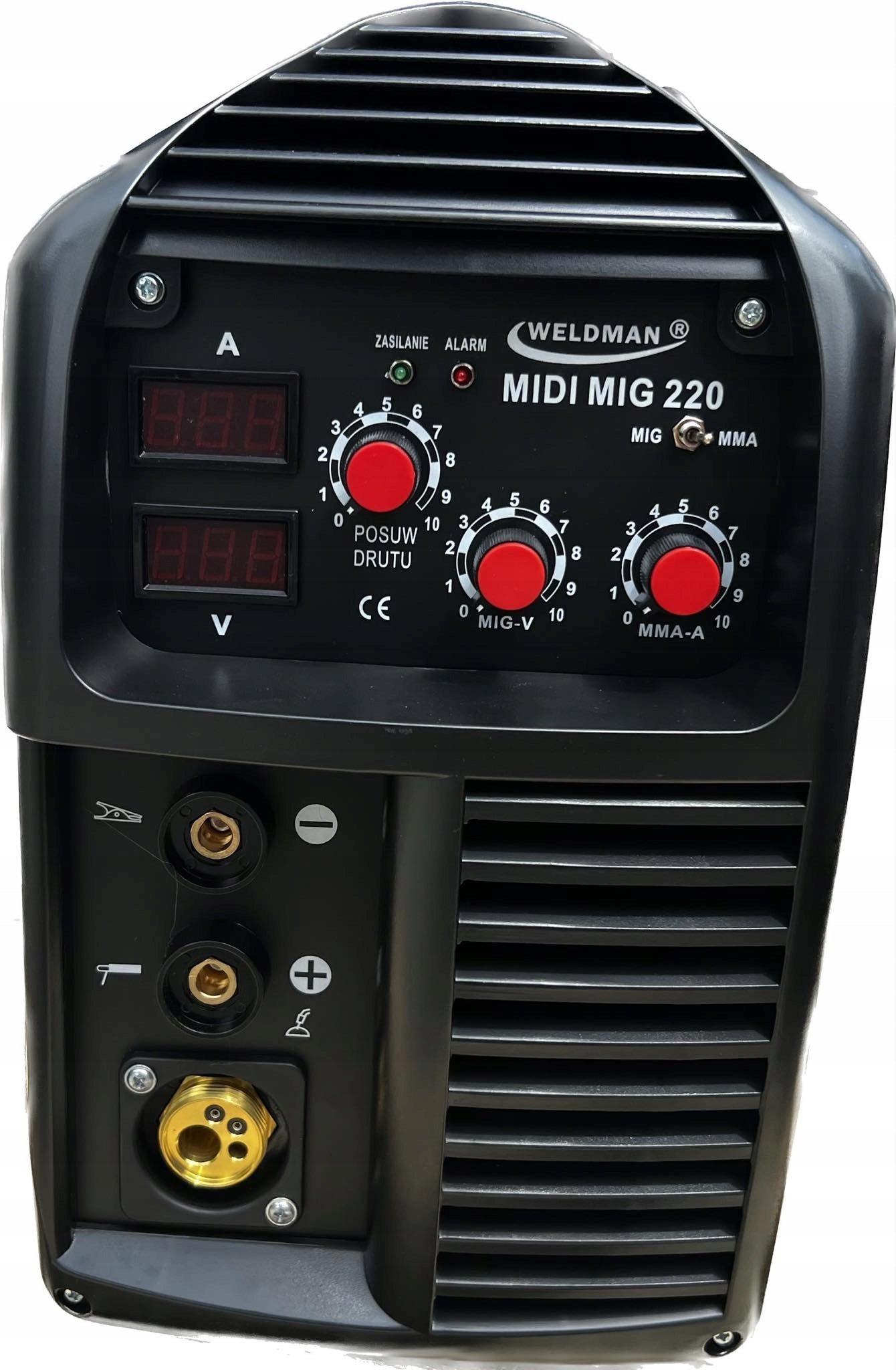

✅ display of welding current parameters

✅ two digital displays of welding current parameters (voltmeter, ammeter)

✅ electronically controlled smooth regulation of welding current

✅ electronically controlled smooth regulation of wire feed speed

✅ overload protection.

✅ fast wire feed button

✅ LED signalling diodes: power supply (green) and overload (red)

✅ Designed for workshop and field work.

✅ EURO 3M welding torch

✅ WELDING CURRENT 15-220 A

✅ Manual parameter adjustment

✅ WELDING FLUX

✅ REGULATION OF INDUCTANCE

✅ Low weight and mobility of the device

✅Professional metal feeder

✅ Wire feed button

✅ Place for gas cylinder

✅Possibility of welding without gas

When welding using the MIG-MAG method, the possibility of regulation: welding current, wire feed speed.

Wire feeder: 2-roll, with roll 0,6-0,8 for steel wire.

Cooled by a fan.

Protection against overload.

IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

Inductance adjustment - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

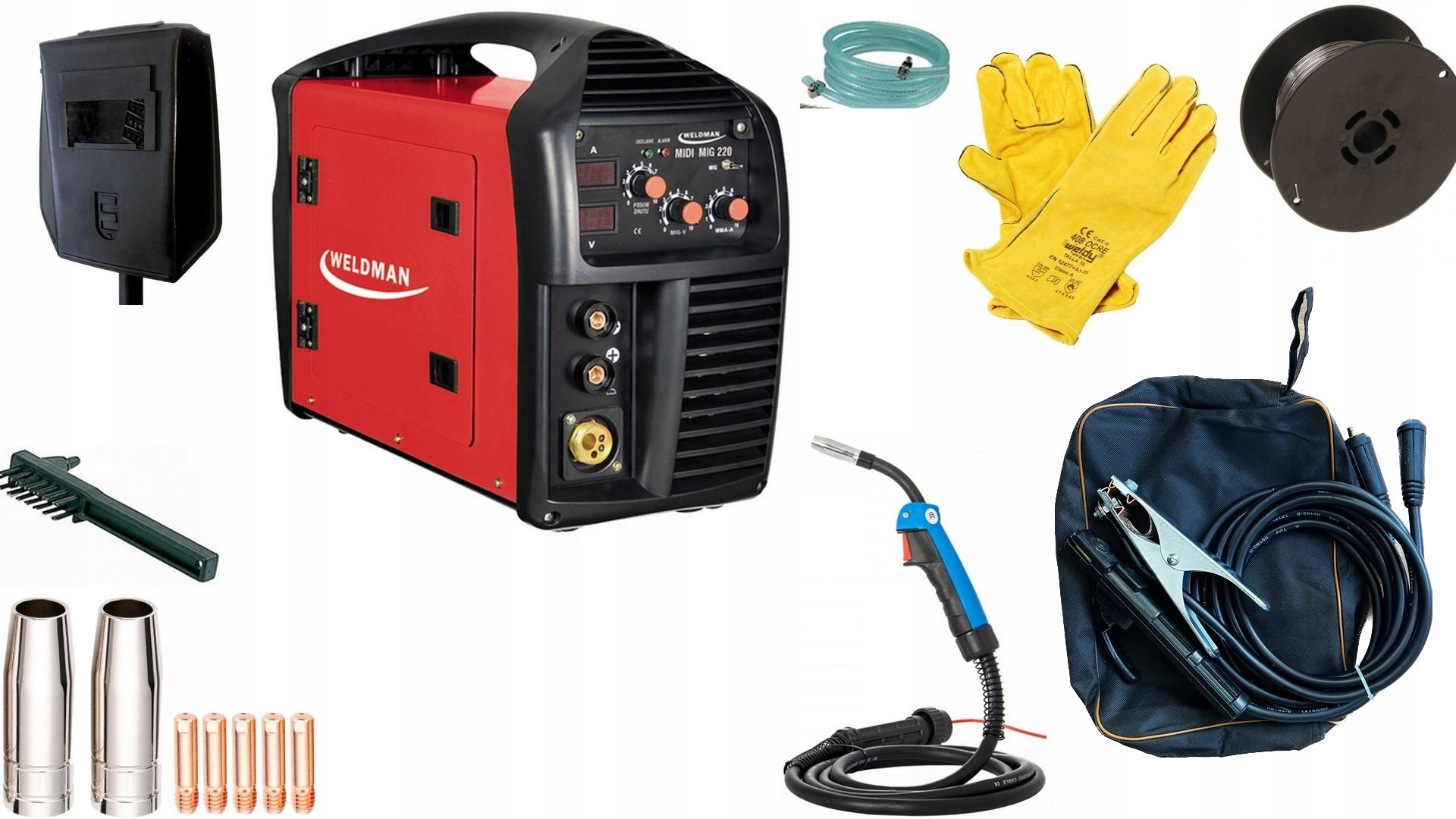

• welding torch MB 15 3 m
• welding wire 2,5 m with electrode holder 200A (DX25)
• 2 m mass cable with 200A terminal (DX25)
• 2 m power cord with 230V plug
• 230V socket on the rear panel
• 8 mm hose connector for connecting a gas pipe
• welding disc
• brush
• Welding torch consumables
• Welding gloves
• Self-shielding wire 0,45 KG

• Welding current adjustment range [A] MIG – 15-220MMA 20-180
• Max efficiency at 40°CEN 60974-1220A @60%170 @100%
• Power supply: 230V/50Hz
• Power Protection: 25A
• Spool weights used: 1-5kg
• Wire diameter 0,6-1 mm
• Housing protection: IP21
• Cooling: fan
• Adjustment Range: Smooth
• WEIGHT 14 KG

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	13 kg
Parametry	Welding range	10–220 A
Parametry	Height	400 mm
Parametry	Length	520 mm
Parametry	Width	220 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	spawarka migomat 103 109_pakiet4
Parametry	EAN (GTIN)	5905031027963
Parametry	Model	Midi MIG 222 Synergia
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
