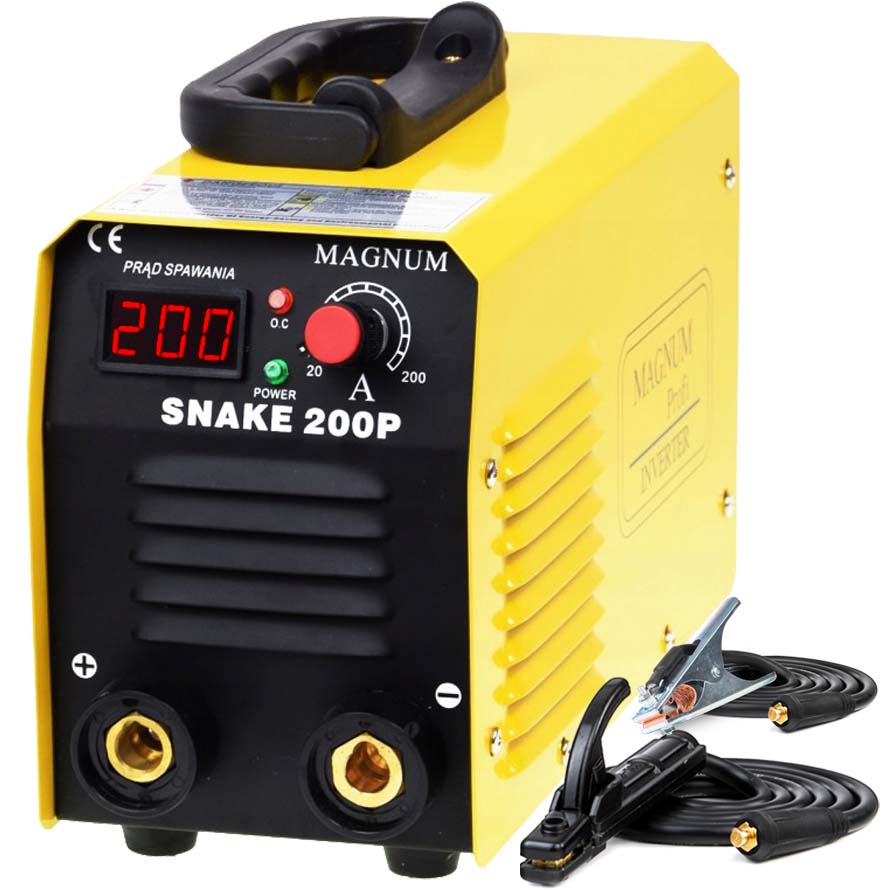

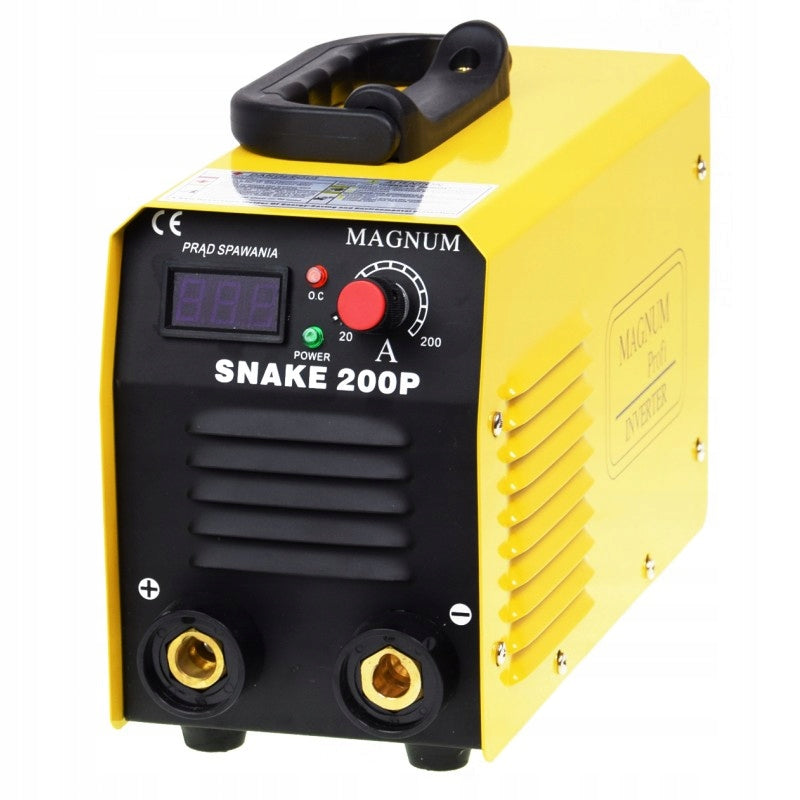

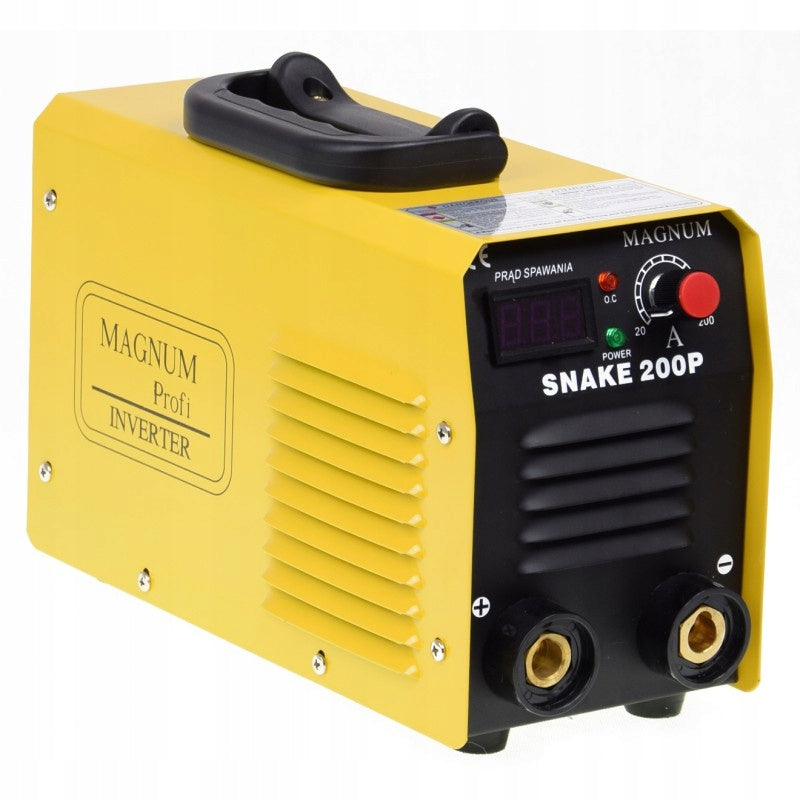

Suvirinimo aparatas MAGNUM SNAKE 200 PS MMA TIG, 230V, 200A, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM SNAKE 200 PS MMA TIG, 230V, 200A, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Snake 200 PS

Manufacturer: MAGNUM ║ Welding methods: MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Security Required: 25A

• SMOOTH ADJUSTMENT OF WELDING PARAMETERS
• COMPACT SIZE THE WELDING MACHINE WEIGHS ONLY 5,3kg !
• HIGH POWER - UP TO 200A!
• EFFICIENCY 60%
• LED DISPLAY WITH EXCELLENT CONTRAST
• ELECTRODE WELDING UP TO 4MM DIAMETER
• POSSIBILITY OF WELDING TIG LIFT
• IGBT TRANSISTORS OF THE LATEST GENERATION
• WELDING MACHINE HAS LARGE SOCKETS CURRENT

The MAGNUM 200 PS welder is a very durable device suitable for stationary and field work. The metal housing is resistant to mechanical damage and ensures long-term use of the welding machine.

BEST BUILD QUALITY

The Snake 200 PS inverter device is a lightweight, portable, power source. It is used for welding with wrapped electrodes of various steel grades, including ordinary, stainless, heat-resistant and cast iron. It is designed to work in field conditions and perform all kinds of repair work. The device is characterized by high efficiency of 200 A/60%. It has excellent arc characteristics for rutile and alkaline electrodes.

COMPREHENSIVE USE

The welding machine can also be used for TIG welding using a special TIG handle with valve (TIG LIFT method). Arch ignition is then carried out by lightly rubbing the non-melting electrode against the welded material. Snake 200 PS devices are based on the latest, most advanced technology, using IGBT transistors.

PROTECTION SYSTEM - The device has a built-in protection system against overheating, overload, power instability. The MAGNUM SNAKE series is based on 60% welding efficiency.

DIGITAL DISPLAY - facilitates operation and allows for precise adjustment of welding parameters.

• Solving tasks in households (welding: metal pipes of water, gas, smoke and sewage ducts of stainless steel, circuits of metal pipes, sections of sheet metal).
• Preparation of part of areas and residential houses (greenhouses, shelters, gazebos, workplaces).

• Power supply: 230V/50Hz
• Welding current: 200A
• Efficiency: 60%
• Regulatory range: liquid
• TIG LIFT function: Yes
• Housing protection: IP21
• Power protection: 25A
• Idle voltage: 66V

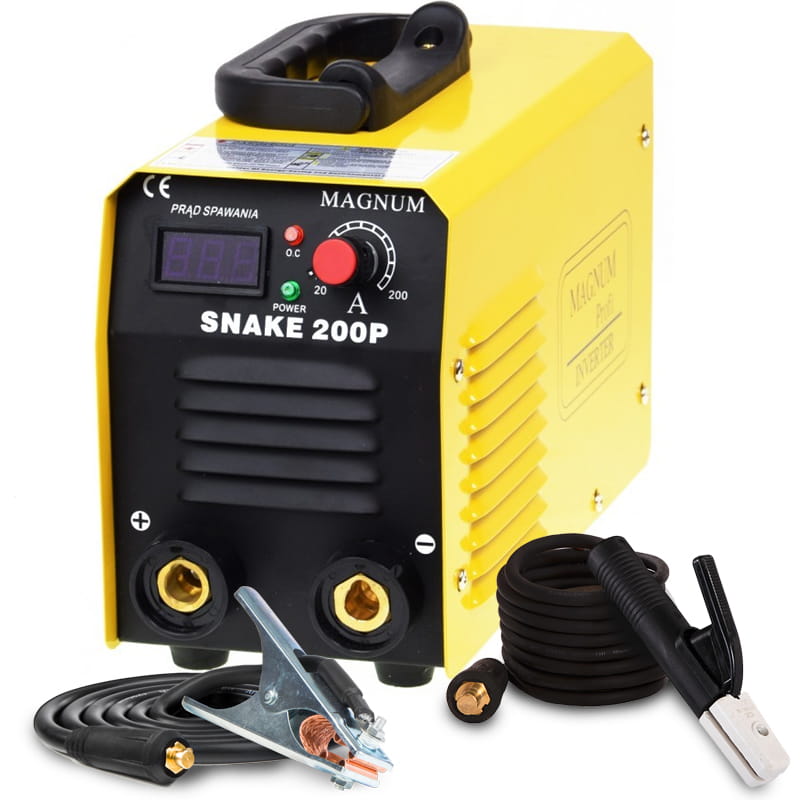

• Welding machine MAGNUM SNAKE 200 PS
• Electrode holder
• Bulk Holder
• User manual and warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	7.1 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	5.3 kg
Parametry	Welding range	20–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	200 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	6.8 kg
Parametry	Manufacturer code	Snake 200 PS
Parametry	EAN (GTIN)	5901004100077
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
