Suvirinimo aparatas MAGNUM MIG MAG MMA 200W rinkinys

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG MAG MMA 200W rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG-MMA 200W

WELDER MIGOMAT MAGNUM MIG MAG MMA 200W set

MAGNUM

MAGNUM MIG/MAG-MMA 200W IGBT WELDING MACHINE

✅ Welder 3in1: MIG-MAG, MMA, TIG LIFT DC

✅ EURO MB 15/3m welding torch

✅ Electrode holder

✅ HOT START

✅ ARC FORCE

✅ ANTI-STICK

✅ Welding current 180A

✅ Inverter technology IGBT

✅ welding MIG/MAG

✅ SOLID METAL FEEDER

✅ Gas-free welding - FLUX

✅ SOLDERING OF GALVANIZED SHEETS

✅ Possibility of manual setting of welding parameters

✅ Small dimensions of the device

✅ Fan cooling

✅ The device is equipped with overload protection

✅ transport wheels and cylinder shelf

✅ Change of polarity

✅Wire extension button

✅ solid chassis

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

Inductance adjustment - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

HOT START (hot start) - a function that makes it much easier to start welding. At the moment of arcing, the welding current is briefly increased. This leads to the heating of the material and electrode at the point of contact, as well as to the proper shape of the melt and the weld face (in the initial phase of the welding process).

ARC FORCE - function, which provides the best settings for obtaining a stable arc and a small amount of chipping. In other words, thanks to ARC FORCE, the electric arc necessary for welding glows uniformly, without short circuits hindering or preventing the connection of materials. During welding, large amounts of chipping are often formed, i.e. drops of melted metals that need to be removed. When ARC FORCE is enabled, the number of chippings decreases significantly, and this allows for more comfortable work

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

The MAGNUM MIG/MAG-MMA 200W IGBT is a professional semi-automatic welding machine designed for manual, electric welding of low carbon steel, low alloy (MAG), alloy steel (MIG) and aluminium and alloy. The device can also be welded using the MMA method using melting wrapped electrodes . It is designed for all kinds of welding work in locksmith workshops, repair workshops, industrial and factories.

The power source was built on IGBT transistors providing minimum electromagnetic interference, enabling increase efficiency and reliability of the power source, lower energy consumption and rapid adjustment of the current to changes in parameters during welding.

It has the ability to weld with self-shielding wire - FCAW (change the polarity in the welding machine: minus (-) on the welding torch, plus (+) on the mass! ).

The device equipped with inductance adjustment (arch hardness) - which affects the shape of the weld, is recommended for welding stainless steel and soldering

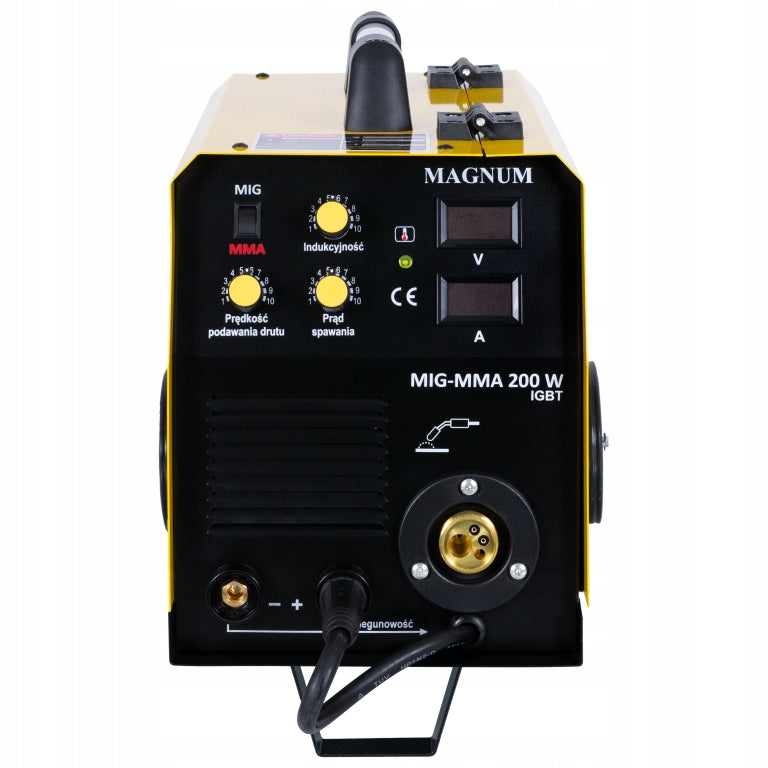

The device has a clear, easy-to-read panel on which m.in.:

• Display of the current value of welding current voltage,
• Display of the current welding current value,
• Inductance control knob,
• MIG-MAG and MMA welding current adjustment knob,
• Wire feed speed control knob for MIG-MAG.

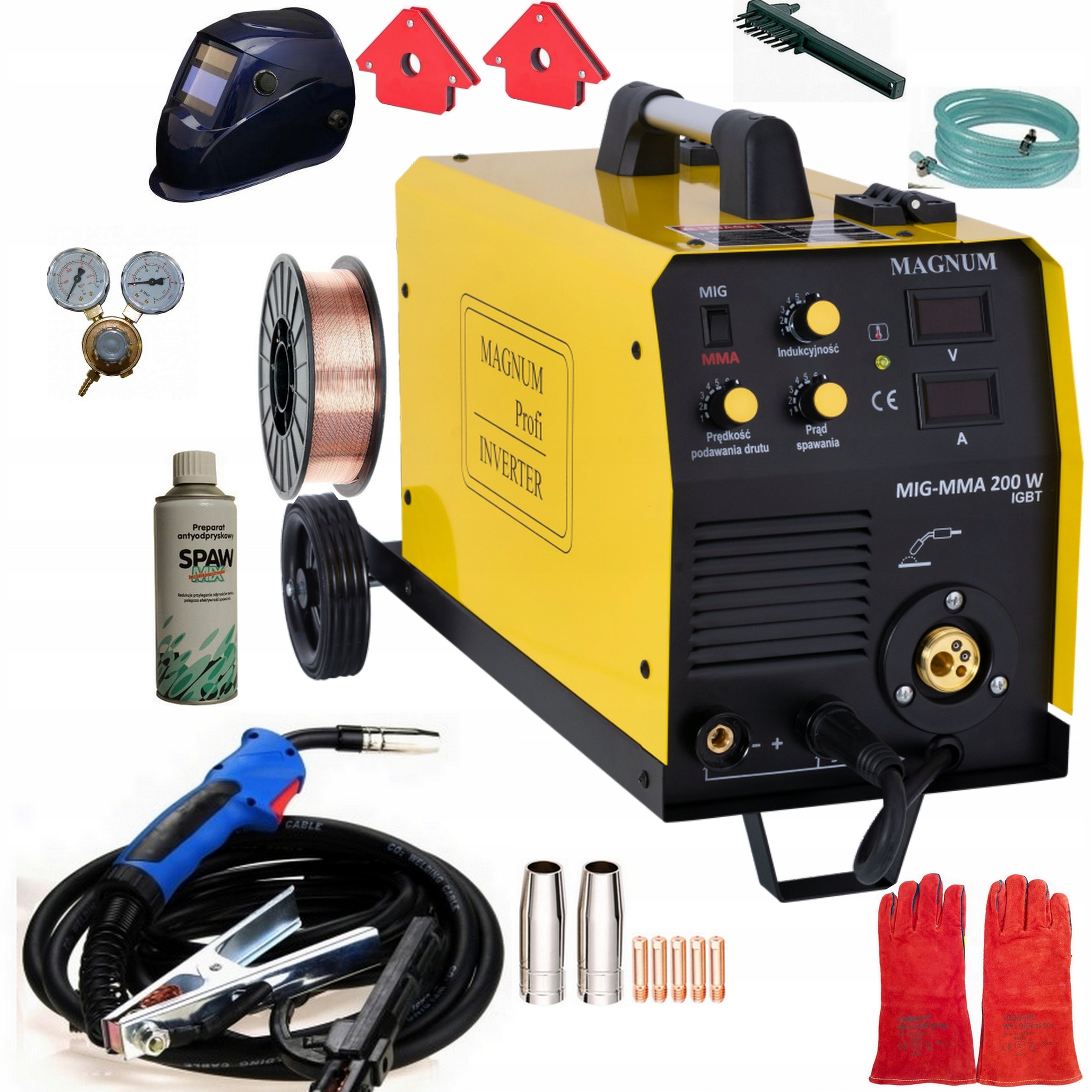

• Device MIG 200 W IGBT,
• MIG/MAG MB 15/3m handle
• Electrode holder,
• Bulk holder,
• Hammer-brush,
• Welding mask,
• Gas line,

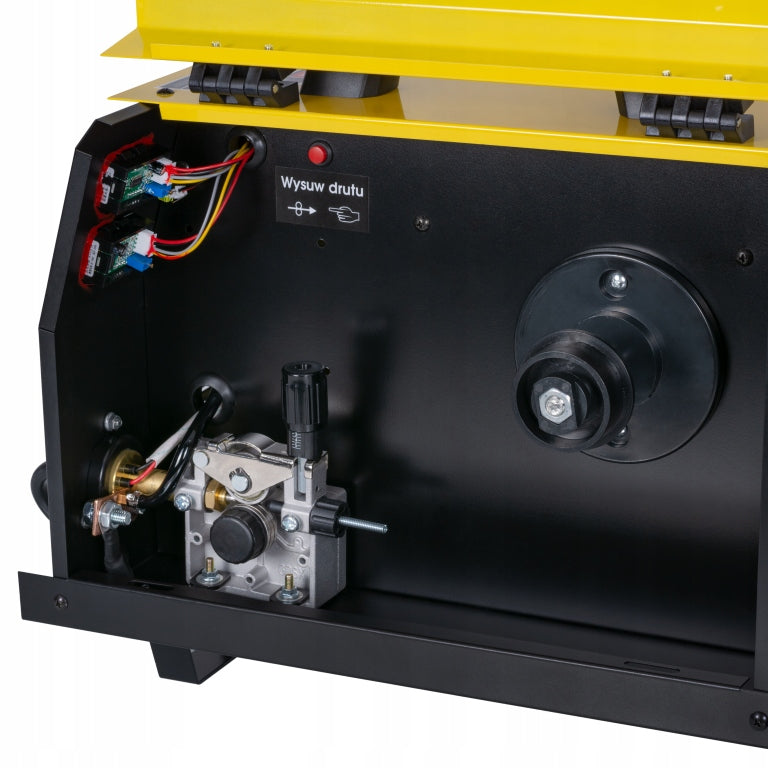

• Feeder equipped with 0,8 / 1,0 wire rollers.
• Set of welding torch eloperage elements
• Welding gloves
• Mini CO2/AR reducer
• welding visor MAGNUM NOVA
• 2 welding angles 12 Kg
• Anti-chipping spray
• Welding wire SG2 0,8/5KG

• Power supply: AC 230V
• Max. Power consumption: 6,0 kW
• Security required: 20A [C]
• MIG/MAG welding current: 30 - 180A
• MMA welding current: 30 - 180 A
• Efficiency: 60 %
• Wire spool weight: max. 5 kg
• Wire diameter: 0,8 / 1,0 mm
• Welding "without gas": YES
• Housing Protection Class: IP21S
• Weight: 13 kg

The visor is made of the highest quality materials, perfectly protects against the harmful consequences of welding. Available in four colors, so that each customer can adjust it to their individual needs and preferences. Perfect for any amateur welder or professional. The automatic welding visor is equipped with a welding filter that can change the degree of darkening. The filter before welding is transparent, so the welder has the ability to accurately observe the working area. When an electric arc is formed, the filter will immediately darken. When the electric arc expires, the filter will become transparent again. The visor operator has the ability to smoothly change the blackout in the range of 5-13 DIN (depending on the model – see the table with data). The MAGNUM automatic welding visor provides complete protection against UV/IR (ultraviolet/infrared) radiation, even when the filter is brightened. The visor is powered by solar cells and replaceable batteries. The automatic welding visor is equipped with two or four photo-sensors (depending on the model). In addition, the visor is made of a thermo stable, wear-resistant polymer, into which welding chips do not blend.

PARAMETERS:

• - Field of view: 96X39 mm
• - Number of sensors: 2
• - Optical class: 1/1/1/2
• - Response speed: 1/30 000 s
• - Sensitivity: adjustable
• - Delay/Brightening: Adjustable
• - Power supply: solar + battery
• - Grinding: yes
• - Low battery indicator: yes
• - Darkening: 9-13 DIN, liquid

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	13 kg
Parametry	Welding range	30–180 A
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	MIGOMAT MAGNUM MIG 200W XRS3
Parametry	EAN (GTIN)	5904624048149
Parametry	Model	MIG-MMA 200W
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO holders,LCD display
