Suvirinimo aparatas Magnum MIG 270 MMA Synergy 4x4, TIG, VRD

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 270 MMA Synergy 4x4, TIG, VRD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 270 MMA
• Ilgis: 860 mm
• Plotis: 301 mm
• Aukštis: 560 mm

➡ SYNERGISTIC WELDING MACHINE - SOLID AND RELIABLE DEVICE ⬅

+ MIG/MAG, MMA, TIG WELDING KIT, WHICH INCLUDES I.A.:

• ✔ AUTOMATIC VISOR IDEAL APS-510G
• ✔ 2 CYLINDERS WITH REDUCER
• ✔ WELDING WIRES
• ✔ WELDING ACCESSORIES

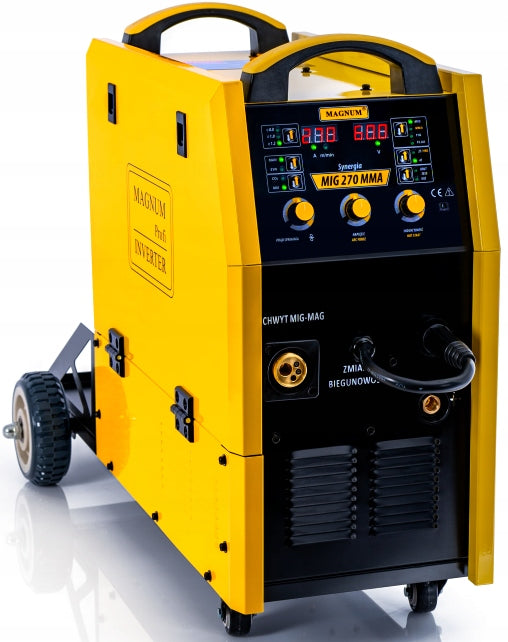

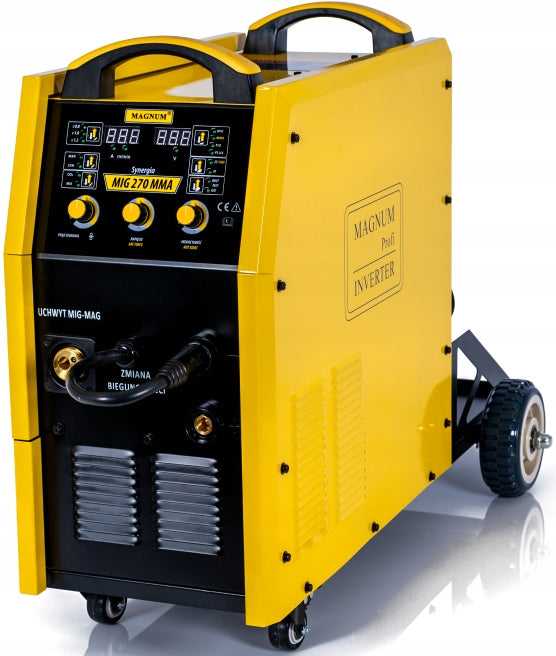

WELDING MACHINE MAGNUM MIG 270 MMA SYNERGY

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding with manual settings.
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The MIG 270 MMA SYNERGY welder is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

MAGNUM MIG 270 MMA SYNERGIA has a readable and easy to use function panel, which has i.a.:

5. Welding method selection field: MIG/MAG, MMA, TIG LIFT, FLUX.

6. Selection for MIG-MAG: 2T double bar or 4T quad bar. When welding by MMA method - turning the VRD function on or off.

7. Selection field: WIRE TEST, GAS TEST.

8. The MIG-MAG welding inductance control knob. Adjustment of the Hot Start function for MMA welding.

9. Knob for adjusting the welding current voltage value when welding using MIG-MAG method.

10. Welding current and wire feed speed adjustment knob. When welding by MMA and MIG-MAG with synergistic settings, the welding current is regulated.

11. Selection of gas type for MAG welding with synergistic settings: CO2, MIX.

12. Selection for MIG-MAG: MAN, SYN.

13. Selection of wire diameter for MAG welding with synergistic settings.

14. Display of welding current and wire feed speed.

15. Display of welding current voltage values.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ ALL BODYWORK REPAIRS,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ MANUAL MODE - the ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ WIRE TEST – a function that allows you to start the wire feeder itself without switching on the power source and solenoid valve (this function is used when introducing electrode wire into the welding torch).

✔ GAS TEST – a function that allows you to switch on the solenoid valve itself without switching on the power source and wire feeder (this function is used to determine the value of the shielding gas flow and check the patency of the gas circuit.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply: AC 400 [V], 50 [Hz]
• Idle voltage: 56 [V] / 19 [V] with VRD
• Network security: 20 A
• Efficiency: 60%

⏩ MIG PARAMETERS:

• MIG/MAG welding current: Synergy: 40-250 A, Manual: 40-270 A
• MIG/MAG welding voltage: 12-33 V
• Wire spool size: 5 - 15 kg
• Wire feeder: 4x4

⏩ MMA PARAMETERS:

• MMA welding current: 20 - 220 A

⏩ OTHER:

• Degree of protection: IP21S
• Weight of the device : 32 kg

Welding visors with variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with a grinding function.

High quality LCD filters in optical class 1/1/1/2.

Power source: photovoltaic cell + replaceable battery.

4-spoke adjustable headrest ensures comfort of use.

The shell compliant with EN175B provides greater impact resistance.

PHYSICAL PARAMETERS

• Type of welding filter: APS-510G
• Weight: 475g
• Filter size: 96x39 mm

TECHNICAL PARAMETERS

• Response time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Battery depletion rate: √
• Power supply: Photovoltaic cell + battery 1xCR2032

APPLICATION

• Plasma cutting: √
• MIG/MAG ; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A

ATTENTION! Masks are shipped in the color currently available in stock.

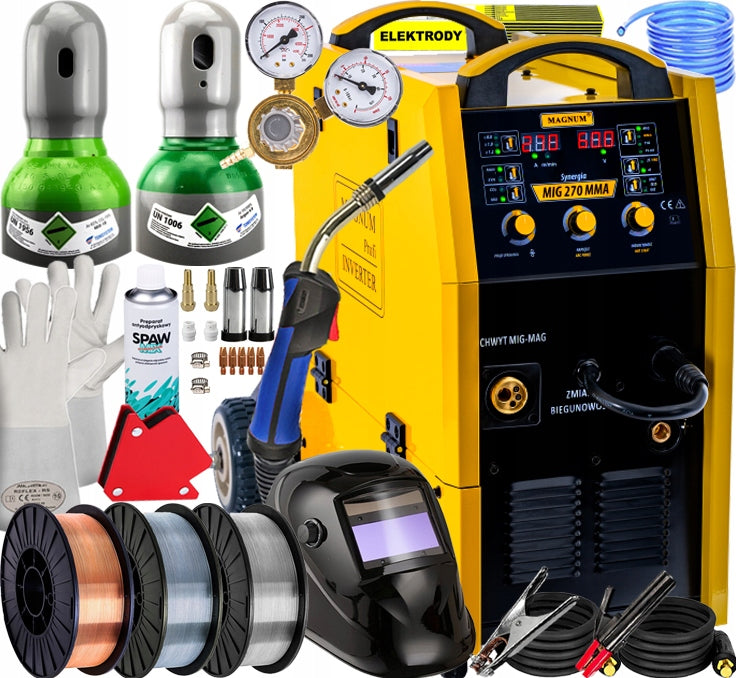

WHEN YOU BUY FROM US, YOU GET:

• Welder MAGNUM MIG 270 MMA SYNERGY - 1 pc.
• welding cable MIG MB24 - 3m - 1 pc.
• mass cable - 1 pc.
• electrode cable - 1 pc.
• Instruction for use in Polish
• Guarantee card

+ MIG/MAG + MMA WELDING KIT:

• Automatic visor IDEAL 510G - 1 pc.
• New 8L MIX or CO2 cylinder with 10-year legalization - 1 pc.
• New 8L ARGON cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire FOR BLACK STEEL 0,8 mm - 5 kg - 1 pc.
• Welding wire FOR ALUMINIUM 1,0 mm - 2 kg - 1 pc.
• Welding wire FOR STAINLESS STEEL 0,8 mm - 5 kg - 1 pc.
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg
• Gas hose - 1 pc.
• Clamping bands - 2 pcs.

SET OF 12 LARGE MIG INDUCTANCE MB24.

M.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	12.5 kVA
Parametry	Supply voltage (V)	400
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	6 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	14.5 kg
Parametry	Welding range	40–270 A
Parametry	Height	560 mm
Parametry	Length	860 mm
Parametry	Width	301 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	U MI 270 SYN MAPL
Parametry	EAN (GTIN)	5907195564803
Parametry	Packaging status	original
Parametry	Model	MIG 270 MMA
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle
