Suvirinimo aparatas Magnum MIG 209 Alu Synergy 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 209 Alu Synergy 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Spawarka Magnum MIG 209 RSW4
• Ilgis: 430 mm
• Plotis: 210 mm
• Aukštis: 315 mm

Manufacturer: MAGNUM ||| Welding methods: MIG/MAG, MMA, TIG Lift, FLUX ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

Magnum MIG 209 Alu Synergy is a lightweight, portable semi-automatic welding machine made in inverter technology. Advanced welding device designed for MIG/MAG, MMA, TIG Lift, FCAW and solder welding methods.

It is designed for all kinds of welding work in repair workshops, locksmiths, in production and in the automotive industry. It has a special program for welding aluminum and for soldering galvanized sheets. Satisfied users confirm that MIG 209 ALU Synergy is a good choice. It is one of the best rated devices today.

➡ ADVANTAGES OF THE DEVICE:

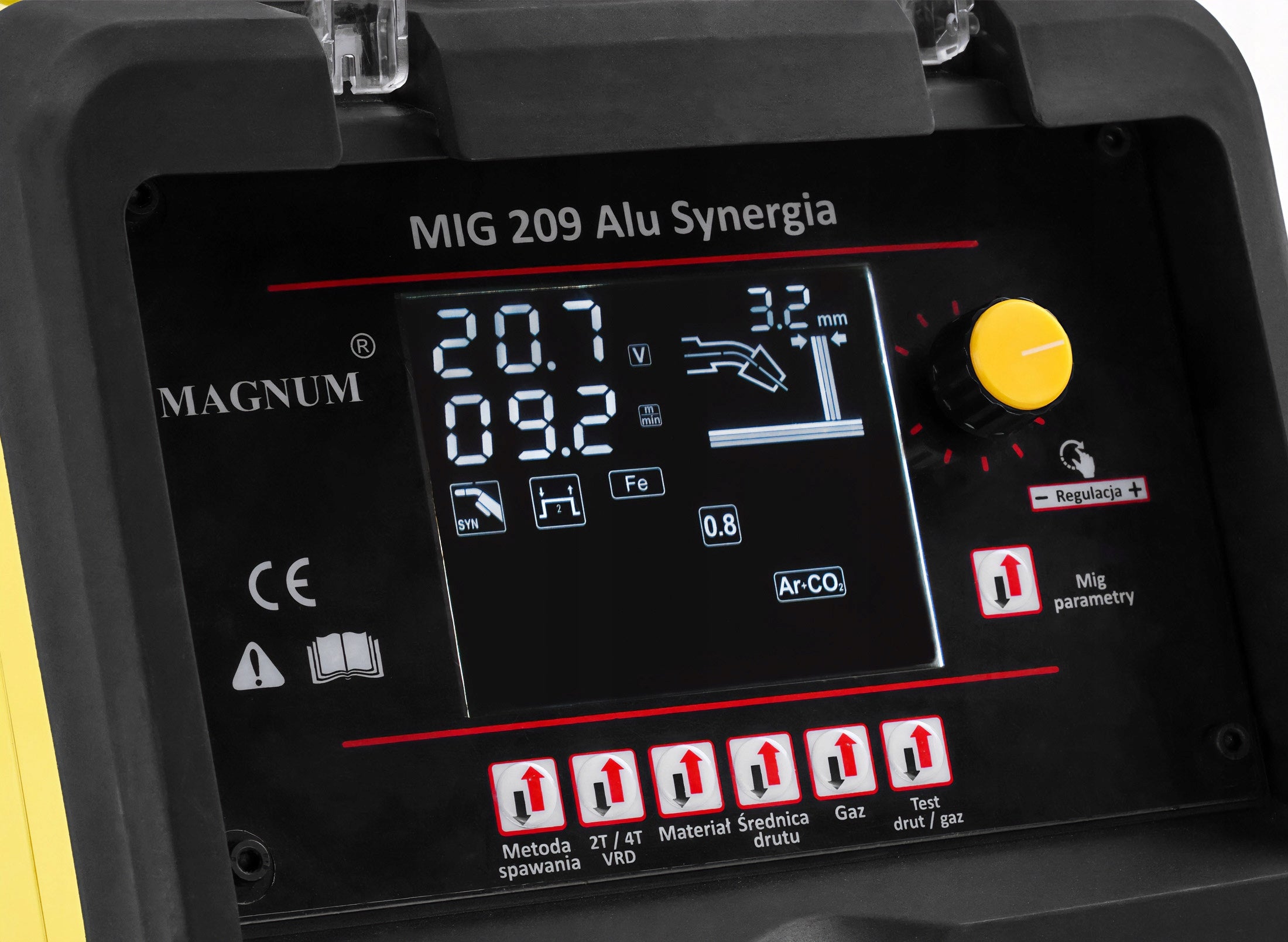

• easy-to-read LCD display,
• MIG/MAG welding: manual parameter settings or synergistic programs,
• inductance adjustment allows you to adjust the width and depth of the weld melt.
• MIG/MAG 2T/4T welding,
• TIG DC Lift welding (optional),
• MMA wrapped electrode welding.

Professional wire feeder 2R

Professional feeder 2R - reliable wire feeding, thanks to the use of a professional feeder. Built-in drive transmission system - protects the feeder from contamination. Feeder rollers made in accordance with the prevailing standards, various types of rollers available for sale.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 60%
• Maximum power consumption: 6,4 kVA
• Network Security: 20A
• LCD display
• Degree of protection: IP21S
• Net weight: 10,0kg

MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• Welding Voltage: Smooth Adjustment
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Wire spool weight: max. 5kg (max.D200)
• MIG/MAG Inductance Regulation: YES
• Soldering CuSi3: YES
• Operating Mode: 2T/4T

Advanced synergistic MIG/MAG programs:

• ✅ Automatic selection of parameters for the type and thickness of the material
• Fe (regular steel) - 0,6/0,8/1,0mm
• CrNi (stainless steel and acid-resistant) - 0,6/0,8/1,0mm
• AlMg (aluminum alloys) 100% Argon - 0,6/0,8/1,0mm
• FCAW-S (self-shielded wires) - 0,6/0,8**/1,0mm
• CuSi (soldering) 0,6/0,8/1,0mm
• ✅ Program correction function - welding voltage correction

0,8** - diameter of 0,9 mm can also be used.

MMA welding parameters:

• Welding Current: 20-160A
• Idle Voltage: 60V
• VRD Function: YES

TIG welding parameters (optional):

• Welding Current: 20-160A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve

MAGNUM - SOLID BRAND AT A GOOD PRICE

The MAGNUM brand has existed in Poland since 2001. During this time, satisfied users managed to form a good opinion about the products of this brand. MAGNUM is, in addition to welding equipment for MIG/MAG, TIG, MMA and plasma cutters, a wide range of workshop equipment and tools.

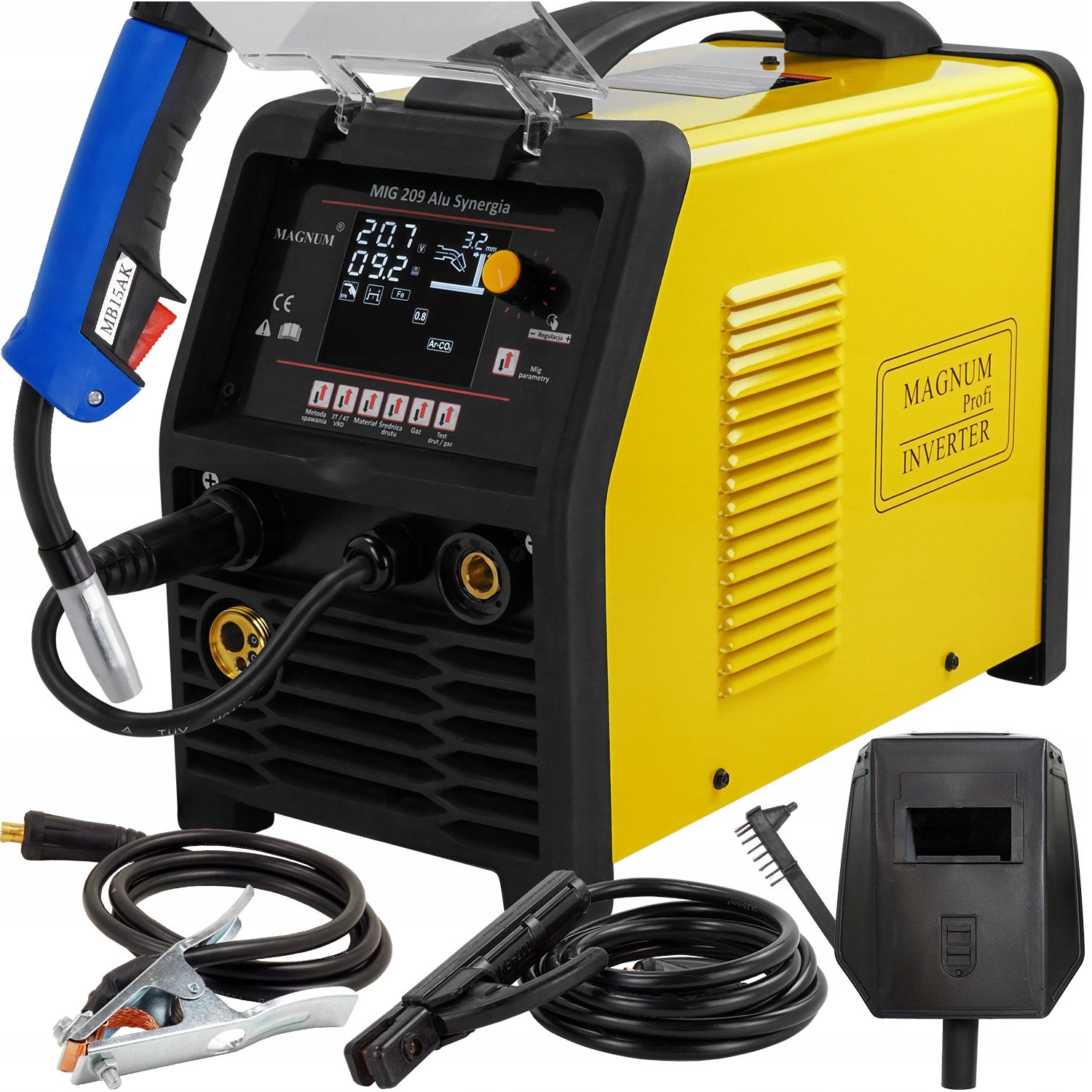

• Welding machine Magnum MIG 209 Alu Synergy
• MIG MB-15/3m welding torch
• MMA Electrode Holder
• Bulk cable
• User manual

+ WELDING ACCESSORIES FOR FREE

• welding disc,
• brush-hammer.

PHOTO GALLERY:
