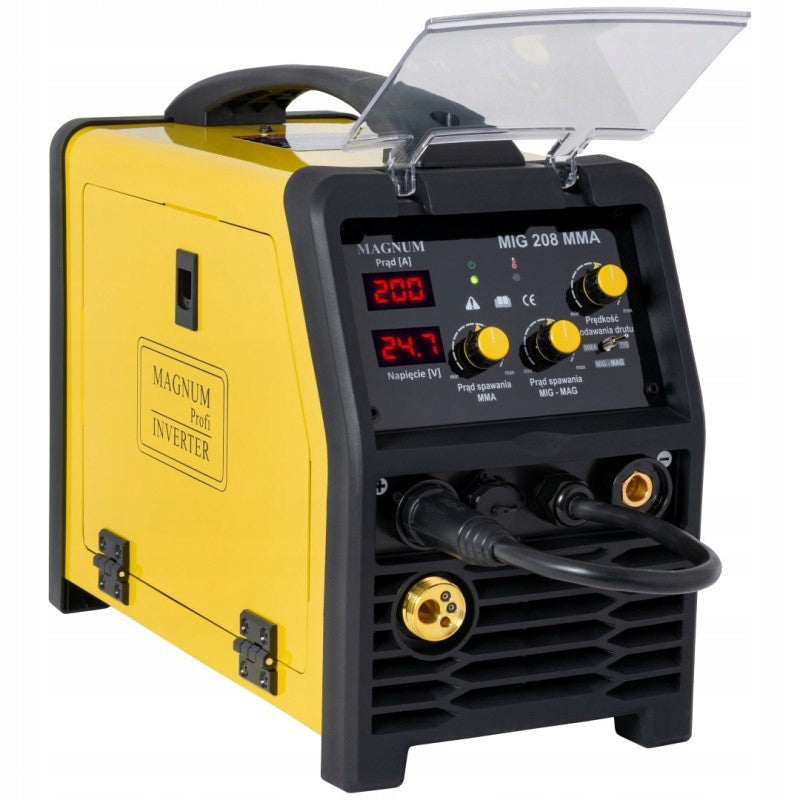

Suvirinimo aparatas MAGNUM MIG 208 MMA NV, 200A, 230V, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 208 MMA NV, 200A, 230V, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 208MMA
• Ilgis: 52 mm
• Plotis: 23 mm
• Aukštis: 40 mm

⚡ MIG/MAG welding current up to 200A

🔧 MIG/MAG + MMA + TIG LIFT + FCAW

🔌 230V power supply

⚙ IGBT technology

Semi-automatic welding machine MAGNUM MIG 208 MMA NV is a compact migomat designed for welding using MIG/MAG, MMA, TIG LIFT and FCAW (gas-free welding) methods. The device offers welding current up to 200A, making it perfect for both locksmith workshops, as well as assembly or repair work. 🔧

The welding machine allows welding of many materials, such as:

✔ carbon steel

✔ low alloy steel

✔ alloy steel

✔ aluminium and its alloys

The device was built on the basis of modern IGBT technology, which ensures a stable welding arc, high efficiency and lower electricity consumption. ⚙

Thanks to its compact design and weight of 10,3 kg, the device is easy to transport and will also work well during mobile work.

✔ MIG/MAG welding current up to 200A

✔ MIG/MAG, MMA, TIG LIFT welding

✔ possibility of welding without gas (FCAW)

✔ IGBT technology – stable arc

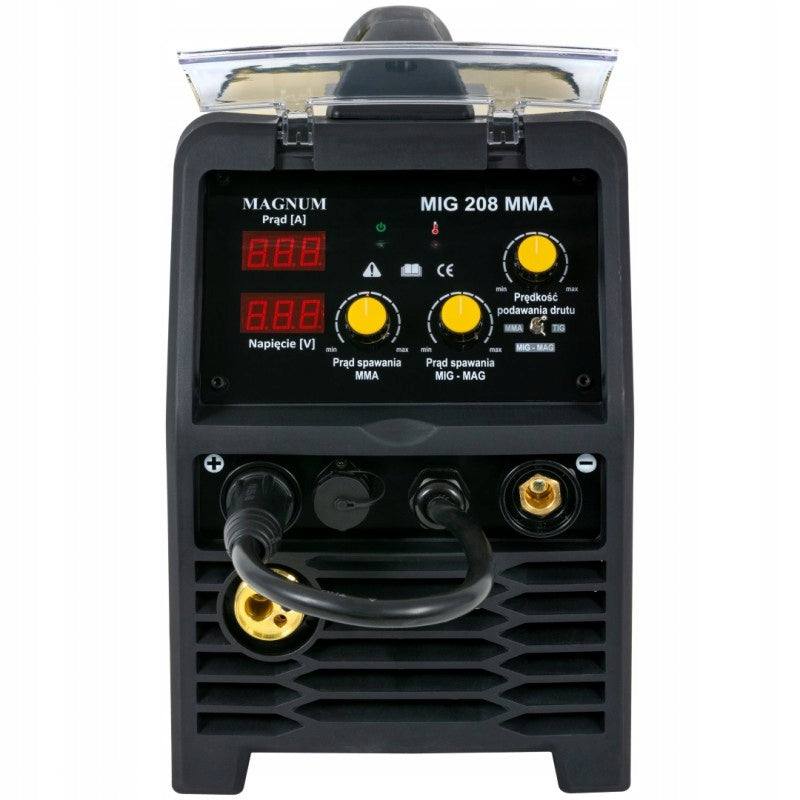

✔ easy to read control panel

✔ solid wire feeder

The control panel allows you to conveniently set welding parameters.

Key features of the device:

✔ MIG/MAG welding

✔ MMA welding

✔ TIG LIFT welding

✔ welding without gas FCAW

✔ wire feed speed adjustment

✔ smooth adjustment of welding parameters

Thanks to this, the user can adjust the settings to the type of material and thickness of the welded elements.

The device is ideal for:

✔ locksmith workshops

✔ repair workshops

✔ production facilities

✔ car workshops

✔ home workshops

🔧 steel structures

🚗 flashing repairs

🏭 production and service

🛠 assembly work

⭐ 200A migomat

⭐ MIG/MAG, MMA and TIG LIFT welding capability

⭐ FCAW self-shielding wire support

⭐ stable operation thanks to IGBT technology

⭐ compact design for easy transport

• Power supply: AC 230 V / 50 – 60 Hz
• Max power consumption: 5,7 kW
• Protection Required: 20 A (C)
• MIG/MAG welding current: 40 – 200 A
• Max MMA / TIG LIFT welding current: 160 A
• Idle Voltage: 60 V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Wire spool weight: max 5 kg
• Welding without gas: YES
• Efficiency: 60 %
• Housing Protection Class: IP21S
• Weight: 10,3 kg

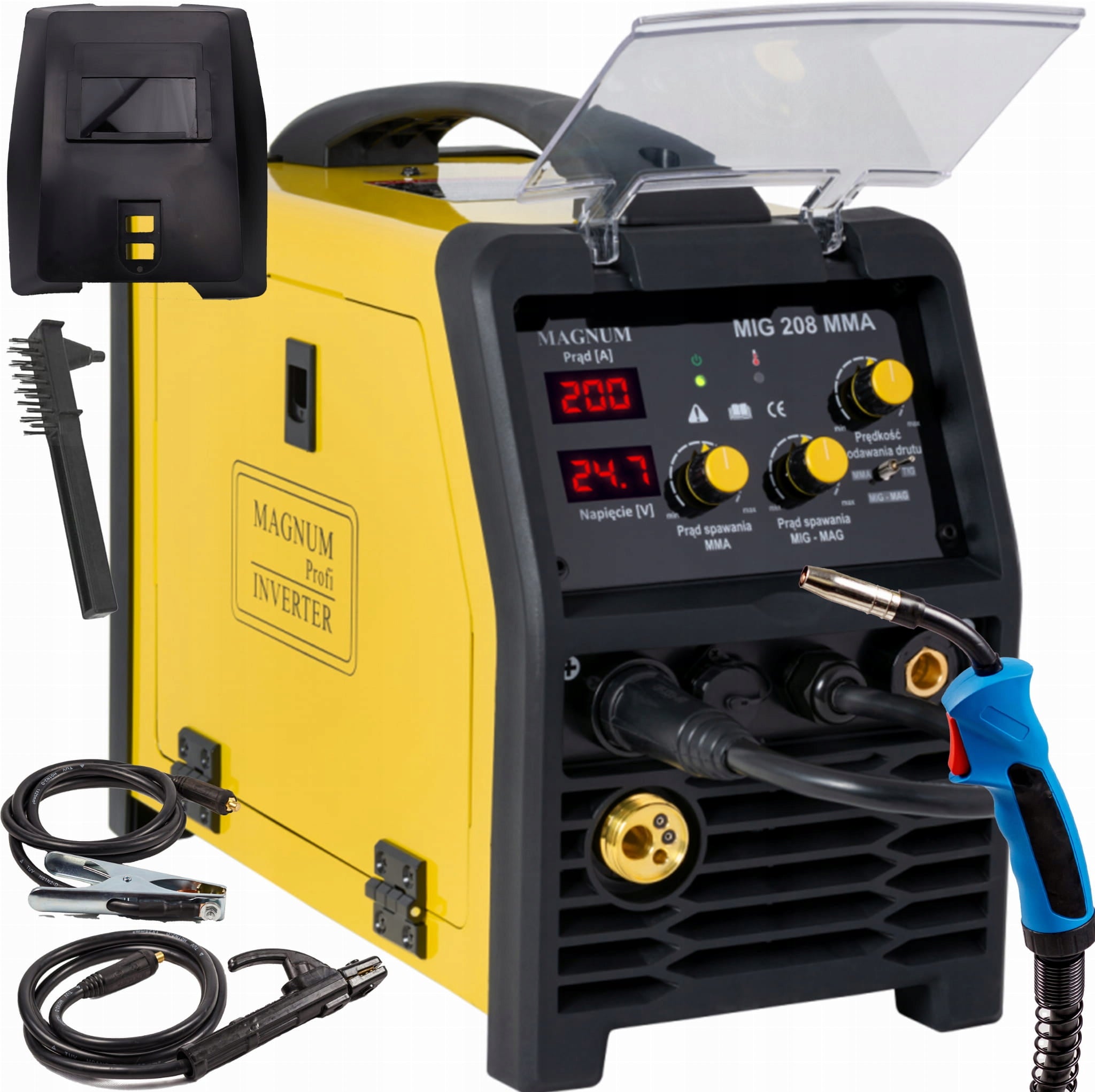

✔ MIG 208 MMA NV

✔ MIG/MAG MB15 handle – 3 m

✔ electrode holder

✔ mass cable with clamp

✔ instruction manual

✔ Peace of work – stable arc and protection against overheating.

✔ Time saving – intuitive parameter adjustment allows you to quickly set the welding current.

✔ Application versatility – one device enables MIG/MAG, MMA, TIG LIFT and FCAW welding.

✔ Professional effect – stable welding arc ensures aesthetic and durable welds.

Can weld without gas?

Yes – the welding machine supports FCAW self-shielding wire.

Can I weld with MMA electrode?

Yes – the device supports MMA welding.

Can TIG welding be done?

Yes – after connecting the TIG handle in TIG LIFT mode.

What wire spool does the welding machine support?

Up to 5 kg.

MAGNUM MIG 208 MMA NV

MIG MAG 200A welding machine

migomat 230V 5kg

MIG MMA FCAW welding machine

migomat without gas

semi-automatic welding machine 200A

Workshop migomat

TIG LIFT welding machine

IGBT MIG MAG welding machine

migomat for workshop
