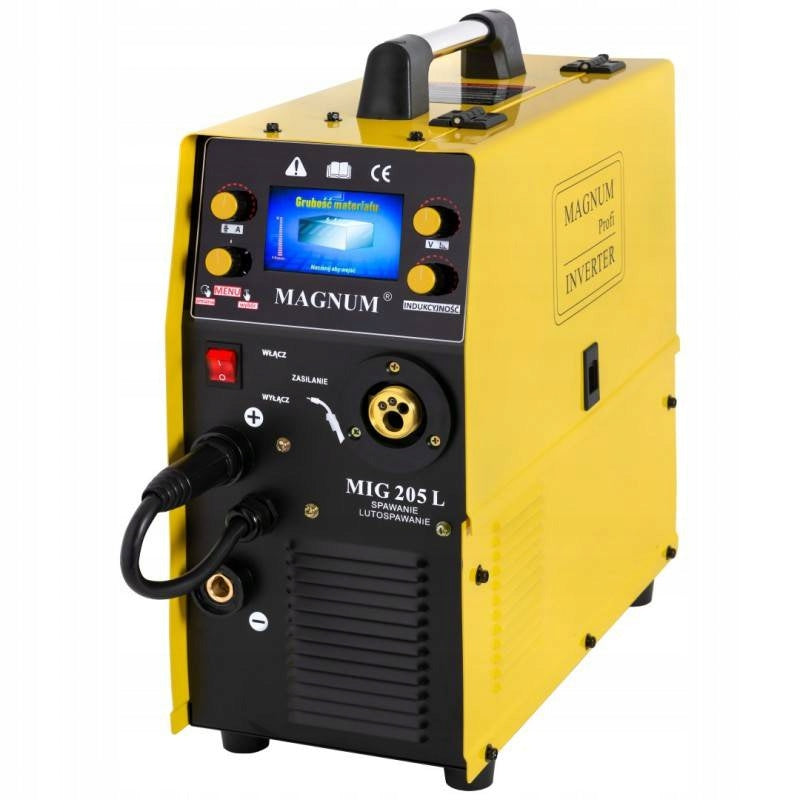

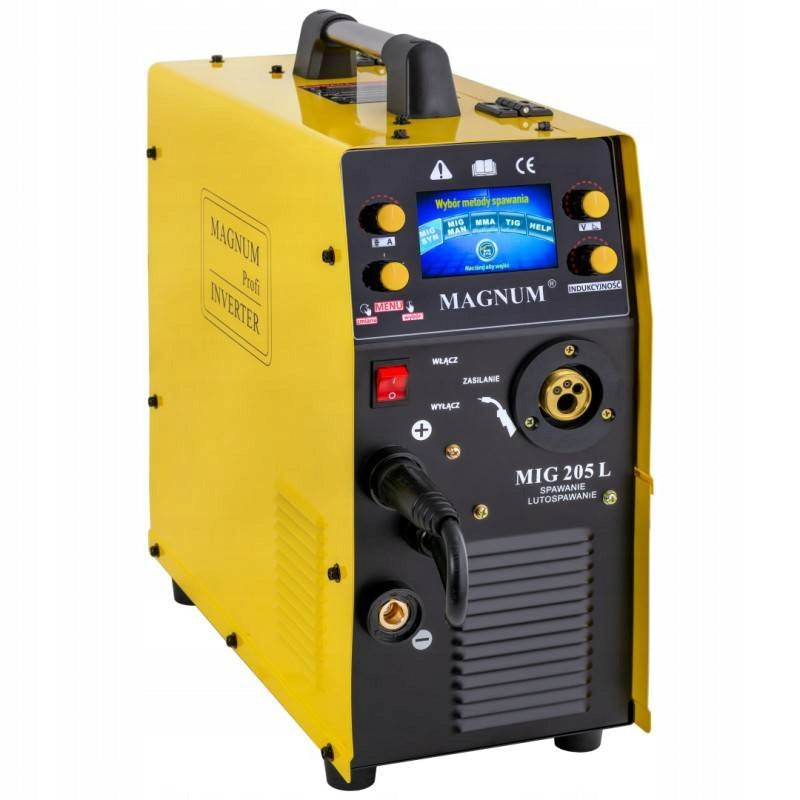

Suvirinimo aparatas Magnum MIG 205L, LCD, 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 205L, LCD, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 205L AUT
• Ilgis: 540 mm
• Plotis: 360 mm
• Aukštis: 560 mm

Welder

⭐ ⭐ ⭐ ⭐ ⭐

✅ Power supply: AC 230 [V] / 50 [Hz]

✅ Max. Power consumption: 5,2 kVA

✅Security required: 20A

✅ MIG/MAG welding current: 40 - 200A

✅MMA welding current: 50 - 180 A

✅Efficiency: 60 %

✅Wire spool weight: max. 5 kg

✅Wire diameter: 0,6 / 0,8 / 1,0 mm

✅Welding "without gas": YES

✅Housing protection class: IP23

✅Weight: 9 kg

Migomat

⭐ ⭐ ⭐ ⭐ ⭐

✅ MAGNUM MIG 205L is a professional semi-automatic welding machine designed for welding low carbon steel, low alloy steel (MAG), alloy steel (MIG), aluminum and its alloys and for lutowelding.

✅ It also has the possibility of welding with wrapped electrodes (rutile, alkaline, acidic - MMA). This device is used in heavy production conditions as well as in repair workshops.

✅ Allows welding with steel welding wires with a diameter of 0,6-0,8 mm, as well as self-shielded wires (welding "without gas") and electrodes with a diameter of 1,6-3,2 mm.

Mig mag welder

⭐ ⭐ ⭐ ⭐ ⭐

✅ MIG 205 L has a professional wire feeder, a "euroconnector" socket, which allows the use of different types of welding torches and output to the gas heater.

✅ The MAGNUM MIG 205 L welding machine has the possibility of lutowelding. It is an intermediate metal joining process between hard soldering and welding.

✅ The connection is obtained only by melting a special binder-solder, without melting the joined metals, while the process technique and method of preparing the edges of the joined objects are similar to that of welding.

✅ MIG 205 L has also inductance adjustment, which allows us to set the "hardness" of the arc.

The device has a clear, easy-to-read panel on which i.a.:

⭐ ⭐ ⭐ ⭐ ⭐

✅LCD display,

✅ Knob and button in one. It is used to select the welding method and other available parameters.

✅Knob of inductance regulation for the MIG-MAG method.

✅ Knob for adjusting the welding current voltage value for the MIG-MAG method.

For MMA method - Arc force function adjustment.

✅ Wire feed speed/welding current adjustment knob

Features and Benefits:

⭐ ⭐ ⭐ ⭐ ⭐

✅ function of synergic programs, soldering and regulation of inductance,

✅ possibility of manual settings

✅ welding without gas and MMA

✅ adjustable wire feed speed and wire feed

✅ functional and transparent digital LCD display

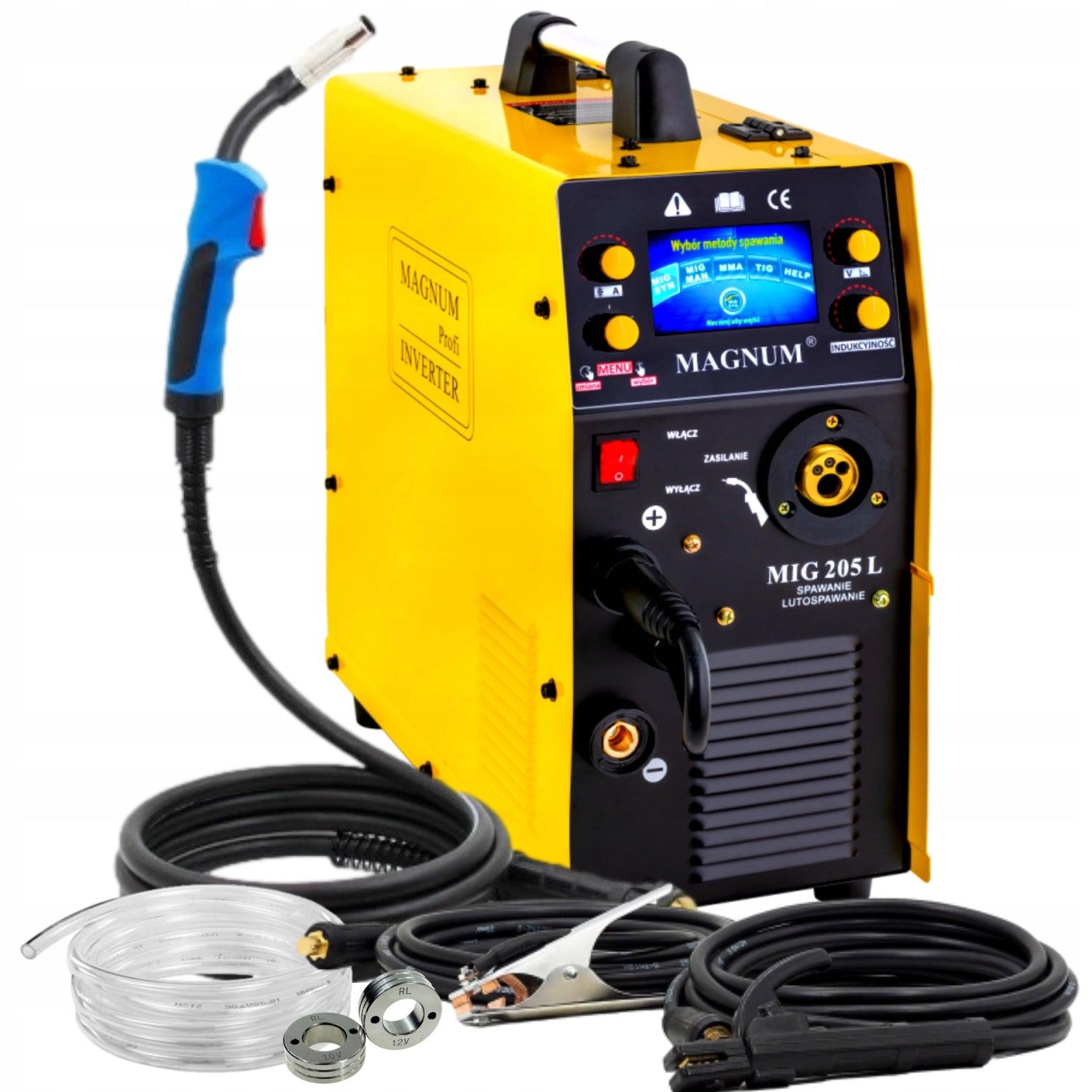

Standard equipment:

⭐ ⭐ ⭐ ⭐ ⭐

✅The MIG 205L

✅ MIG/MAG holder,

✅Electrode holder,

✅Mass holder,

✅gas cable.
