Suvirinimo aparatas Magnum 208 Aluminium CUSI

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum 208 Aluminium CUSI. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG-208
• Ilgis: 530 mm
• Plotis: 230 mm
• Aukštis: 380 mm

Migomat Magnum 208 Aluminium CUSI

MAGNUM

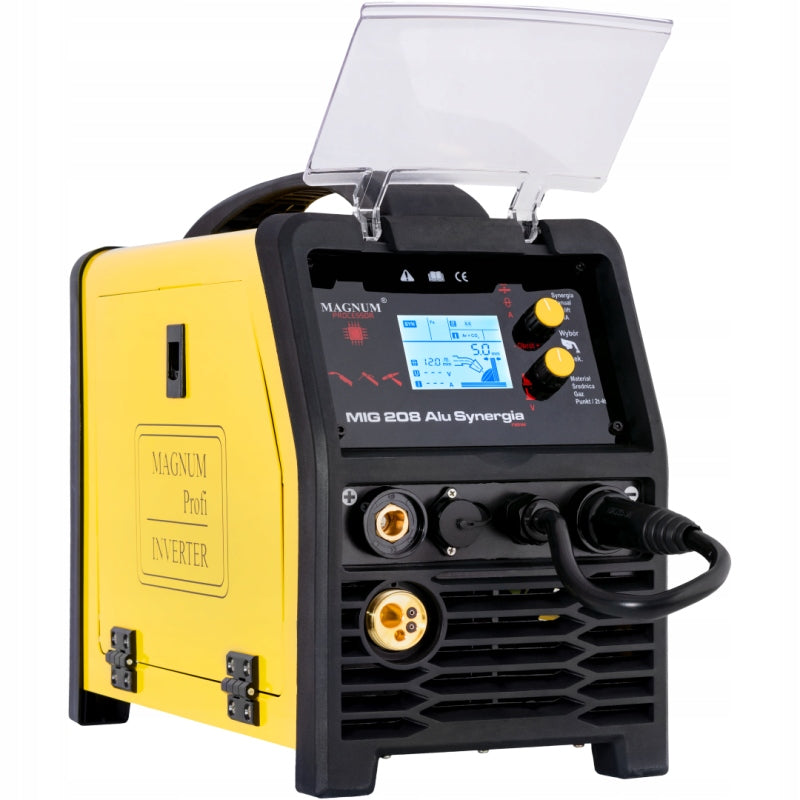

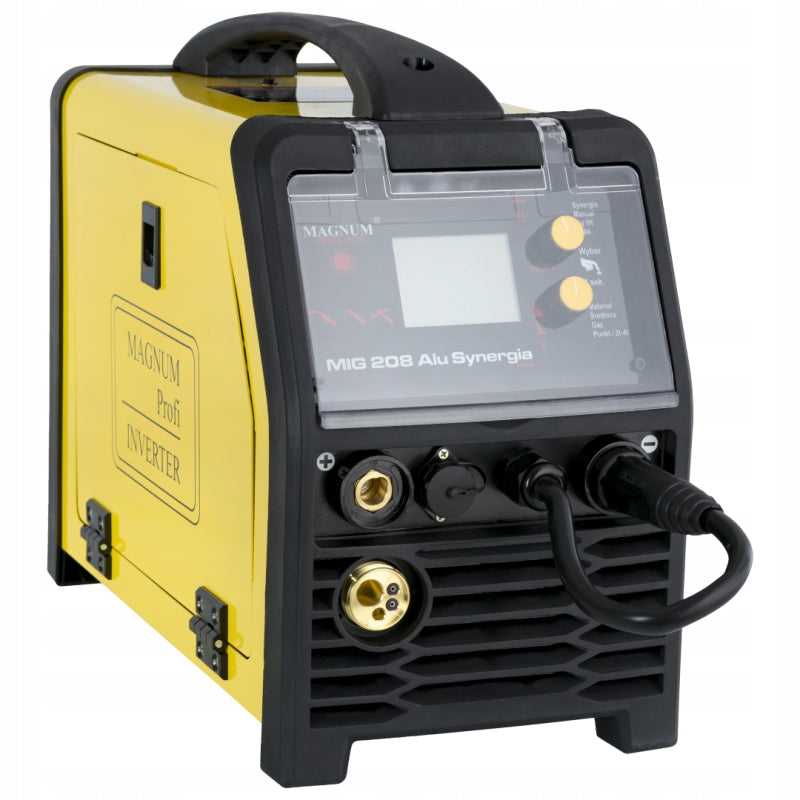

The MAGNUM MIG 208 Alu Synergy is a professional, synergistic semi-automatic welding machine designed for manual, electric welding of low-carbon steel, low-alloy steel (MAG), alloy steel and aluminum and its alloys (MIG).

The device can also be LUTOSPAWAN, welded using the MMA method and the TIG Lift method. It is designed for all kinds of welding work, in locksmith workshops, repair workshops, industrial, factories, etc. Thanks to the use of synergistic settings and a clear LCD screen, the device is extremely easy to use and can be used by welders even with minimal experience.

The power source was built on the basis of IGBT transistors providing a minimum of electromagnetic interference, enabling increased efficiency and reliability of the power source, lower energy consumption, and rapid adjustment of the current to changes in parameters during welding.

FUNCTIONS AND ADVANTAGES:

✅Welding current 40-200A

✅ synergistic program for: aluminium, black steel, stainless steel, soldering, core wires

✅Possibility of manual settings

✅ Welding without gas - FLUX

✅ possibility of connecting the spool GUN holder

✅ Inductance regulation less chipping

✅ Welding point

✅ Soldering CUSI3

✅ Easy and smooth adjustment of welding parameters

✅ Easy to read LCD panel

✅ Function 2T and 4T

✅ ARC FORCE function

✅ Sturdy metal feeder

✅Fe – ordinary steels 0.6 / 0.8 / 1.0 CO2 / Ar+CO2 - program for welding black steel in CO2 or Ar/CO2 shield.

✅Flux – core wire welding 0.8/0.9/1.2 - program for self-shielding wire welding.

✅CrNi – stainless steel and acid-resistant steels 0.8/1.0 Ar+O2 / Ar+CO2 (1-2%) - program for welding stainless steel / acid-resistant steel in Ar+CO2 or Ar+O2 sheath.

✅AlMg – aluminium and aluminium alloys 0.8/1.0 Ar - program for welding aluminium in Ar sheath.

✅CuSi – soldering 0.8/1.0 Ar - program for welding copper and soldering in Ar shield.

Available welding methods:

• MIG/MAG with synergy
• MIG/MAG with manual settings
• TIG LIFT - using a special handle with a valve, arc ignition is then carried out by lightly rubbing the non-melting electrode against the welded material
• MMA - using hot melt electrodes wrapped in rutile, alkaline, acidic

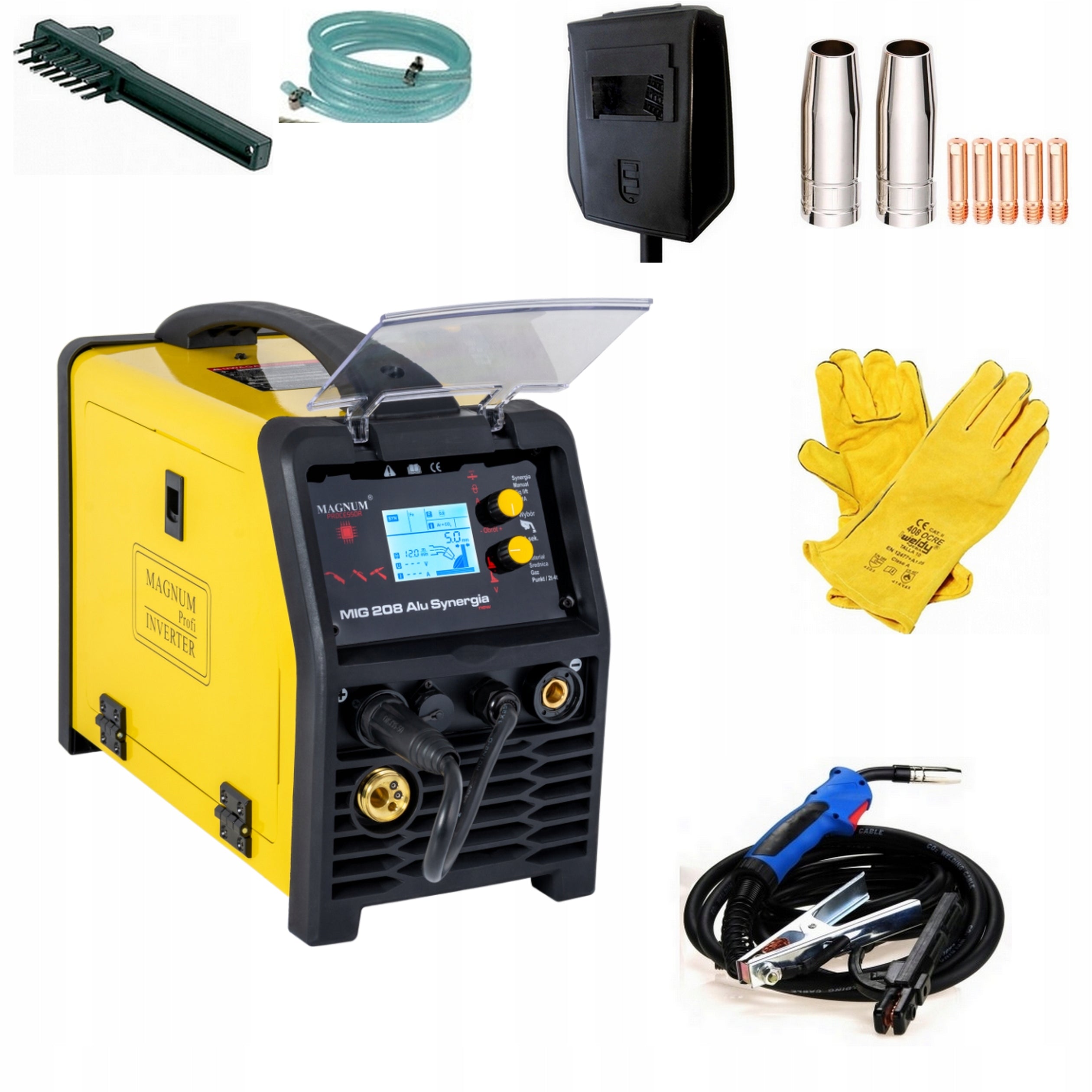

THE SET INCLUDES:

• Device MIG 208 ALU Synergy
• MIG/MAG MB15 3m holder,
• Electrode holder,
• Bulk holder,
• Gloves
• Operating instructions.
• Welding torch consumables
• Welding mask
• Gas line
• Hammer brush

TECHNICAL DATA:

• Power supply: AC 230 [V], 50/60 [Hz],
• Security required: 20 [A]
• MIG/MAG welding current: 20 - 200 [A]
• MMA welding current: 20 -160 [A]
• TIG LIFT welding current: 20 -160 [A]
• Idle Voltage: 75[V]
• Efficiency: 40 [%]
• Wire spool weight: max. 5 [kg]
• Wire diameter: 0,6 / 0,8/ 0,9/ 1,0 [mm]
• Welding "without gas": YES
• Housing Protection Class: IP21S
• Weight: 10,7 [kg]

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	5.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	40%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	16 kg
Parametry	Welding range	20–200 A
Parametry	Height	380 mm
Parametry	Length	530 mm
Parametry	Width	230 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	19 kg
Parametry	Manufacturer code	MIG-208
Parametry	EAN (GTIN)	5904624002936
Parametry	Model	MIG-208
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
