Suvirinimo aparatas IDEAL TECNOMIG 222 LCD SYNERGIC

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNOMIG 222 LCD SYNERGIC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG222LCD_pakiet2
• Ilgis: 590 mm
• Plotis: 250 mm
• Aukštis: 455 mm

+ MIG/MAG, MMA, TIG WELDING KIT, WHICH INCLUDES I.A.:

✔ AUTOMATIC VISOR IDEAL APS-510G

✔ CYLINDER WITH REDUCER

✔ WELDING ACCESSORIES

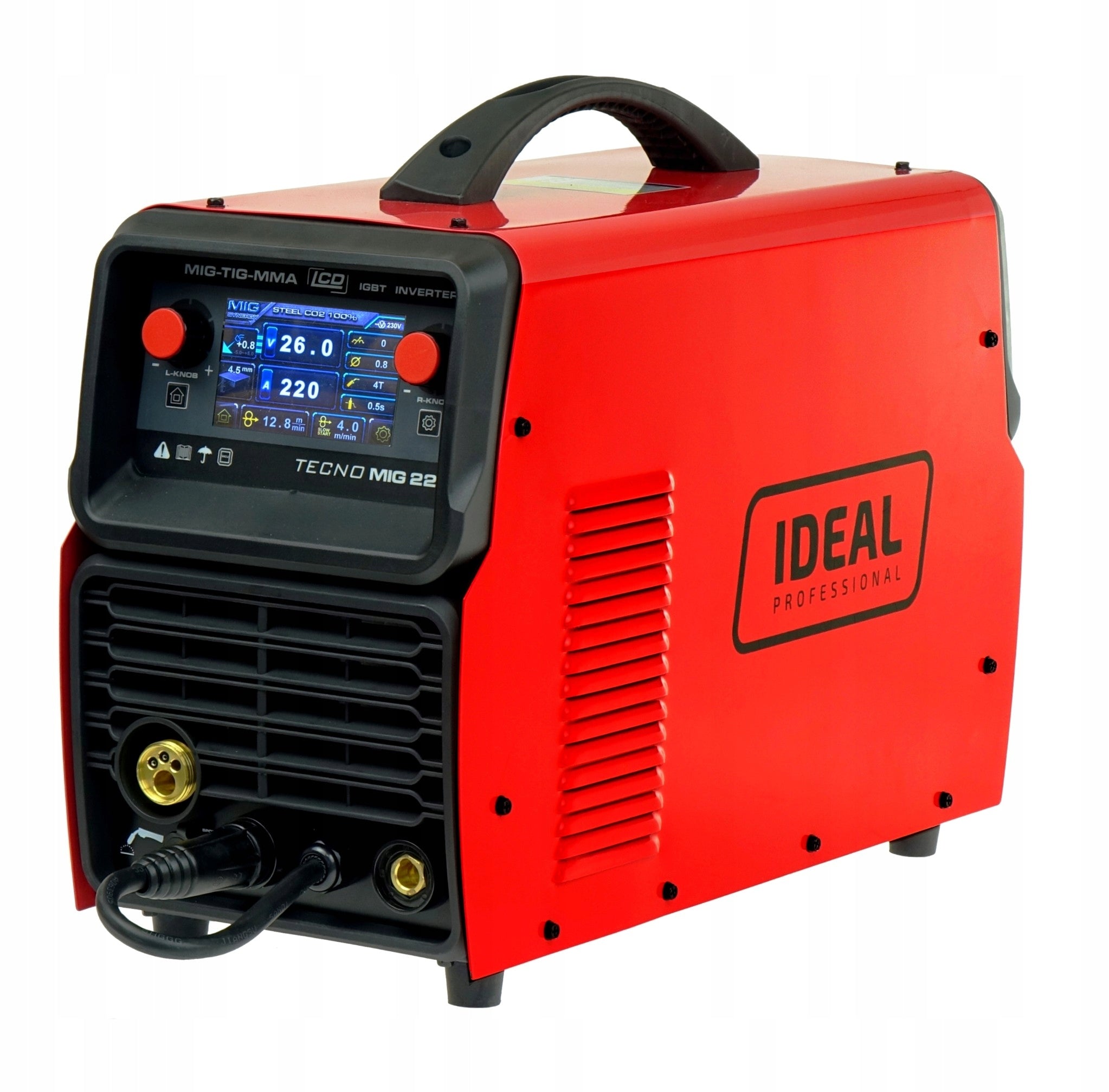

TECNOMIG 222 LCD SYNERGIC WELDING MACHINE

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The TECNOMIG 222 LCD SYNERGIC welding machine is used for welding:

✔ low alloy steels

✔ soldering of galvanized sheets

✔ carbon steel

✔ stainless steel

✔ aluminium

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

IDEAL TECNOMIG 222 LCD SYNERGIC has a readable and easy to use function panel, which has i.a.:

1. Left knob: regulates voltage/voltage correction and the choice of welding method (left/right movement – parameter selection, pressing – approval),
2. Functional button (single press – selection of welding method, double press – choice of language),
3. LCD display,
4. Right knob: regulates the current and functions under the button from position No. 5 (left/right movement – parameter selection, pressing – parameter approval),
5. The parameter adjustment button of the right section on the display.

In addition, the display includes i.a.:

1. Graphic section: the first field concerns the correction of tension and convexity of the weld, the second field is the suggested thickness of the welded material. The correction value is adjusted with the left knob. The thickness of the material is adjusted when adjusting the welding current.
2. Name of the chosen method.
3. Type of material and shielding gas.
4. Main section, displaying the main parameters: arc voltage and current. The voltage value is adjusted with the left knob. The intensity value is adjusted with the right knob.
5. Type of power supply from the mains.
6. Section of additional parameters. Subsequently, going from the top: the first field is the inductance selection, the second field is the diameter of the welding wire, the third field is the button mode, the fourth field is the gas outflow time setting after welding, the fifth field is the wire access speed before welding. All the above parameters are set using the right knob, and the input to each of them is made from the parameter adjustment button.
7. Wire ejection speed. Parameter depending on current.

✔ REPAIR WORKSHOPS,

✔ AUTOMOTIVE INDUSTRY,

✔ MAINTENANCE WORK,

✔ ALL BODYWORK REPAIRS,

✔ FARMS,

✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roller feeder enables precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 230 V; 50Hz (1ph)
• Power supply network protection: C25
• Current taken from the network: 45 A
• Power: 7,7 kW
• Idle voltage: 54 V
• Efficiency: 79%
• Power consumption in idle state: 49 W

⏩ MIG PARAMETERS:

• Welding current: 50 - 220 A
• Power at work 60%: 220 A
• Power at work 100%: 170 A
• Feeder type: built-in 2-roller
• Aluminum/Steel Wire Diameter: 0,8 - 1,0mm
• Diameter of soldering wire: 0,8 mm
• Diameter of self-shielding wire:0,8 - 1,2 mm
• Wire spool: 2-15 kg

⏩ TIG PARAMETERS:

• Welding current: 10 - 220 A
• Power at work 60%: 220 A
• Power at work 100%: 170 A

⏩ MMA PARAMETERS:

• Welding current: 10 - 200 A
• Power at work 60%: 200 A
• Power at work 100%: 155 A
• Diameter of welding electrode: 1,6 - 4,0 mm

⏩ OTHER:

• Weight: 19 kg
• Dimensions: 590x250x455 mm
• Package dimensions: 650x350x505 mm
• Degree of protection: IP21S
• Degrees of protection: H
• Cooling: AF

Welding visors with variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with a grinding function.

High quality LCD filters in optical class 1/1/1/2.

Power source: photovoltaic cell + replaceable battery.

4-spoke adjustable headrest ensures comfort of use.

The shell compliant with EN175B provides greater impact resistance.

PHYSICAL PARAMETERS

• Type of welding filter: APS-510G
• Weight: 475g
• Filter size: 96x39 mm

TECHNICAL PARAMETERS

• Response time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Battery depletion rate: √
• Power supply: Photovoltaic cell + battery 1xCR2032

APPLICATION

• Plasma cutting: √
• MIG/MAG ; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A

ATTENTION! Masks are shipped in the color currently available in stock.

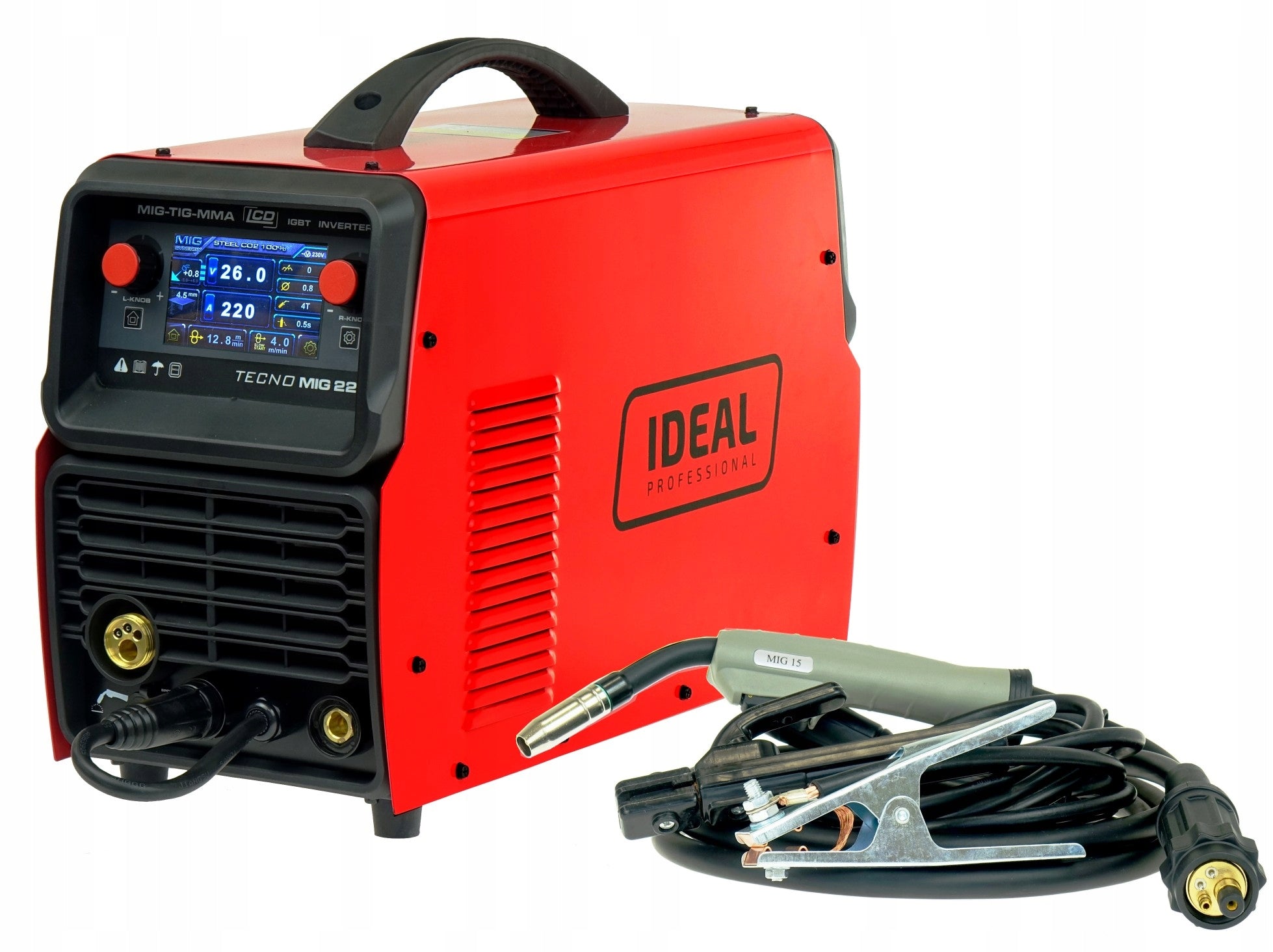

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine IDEAL TECNOMIG 222 LCD SYNERGIC - 1 pc.
• Welding torch - IDEAL MB 15 - 3m - 1 pc.
• Electrode cable - 2,5m - 1 pc.
• Bulk cable - 2,5m - 1 pc.
• Instructions service in Polish

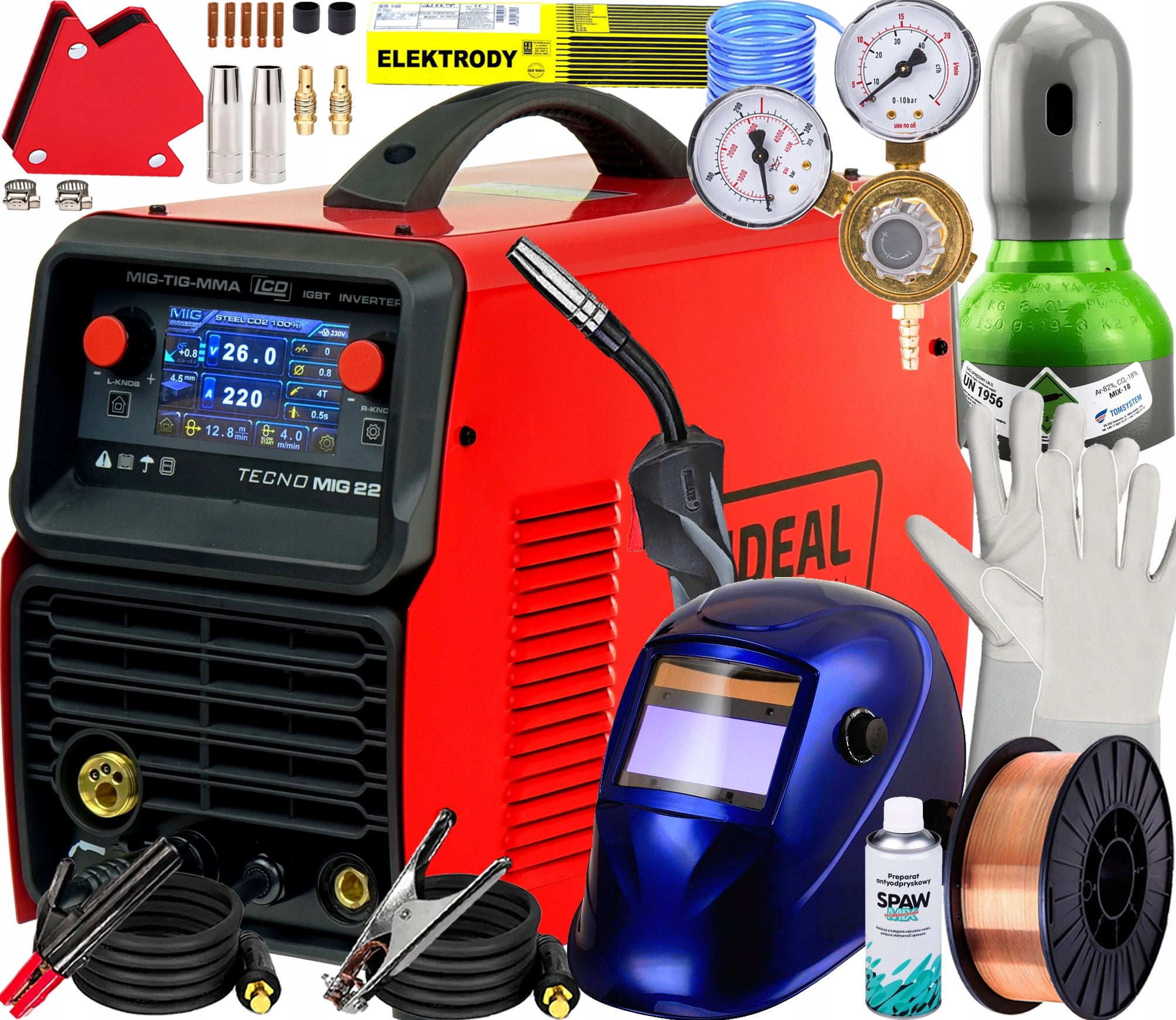

+ MIG/MAG + MMA WELDING KIT:

• Automatic visor IDEAL 510G - 1 pc.
• New 8L MIX or CO2 cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire FOR BLACK STEEL 0,8 mm - 5 kg - 1 pc.
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg
• Gas hose - 1 pc.
• Clamping bands - 2 pcs.

SET OF 8 LARGE MIG INDUCTANCE MB15.

M.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	19 kg
Parametry	Welding range	30–220 A
Parametry	Height	455 mm
Parametry	Length	590 mm
Parametry	Width	250 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	TMIG222LCD_pakiet2
Parametry	EAN (GTIN)	5903991108630
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
