Suvirinimo aparatas IDEAL TECNO TIG 215 AC DC PULSE MMA 230V 200A HF IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO TIG 215 AC DC PULSE MMA 230V 200A HF IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TTIG215AC

Manufacturer: IDEAL ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Working cycle: 35%

CHECK OUT THE ADVANTAGES OF THE IDEAL TECNO TIG 215 AC DC PULSE:

• Contactless arc initiation HF
• touch initiation Lift
• Welding current 200A in cycle 60%
• Welding with PULSEM in AC and DC method
• Welding without pulse
• Working in the MMA method
• Clear, soft control panel
• Security overload
• Welding machine made in the latest Inverter technology IGBT
• 2T/4T mode
• ARC FORCE function
• Hot Start Mode
• ANTI STICK mode
• Efficient fan is responsible for cooling the welding machine
• Quick coupler for gas connection
• Excellent equipment for welding aluminum, black steel, acid-resistant, stainless steel.

The small size and weight make the device perfect for both workshop work and field work.

IDEAL TECNO TIG 215 AC/DC is a welding machine designed for welding by TIG and TIG PULS of all weldable materials (each type of steel, aluminum, copper, titanium and others), maximum current 200A. Used in the device so-called. soft panel, allows for precise and fast positioning of the welding machine, which is why this welding machine is suitable for professionals and novice welders.

AC DC PULSE WELDING MACHINE

IDEAL TECNO TIG 215 AC/DC is a welding machine designed for welding by TIG and TIG PULS of all weldable materials (each type of steel, aluminum, copper, titanium and others), maximum current 200A. Used in the device so-called. soft panel, allows for precise and fast positioning of the welding machine, which is why this welding machine is suitable for professionals and novice welders.

HIGH POWER WITH SMALL DIMENSIONS

IDEAL TECNO TIG 215 AC/DC is an inverter welding machine, manufactured from new generation IGBT transistors, thanks to which it impresses with its small dimensions and weight of only approx. 9kg. Small dimensions and weight guarantee high mobility and the ability to work even in hard-to-reach places. Despite its size, the welding machine impresses with high power and maximum current of up to 200A!

EASY OPERATION AND FULL FUNCTIONALITY

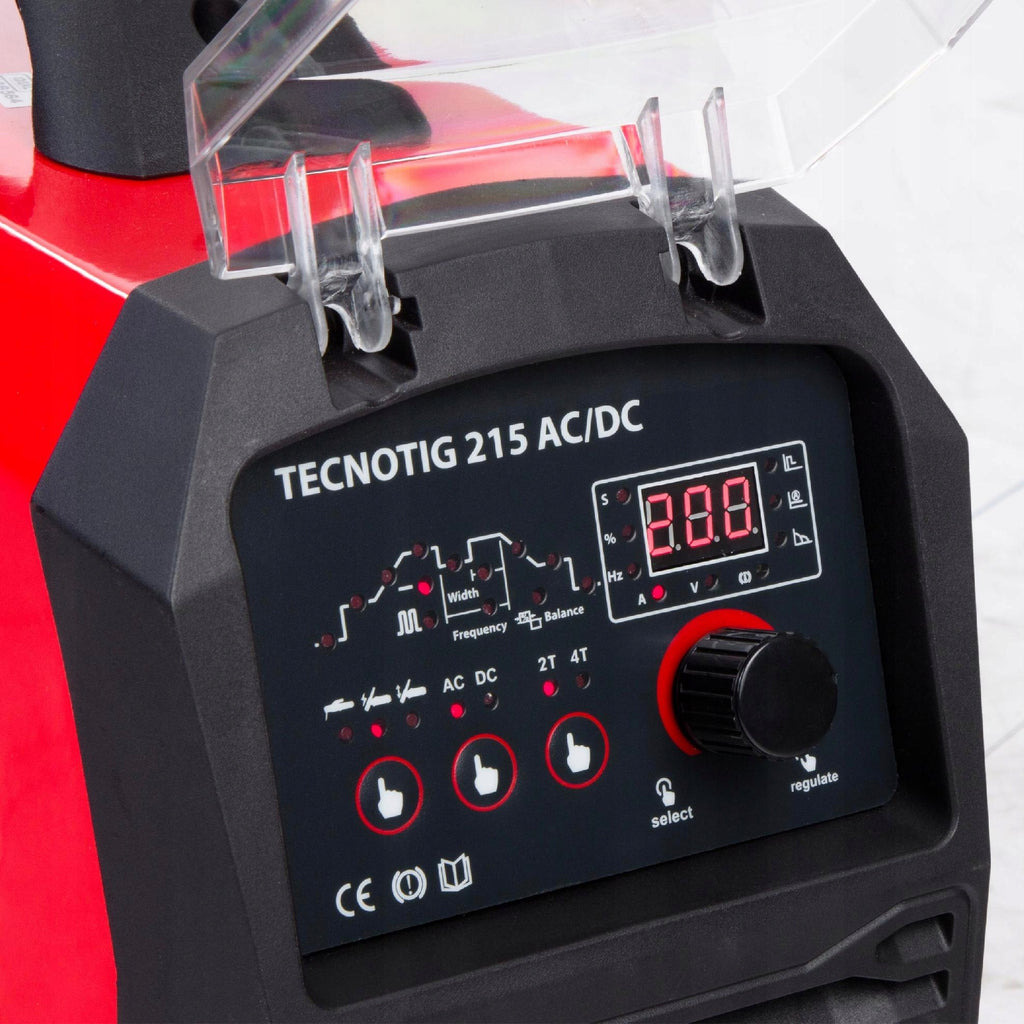

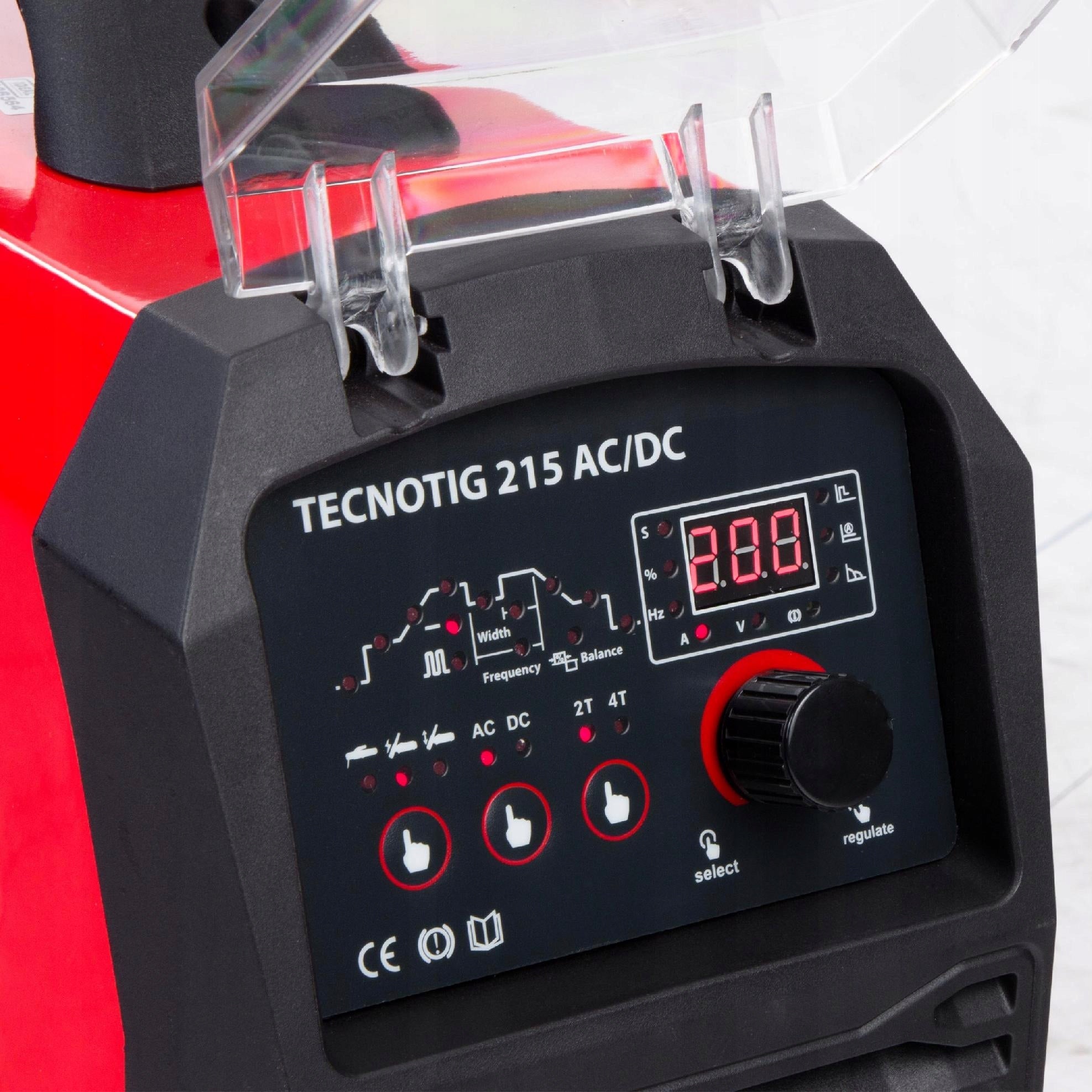

The device has a clear and transparent "soft panel", and parameter adjustments are made using the multifunctional knob and several buttons, making setting the welding machine very easy and intuitive. The device gives the possibility of welding with pulse current. Thanks to this function and full adjustment of pulse parameters, it is possible to focus the arc and change the shape of the weld, as well as the possibility of welding thin elements. Arching is done without contact using the built-in HF ionizer or in the LIFT touch mode.

2T/4T - welding modes. 2T allows welding as long as the button in the handle is pressed. 4T used for long welds, starts welding when pressing and releasing the button, and the end occurs after pressing the button in the handle again.

HF IONIZER - contactless arch glow using high frequencies. Thanks to this technological solution, it is possible to eliminate weld contamination with tungsten.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

PULS - Pulse welding not only allows for better weld quality, but also allows for welding in various positions and welding of very thin elements. Reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.

ARC FORCE - function, which provides the best settings for obtaining a stable arc and a small amount of chipping. In other words, thanks to ARC FORCE, the electric arc necessary for welding glows uniformly, without short circuits hindering or preventing the connection of materials. During welding, large amounts of chipping are often formed, i.e. drops of melted metals that need to be removed. When ARC FORCE is enabled, the number of chippings decreases significantly, and this allows for more comfortable work.

ANTI-STICK - allows the welder to easily separate (subtract) the electrode from the product, without the risk of visual paralysis. In the case of a short circuit (if it occurs), after a short break, the welding current is reduced automatically. After separating the electrode from the element, the source automatically restores its operation.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

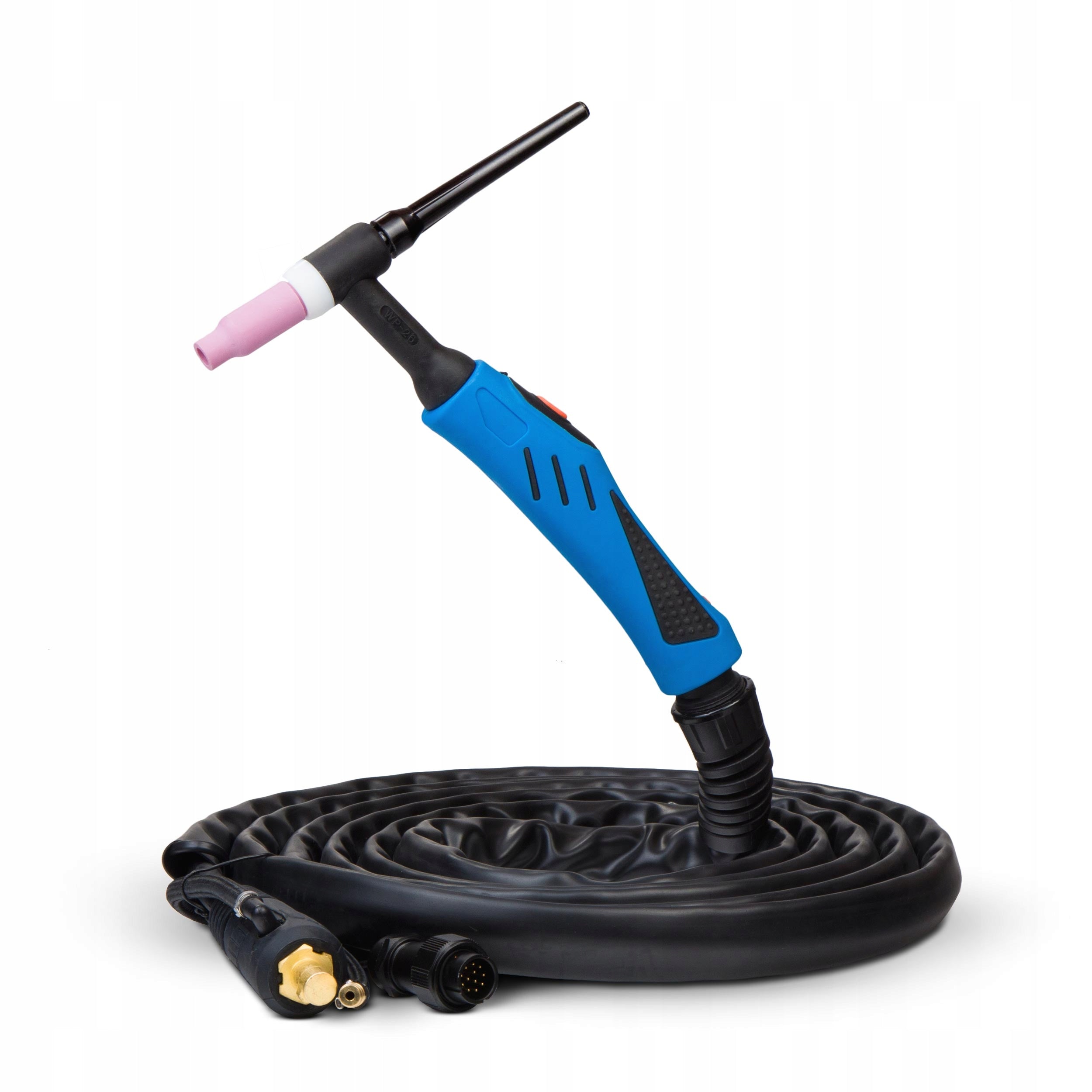

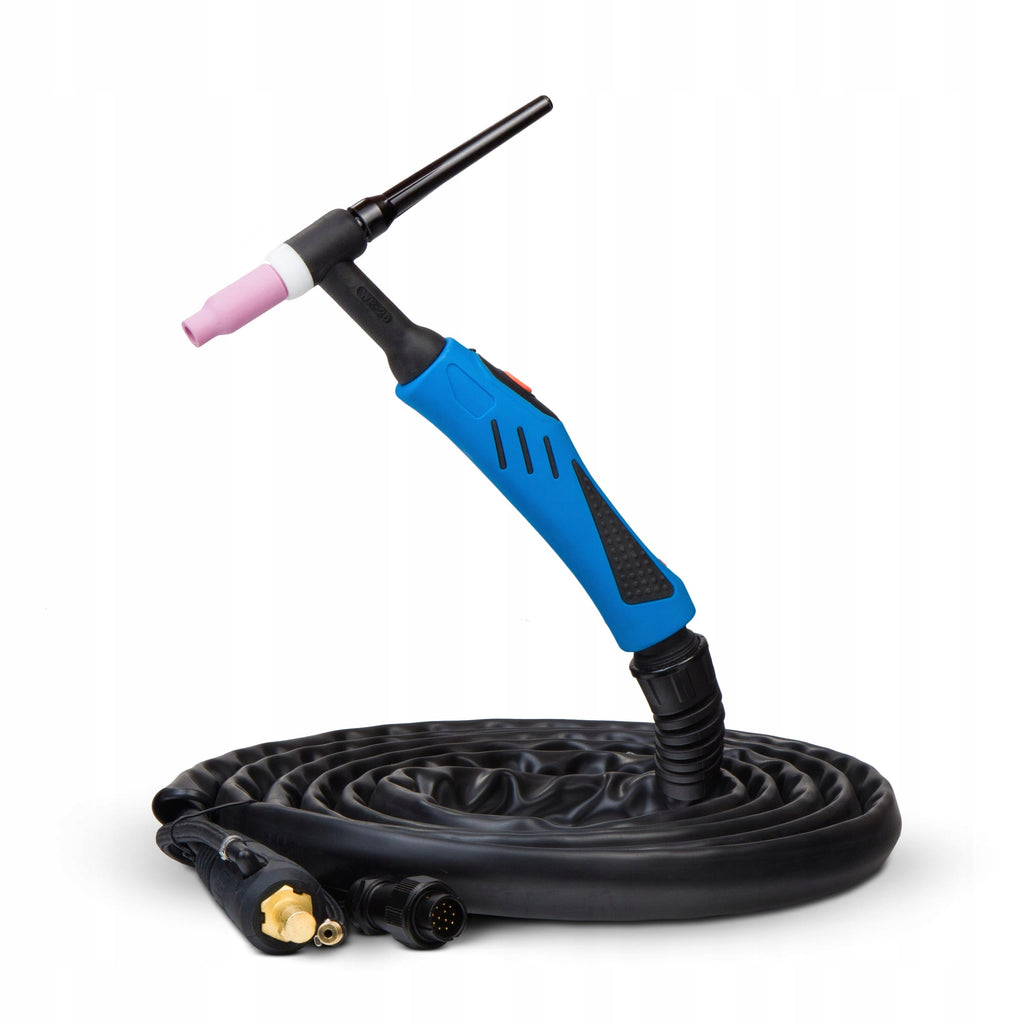

DURABLE TIG WELDING TORCH - 4m

The welding machine is equipped with a professional welding torch TIG type SR 26, with a length of 4m. We add consumable parts to each handle to start, so that the handle is armed and ready to work. In addition, all spare parts of the handle are easily accessible and can be purchased at attractive prices.

Handle advantages:

• length 4m - work without rearranging the welding machine
• handle with joint - does not restrict movement
• EURO socket - easy to replace the handle
• type SR 26 - high current efficiency and easily accessible parts

Thanks to the use of a soft control panel, we can easily control parameters such as:

• gas outflow before and after welding
• starting current
• time of rise and fall of current
• final current (extinguishing current)
• work in two-bar and four-bar (2T/4T)

In addition, we control the parameters of PULS:

• peak current
• base current
• frequency
• pulse balance

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50Hz
• Number of phases: 1ph
• Network security: 25A type C
• Maximum power consumption: 6,1kW

TECHNICAL PARAMETERS

• Welding current range TIG AC: 10 - 200A
• TIG DC/MMA welding current range: 10 - 170A
• Idle voltage: 65 V
• Power build-up time: 0 - 10s
• Power drop time: 0 - 10s
• Pulse frequency Hz: 0,5 - 200
• Pulse length: 5 - 95%
• Gas after: 0 - 10s
• Gas before: 0 - 2s
• Final current: 10 - 200 A
• Maximum current: 200 A 35%
• Power at work 100%: 120 A (TIG AC) / 110 A (TIG DC/MMA)
• Power at 60% operation: 155 A (TIG AC) / 140 A (TIG DC/MMA)
• Diameter of welding electrode: 1,6 - 4,0 mm

ADDITIONAL FUNCTIONS

• PULSE function: YES
• HF function: YES - non-contact glow
• 2T/4T function: YES
• PRE GAS: YES
• POST GAS: YES
• Increase in electricity: YES
• Power drop: YES
• HOT START function: YES
• ARC FORCE function: YES

PHYSICAL PARAMETERS

• Degree of protection: IP23
• Weight: 9kg
• Dimensions: 620x270x300mm

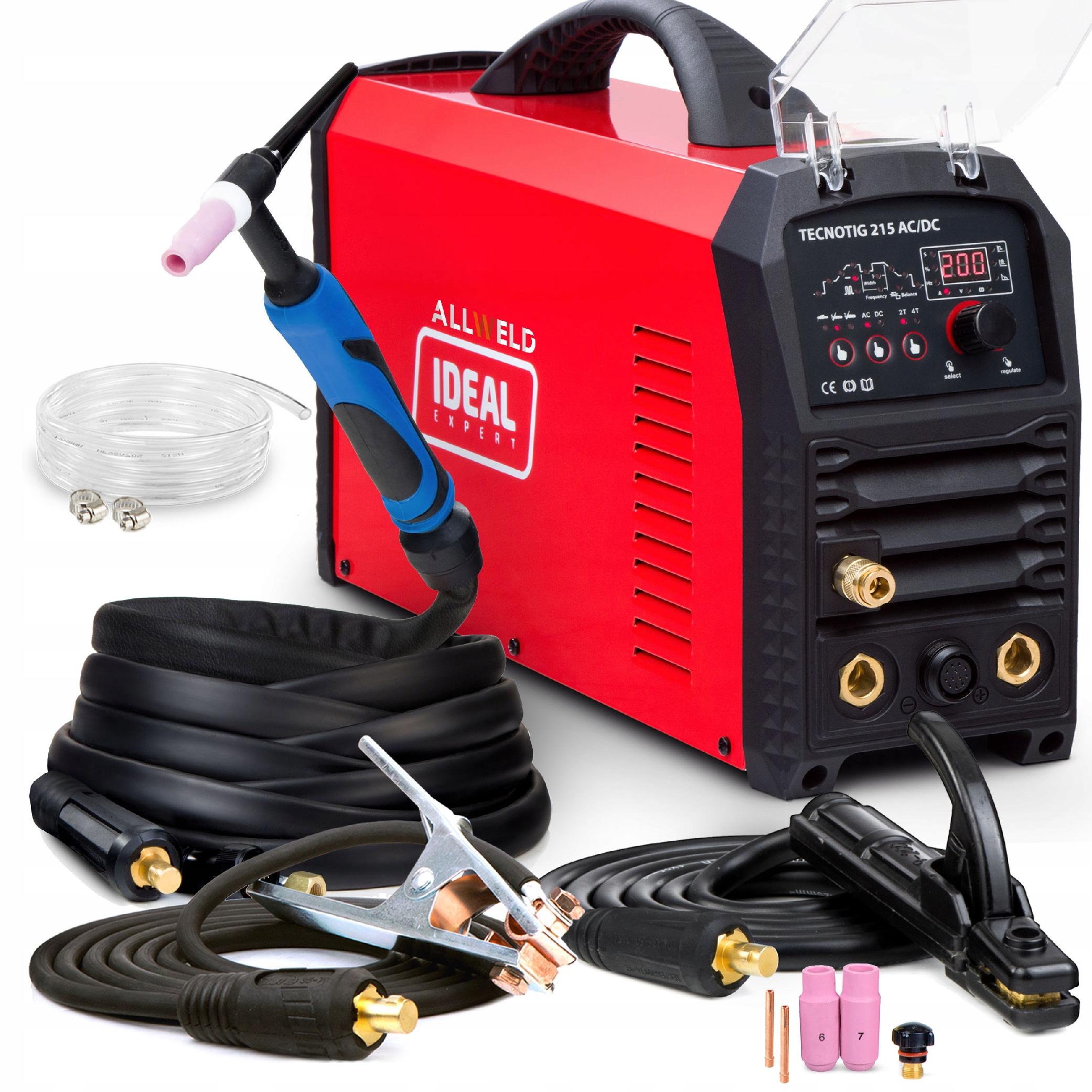

THE SET INCLUDES:

• Welding machine IDEAL TECNO TIG 215 AC/DC
• TIG handle type SR 26 - 4m
• Bulk holder - 3m
• Electrode holder - 3m
• Operating elements of the TIG handle
• Gas hose
• Clamp ties - 2 pcs.
• Operating manual and warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	6.1 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	35%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	13 kg
Parametry	Welding range	10–200 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	13 kg
Parametry	Manufacturer code	TTIG215AC
Parametry	EAN (GTIN)	5903991102287
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
