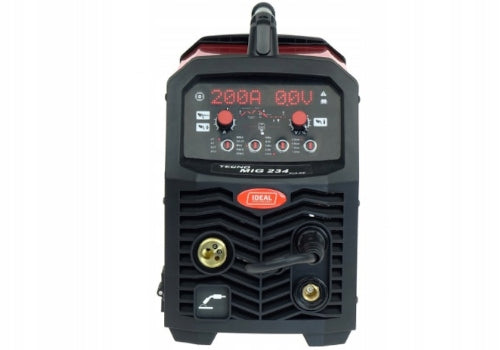

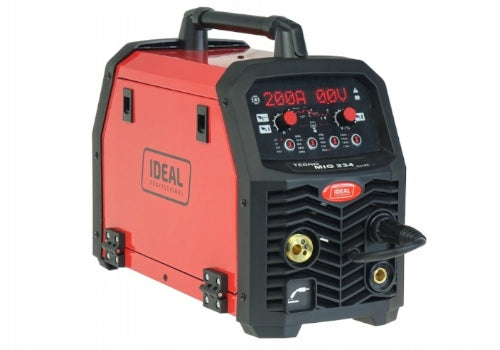

Suvirinimo aparatas IDEAL TECNO MIG 234 PULSE 4X4 inverterinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 234 PULSE 4X4 inverterinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 234 PULSE 4X4
• Ilgis: 530 mm
• Plotis: 230 mm
• Aukštis: 410 mm

5903991108425

Technical data:

• Protection of the power supply network C25A
• Rated supply voltage 230 V, 50-60Hz, 1ph
• Power 6,53 kW
• Maximum current 200 A
• Current at work 100% 160 A
• Current at work 60% 200 A
• Diameter of aluminum wire 1,0 - 1,2 mm
• Diameter of self-shielding wire 0,8 mm
• Steel wire diameter 0,8 - 1,0 mm
• Stainless steel wire diameter 0,8 - 1,0 mm
• Welding electrode diameter 1,6 - 4,0 mm
• Welding current adjustment range 20 - 200 A
• Wire spool size D100 (0,45kg and 1kg), D200 (2kg and 5kg)
• Degree of protection IP23S Weight of the device / set 15/16 kg
• Overall dimensions L x W x H 510x230x370 mm
• Package dimensions L x W x H 550x250x385 mm

Features of the migomate:

• TECNO MIG 234 PULSE has synergistic programs for welding aluminium and its alloys, stainless steel, carbon and low alloy steels. It also allows soldering of galvanized steels (settings in manual mode).
• Welding is carried out in an inert gas, active gas or mixture, depending on the program selected on the control panel.
• Thanks to the MIG pulsation, the amount of heat introduced into the welded element is increased. It is possible to obtain a better weld, regardless of the welding position and reduce the amount of spatter.
• The clear and easy-to-use digital control panel allows precise adjustment of MIG welding parameters such as:regulation of peak current / base current in double pulse regulation of inductance (MIG /Dual Pulse) pulse amplitude adjustment in double pulse width adjustment (filling) in double pulse frequency adjustment in double pulse spot welding time adjustment wire burning time after welding gas outflow time adjustment before welding gas outflow time adjustment after welding

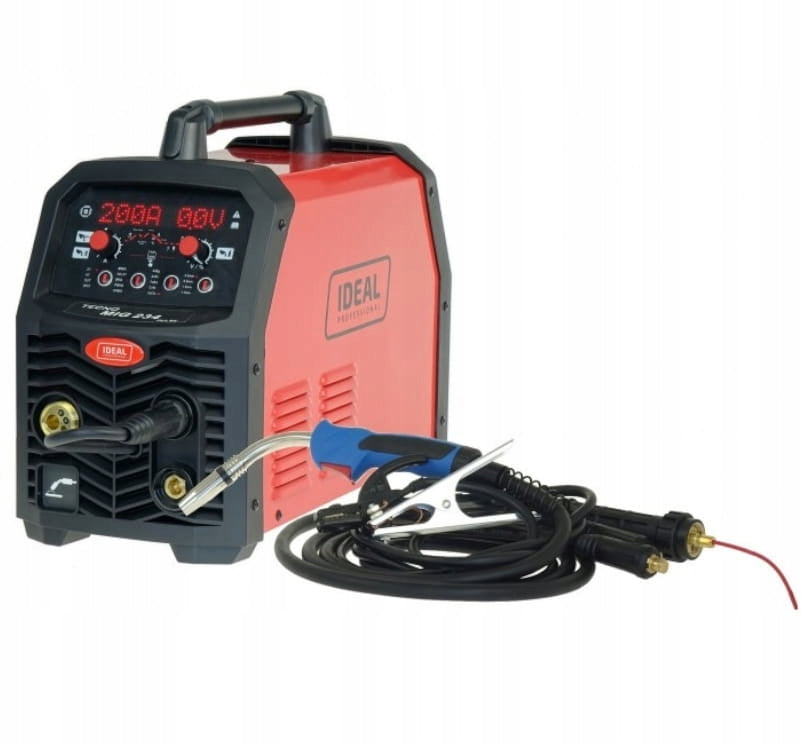

Scope of delivery:

1. IDEAL TECNO MIG 234 PULSE 4x4 - Inverter welder - migomat
2. MIG welding torch 24/3 meters armed with aluminum
3. Electrode cable 2 M
4. Mass cable 2 M
5. Feeder roll 1,0-1,2 for alu
6. 0,8-1,0 feeder roller for steel
7. User manual

Features of TECNOMIG 234 PULSE 4x4:

• MIG-MAG - wire welding. For welding non-alloy, low-alloy and high-alloy steels, and non-ferrous metals.
• FLUX - wire welding, without the use of gas.
• TIG Lift / TIG PULS - arc welding process with non-melting electrode in an inert gas shield
• LUTOSPELING - wire welding, mainly used by sheet metal workers, for welding in galvanized
• SPOT WELDING - MIG MAG function rarely found in this class of devices is much more versatile than in TIG, although showing lower welding purity. It does not require a perfect connection of the welded element.
• PLUS / DUAL PULS - is dedicated to welding stainless steels. The appearance and quality of the connection that can be obtained is similar to a TIG weld.

Trasistor technology - IGBT.

Relatively newer, lighter and smaller overall technology than MOSFET, which translates into greater mobility of such a device. In addition, the device works better on weaker electrical installations and in high-voltage welding. Much smaller (approx. 30% ) power consumption.

Welder Assistance Features:

• Two-bar 2t - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow
• Four-point 4t - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,
• Inductance adjustment - THE FUNCTION IS USEFUL WHEN WELDING THIN ELEMENTS BY MIG/MAG METHOD, PREVENTING THEM FROM BURNING OUT AND SOLDERING GALVANIZED ELEMENTS. THE THINNER THE MET MIG/MAG WELDED ELEMENT, THE HIGHER THE INDUCTANCE SHOULD BE (SOFT ARC - LESS MELTING)
• Wire feed speed adjustment
• Hot start - momentary voltage jump above the set value. Great ease when lighting the electrode.
• Arc force - reduction of the function value gives a soft arc and a smaller depth of melt, while increasing the value causes deeper melting of the short arc welding capability.
