Trumpai apie prekę
Prekė: Suvirinimo aparatas Ideal TECNO MIG 232 PULSE. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TMIG232P
- Ilgis: 530 mm
- Plotis: 230 mm
- Aukštis: 410 mm

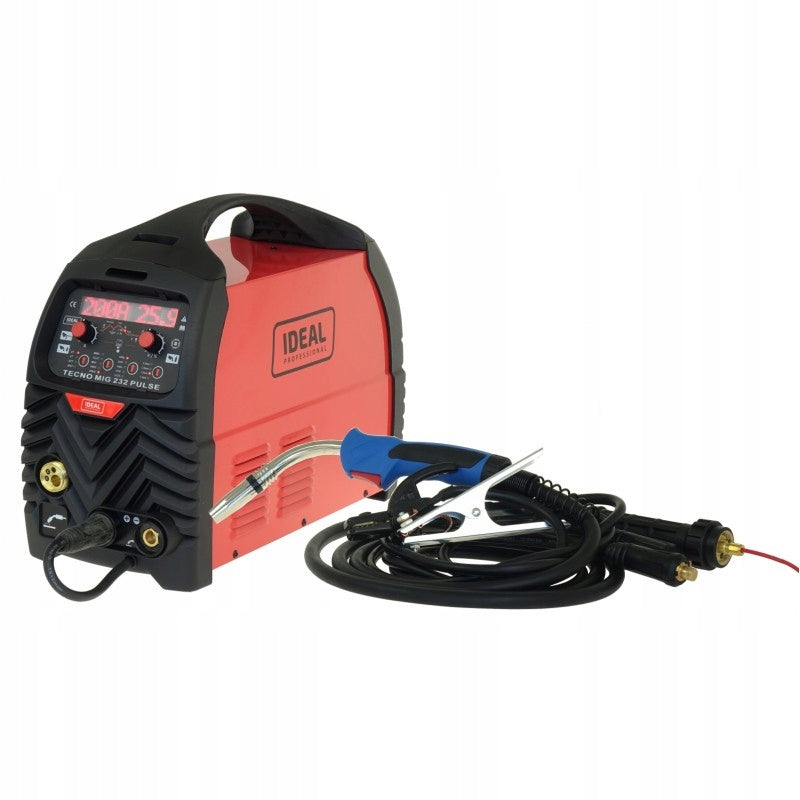

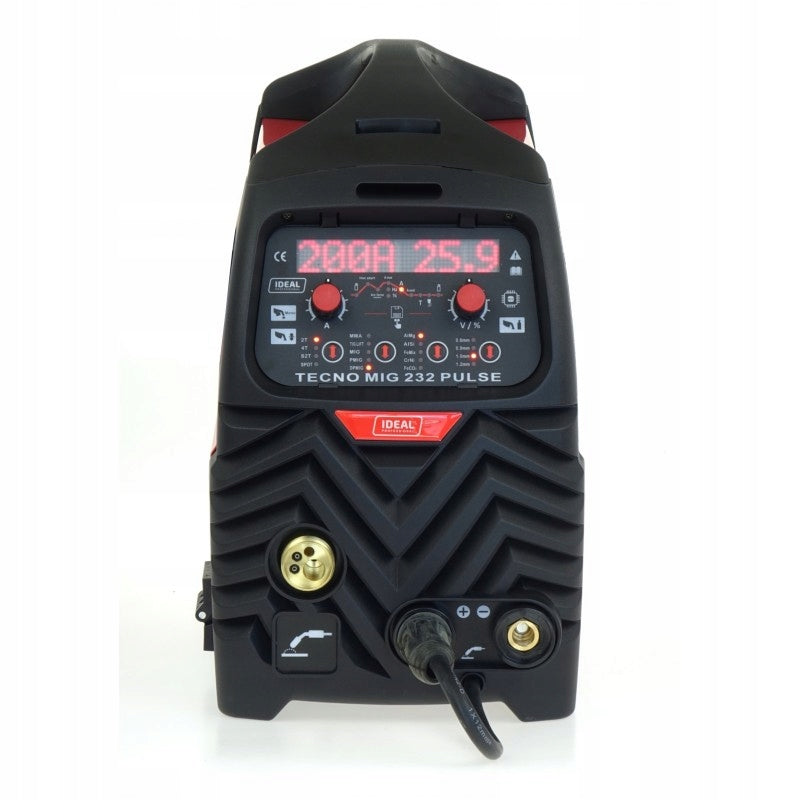

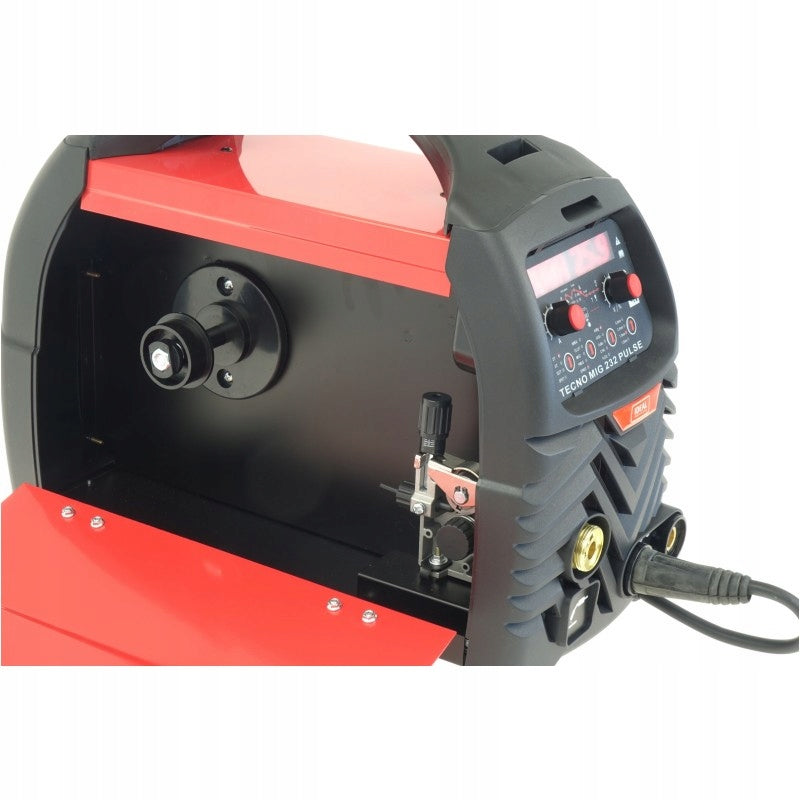

TECNO MIG 232 PULSE 200A 230V TMIG232P
TECNO MIG 232 PULSE is an inverter synergic semi-automatic welding machine designed for arc welding using MIG/MAG, MMA, TIG Lift, Pulse TIG Lift and soldering galvanized sheets. The device is designed for use in professional use.
The device has three synergistic MIG/MAG welding modes: MIG, MIG PULS, MIG DOUBLE PULS.
TECNO MIG 232 PULSE is used for welding aluminium and its alloys, stainless steel, carbon and low alloy steels. Welding is carried out in an inert gas, active gas or mixture, depending on the program selected on the control panel.
Thanks to the use of pulsation MIG, the amount of heat introduced into the welded element is increased. It is possible to obtain a better weld, regardless of the welding position and reduce the amount of spatter.
Both with the MIG method as well as the MIG PULS we have the option of selecting the button function in the handle between operation in Spot mode (point welding), 2-bar, S2-bar, 4-bar (button lock for long welds),
- regulation of peak current / base current in double pulse
- inductance regulation (MIG / Dual Pulse)
- regulation of pulse amplitude in double pulse
- regulation of pulse width (filling) in double pulse
- regulation of pulsation frequency in double pulse
- regulation of spot welding time
- regulation of wire burning time after welding
- regulation of gas outflow time before welding
- regulation of gas outflow time after welding
The device also has precise adjustments of MMA parameters such as:
- ARC FORCE (MMA) regulation
- current regulation in HOT START (MMA)
Physical parameters
The device has a fan cooling system which significantly increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase power supply 230VThe device is equipped with a power plug.
TECHNICAL DATA:
Physical parameters
- Wire spool size 5 kg
- Degree of protectionI P23S
- Weight 16 kg
- Overall dimensions L x W x H 530x230x410 mm
Technical parameters
- Power 6,53 kW
- Idle voltage 64 V
- Maximum current 200 A
- Current at work 100%160 A
- Current at work 60%200 A
- Diameter of aluminum wire 1,0 - 1,2 mm
- Diameter of self-shielding wire 0,8 mm
- Steel wire diameter 0,8 - 1,0 mm
- Stainless steel wire diameter 0,8 - 1,0 mm
- Welding electrode diameter 1,6 - 4,0
- Welding Current Adjustment Range 20 - 200 A
Power supply parameters
- Protection of the power supply network C25A
- Rated supply voltage 230V, 50-60Hz, 1ph
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 6.53 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 16 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Height | 410 mm |
| Parametry | Length | 530 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 17 kg |
| Parametry | Manufacturer code | TMIG232P |
| Parametry | EAN (GTIN) | 5903991102058 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
