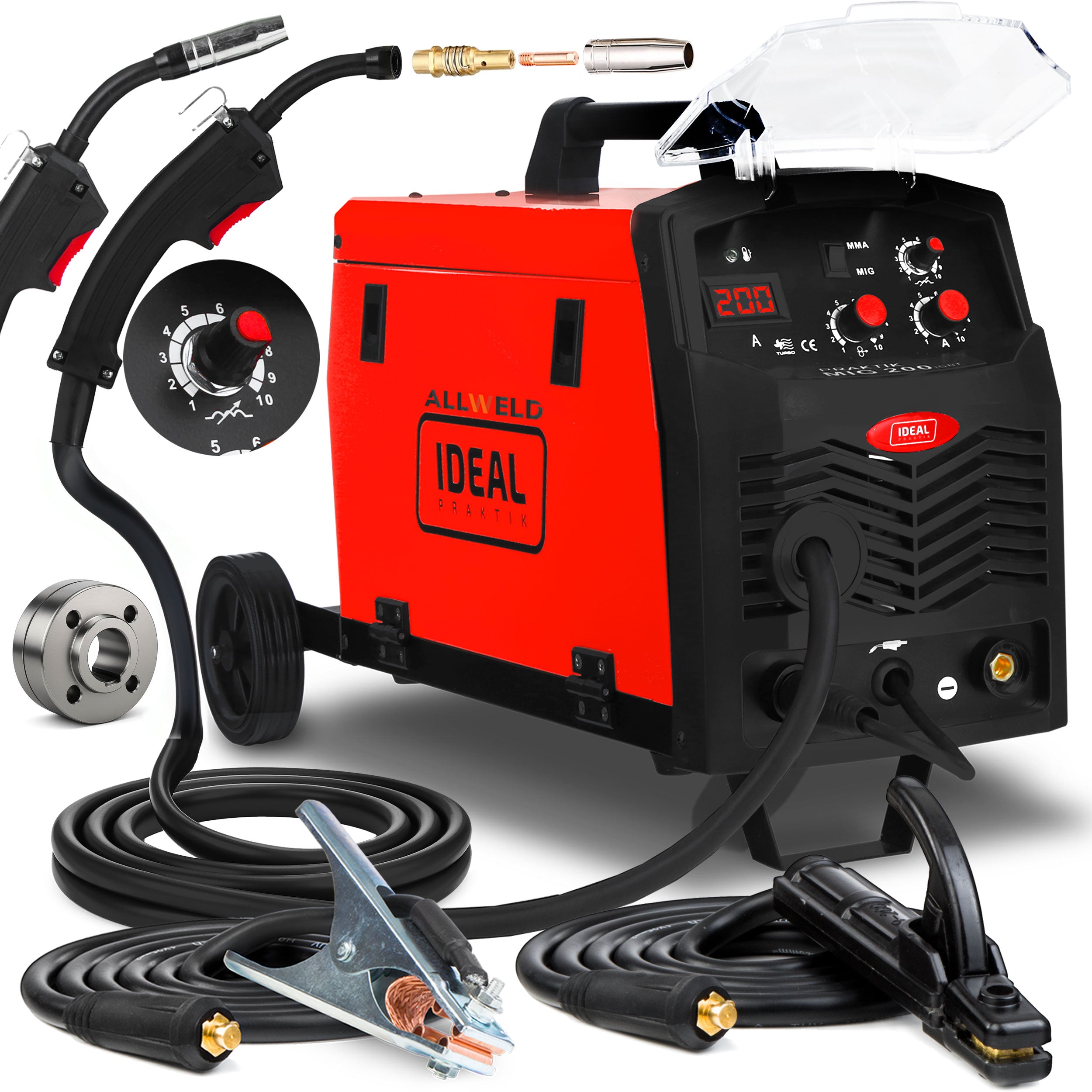

Suvirinimo aparatas IDEAL PRAKTIK MIG 200 IGBT MAG MMA 200A 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL PRAKTIK MIG 200 IGBT MAG MMA 200A 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 211
• Ilgis: 485 mm
• Plotis: 292 mm
• Aukštis: 398 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Ideal PRAKTIK MIG 200 is an easy-to-use welding device using the MIG/MAG method adapted to connect low-melting steels, non-melting steels and magnesium, aluminum, nickel, copper and their alloys. The MIG/MAG welding method uses an electric arc produced between the hot melt electrode, which is constantly fed wire, and the welded material. The whole process takes place in the shield of inert or active gases. The most commonly used gases for this purpose are carbon dioxide, helium or argon. The MIG/MAG method allows you to create durable and high-quality welds.

ADVANTAGES OF THE DEVICE:

• It enables welding using the MIG-MAG method of carbon steels, stainless steels.
• Recommended for use in flashing plants and workshops
• Regulation of INDUCTANCE
• SOLDERING function
• Proven and recognized manufacturer on the market
• Single-phase power supply 230V.
• It has a variable polarity.
• Maximum spool with wire: 5 kg.
• Smooth regulation of welding wire feed speed.
• Smooth regulation of welding current and voltage.
• Fan cooling increases the efficiency of the device.

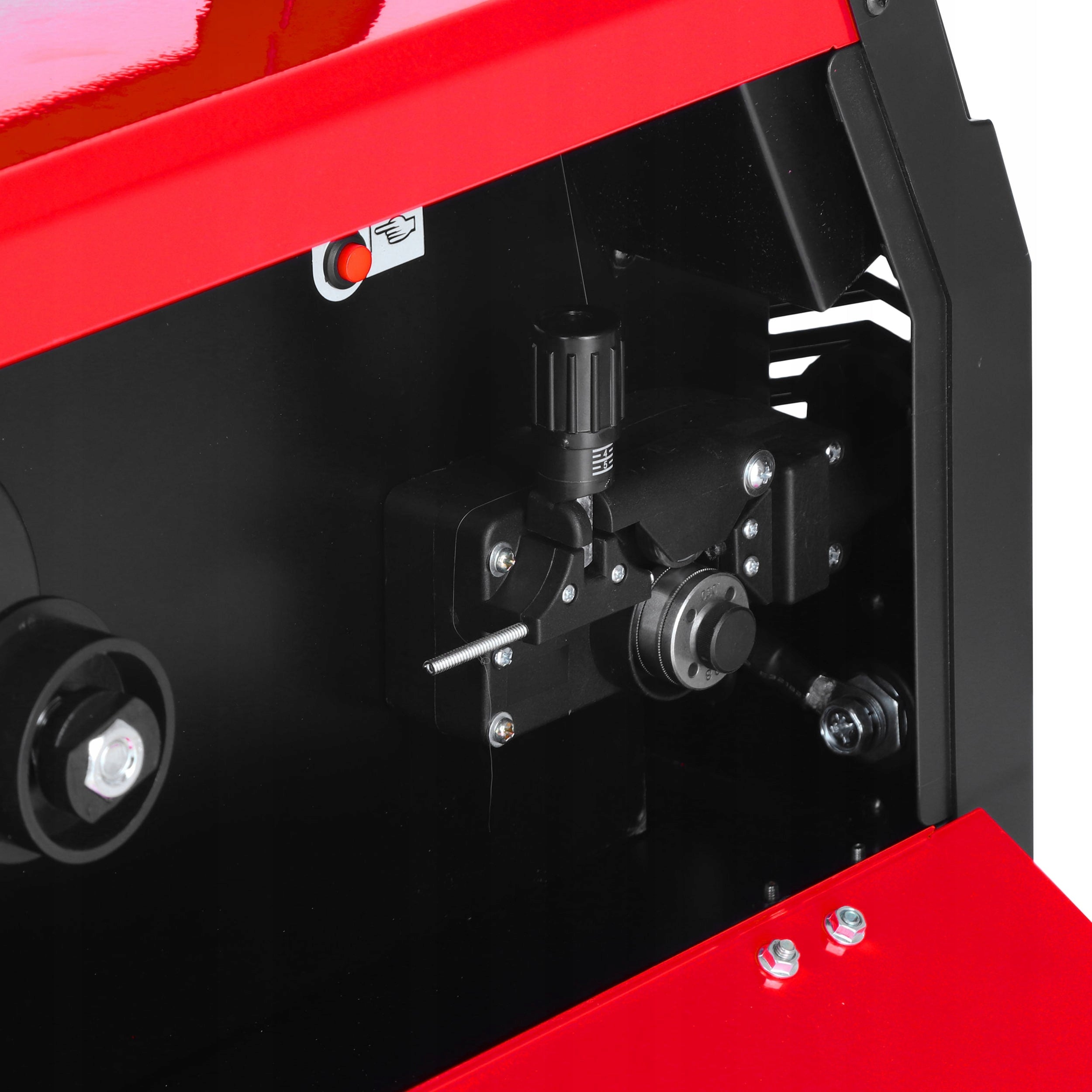

• Professional wire feeder: 2-roll, ensures stable feeding of the binder.
• Overload protection with signalling on the front panel.

The versatility and level of workmanship of the device enable a wide range of applications both in small workshops and in professional construction and assembly works.

NOTE! - on other auctions welding machine available in promotional sets with cylinder, wire, reducer and visor - CHECK IT!

Ideal PRAKTIK MIG 200 welding machine is a welding machine that allows welding using MIG/MAG, MMA (wrapped electrode) and FLUX (powder wire arc welding). The device was built on IGBT transistors ensuring high efficiency and rapid adjustment of current to changes in parameters during welding. The welder allows you to work in long cycles without worrying about overheating or turning off.

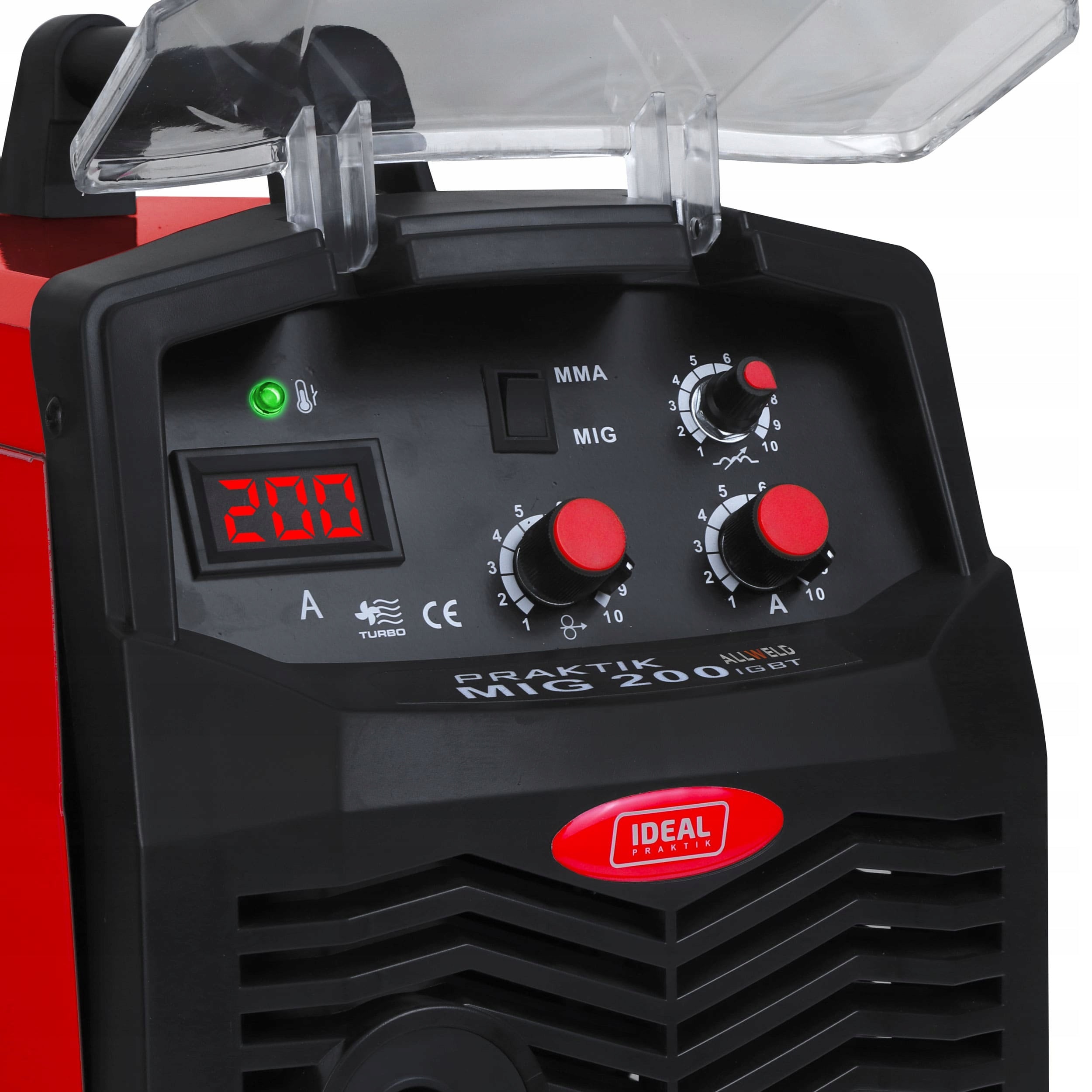

Ideal 200 is operated by three knobs that allow you to adjust: welding current, wire feed speed and inductance. A clear display indicates the current parameters of the welding current. The welder has wheels for easy transport of the device.

INDUCTANCE ADJUSTMENT - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

LUTOSPELING - a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much smaller. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. The wire itself is filled with flux or a chemical that produces protective gases during welding.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

• Rated supply voltage: 230 V; 50Hz (1ph)
• Current taken from the network: 20 A
• Welding current adjustment range: 30-200 A
• Power at work: 60% 180 A
• Steel wire diameter: 0,6 - 0,8 mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Diameter of self-shielding wire: 0,8 - 0,9 mm
• Idle voltage: 56 V
• Power: 5,2 kW
• Degree of protection: IP 21S
• Weight: 14,7 kg

• Welding machine IDEAL PRAKTIK MIG 200 IGBT
• Fixed welding torch MB14 - 2,2m
• Bulk cable - 1,5 m
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	6.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	14.1 kg
Parametry	Welding range	30–200 A
Parametry	Height	398 mm
Parametry	Length	485 mm
Parametry	Width	292 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	45 kg
Parametry	Manufacturer code	PMIG211MMA MAPR2-15-N
Parametry	EAN (GTIN)	5905214997144
Parametry	Packaging status	original
Parametry	Model	PRAKTIK MIG 211
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,welding mask included,infinitely adjustable welding current,EURO handle,LCD display
