Suvirinimo aparatas IDEAL EXPERT MIG 215 LCD, MMA, TIG, 230V, 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT MIG 215 LCD, MMA, TIG, 230V, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT MIG 215 LCD
• Ilgis: 500 mm
• Plotis: 242 mm
• Aukštis: 410 mm

• Welding methods: MIG/MAG, MMA, TIG DC, SYNERGY, SOLDERING, SPOT WELDING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• For welding: steel including stainless steel and high-strength, aluminium
• Regulation of inductance
• SYNERGY - automatic selection of parameters
• Possible work with generator generator (+/-15%)
• Precise adjustment of the welding arc
• Modes and functions: 2T/4T, HOT START, ARC FORCE, PRE-GAS/POST-GAS
• Professional, metal, 2-roll wire feeder
• Possibility to connect the SPOOL GUN holder
• Overload switch
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• SPOOL GUN - welding torch with built-in wire feeder, ideal for welding thin sheets; wire spool is in the handle,

• PRE-GAS/POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power Supply: 230V 50Hz (1ph)
• Network security: 16A
• Max. power consumption: 6,4kVA
• Welding current: MIG/MAG: 40 - 200A | TIG, MMA: 10 - 180A
• Idle voltage: 69V
• Diameter of steel/aluminium/stainless steel/lutowelding wire: 0.8 / 1.0 mm
• Diameter of self-shielding wire: 0.8 / 1.0 / 1.2 mm
• Spool with wire: up to 200mm; up to 5kg
• Degree of protection: IP21
• Dimensions: 54 x 24 x 41 cm
• Weight: 19kg

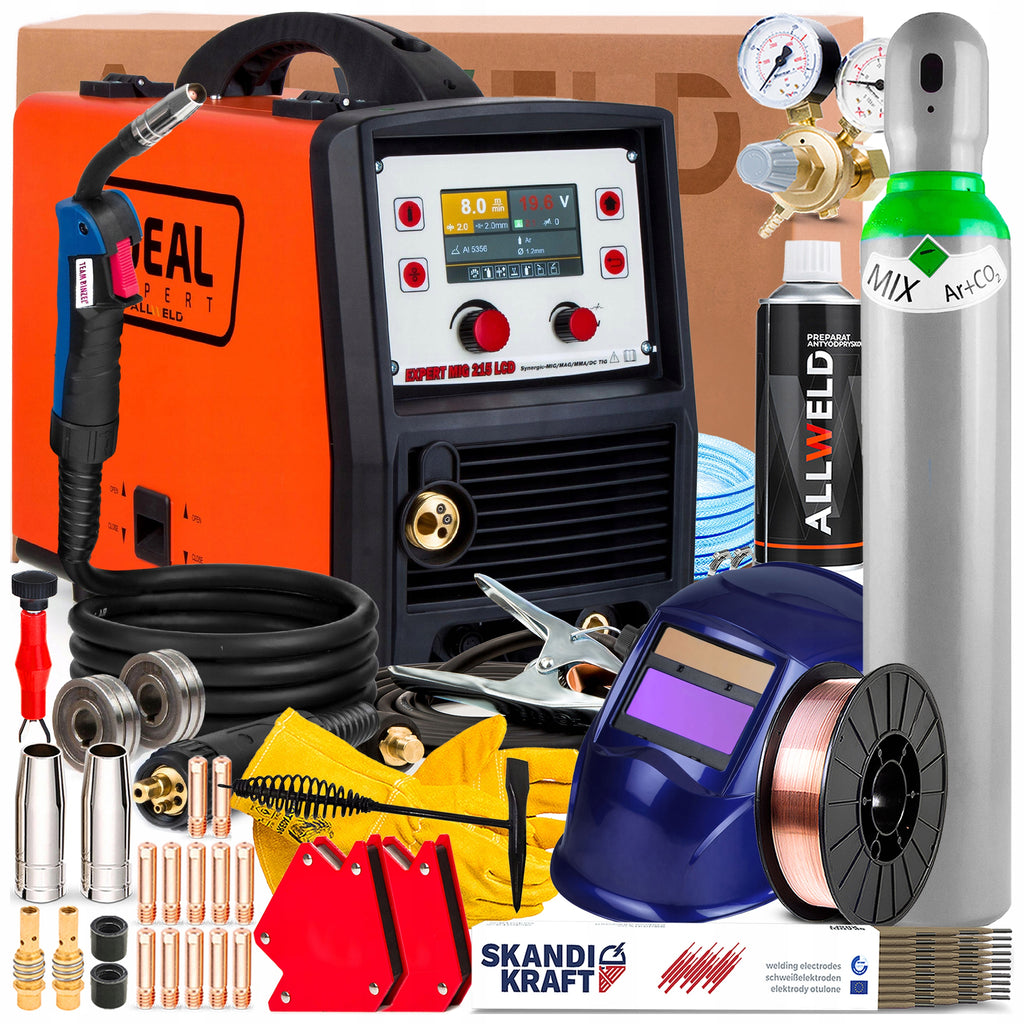

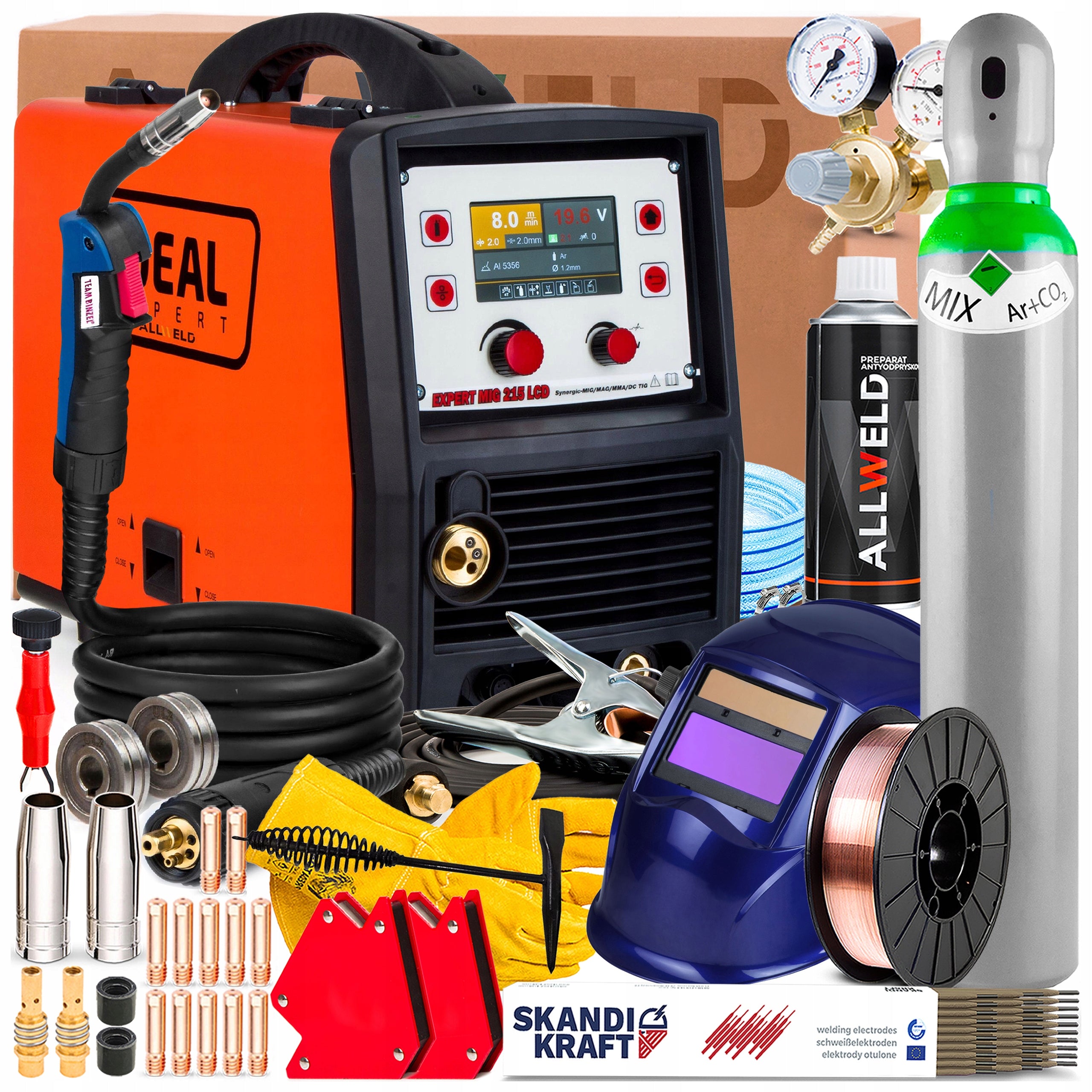

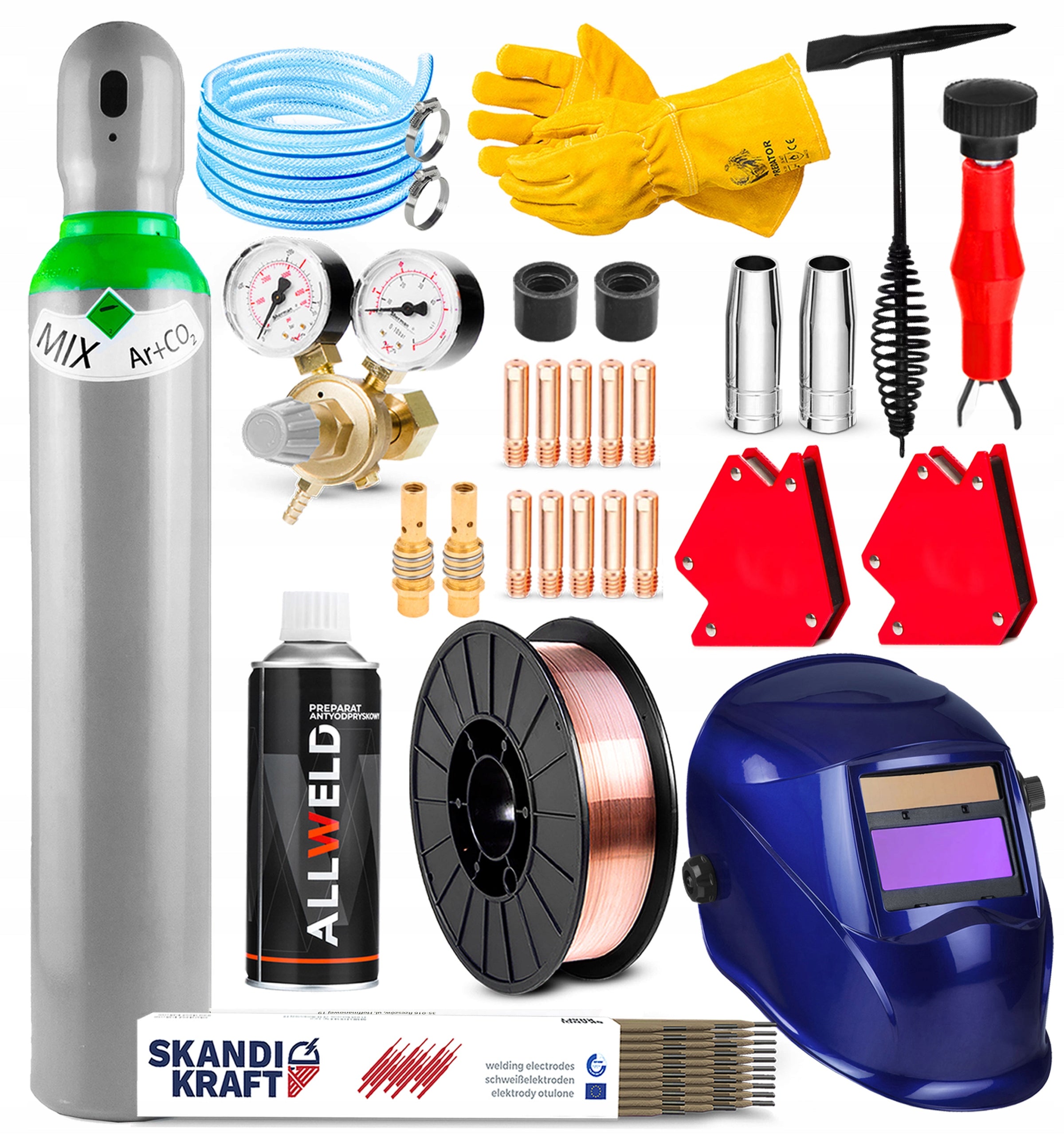

INCLUDED IN THE SET:

• Self-tinting visor MAGNUM NOVA - safe mask with 96 x 39mm field of view, 2 sensors, reaction time 1/30000 s,
• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Welding hammer for cleaning welds,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

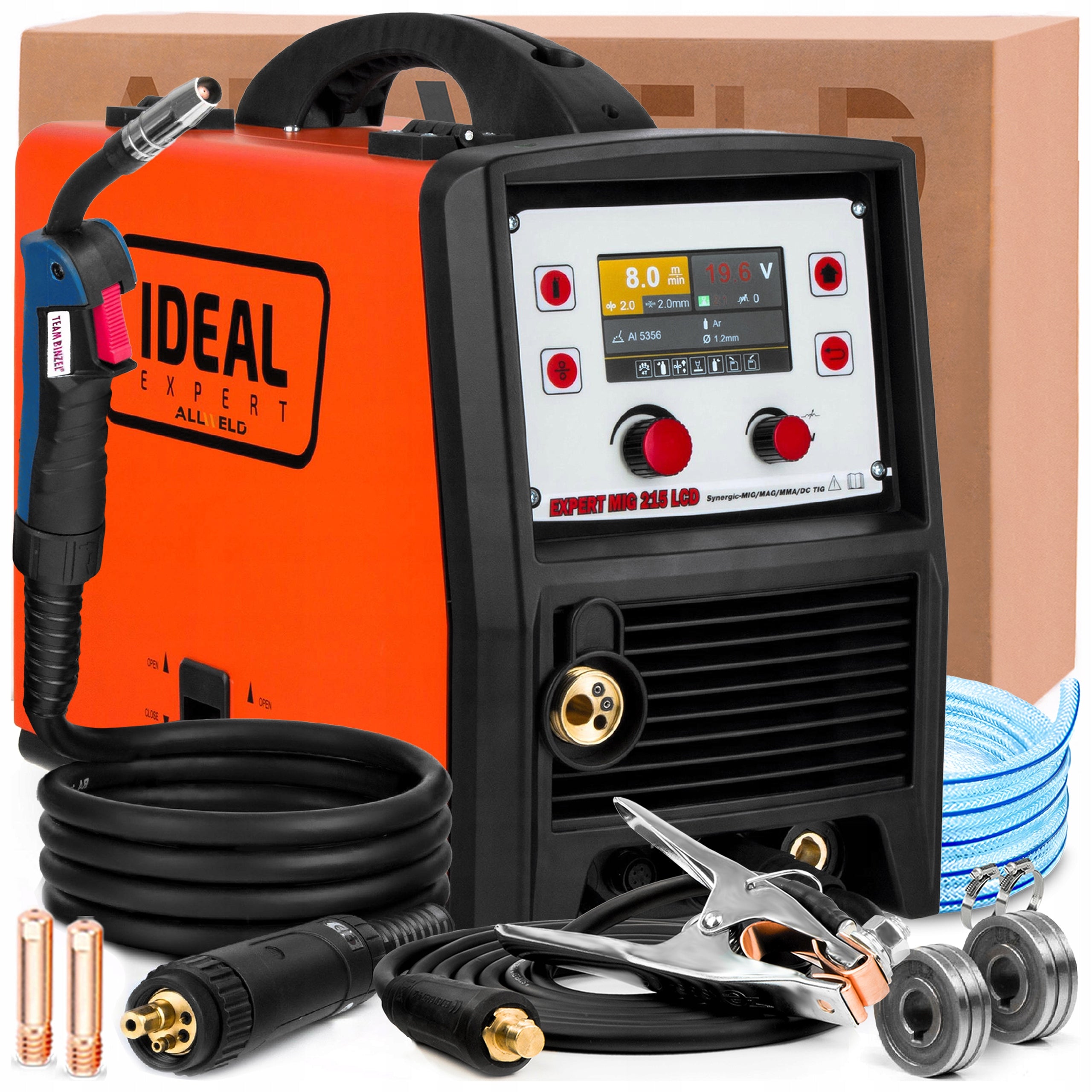

THE SET INCLUDES:

• IDEAL EXPERT MIG 215 LCD welder,
• Welding torch BINZEL MIG/MAG type MB 15 - 3m,
• mass handle - 3m,
• Roll for steel wire 0,8/1,0mm - 1pcs ,
• Roll for aluminum wire 1,0/1,2mm - 1pcs ,
• End current - 2 pcs. ,
• User manual and warranty card.

ADDITIONAL ACCESSORIES:

• Self-tinting visor Magnum NOVA,
• Botla with Argon/CO2 gas mixture,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles,
• Hammer welding spring.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
