Suvirinimo aparatas IDEAL EXPERT MIG 201 LCD, 230V, 200A, MMA, TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT MIG 201 LCD, 230V, 200A, MMA, TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT MIG 201 LCD
• Ilgis: 465 mm
• Plotis: 190 mm
• Aukštis: 361 mm

• Welding methods: MIG/MAG, MMA, TIG LIFT, SYNERGY, SOLDERING, SPOT WELDING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• SYNERGY - automatic selection of parameters with the possibility of manual correction
• Synergistic programs for: steel, aluminium, inox, soldering
• Smooth adjustment of welding parameters, inductance
• Professional, metal, 2-roll wire feeder
• Possibility to connect the SPOOL GUN holder
• Modes and functions: 2T/4T, S2T/S4T, BURN BACK, ATC, POST-GAS
• Euroconnector
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION REGULATION - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,

• TIG LIFT - arc glowing by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• S2T/S4T - the ability to adjust the rise/fall of current and time (time adjustment only in S2T mode),

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• SPOOL GUN - welding torch with built-in wire feeder, ideal for welding thin sheets; wire spool is in the handle,

• BURN BACK - does not allow the electrode wire to be melted to the current tip,

• ATC - thermal control when welding materials with a thickness of less than 1,5mm; reduces the risk of deformation of the material,

• EUROCONNECTOR - allows the interchangeable use of various types of handles,

• POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 25A "C"
• Power: 7.5kW
• Power consumption in idle state: 41W
• Welding current: MIG/MAG: 25 - 200A | MMA, TIG: 10 - 200A
• MIG/MAG welding voltage: 15.2 - 24V
• Idle voltage: MIG/TIG: 14.1V | MMA: 70V
• Steel wire diameter: 0.6 - 1.0mm
• Diameter of wire for soldering/self-shielding/stainless steel: 0.8 - 1.0mm
• Aluminum wire diameter: 0.8 - 1.2mm
• Diameter of welding electrode: 1.6 - 5.0mm
• Spool with wire: up to 200mm; up to 5kg
• Protection rating: IP21S "H"
• Dimensions: 46.5 x 19 x 36 cm
• Weight: 11kg

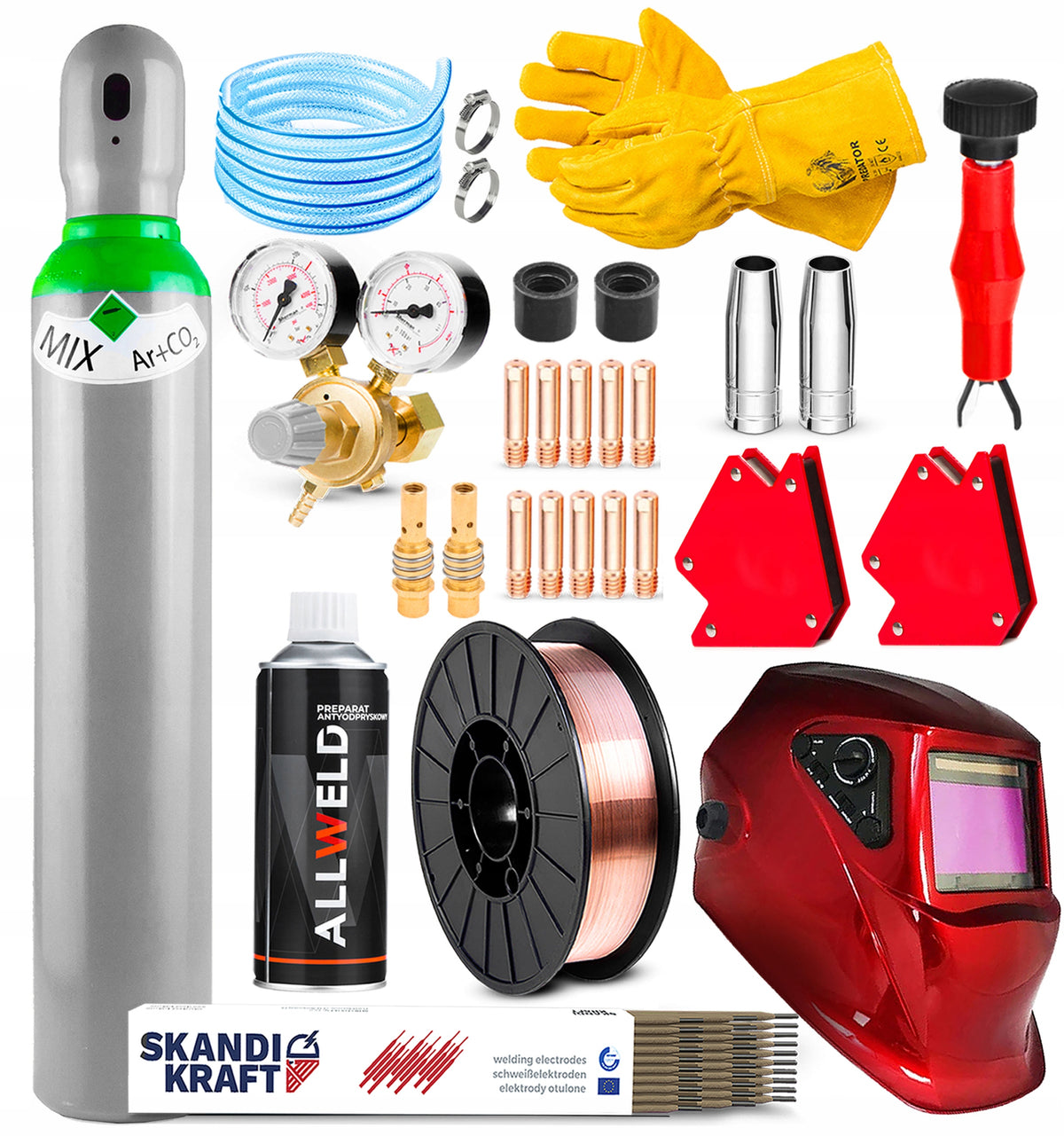

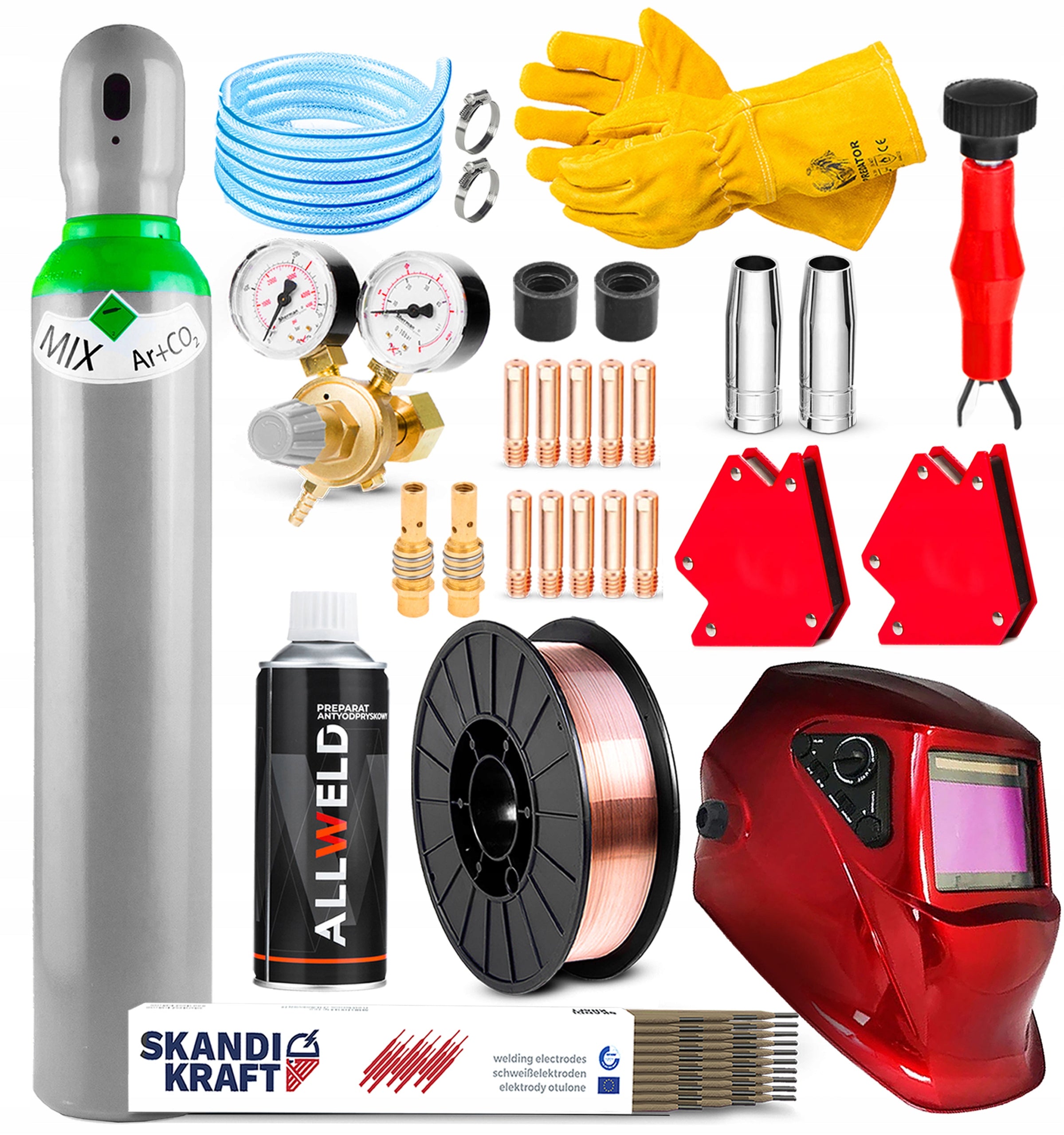

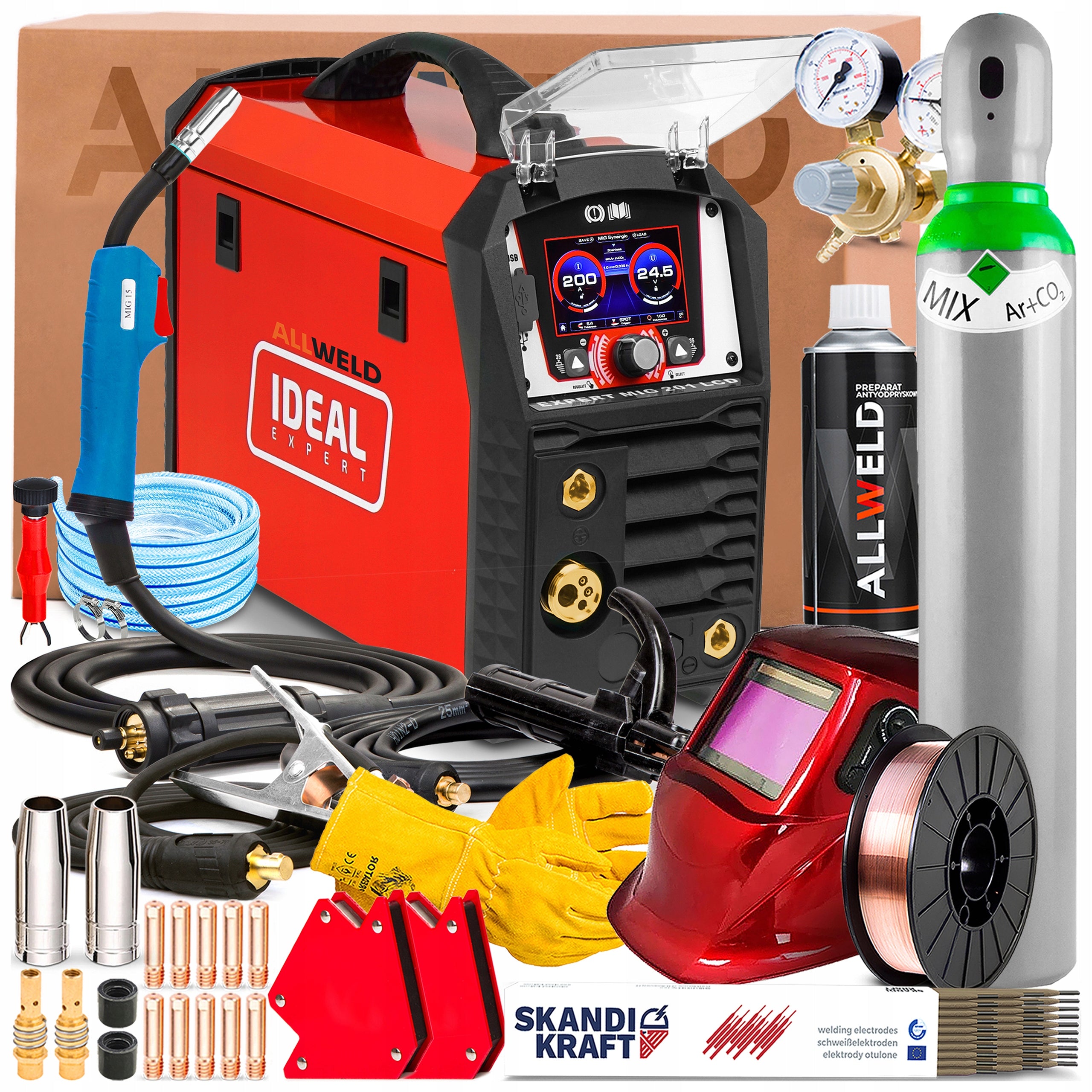

INCLUDED IN THE SET:

• Self-tinting visor MAGNUM TURBO TRUE COLOR - safe mask with enlarged field of view 100 x 60mm, 4 sensors, reaction time 1/30000 s,
• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

THE SET INCLUDES:

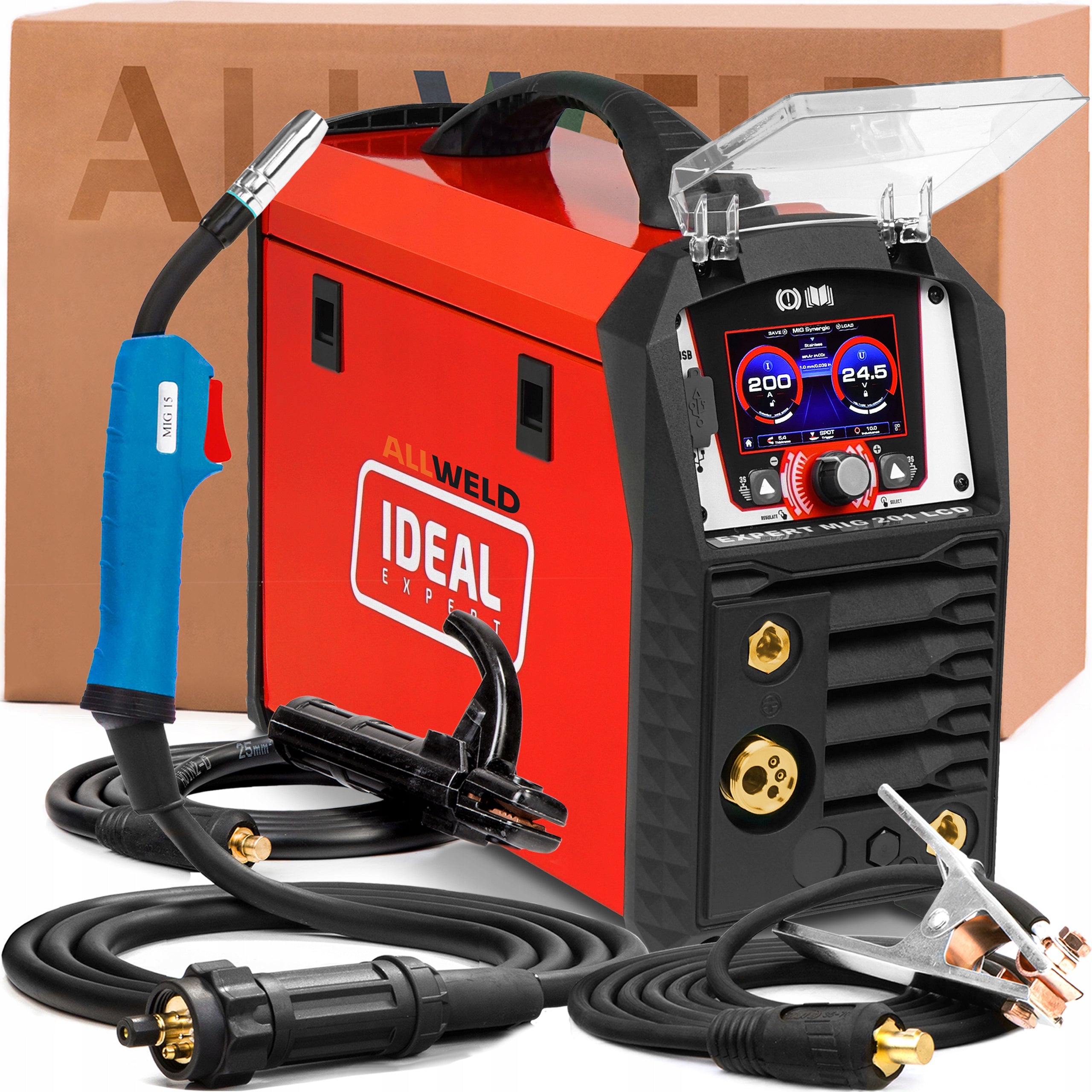

• Welding machine IDEAL EXPERT MIG 201 LCD,
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle - 3m,
• electrode holder - 3m,
• Hose for connecting gas with quick coupler - 1pcs. ,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Self-tinting visor Magnum TURBO TRUE COLOR,
• Botla with Argon/CO2 gas mixture,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
