Suvirinimo aparatas IDEAL 40–200A, 230V, LCD, FLUX, EURO SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL 40–200A, 230V, LCD, FLUX, EURO SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Expert MIG 215 LCD
• Ilgis: 501 mm
• Plotis: 241 mm
• Aukštis: 410 mm

+ SET FOR WELDING MIG/MAG, MMA, TIG, WHICH INCLUDES:

✅ WELDING ACCESSORIES

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

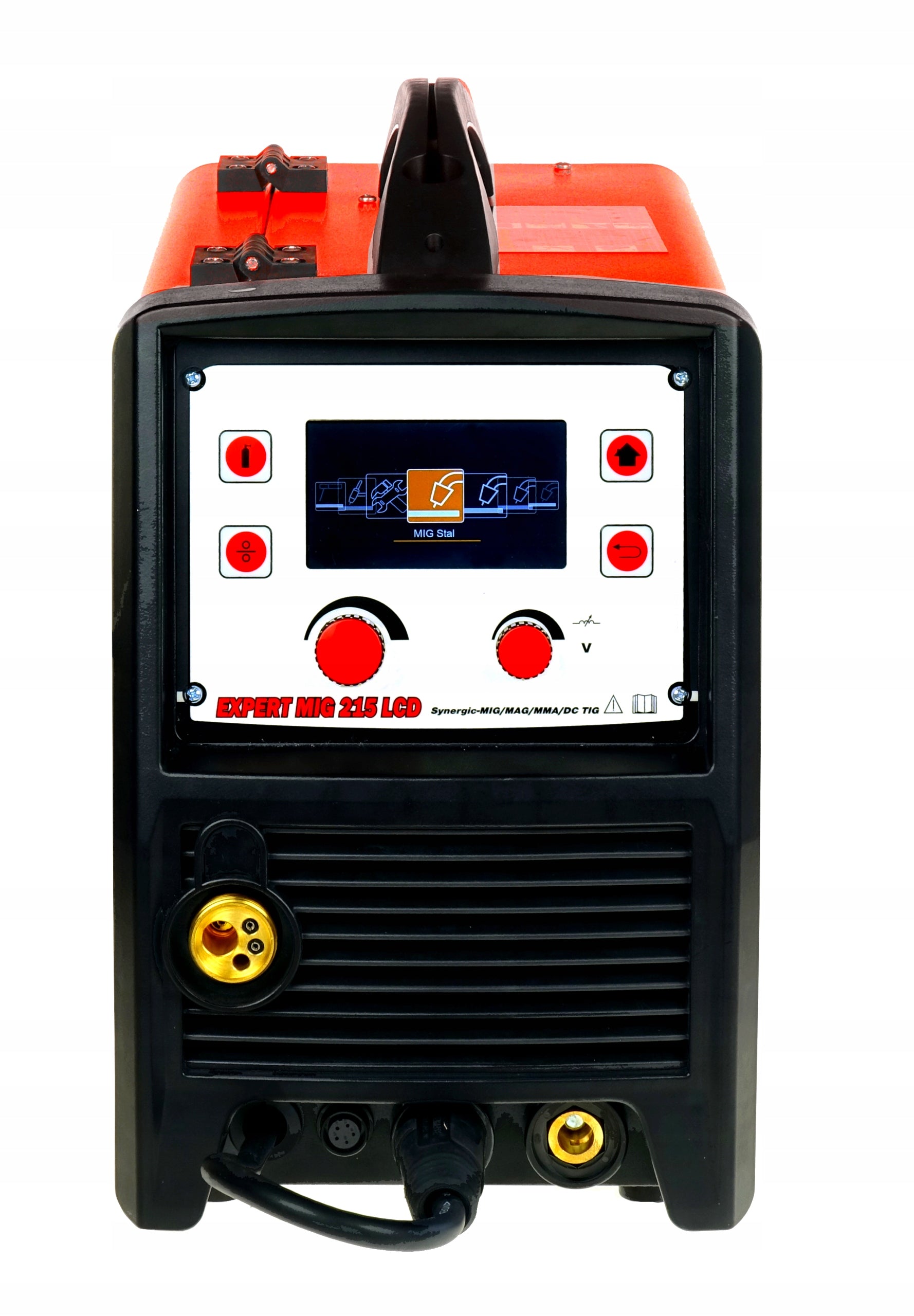

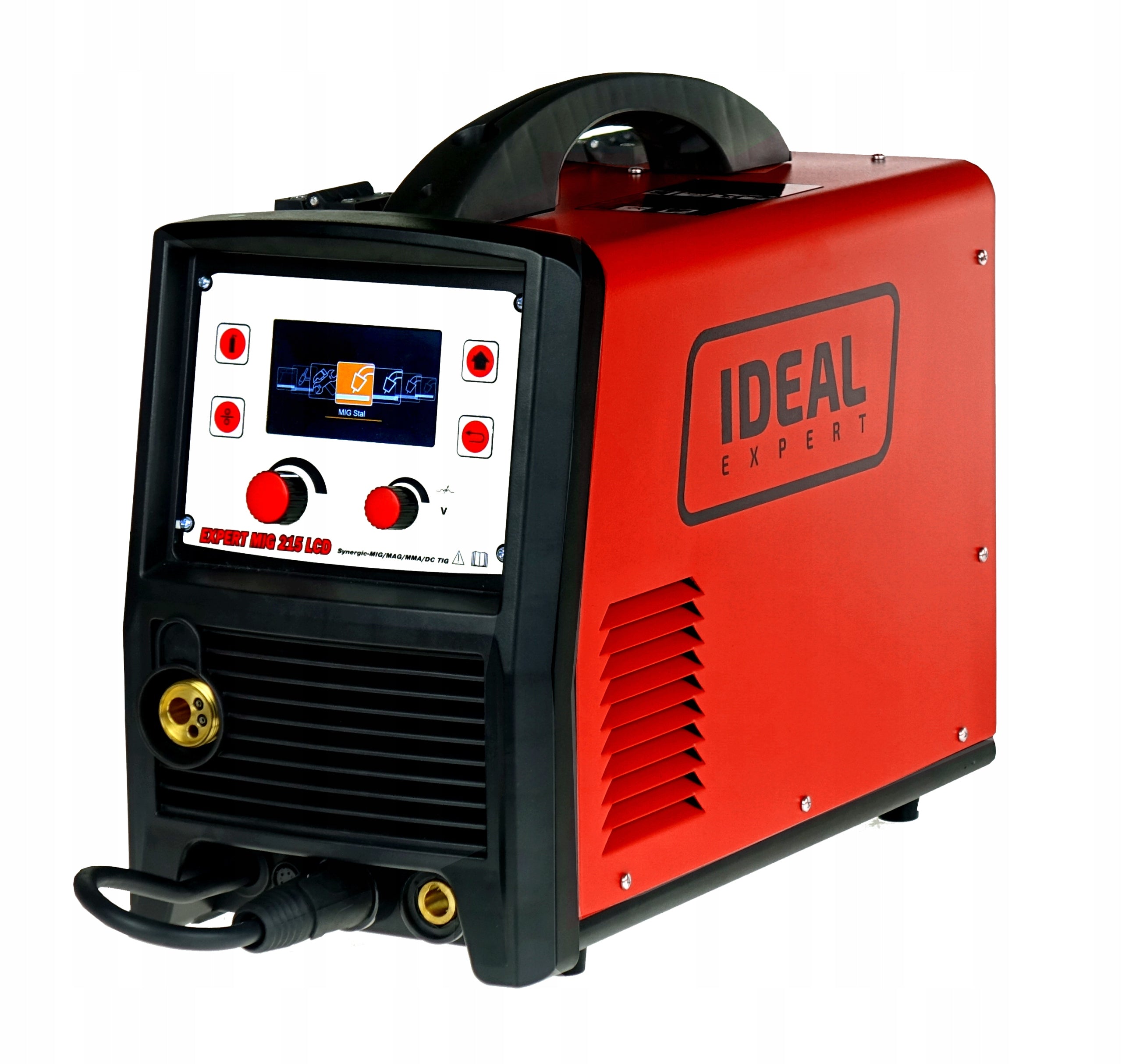

The IDEAL EXPERT MIG 215 LCD welding machine is an inverter semi-automatic welding machine designed for arc welding by the method

• MIG MAN - MIG-MAG welding with manual settings,
• MIG SYN - MIG-MAG welding with synergistic settings,
• MMA - Welding with wrapped electrodes, (after purchasing an additional electrode holder)
• TIG LIFT - Welding with a special handle with a valve, arcing is then carried out by lightly rubbing the non-melting electrode against the welded material,
• FLUX / FCAW - Self-shielded wire welding.

The IDEAL EXPERT MIG 215 LCD welding machine is used for welding:

✔ low alloy steel

✔ low carbon steel

✔ alloy steel

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops, factories it

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

The welder has a very simple control panel, the device is equipped with automatic selection of parameters.

All you need to do is set the thickness of the welded material and start welding: intelligent and automatic welding arc control system, step by step, will select the best parameters, for each welding position and for each material

From the display level, we can switch welding thresholds using soft buttons.

The welding machine also allows welding in manual mode.

1. welding current adjustment knob and welding wire feed speed adjustment
2. welding voltage adjustment knob
3. Return button to main menu
4. multifunction knob for changing parameters (rotation changes parameter, pressing approves)
5. button to return to previous settings

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⭐ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

⭐LUTOSPELING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

⭐PROFESSIONAL WIRE FEEDER - enables precise extension of the welding wire excluding its slippage, guarantees stability and continuity of operation of the device.

⭐ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

⭐ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

IN ADDITION, THE DEVICE HAS THE FOLLOWING FUNCTIONS TO SUPPORT MMA WELDING:

✅ HOT START: facilitates the ignition of the electrode by providing more welding current with each arc.

✅ ARC FORCE: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⭐WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

⭐EASE OF USE - The welding machine is equipped with an easy-to-use control panel and LCD display, so it can be used even by amateurs. Has Polish Menu

⭐ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ OF ALL BODYWORK REPAIRS

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for MIG welding wire. The socket allows you to quickly change the handle to the same standard and, most importantly, allows you to change the polarity for welding with FLUX self-shielding wire.

The warranty service is carried out in the door-to-door system without transport costs on the part of the user.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Inductance adjustment allows optimization of arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance (soft arc - less melting), for thick elements vice versa (hard arch - greater melting).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

THANKS TO THE INDUCTANCE ADJUSTMENT, THE WELDING MACHINE IS SUITABLE FOR SOLDERING!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TO MEET CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE HAVE CREATED PROFESSIONAL SETS FOR YOU, THANKS TO WHICH WE PROVIDE YOU WITH EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO ELECTRICITY.

⌚ SAVE YOUR TIME ⌚

BUY INCLUDED AND WE'LL TAKE CARE OF THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire 5 kg 0,8 mm- 1 pc.
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg

☀ VERSATILITY OF THE DEVICE ☀

Migomat by IDEAL is a device with a wide range of applications, designed as an inverter power source enabling welding with hot melt wire in a gas shield MIG/MAG or FCAW self-shielding wire (after changing polarity), welding with a buffer electrode MMA, as well as the TIG Lift method.

✔ MIG/MAG welding

Arc welding in gas shields is one of the most commonly used processes for the manufacture of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the material of the hot melt electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

NOTE FOR MMA WELDING, YOU SHOULD BUY AN ELECTRODE HOLDER!

✔ Welding TIG DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ The TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

✔ Self-shielding wire welding FCAW

Thanks to the polarity change function, it is possible to weld without shielding gas, with FCAW self-shielding wire. The wire is designed for general production work, also in field conditions, and for welding structures that are not subject to impact requirements. Welding current DC(-).

Self-shielding powder wire fi 0,8mm/1kg E71T-GS is designed for welding ordinary carbon steels and increased strength not exceeding 510 MPa.

It is used in prefabrication, construction, tank production, agricultural equipment, etc. Used in both production and repair of equipment.

SELF-SHIELDED WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

TECHNICAL DATA OF THE WELDING MACHINE:

POWER SUPPLY PARAMETERS

• Power supply voltage: AC 230V
• Maximum power consumption: 5 kVA
• Number of phases: 1ph
• Network security: 25 A
• Power supply frequency: 50 [Hz]
• Maximum power consumption: 36 A
• Idle voltage: 69 V
• Maximum current 20oC 200 A - 60%
• Maximum current 40oC 200 A - 40%
• Welding current adjustment range 40 - 200 A

ADDITIONAL FUNCTIONS

• SYNERGY
• HOT START
• ARC FORCE
• LUTOWELDING

OTHER

• Degree of protection: IP21
• Cooling: fan
• Dimensions: 500x240x410 mm
• Weight: 19 kg

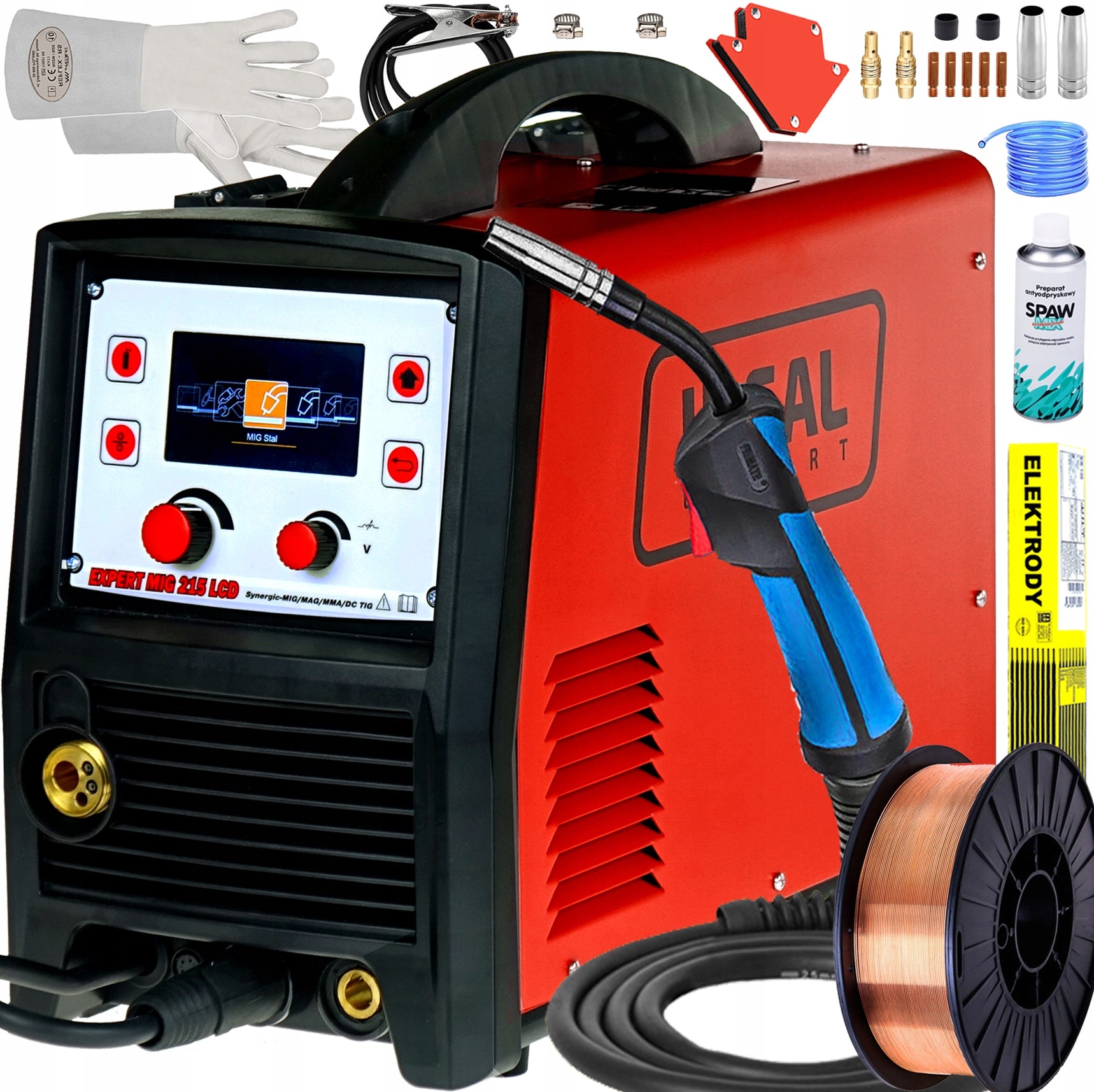

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welder IDEAL EXPERT MIG 215 LCD SYNERGY - 1pc.
• Welding torch - EURO MB 15-3m - 1pcs
• Bulk cable - 3m - 1pc.
• Instruction manual in Polish
• Guarantee card

+ MIG/MAG + MMA WELDING KIT:

• Professional gloves welding - 1pair
• Welding wire 5 kg 0,8 mm- 1 pc.
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1pc.
• Tip current - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)

SET OF 2
