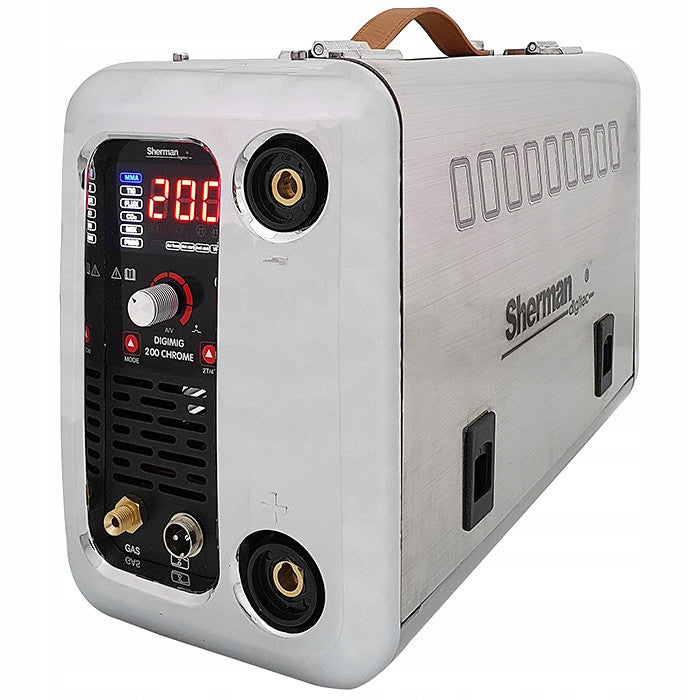

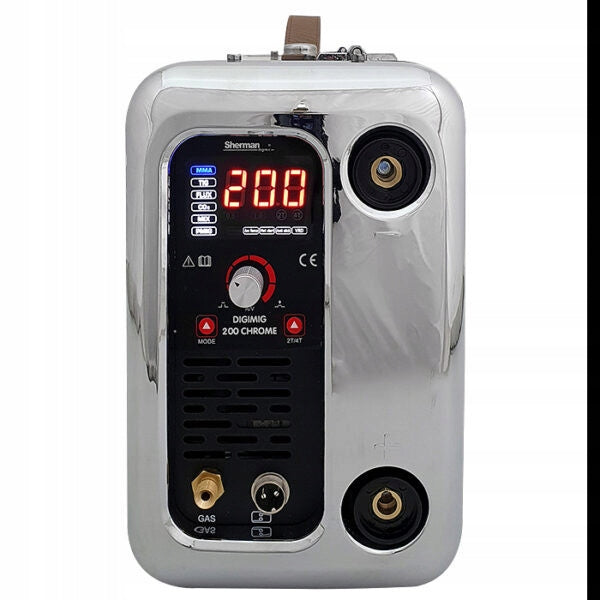

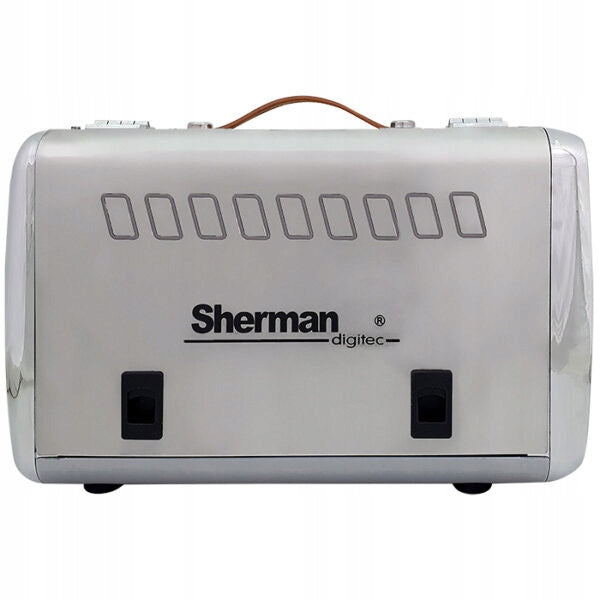

Suvirinimo aparatas DIGIMIG 200 CHROME

Trumpai apie prekę

Prekė: Suvirinimo aparatas DIGIMIG 200 CHROME. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: Sherman DIGIMIG 200 Chrome
• Ilgis: 410 mm
• Plotis: 165 mm
• Aukštis: 240 mm

The DIGIMIG 200 CHROME synergic welder is designed for manual welding of steel and non-ferrous metals. It allows welding using MIG/MAG, pulsed MIG/MAG, TIG Lift, and MMA (shielded metal arc welding) methods. The device features synergic programs for MIG/MAG welding of structural steel with CO2 shielding, mixed gas shielding, and self-shielding wire, as well as for aluminum alloys. This simplifies operation and allows users with less experience or hobbyists to use the device.

The welder is equipped with 2T/4T, Anti-Stick, Hot Start, Arc Force, and VRD functions and supports wire spools D100 mm and D200 mm.

The device is manufactured using IGBT technology, which allows for a significant reduction in the weight and size of the welder, as well as an increase in efficiency while reducing energy consumption.

The set includes: a MIG torch, electrode holder, ground clamp, gas hose, additional Teflon liner and roller for aluminum, welding shield and gloves.

Advantages:

• Synergic Operation Mode – automatically selects optimal welding parameters, which greatly simplifies operation, especially for less experienced users.
• Supports Multiple Welding Methods – MIG/MAG, FLUX (gasless welding), MMA (electrode), TIG Lift – an exceptionally versatile device.
• Modern Panel with LCD Display – allows for quick and intuitive setting of parameters and control over the process.
• Smooth Inductance Adjustment (in MIG mode) – allows you to adjust the arc characteristics to the type of material and sheet thickness.
• Works with 0.6–1.0 mm wires – allows welding a wide range of material thicknesses.
• Advanced IGBT Technology – ensures high energy efficiency and device reliability.
• Compact and Modern CHROME Housing – aesthetic, solid, and easy to keep clean.
• Ability to Work with a Generator – suitable for field and construction site work.

🔧 Summary:

Sherman DIGIMIG 200 CHROME is an advanced synergic welder, ideal for users who value versatility, ease of use, and aesthetic design. Thanks to the synergic mode and multiple welding methods, it will work well in both the workshop and in professional applications. It is a very good choice for people looking for an "all-in-one" device – modern, efficient, and easy to use.

Specification

Catalog number 7813080 EAN code 5903686619113 Welding/cutting/other methods MIG/MAG, MMA DC, TIG Lift (scratch start) DC Supply voltage [V] AC 230 Manufacturing technology IGBT Max MMA welding current [A] 160 Max TIG DC welding current [A] 200 Max MIG/MAG welding current [A] 200 MMA duty cycle [%] 60 TIG duty cycle [%] 60 MIG/MAG duty cycle [%] 60 Open circuit voltage [V] 60 MIG welding voltage [V] 16 – 22 Welding voltage correction -5 – +5 MIG pulse frequency [Hz] 20 – 250 Max MMA power consumption [kVA} 7,1 Max TIG power consumption [kVA] 7,1 Max MIG/MAG power consumption [kVA] 7,1 Max MMA current consumption [A] 32,3 Max TIG current consumption [A] 20 Max MIG/MAG current consumption [A] 26,9 Wire spool diameter ø [mm] 100, 200 Roller dimensions [mm] 28×8 (7×7) Main method MIG/MAG Functions 2T/4T, Anti-Stick, Arc Force, Hot Start, 2-Roll Feeder, MIG Pulse, Gasless Welding, Digital Control, Synergic Carbon Steel, VRD, LED Display, Synergic Aluminum, Synergic Self-Shielding Wire Warranty period for companies [years] 1 Weight [kg] 6 Dimensions (L x W x H) [cm] 41 x 16,5 x 24
