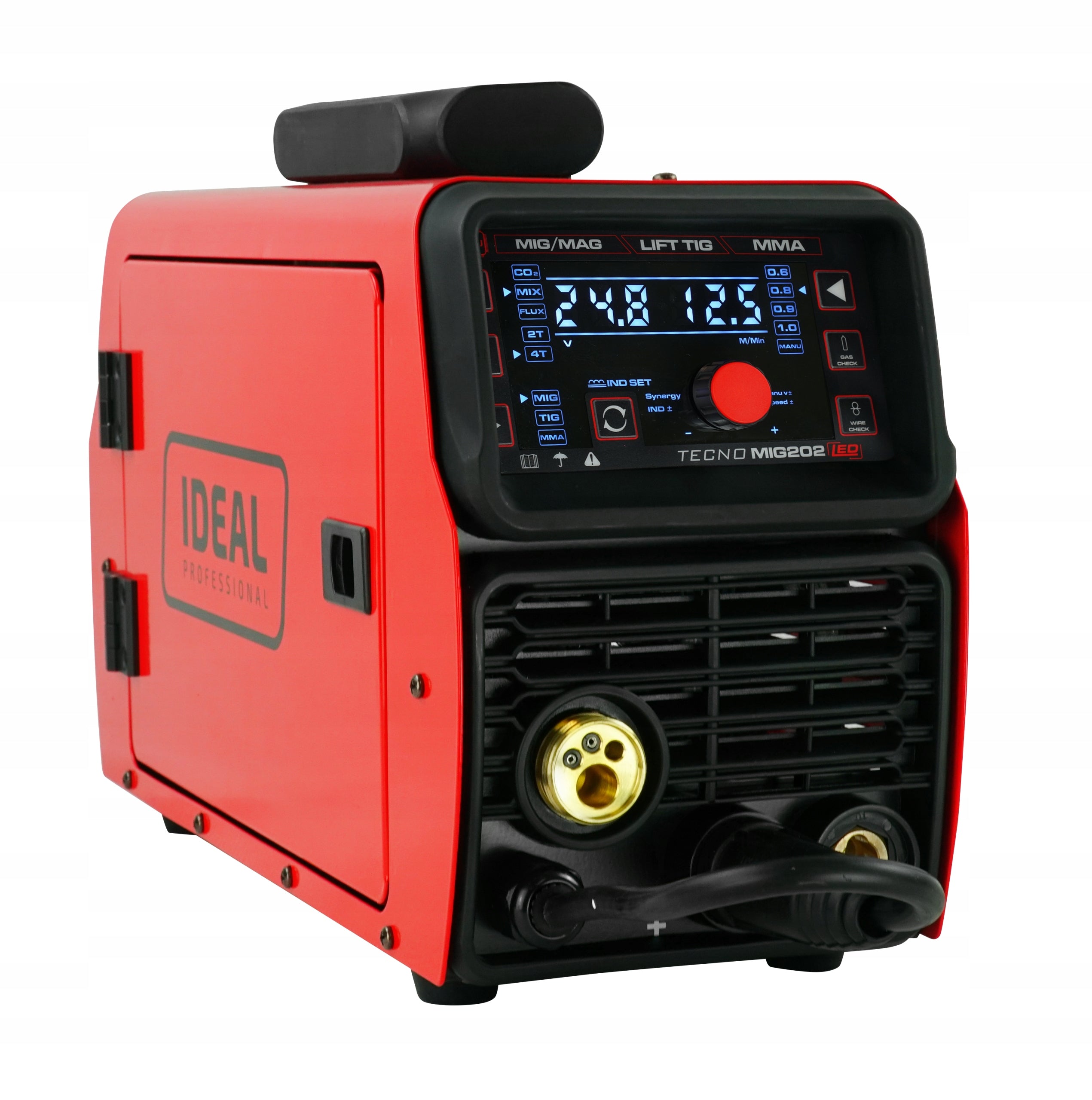

Suvirinimo aparatas 3in1 WELDER MIG/MAG 200A Synergy 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas 3in1 WELDER MIG/MAG 200A Synergy 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 203 RSH0

✅wide range of applications - MIG/MAG welding current in the range of 50-200 amps,

✅powered from a single-phase 230V network,

✅smooth adjustment of all welding parameters,

✅regulation of MIG/MAG welding inductance - control of face width and melting depth, reduction of welding chipping, better soldering CuSi3,

✅EURO socket of MIG holder,

✅variable welding polarity - the ability to work with FLUX self-shielding wire.

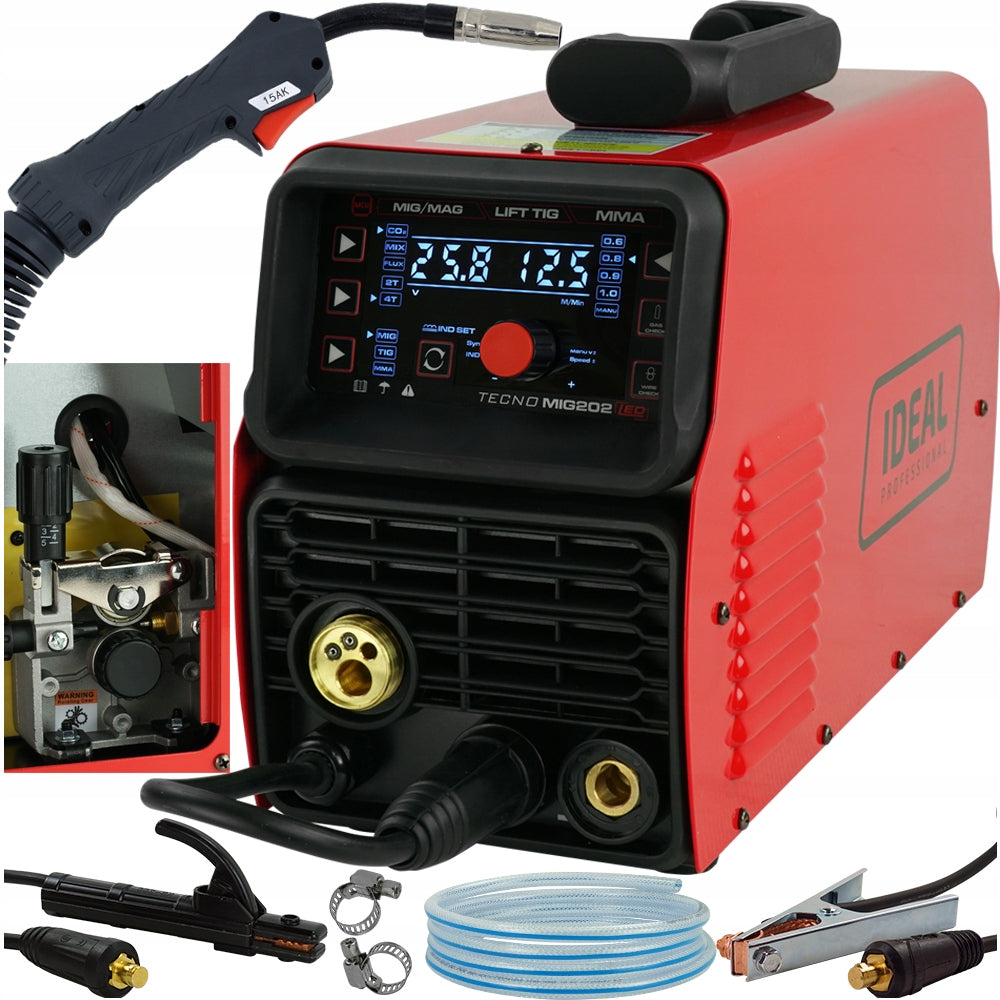

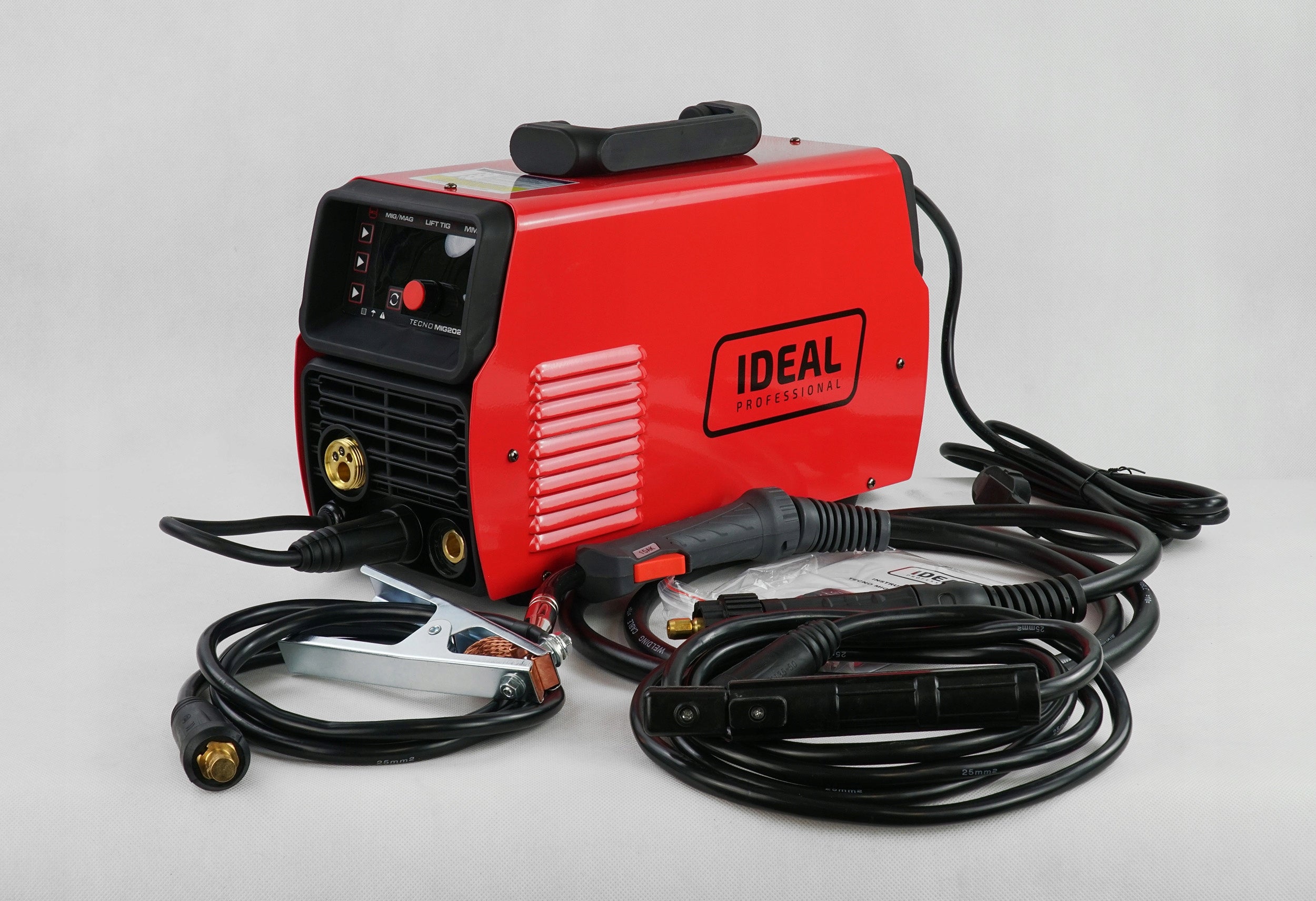

WHAT WILL YOU FIND IN THE PACKAGE?

✔ TECNO MIG 202 LED welder

✔ MIG EURO MB welding torch 15 3m

✔ MMA Electrode Holder

✔ Bulk cable

✔ User Manual

⏩⏩FREE HOSE 2M AND CLAMPS⏪⏪

⏩POWER SUPPLY PARAMETERS

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Current taken from the mains: 34A
• Maximum power consumption: 6,2 kW / ~7,6 kVA
• Network Security: 25A C
• LED Display
• Degree of protection: IP21S
• Dimensions: 455x170x300 mm
• Net weight: 10kg

⏩ MIG/MAG welding parameters:

• Welding Current: 50 - 200A
• Working cycle 60%: 200A
• Working cycle 100%: 155A
• Welding Voltage: Smooth Adjustment
• Wire diameter: from 0,6mm to 1,0mm
• Reel Size: D200
• Spool weight: up to 5kg
• MIG/MAG Inductance Regulation: YES
• Operating Mode: 2T/4T
• MIG/MAG manual setting mode: YES
• Wire Test: YES
• Gas test: YES

⏩ MIG/MAG synergy settings:

• Programs: CO2, MIX, FLUX
• Wire diameter selection: 0,6 / 0,8 / 0,9 / 1,0 mm
• Correction of synergy parameters: YES

⏩ MMA welding parameters:

• Welding Current: 10-160A
• Working cycle 60%: 160A
• Working cycle 100%: 124A
• Idle Voltage: 74 V
• VRD Function: YES

⏩ TIG welding parameters (optional):

• Welding Current: 10-200A
• Working cycle 60%: 200A
• Working cycle 100%: 155A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• SYNERGISTIC MIG/MAG WELDING - a program that automatically selects the wire feed to the set welding current. Attention! The ability to choose the diameter of the welding wire and the type of gas - greater precision in the operation of Synergy.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• REGULATION OF WELDING INDUCTANCE - reduction of welding chips, control of face width and depth of melting. By adjusting the welding inductance possible.

• Working modes 2T/4T - or two-bar and four-bar - choose the most convenient mode of operation in the MIG/MAG method depending on what weld you have to position,

Choose a brand whose history dates back to the early twenty-first century. Ideal is a leading brand of welding equipment in Poland.

A wide range of Ideal devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Ideal brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.6 kVA
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Device weight	10 kg
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	5904624027540
Parametry	EAN (GTIN)	5904624027540
Parametry	Packaging status	original
Parametry	Model	TECNO MIG 203 RSH0
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO holders,LCD display
