Suvirinimo aparatas 3 viename SEMI-AUTOMATIC DUAL PULS Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas 3 viename SEMI-AUTOMATIC DUAL PULS Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 222 DP LCD
• Ilgis: 495 mm
• Plotis: 210 mm
• Aukštis: 345 mm

Manufacturer: MAGNUM || Welding methods: MIG/MAG, MMA, TIG, FLUX || Maximum welding current: 200A || Power supply: 230V

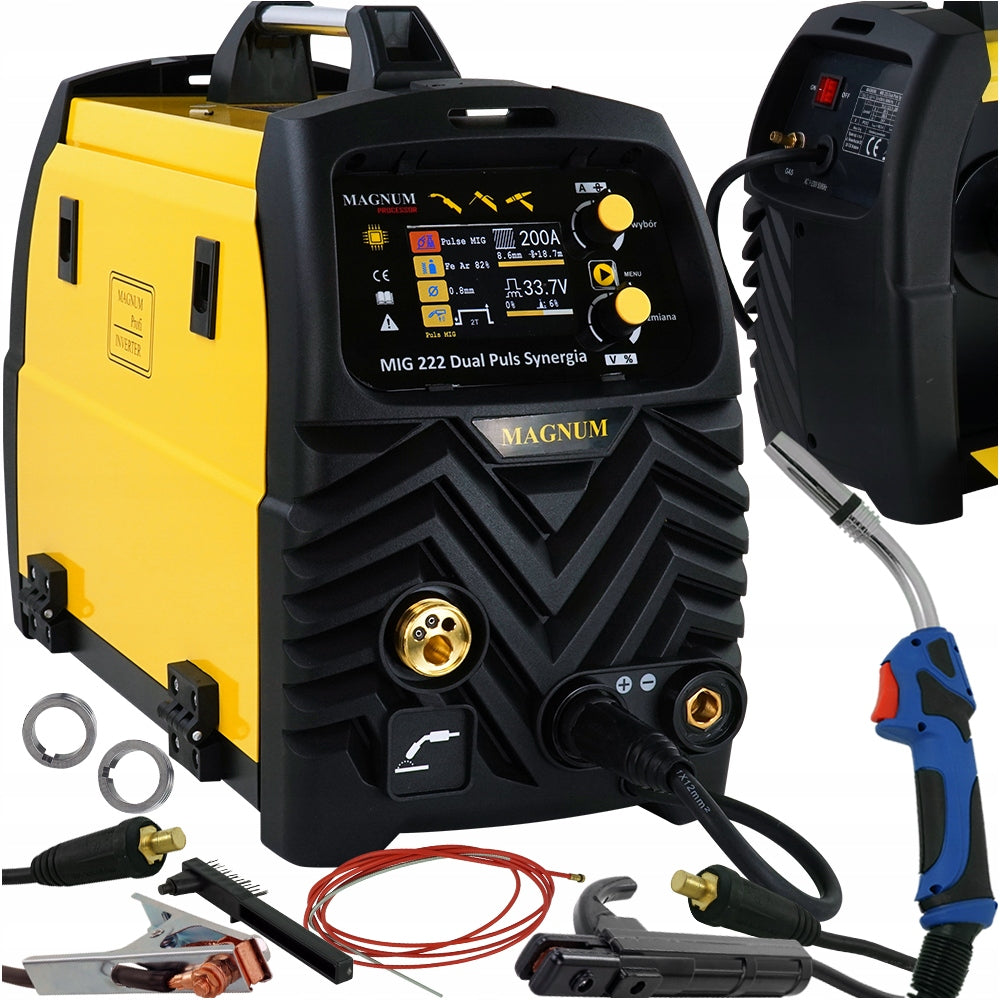

✔ Magnum MIG 222 Dual Pulse LCD Synergy Device

✔ MIG MB welding torch 24 3m*

✔ MMA electrode holder

✔ Bulk cable

✔ User manual in Polish

* MIG handle factory armed with Teflon.

WELDING ACCESSORIES FREE

➡ brush-hammer.

➡ welding disc,

➡ roll of feeder for steel/aluminium.

➡ spiral insert for steel wire,

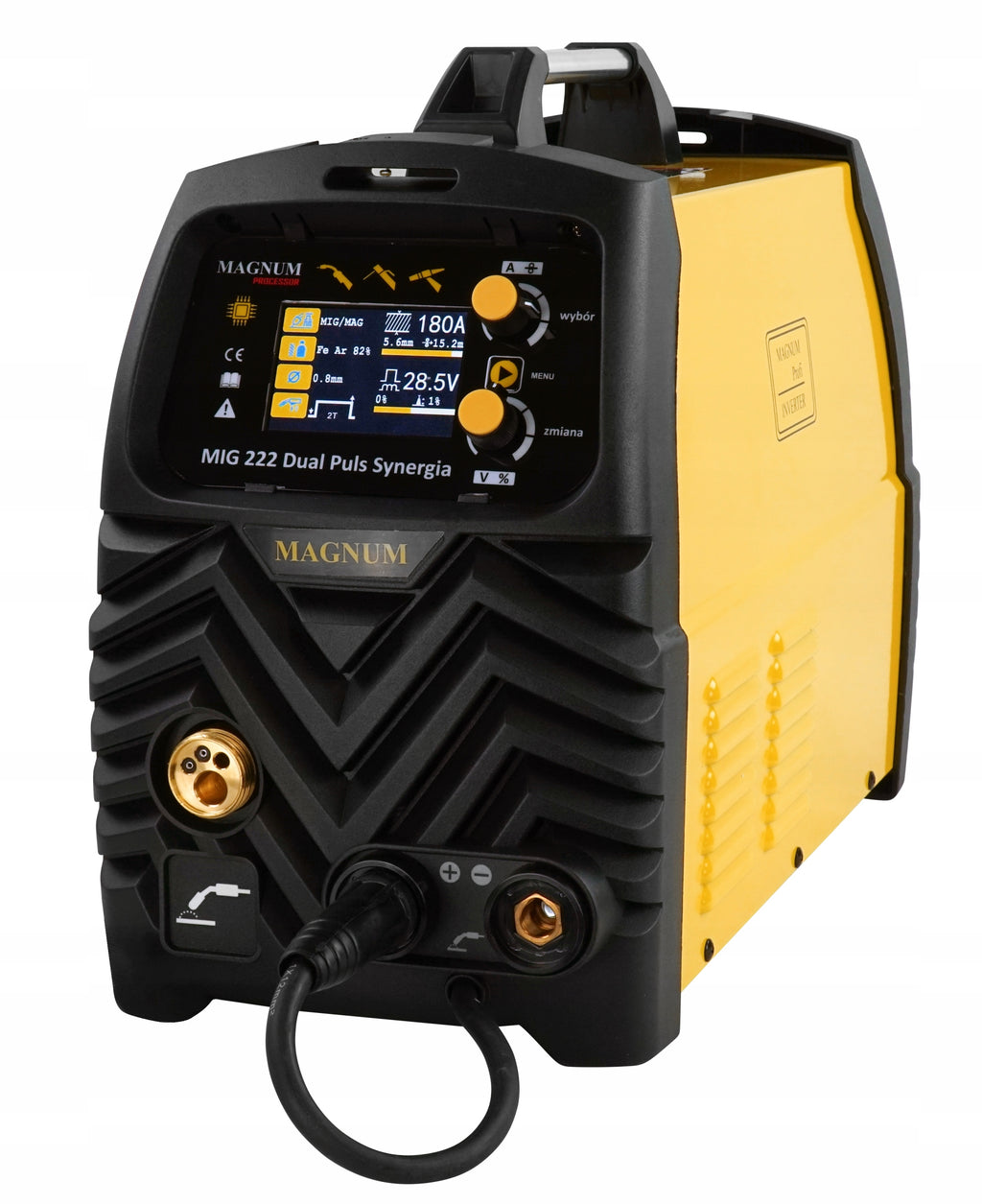

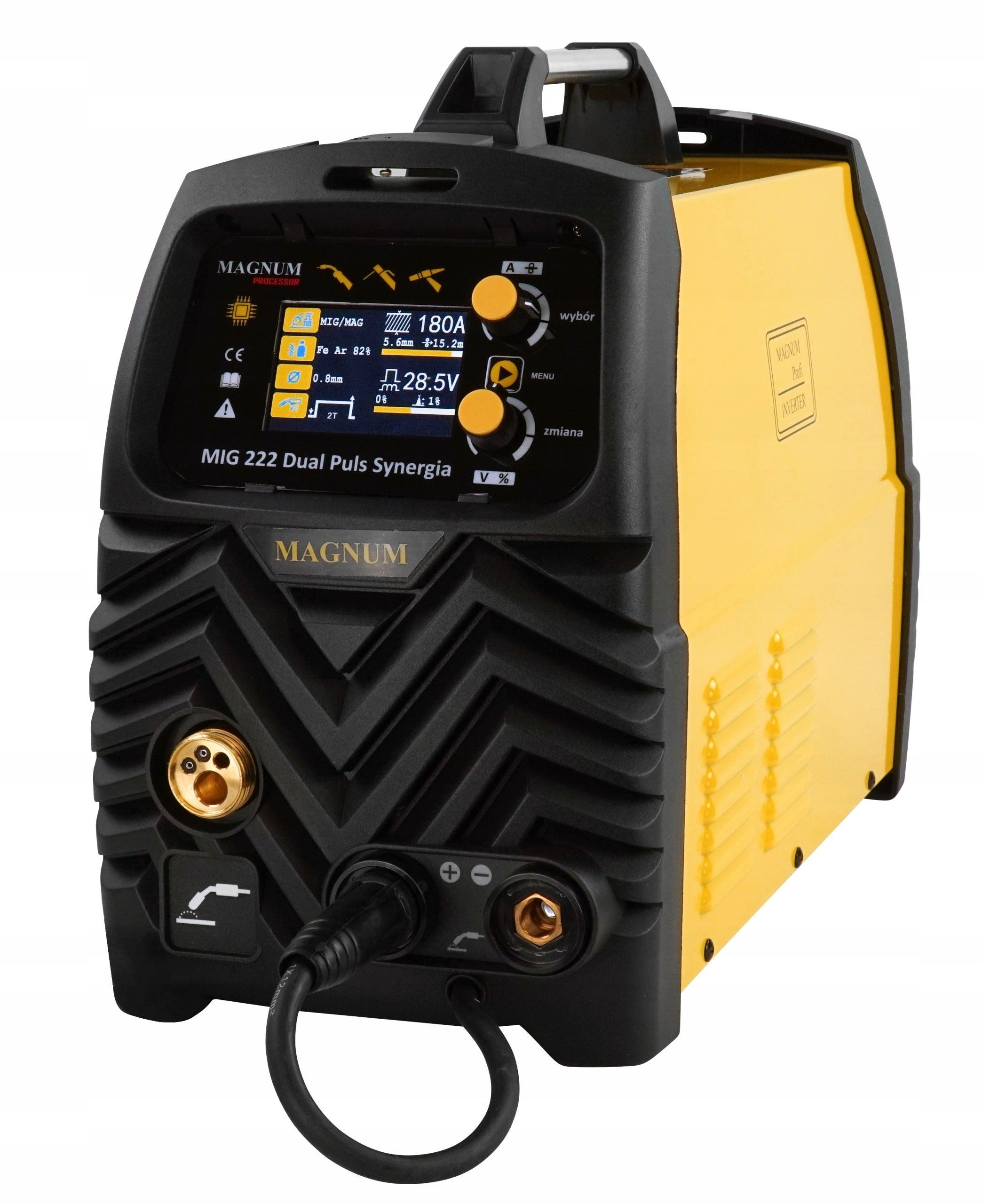

MIG 222 Dual Pulse Synergy LCD is an extended version of the Magnum dual pulse devices available for some time. In the category of this type of machines, Magnum is the leader, and the welding machine available at this auction is one of the most interesting models today.

MIG 222 Dual Pulse LCD synergy is made in modern inverter technology and allows welding using the following methods: MIG/MAG, MMA, TIG DC with or without Pulse and self-shielding wire without gas.

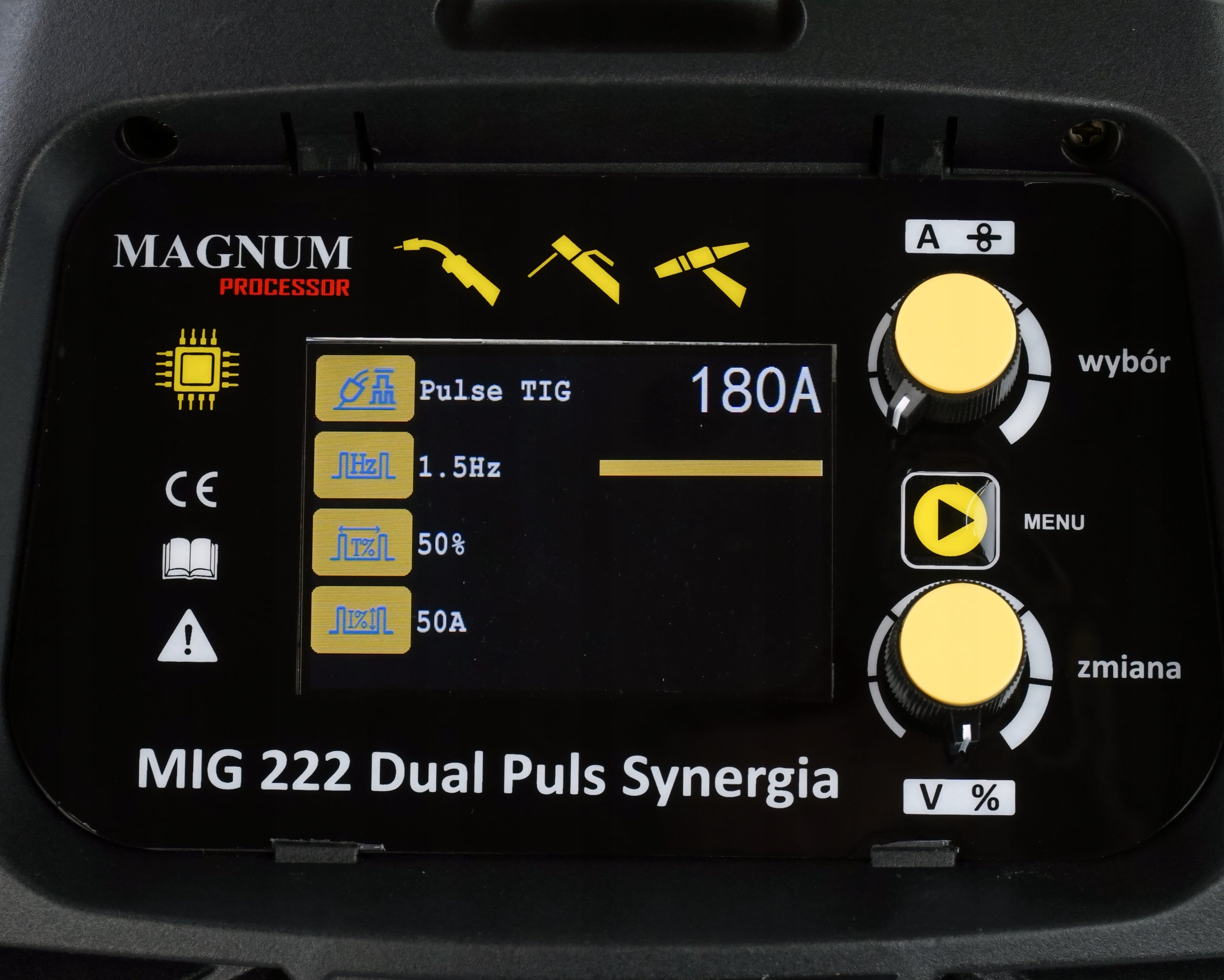

🔷LCD display and user-friendly interface - Quick access to advanced welding machine functions

The user-friendly interface is a huge advantage of this model. It is much simpler and more convenient to set advanced welding parameters if the UX is properly planned. MIG 222 Dual Pulse is easy to use and the user can easily adjust the parameters at the first contact with the function panel.

Advanced welding parameters and excellent welding characteristics of the source translate directly into good welding quality.

🔷MIG with double pulse - Sensational program for welding aluminum

Dual pulsation MIG welding is particularly useful for welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

Magnum MIG 222 Dual Pulse Synergy - has advanced regulation of dual pulse parameters

🔷Welding MIG with pulse

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. during welding of stainless and acid-resistant steels.

🔷TIG DC Lift with pulse

The vast majority of MIG welding machines, which have a TIG welding function, allow you to adjust only the welding current values.

In the case of the MIG 222 Dual Pulse, LCD Synergy is completely different. This welding machine enables TIG welding with pulse, and this gives us a huge basis for high-quality welding of stainless and acid-resistant steels.

The device is standard armed with a MIG handle and a set of wires for MMA welding. But at our other auctions, you will find a TIG handle with a valve that will fit this welding machine.

✅ PROFESSIONAL WIRE FEEDER

Professional feeder 2R - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

✅ EURO HANDLE SOCKET

The professional EURO handle socket is the ability to work with any MIG welding torch. A great solution for people focused on high work efficiency. It is possible to personalize several MIG handles for a specific material and quickly replace them.

• Power supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• MIG/MAG synergy function: YES
• Maximum welding current: 200A
• Working cycle: 60% 200A
• Security Required: 20A "C"
• Housing Protection Class: IP21S
• Weight: 12kg

Basic welding parameters MIG/MAG

• MIG/MAG welding current: 45-200A
• MIG/MAG welding voltage: 15,5-24V - smooth adjustment
• Wire diameter: 0,8 / 1,0 / 1,2mm - depending on the type of wire.
• Wire spool weight: max. 5kg (D100/D200)
• Regulation of MIG/MAG welding inductance: YES
• Welding polarity change: YES

Advanced MIG/MAG welding functions

• Missipelling CuSi3: YES
• MIG welding with pulse: YES
• Adjustable MIG pulse parameters: YES
• Dual Pulse MIG Welding: YES
• MIG DUAL PULS parameter adjustment: YES
• Operating Modes: 2T/4T: YES
• Advanced S2T/S4T operating modes: YES
• Spot welding: YES - SPOT and CPOT
• Gas before, gas after: YES
• Wire Burning Time Adjustment (Burn Back): YES
• Feeder access speed adjustment: YES

Synergic MIG/MAG programs

• Selection of thickness of welded material: YES
• Correct synergistic program settings: YES
• Black Steel Program: YES
• Program for aluminium: YES
• Stainless Steel Program: YES

Welding parameters TIG

• Welding current: 10-180A
• Output Current: DC - Constant
• Welding Current Adjustment: Smooth
• Arch Initiation: TIG Lift (Contact)
• Welding TIG with pulse: YES
• The need to use a handle with a valve: YES

Welding parameters MMA

• Welding current: 20 -180A
• Welding Current: Smooth Adjustment
• Additional MMA Features: YES

Photo gallery:

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	12 kg
Parametry	Welding range	45–200 A
Parametry	Height	345 mm
Parametry	Length	495 mm
Parametry	Width	210 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	U MI 222 DP LCD
Parametry	EAN (GTIN)	5905323100312
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
