Suvirinimo aparatas 225A MIG/MAG/MMA IDEAL komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas 225A MIG/MAG/MMA IDEAL komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG225CUSI_pakiet3
• Ilgis: 465 mm
• Plotis: 200 mm
• Aukštis: 450 mm

Standard equipment

• MIG welding torch 15/3 m with EURO plug
• mass cable 3 m
• instruction manual in Polish

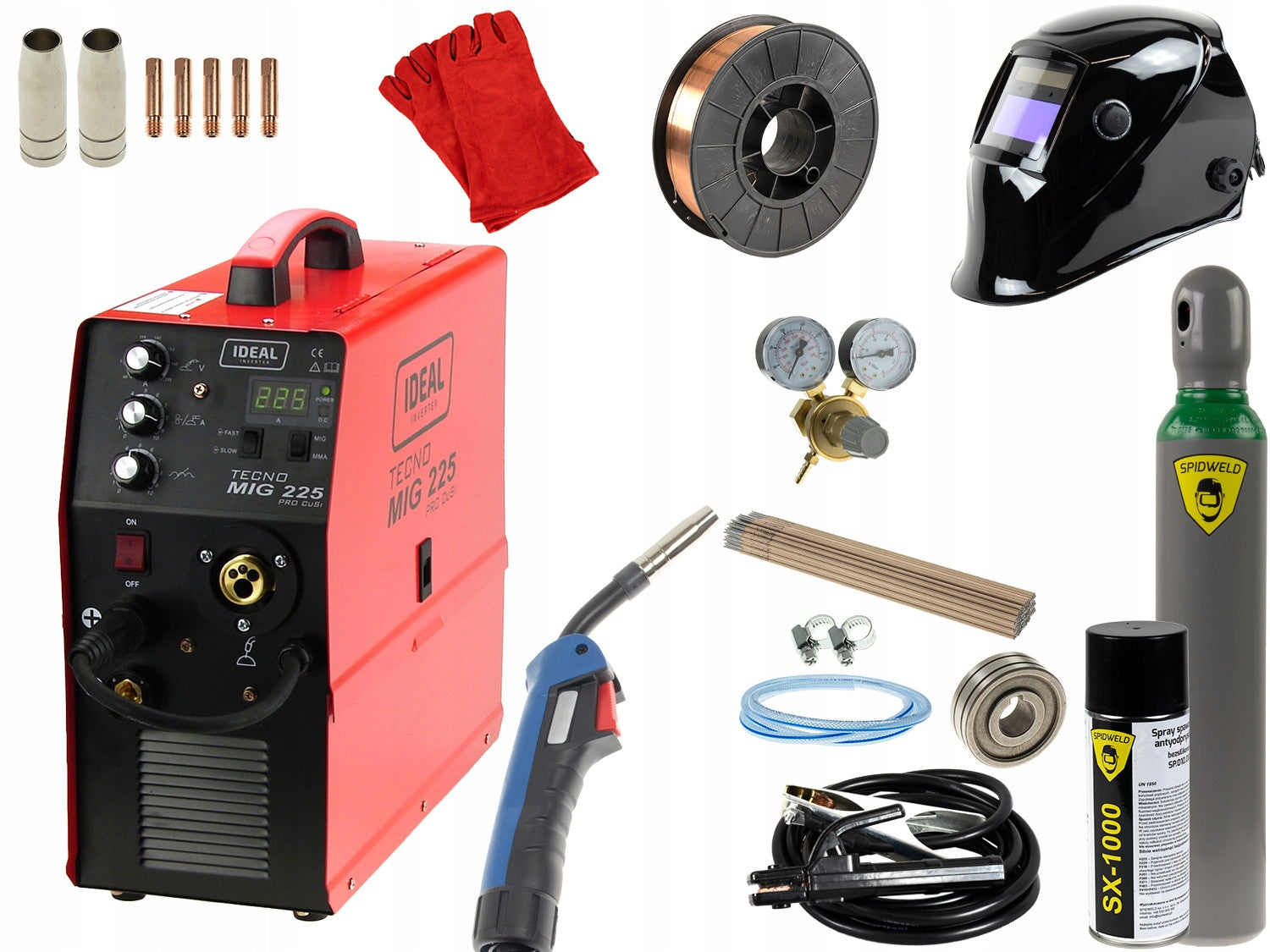

Accessory Pack

• self-tinting visor 510G
• anti-chipping preparation 400 ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle 2 pcs.
• current tip 5 pcs.
• rutile welding electrodes / 1,0 kg
• hose for connecting cylinders with reducer + bands

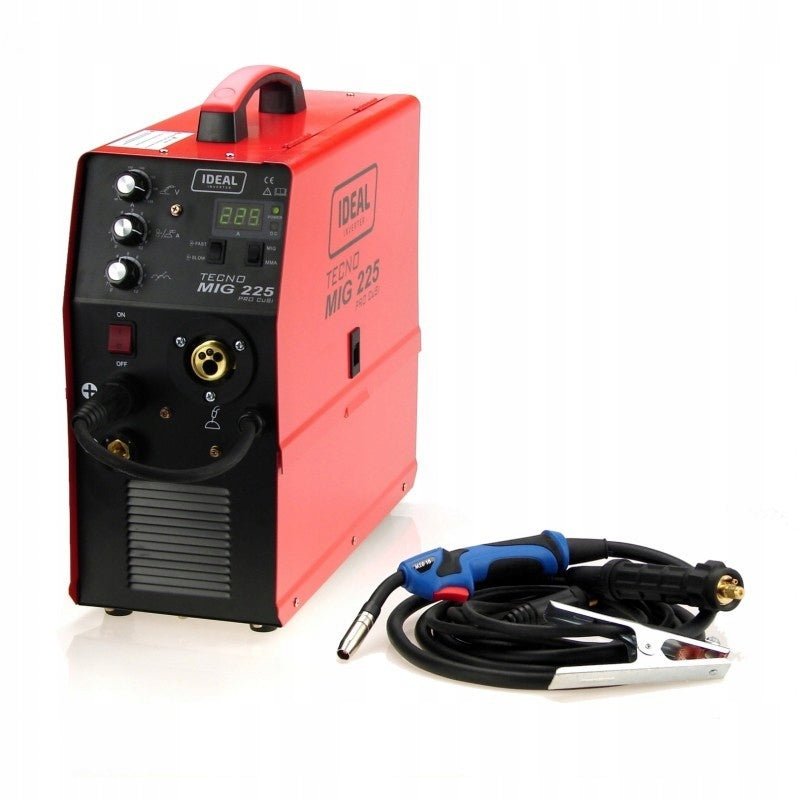

Ideal Tecnomig 225 PRO CuSi MMA welding machine is a professional semi-automatic welding machine for MIG/MAG welding, welding with galvanized sheet soldering technology and welding with FLUX welding wire without shielding gas.

It is perfect for welding thin materials of steel, stainless steel, aluminum and its alloys.

Allows welding:

• galvanized sheets,
• high-strength sheets,
• stainless steel
• and aluminium.

The smoothly adjustable electronic choke allows you to get a small amount of chipping during welding.

With MIG/MAG welding, the ability to adjust:

• welding current,
• wire feed speed,
• inductance (angina).

Smooth regulation of welding current and voltage.

Other features:

• Single-phase power supply.
• Maximum spool with wire: 5 kg.
• The device is equipped with a EURO socket for connecting the welding torch.
• Professional wire feeder: internal, 2-roll.
• Replacement handle polarity.
• Cooled by a fan.
• Protection against overload.

Technical parameters:

• Weight: 9 kg
• Height: 450 mm
• Width: 200 mm
• Length: 465 mm
• Power supply [V]: 230
• Characteristics: Automatic retry of the number welding current [A]: 225
• Cooling: with gas
• Type of wire feeder: internal 2 roller
• Warranty: 12 months - company / 24 months - consumer / door-to-door system
• Processes: MIG / MMA
• Welding current range [A]: 40 - 225 A
• Current [A] / duty cycle [%]: 200 A / 60%
• Power consumption: 11,3 kW
• Idle voltage [V]: 42
• Degree of protection: IP21
• Wire spool: 5,00 kg / D200
• Welding range from [A]: 40
• Welding range up to [A]: 225

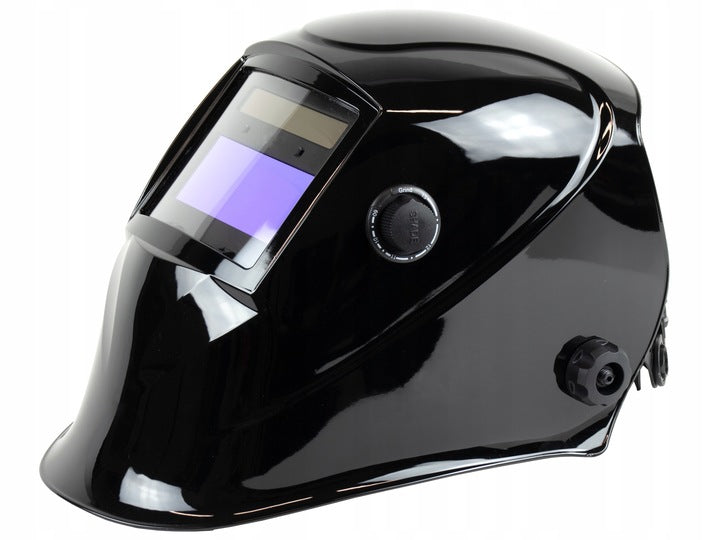

The 510G self-tinting visor is characterized by a variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity. Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with grinding function.

- Chamber width: 5cm

• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/9-13
• variable lightening time
• Possibility to set sensor sensitivity

Cylinder filled with high quality mixture Ar/CO2 designed for welding in protective gas shielding and for other industrial applications. The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers. Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

Specifications
