Sukiojama IP kamera HiLook TandemVu 2x 4MP, su garsu ir dirbtiniu intelektu

Trumpai apie prekę

Prekė: Sukiojama IP kamera HiLook TandemVu 2x 4MP, su garsu ir dirbtiniu intelektu. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: PTZ-D4 PRO (2.8MM-12MM + 2.8MM)

TandemVu 4MP+4MP | Optical Zoom x4 | Smart Hybrid Light | Darkfighter | Intelligent Motion Detection | Microphone + Speaker

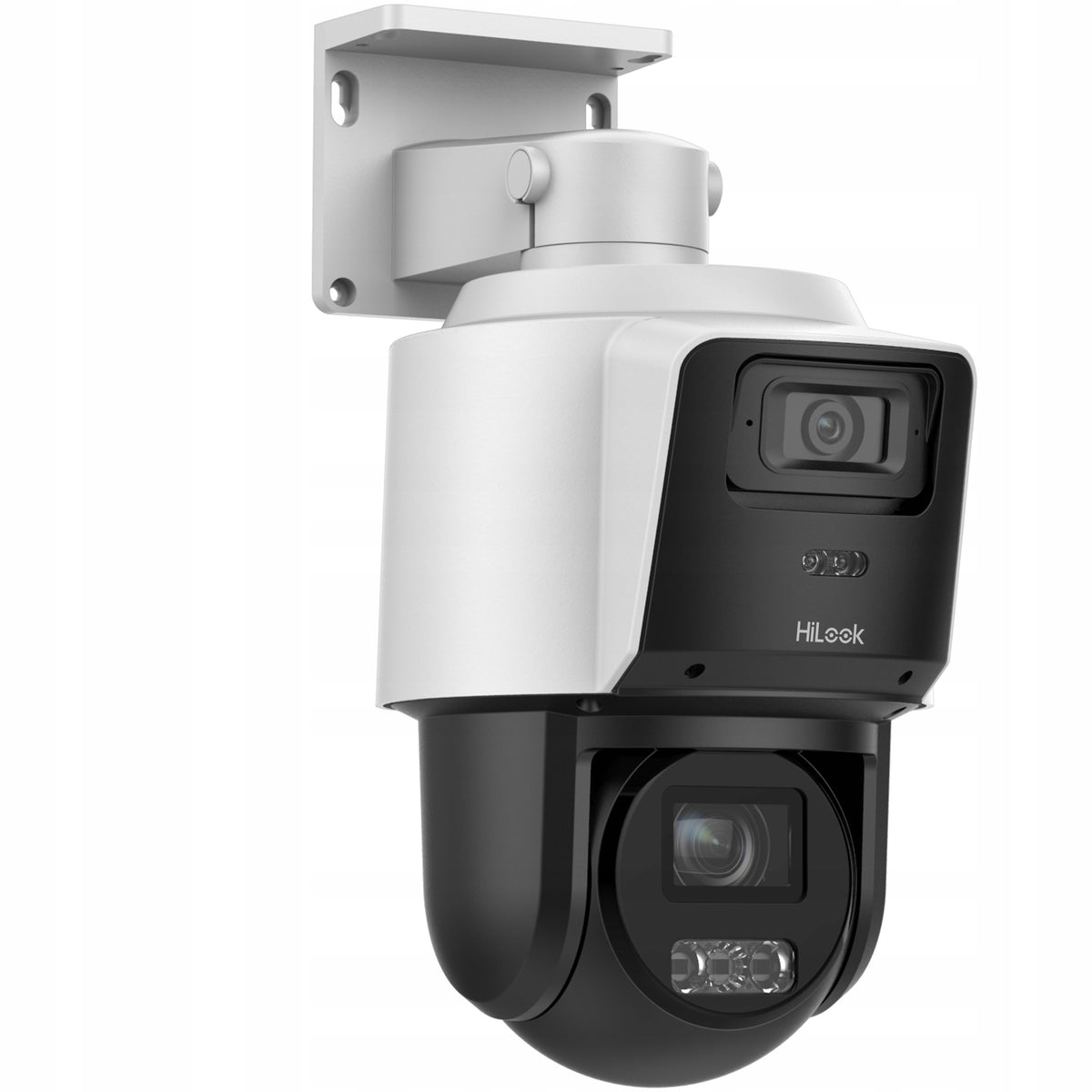

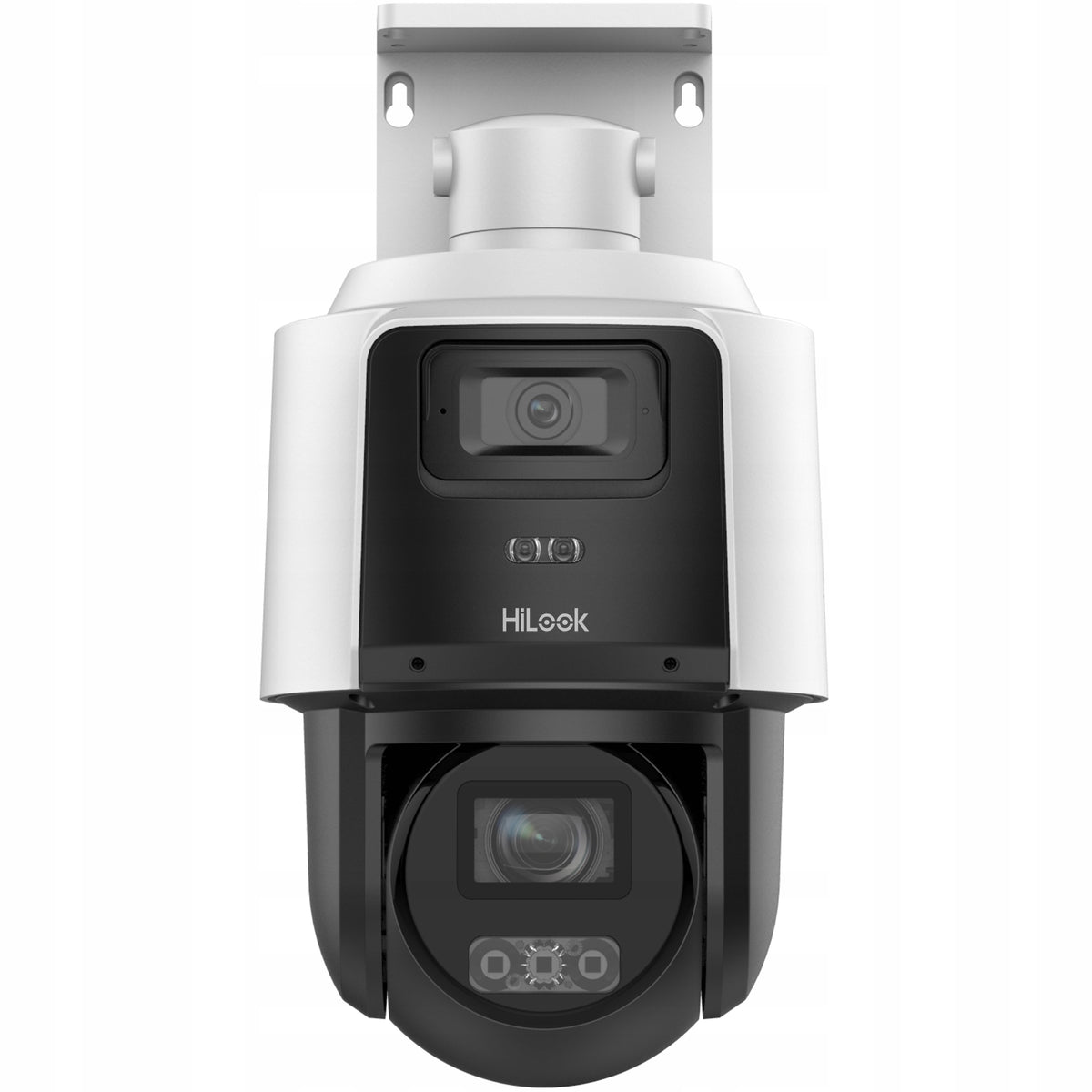

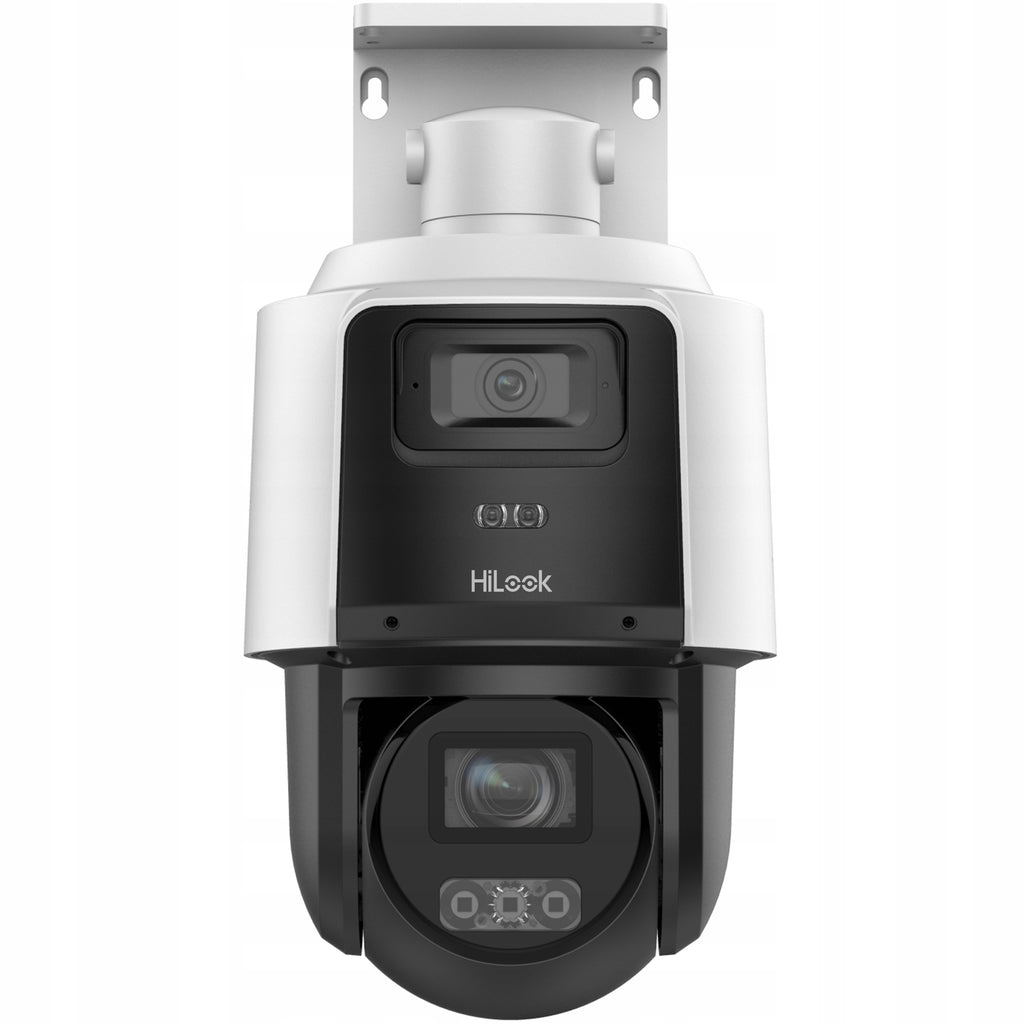

Advanced TandemVu camera for precise protection of your property

The PTZ-D4-PRO rotating camera is the most advanced model in the HiLook line, combining all the most important active protection functions with ultra-high image quality . This image is generated by two integrated transducers in the TandemVu design - that is, technology combining two cameras in one housing - a rotary camera and a fixed-position camera.

Thanks to this design, it allows you to see a wide range of the observed area at the same time, as well as see small details through a large close-up.

The camera is equipped with the Smart Hybrid Light system, which allows you to record day and night in full color and infrared.

What’s more, it is equipped with a speaker and microphone, thanks to which you can talk to people at the camera, as well as deter potential intruders!

The Autotracking used in the rotary camera helps you capture all the details without having to manually control the camera.

• Converter: 2 x 1/2,8" PS CMOS DarkFighter
• Recording resolution: 2x 4MPx @2540x1440p
• Lens: 2.8mm (panorama) + 2.8-12mm (PTZ) Motozoom
• Sensitivity: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• IR illuminator: fixed camera - up to 30m, PTZ camera - up to 40m
• White light illuminator: fixed camera - 30m
• Smart Hybrid Light: Yes
• Motion detection: Yes - motion detection with human/vehicle classification, autotracking (lite),
• Other detection rules: line crossing, area intrusion, area exit, audio exception
• Privacy masks: Yes 24 for PTZ, 24 for panorama
• Built-in microphone and speaker: Yes - two-way audio
• Active deterrence: Yes - Live Guard function - sound and light deterrence
• Video compression: H.265/H.264
• Image Features: BLC, HLC, 3D DNR, True WDR
• Network interface: 1x RJ45 10/100Mbps
• Remote support: Hik-Connect, HiLookVision, iVMS-4200, Web Interface
• Housing tightness class: IP66
• Working temperature: from -30 °C to 50 °C
• Power Supply: 12V DC, PoE+
• Housing material: metal + plastic
• Dimensions: 311.5 mm × 223.5 mm × 156 mm
• Weight: 1370g

Properties of the rotating part:

• Rotation/tilt range: 0° to 350°, -5° to 90°
• Rotation speed: from 0,1°/s to 30°/s
• Tilt speed: from 4°/s to 20°/s
• Number of presets: 300
• Patrol mode: yes - up to 8 patrol rules

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive mobile application HiLook App / HikConnect for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

Smart Hybrid Light - Dual Lighting Technology

The camera belongs to a series of devices using innovative Smart Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night in three modes:

▶ In infrared mode [fixed camera: 30m, PTZ camera 40m]

▶ In color mode [fixed camera: 30m]

▶ In mixed mode (the camera starts color mode when motion is detected)

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

TandemVu technology

The PTZ-D4-PRO rotary camera belongs to the TandemVu series of solutions, distinguished by the integration of two independent lenses in one housing - this eliminates the need to mount multiple cameras and reduces the cost of the monitoring system.

Thanks to this design, one camera enables simultaneous recording of a wide plan and a detailed optical close-up to key areas.

Optical Zoom in PTZ Camera

The rotating part of the PTZ-D4-PRO camera is based on a lens with an adjustable focal length of 2.8-12mm, which allows you to make an instant optical close-up of the area of interest to the user - without losing the quality of the recorded image.

Intelligent Motion Detection and Autotracking

The camera has a built-in motion detection algorithm 2.0 - when detecting moving objects on stage (recognition: human/vehicle), the camera can send an alarm notification to the program and application.

What’s more, the PTZ-D40-PRO camera not only detects movement – it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

Technical specification

Camera:

• Image converter: 1/2.8" CMOS DarkFighter (both bullet and PTZ channels)
• Minimum lighting: Color: 0.01 Lux (F1.6/F1.5), Black and white: 0.005 Lux, 0 Lux using IR
• Snapshot speed: 1 s to 1/30 000 s
• Lens: Fixed camera: 2.8 mm, PTZ camera: 2.8 to 12 mm (4× optical zoom)
• Sharpness: automatic, manual, semi-automatic
• Field of view (FOV): fixed camera: horizontal 114.9°, vertical 62.4°, diagonal 130.7°, PTZ camera: horizontal 98°–34.2°, vertical 52°–19.2°, diagonal 111°–39°
• Aperture: F1.6 (bullet), F1.5–F2.9 (PTZ)

Lighting:

• Light type: IR and white light (bullet channel), IR (PTZ channel)
• IR range: PTZ: up to 40 m, fixed camera: up to 30 m
• White light range: up to 30 m (fixed position camera)

PTZ functions:

• Movement range (pan/tilt): Pan 0°–350°, Tilt -5°–90° (PTZ), 7°–17° (bullet – manual)
• Speed: 0.1°–30°/s
• Additional functions: 300 presets, 8 patrol routes, memory function after power failure, 3D positioning, schedule of activities, freezing presets, autotracking lite

Video:

• Video streaming:Main, auxiliary and third, separately for fixed and PTZ channels
• Main resolution: up to 2560 × 1440p @ 25/30 fps
• Codes: H.265, H.264, MJPEG
• SVC: Yes (scalable video encoding)

Audio:

• Codes: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Noise attenuation: Yes

Network:

• Protocols: ONVIF, ISAPI, SDK, TCP/IP, RTSP, HTTP, HTTPS, IPv4/IPv6, and others
• Network memory: NAS (NFS, SMB/CIFS), ANR
• Live view: up to 20 users

Picture:

• Settings: focus, saturation, brightness, contrast
• WDR: 120 dB
• SNR: ≥ 52 dB
• Privacy masks: 24 programmable masks (per channel)
• Defog: digital

DORI ranges (for telephoto lens):

• Detection: 156.5 m
• Observation: 62.1 m
• Recognition: 31.3 m
• Identification: 15.7 m

Detection rules (Event):

• Basic events: Motion detection, Video sabotage, System exceptions
• Intelligent events: Crossing the line, Invasion into the zone, I/O from the zone, Sound anomaly detection
• Event associations: Sending to FTP/NAS/card, Notification of monitoring center, Sending an e-mail, Starting recording, PTZ actions (preset, patrol)

Interface and power supply:

• Ethernet Port: RJ45, 10M/100M
• Slot per memory card: microSD up to 512 GB
• Power supply: 12 VDC, PoE+
• Working conditions: -30°C to +50°C, humidity up to 95%
• Housing material: PC
• Dimensions: 311.5 × 223.5 × 156 mm
• Weight: approx. 1.37 kg
• Protection class: IP66, surge protection

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to consciously choose equipment from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection, and reliability.
