Trumpai apie prekę
Prekė: Stiprintuvas Tonsil WLM-120UB 100V 70V 4-16 ohm USB Bluetooth Phantom 120W. Kategorija: Stiprintuvai.
- Gamintojas: Tonsil
- Modelis: WLM-120UB
- Spalva: black

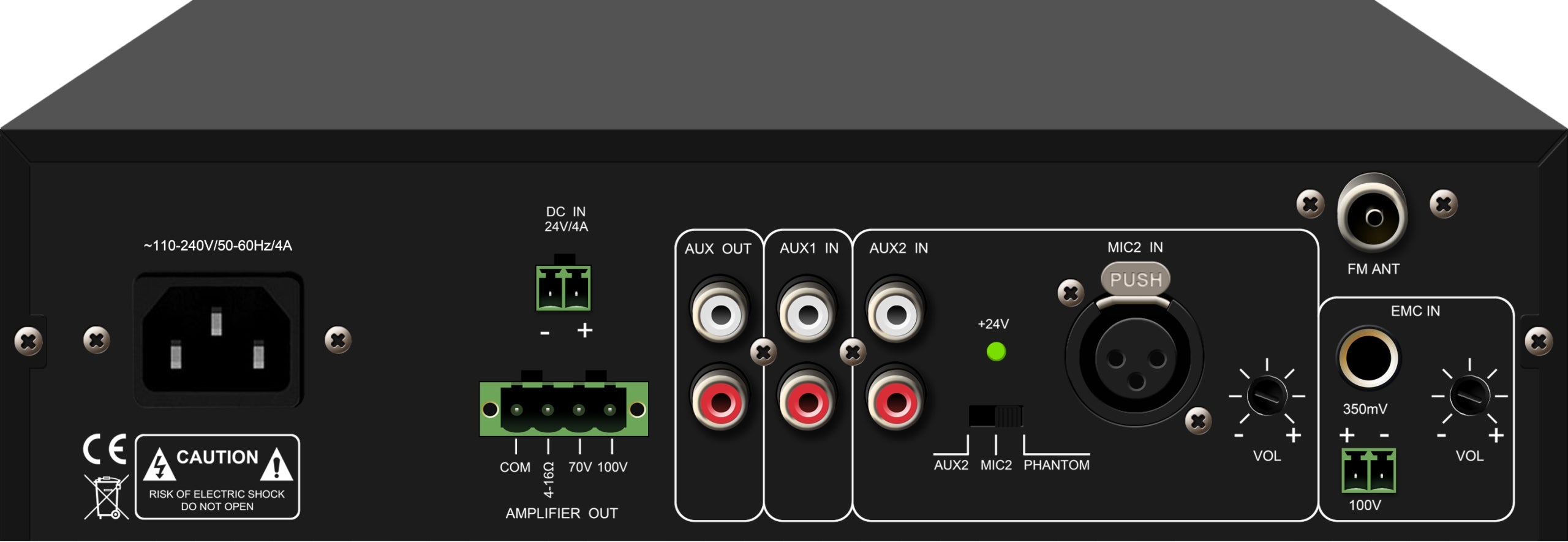

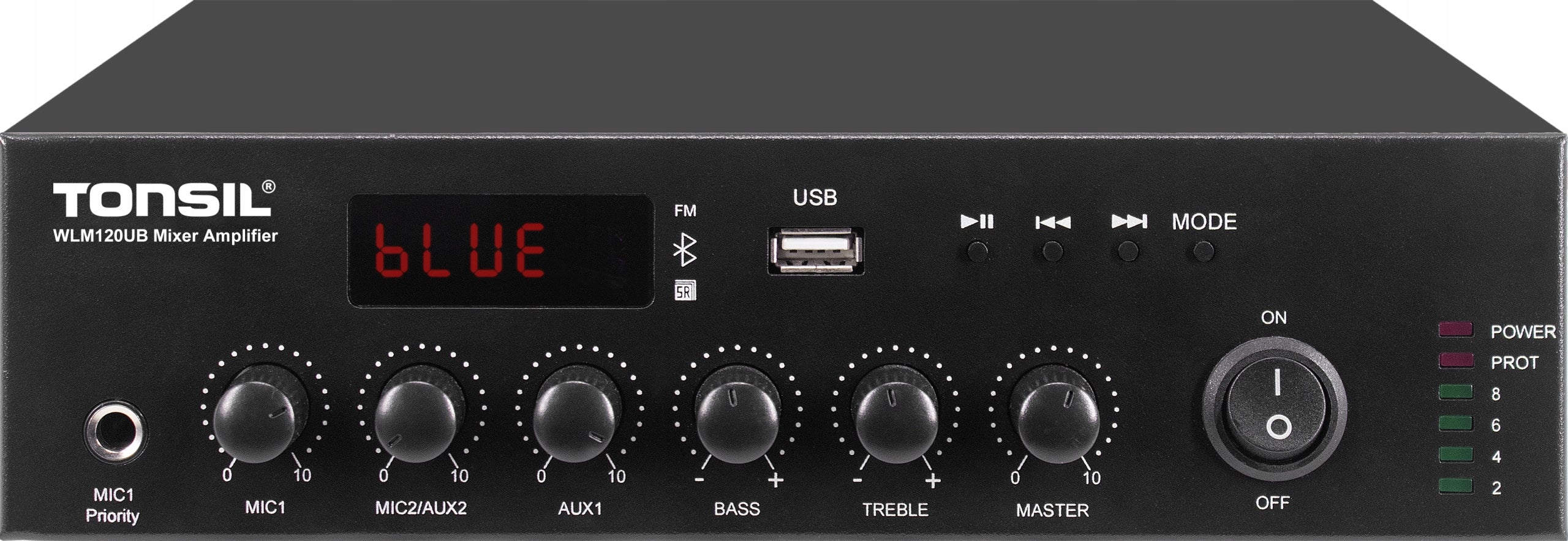

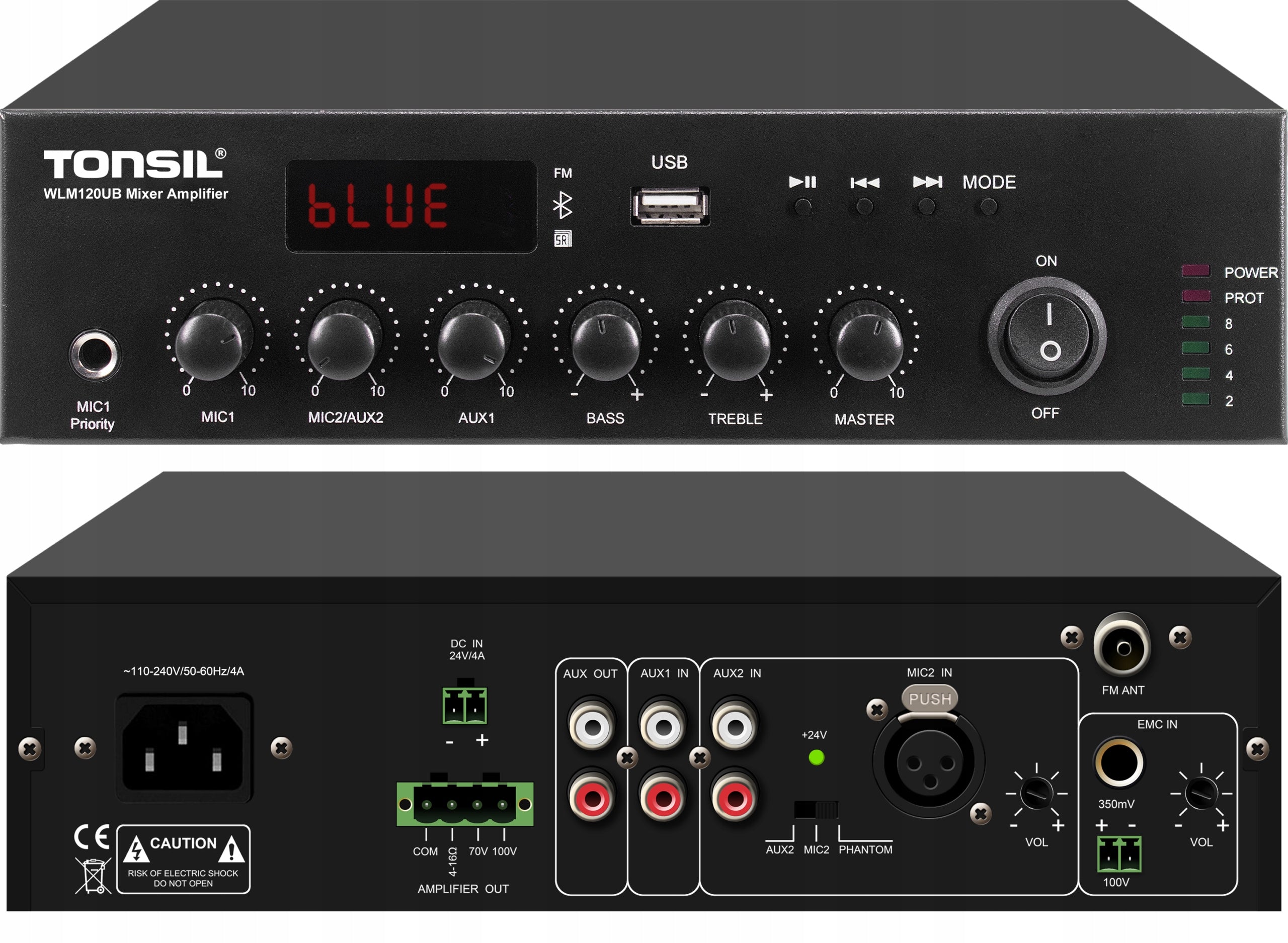

Tonsil WLM120UB – 120W mini mixing amplifier with USB / Bluetooth / FM (1.5U)
Are you looking for a compact device for sound systems, small facilities, offices, shops or technical facilities? Tonsil WLM120UB is a mini mixing amplifier 120 W, which combines in one housing a player (USB/Bluetooth/FM), an input mixer and an amplifier to work both on 100V/70V lines and with a load of 4 – 16 Ω.
Universal outputs: 100V/70V and 4 – 16 Ω
This solution gives you a lot of flexibility in installation: you can power classic low-impedance speakers or expand the sound system with a radio line. In practice, this means easy adjustment to different objects and wiring lengths.
Microphone Inputs + Phantom for MIC2
You have 2 MIC inputs – including MIC1 (6,3 mm jack on the front) and MIC2 (XLR on the back) with Phantom power supply, which makes it easier to work with microphones that require power. Each source has its own volume control, so you can set the proportions quickly and without “fighting” with the levels.
EMC inputs and priorities – ready for messaging
The WLM120UB has dedicated EMC inputs for emergency applications and priority logic, thanks to which the message takes precedence over music. Priority works in order: EMC/MIC1 > AUX1/AUX2/MIC2.
Technical specification – Tonsil WLM120UB
- Power: 120 W | Format: 1.5U
- Playback: USB | Bluetooth | FM
- Speaker outputs: 70V / 100V | 4 – 16 Ω
- Inputs: MIC1 jack 6,3 mm (7 mV) | MIC2 XLR (7 mV, Phantom) | AUX1/2: 300 mV | EMC: 2× 100V / 375 mV
- Outputs: 1× linear | 1× EMC
- Priority: EMC / MIC1 > AUX1 / AUX2 / MIC2
- Band: MIC 100 Hz – 8 kHz | AUX 80 Hz – 15 kHz | THD < 1% | noise ≤ 6 mV (4 Ω)
- Adjustment: Bass ±10 dB | Treble ±10 dB
- Power supply: 110 – 240 V AC | 50/60 Hz
- Dimensions: 198 × 247 × 66 mm | Weight: 3,0 kg (net) / 3,7 kg (gross)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Tonsil |
| Parametry | Model | WLM-120UB |
| Parametry | Product weight with unit packaging | 3.7 kg |
| Parametry | Product width | 24.7 cm |
| Parametry | Product height | 6.6 cm |
| Parametry | Product depth | 19.8 cm |
| Parametry | Product weight | 3 kg |
| Parametry | Color | black |
| Parametry | Number of channels | 2 |
| Parametry | 4Ω output power | 120 W |
| Parametry | 8Ω power output | 120 W |
| Parametry | Number of analog audio inputs | 4 |
| Parametry | Other connectors | USB |
| Parametry | Communications | Bluetooth |
| Parametry | THD distortion | 1% |
| Parametry | Frequency response | 80–15000 Hz |
| Parametry | EAN (GTIN) | 5907972800469 |
| Parametry | Manufacturer code | 5907972800469 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Functions | sound equalizer,FM tuner |
