Stiprintuvas TONSIL TS-5 PA klasė D 2×500W Stereo 6,3 mm XLR

Trumpai apie prekę

Prekė: Stiprintuvas TONSIL TS-5 PA klasė D 2×500W Stereo 6,3 mm XLR. Kategorija: Stiprintuvai.

• Gamintojas: Tonsil
• Modelis: TS-5
• Spalva: black

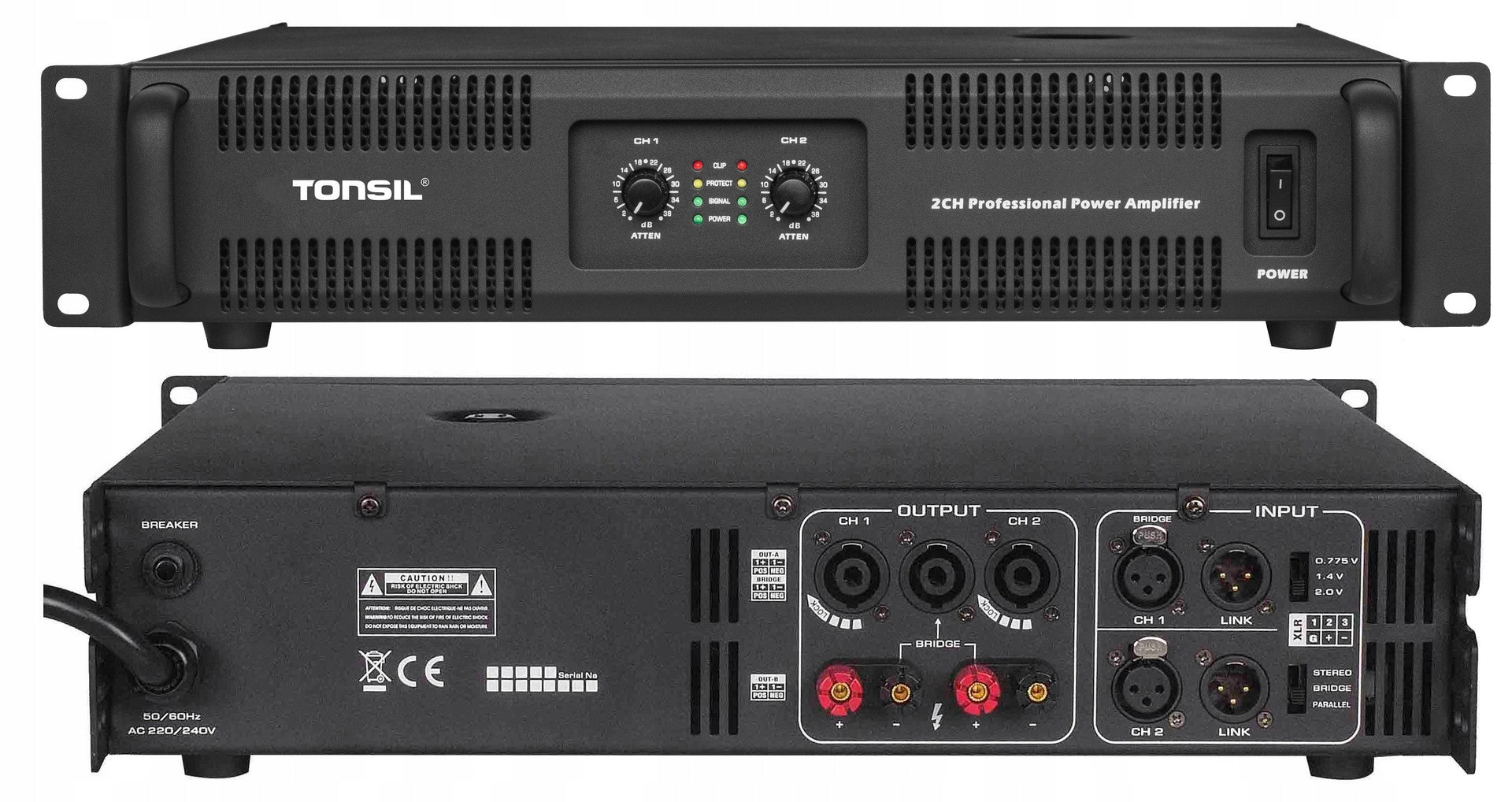

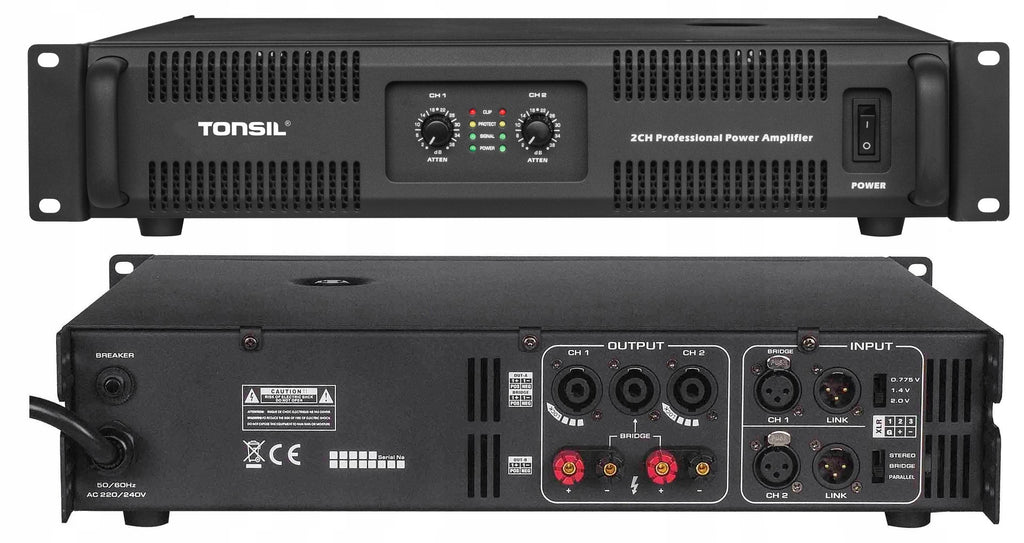

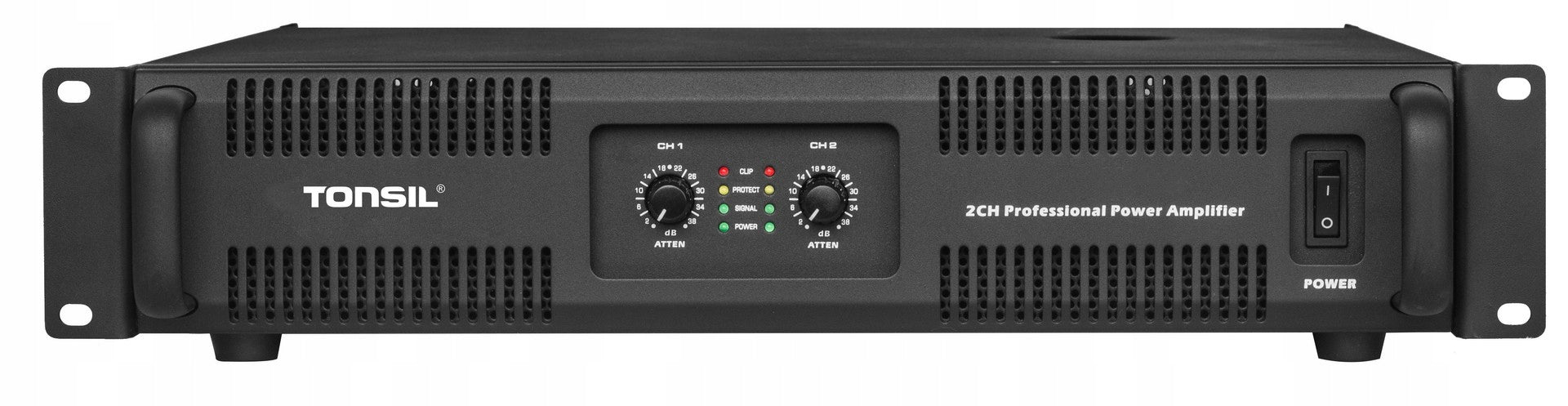

Power amplifier Tonsil TS-5 – class D, series T

Tonsil TS-5 is a powerful, professional power amplifier class D, designed to work in demanding sound systems. It offers very high power output, high dynamic reserve and high efficiency, making it perfect for fixed installations, conference rooms, commercial facilities and PA systems.

High power and flexible configuration

The amplifier provides 500 W × 2 at 8 Ω and 810 W × 2 at 4 Ω, and in bridge mode up to 900 W at 8 Ω. Such parameters allow for trouble-free driving of installation and stage columns, guaranteeing stable operation even under heavy loads.

Clean and precise sound

The wide bandwidth of 20 Hz – 20 kHz (±0,5 dB), low distortion level THD ≤0,5% and signal-to-noise ratio ≥100 dB translate into clear, dynamic sound. The high damping factor >600 provides excellent control over the speakers, especially in the low frequency range.

Professional connectors and compatibility

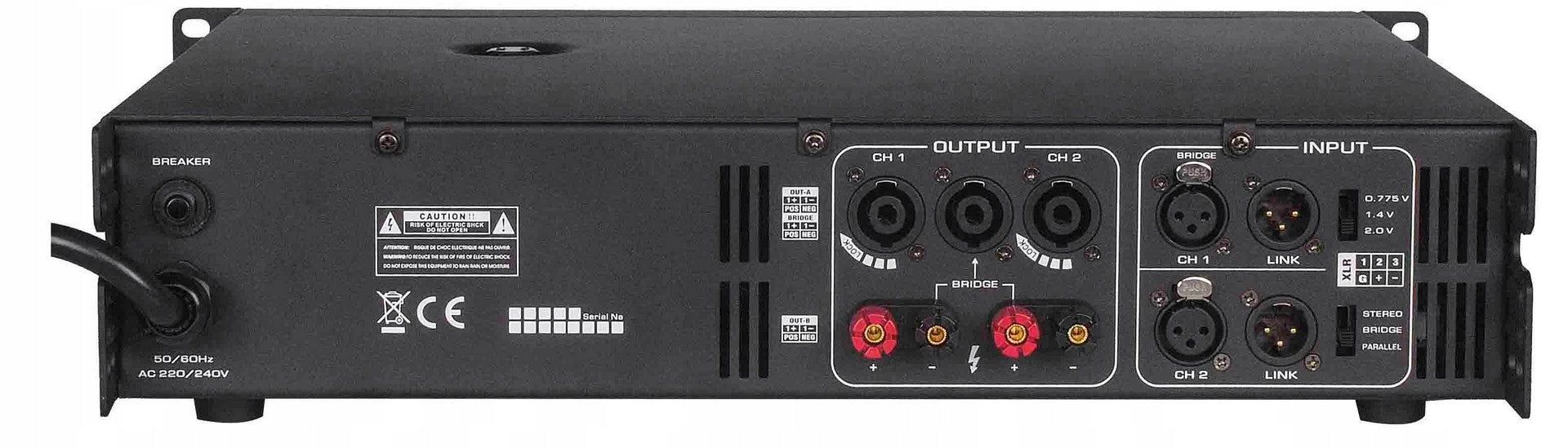

The Tonsil TS-5 is equipped with XLR inputs (balanced and unbalanced) and Speakon outputs and a 6,3 mm TRS jack, which allows easy integration into mixers, DSP processors and sound systems. Adjustable input sensitivity (0,775 V / 1,4 V / 32 dB) allows you to precisely adjust the amplifier to the rest of the audio track.

Safety and reliability

The advanced protection system protects the device against overload, short circuit, circuit break, DC constant component, overheating and RF overload. Intelligent cooling with automatic fan ensures a stable operating temperature even under heavy loads.

Why choose Tonsil TS-5?

• high power and efficiency class D,
• stable operation in professional systems,
• very good sound parameters,
• set of protections for long life,
• rack housing 19” (2U) for fixed installations.

It is a certain power amplifier for users who expect performance, quality and reliability.

Where will the Tonsil TS-5 power amplifier work?

Tonsil TS-5 is a powerful, professional class D amplifier that will work best where high power, stable operation and reliability are needed in sound systems, e.g. in:

• professional PA systems,
• conference and event rooms,
• clubs, hotels and restaurants,
• fixed installations requiring high power,
• applications where efficiency, safety and stability of work count.

It is a strong and versatile amplifier for professional audio applications.

Technical Specifications – Tonsil TS-5

• Type: Power Amplifier, Class D (T series)
• Power Output: 2 × 500 W / 8 Ω, 2 × 810 W / 4 Ω, 900 W / 8 Ω (bridge mode)
• Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
• THD (8 Ω / 1 kHz): ≤ 0.5%
• Switching Distortion: ≤ 0.35%
• Slew Rate: > 10 V/μs
• Crosstalk: –75 dB (1 kHz) / –59 dB (20 kHz)
• Damping Factor (400 Hz – 1 kHz): > 600
• Input Impedance: 10 kΩ (unbalanced) / 20 kΩ (balanced)
• Input Sensitivity: 0.775 V / 1.4 V / 32 dB
• Voltage Gain (8 Ω / 1 kHz): 33 / 36 / 39 / 41 dB
• Signal-to-Noise Ratio: ≥ 100 dB
• Input Connectors: XLR (2 × male + 2 × female)
• Output Connectors: 2 × Speakon, 4 × 6.3 mm TRS jack
• Protection: DC, short circuit, open circuit, distortion limiter, RF overload, overheating, mute
• Cooling: Intelligent fan
• Dimensions: 483 × 88.9 × 482 mm
• Weight: 16.6 kg
