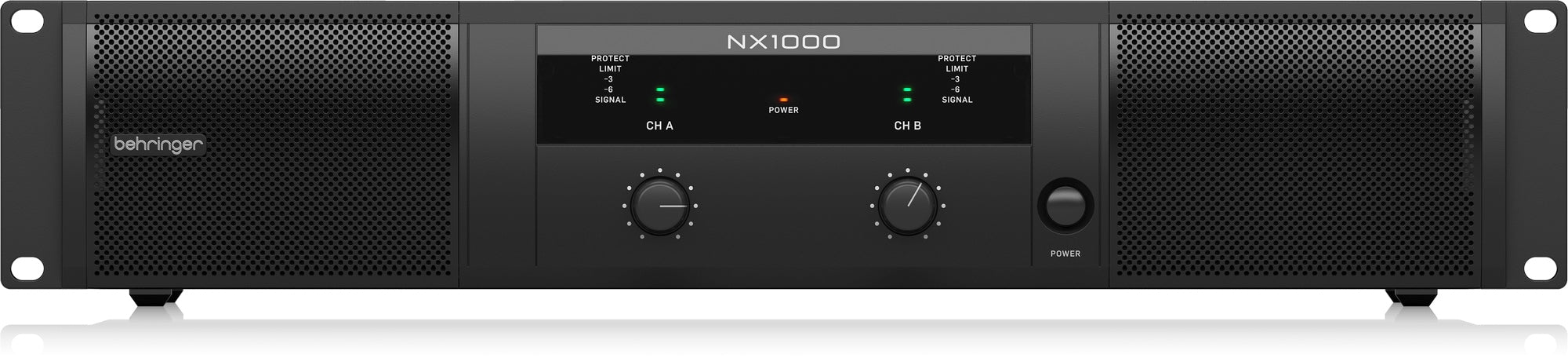

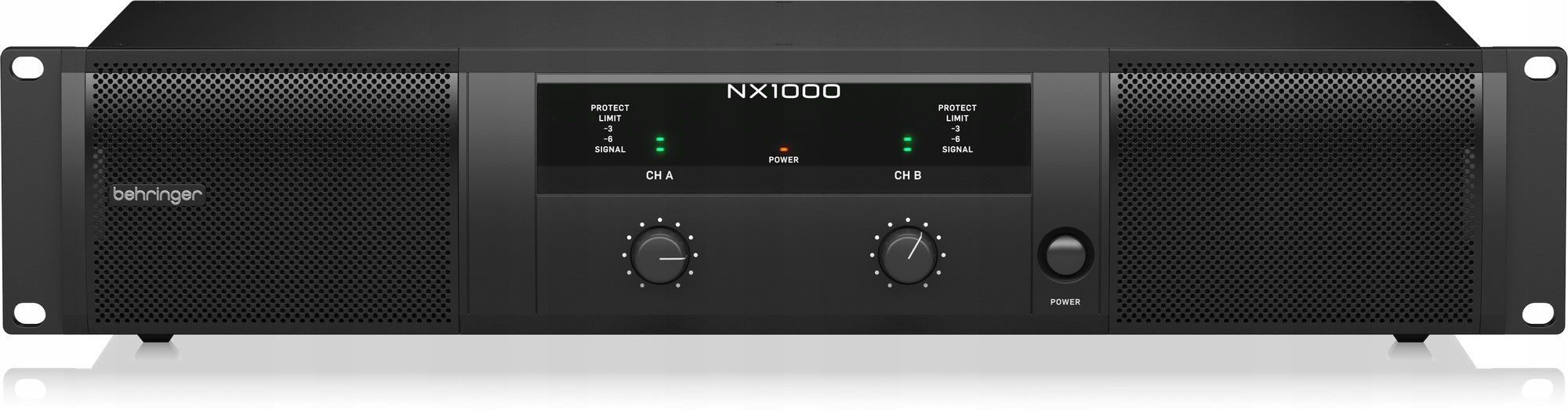

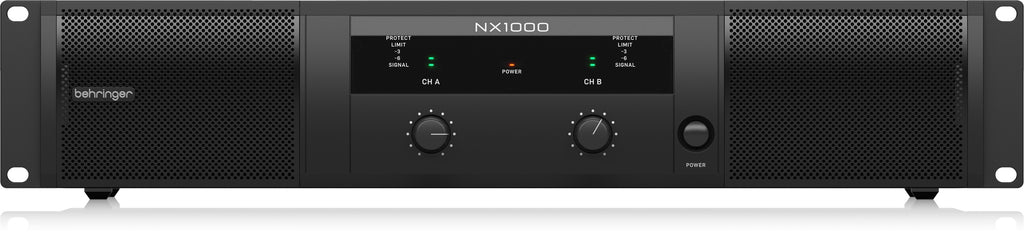

Stiprintuvas Behringer NX1000, 1000W, rack montavimas

Trumpai apie prekę

Prekė: Stiprintuvas Behringer NX1000, 1000W, rack montavimas. Kategorija: Stiprintuvai.

• Gamintojas: Behringer
• Modelis: NX1000
• Spalva: black

Behringer NX1000 – new ultralight 1000W class D power amplifier.

NEW SERIES NX

The new NX series of power amplifiers is characterized primarily by increased efficiency compared to conventional amplifier designs, while emitting much less heat, which in turn does not require mounting massive heat sinks and heavy toroidal transformers, usually used in traditional amplifiers. Thanks to the “Zero-Attack” limiter, the maximum signal level at the output has been achieved, with excellent overload protection at the same time, and thanks to the new SmartSense impedance compensation technology, fully linear frequency characteristics have been provided, with any resistance of the connected speaker – these are the features that make the NX series amplifiers maintain full efficiency for many hours. Revolutionary technology called class D (Class-D) with high performance combined with a top-notch, interference-free switching power supply make this feather-light amplifier work properly, effortlessly, for years to come.

CLASS D – SOLID POWER AND PERFECT SOUND

Thanks to Class D (Class-D) amplifier technology, with high signal pulse density, NX series amplifiers are able to deliver tremendous power and incredible sound quality in an easy-to-use, mobile and lightweight package. Class D amplification makes the difference in efficiency by offering superior energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology allows you to design and build extremely efficient products that are much lighter than their traditional counterparts, while consuming much less energy, protecting the environment.

WONDERFULLY SIMPLE OPERATION

Knobs and control buttons, as well as LED indicators located on the front panel provide quick access and preview to the most important parameters of the system. When the power button is pressed, the control LED lights up, informing you that the amplifier is ready for operation. Each channel is equipped with Gain knobs, Signal diodes that light up when the signal is present, as well as Limit diodes indicating when the amplifier is running at full power. The same elegance and functionality are characteristic of the NX series rear panel amplifiers. It is equipped with Combo input connectors that allow you to connect XLR or TRS 6,3mm jack connectors. This makes the NX series compatible with virtually any signal source, balanced or unbalanced. Professional, screw-down twist-lock (speakon) output sockets provide stable mounting of speaker cables, so that each portion of output power reaches confidently directly to the speakers.

COMPENSATION OF SMARTSENSE IMPENDANCE

Another new technology called SmartSense masters the power generated by the Class D amplifier, providing much better characteristics in the full frequency range, with very dynamic bass and even smoother reproduction within high frequencies. The obtained gain result is no longer dependent on the actual load at the output, because it is translated perfectly linearly thanks to impedance compensation. The NX series design also has a much higher attenuation factor, providing better amplifier control over the speaker for better sound reproduction, especially in the low frequency area.

VALUE OF SOUND

All these factors such as high-performance output parameters, Class-D technology in light weight analogous to light price as well as all the amenities that are the dream of every professional sound engineer put the NX series among the amplifiers used in the most demanding projects.

• Delivers power: 2 x 500W (2 Ohms), 2 x 300W (4 Ohms), 1000W (4 Ohms in bridge)
• Weight less than 3,3 kg
• Modern technology of the amplifier in class D, ensures the highest reliability and minimizes heating of the housing
• Top-of-the-line, interference-free switching power supply with negligible hum, better transient transfer and low power consumption
• Built-in stereo crossover with low-cut, high-cut and full-range modes
• SmartSense function for automatic impedance compensation giving the possibility of connecting speakers of any resistance
• Zero-Attack limiter for maximum signal level at the output as well as excellent overload protection
• Solidly embedded, illuminated potentiometers for precise gain level setting
• Accurate 4-segment LED indicators indicating signal level and overdrive
• Combo input connectors (XLR and 1/4″ Jack) for easy connection of any signal source
• Professional Twist-Lock Speaker Connectors
• Independent DC, LF and thermal power protection for each channel giving protection for the amplifier and speakers without the need to turn off the entire system
• Flow ventilation system to prevent heat build-up
• Developed and designed by BEHRINGER Germany

The NX1000 power amplifier offers 1000W (2 x 500W @ 2 Ohms; 2 x 300W @ 4 Ohms; 1000W in 4 Ohm bridge mode) and is extremely lightweight (7,3 lb / 3,3 kg) and can be mounted in a rack. And because the NX1000 is much more efficient than conventional designs, it operates at a lower temperature and does not require massive heat sinks and heavy toroidal transformers, which are usually associated with conventional counterparts. With “Zero-Attack” stops that provide maximum output levels with extremely reliable overload protection and SmartSense speaker impedance compensation that provides a fully linear frequency response at any speaker load impedance, you can work with the NX1000 at full speed for hours on end. Our revolutionary high-density Class D technology combined with an ultra-efficient switching power supply ensures that this feather-light power will effortlessly power your equipment for years to come.

Thanks to the technology of high-density Class D amplifiers, we are able to provide you with enormous power and incredible sound performance in an easy-to-use, ultra-portable and lightweight housing. Class D amplifier makes all the difference by offering the highest energy efficiency – and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology enables you to design and build extremely efficient products that are much lighter than their traditional counterparts, while consuming less energy and protecting the environment.

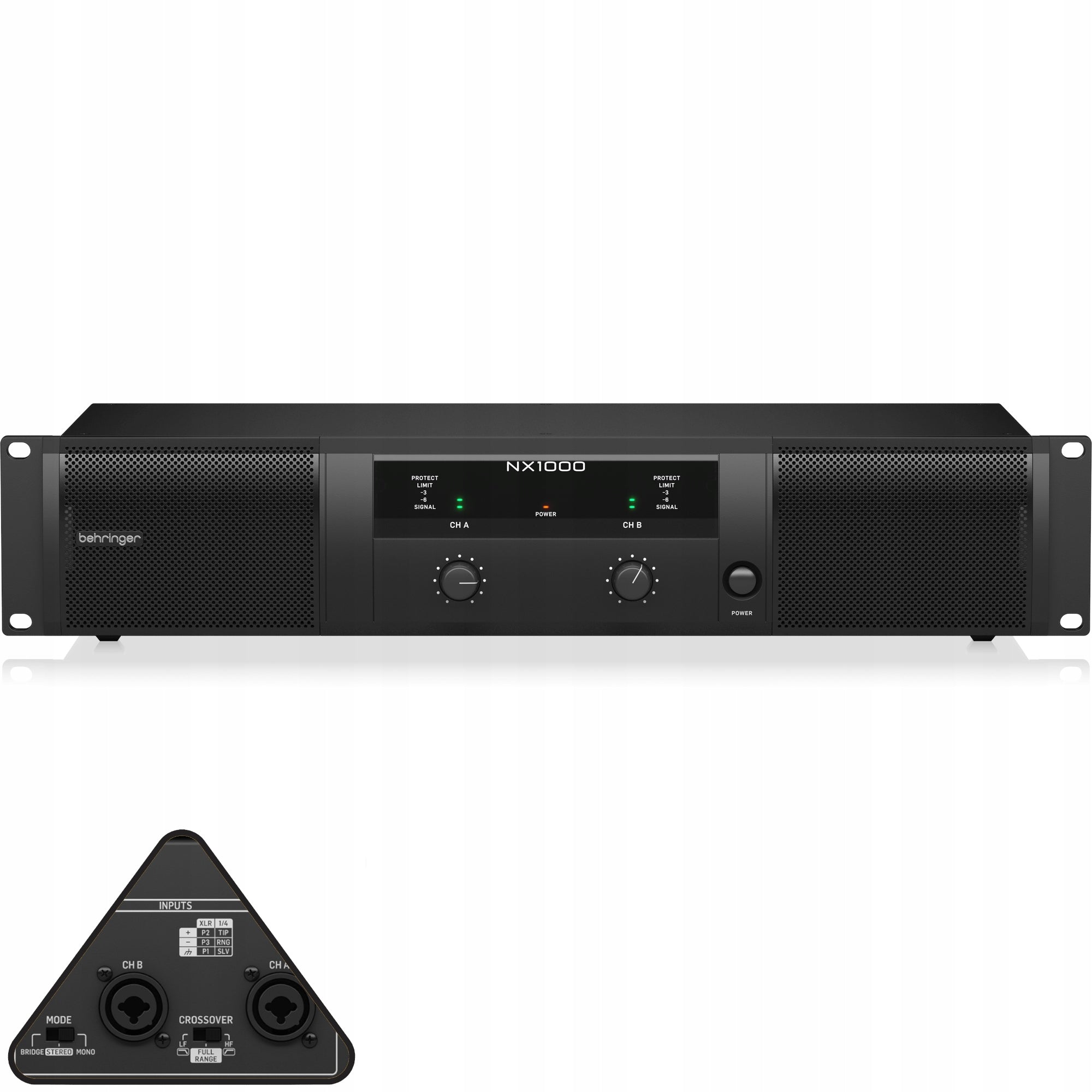

The controls and indicators on the front panel provide quick insight into the vital signs of the system. When you press the power button, the power LED will light up, showing that the amplifier is ready for operation. All channels are equipped with positive ratchet gain regulators with signaling diodes that glow when the signal is present, as well as Limit LEDs that indicate when the amplifier is running at full capacity. As elegant as the front, there are XLR and 1/4" TRS Input combo connectors on the rear panel, making the NX1000 compatible with virtually any source, balanced or unbalanced. Professional torsion lock speaker jacks are provided to ensure that every drop of power output reaches the speakers.

On the rear panel there are also switches that allow the NX1000 amplifier to operate in the dual mono, stereo or mono bridge mode of your choice. The built-in crossover switch in the NX1000 switches the amplifier to full-range mode, where the output signal is sent unfiltered to the speakers, or to Bi-amp mode, which only sends low-frequency content (< 100 Hz) to passive subwoofers, while high-frequency content (>100 Hz) is routed to full-range speakers.

Specifications
