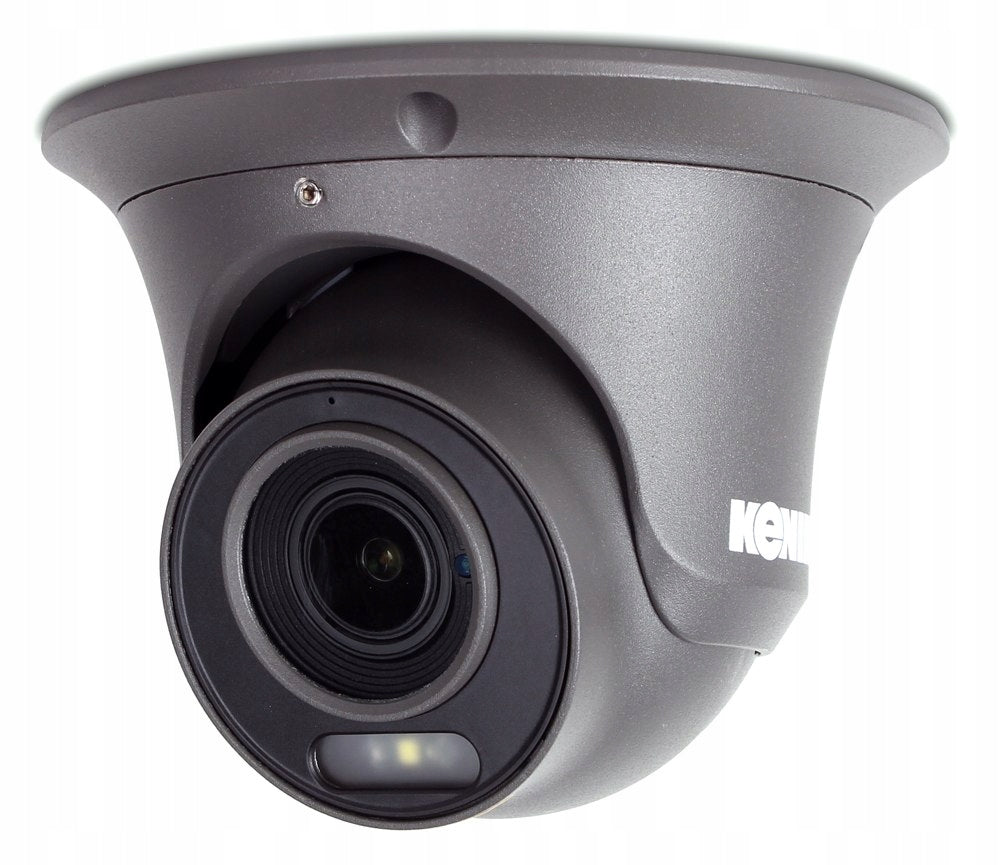

Stebėjimo kamera KENIK KG-D60HD-V-IW 4in1

Trumpai apie prekę

Prekė: Stebėjimo kamera KENIK KG-D60HD-V-IW 4in1. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-D60HD-V-IW

The most important features

• Ability to work in four modes: AHD/CVI/TVI/analog
• High image resolution: 2MPX (AHD, HD-TVI, HD-CVI), 960H (analog)
• Sony STARVIS IMX307
• Long transmission range (up to 500m) using 75Ω coaxial cable (applies to AHD/CVI/TVI mode)
• Remote Controlled OSD Menu
• Smart IR infrared reflector with a range of up to 60m
• 2.8-12mm adjustable lens
• Additional Features: ICR, DWDR, 2DNR, BLC, Privacy Zones
• High protection class IP67 enclosure

Destiny

The camera works with DVRs in any HD technology, i.e. AHD, CVI, TVI. It also has the ability to work in a traditional analog system. It is designed for internal and external installation.

Description

The Kenik KG-D60HD-V-I camera is equipped with a Sony Starvis 2MP sensor ideal for demanding surveillance systems. In AHD/TVI mode, we get FULL HD 2mpx resolution so that we can recognize even more details. Due to the high resolution of the image, it is especially recommended for installations requiring detailed supervision. Thanks to the use of excellent optics, the camera transmits an accurate image of the observed objects. The adjustable 2.8-12mm lens allows you to adjust the angle of view of the camera depending on the distance of the object. Visibility at night is provided by a modern infrared reflector with SMD diodes with a range of up to 60m. Thanks to this, monitoring is also effective in complete darkness in a given place.

Technologies

AHD/TVI/CVI technologies allow you to achieve high image resolution using a standard coaxial cable and signal transmission without delay. Thanks to this, there is no need to replace the wiring in the existing monitoring system. We can easily upgrade it and enjoy much higher image quality compared to older analog systems. These technologies also have many advantages over advanced i.a. IP systems: ease of installation and configuration, no delays, longer signal transmission distance.

Choosing the mode of operation

The camera can be switched to the selected operating mode using a joystick located on the cable. Holding the button in a given direction for 5s automatically changes the technology to HD/CVI/TVI or analog.

STARLIGHT technology

The camera uses a high-sensitivity SONY Starvis sensor for good visibility even with minimal lighting. The STARLIGHT technology allows you to get a color image even in night conditions.

Additional camera features

• 2DNR/3DNR noise reduction is responsible for improving image parameters in case of insufficient lighting
• D/N (Day/Night mode) - is responsible for automatically switching the camera between color mode and black and white mode in order to achieve the best quality of the displayed image. The applied ICR filter further improves color reproduction during the day and the correct display of the image in night mode
• Privacy masks - responsible for creating and placing private/covered zones in the image

Smart IR Headlight

The Kenik camera uses a modern infrared reflector based on SMD diodes for visibility in complete darkness. It is characterized by lower energy consumption, as well as stronger and more even illumination compared to standard diodes. In addition, the Smart IR radiator does not cause overexposure of the image in places where the object is in close proximity to the camera.

Lens

The optics element is an indispensable element of any camera. The focal length of the lens determines the angle of view of the camera - the lower the focal length, the greater the viewing angle. The highest quality lenses are made of glass.

CAMERA IN METAL HOUSING

The housing of the Kenik camera is made of aluminum alloy, which provides protection against acts of vandalism. The design allows the camera to work in outdoor conditions, it is resistant to changing weather conditions.

SIGNAL TRANSMISSION

Signal transmission in HD resolution via coaxial cable up to 500m, using Cat-5e computer twisted pair cable up to 300m.

Technical specification

KG-D60HD-V-I

• Converter: 1/2.8" SONY STARVIS CMOS IMX307
• System: NTSC/PAL
• Resolution: 1920x1080
• Electronic shutter: AUTO / 1/50（1/60）-1/50,000s
• Sensitivity: 0.01Lux
• Number of frames: PAL/NTSC: 25/30 fps
• Video output: AHD / TVI / CVI / CVBS

Characteristics

• S/N: >50dB
• Noise reduction: 2D/3D DNR
• Day/Night: colour / B&W/ AUTO / EXT
• White Balance: Auto/Manual
• WDR: Yes 120dB
• AGC: Auto
• Number of IR LEDs: 4pcs. SMD LED
• IR range: up to 60m

Lens

• Focal lens: 2.8-12mm
• Angle of view: H: 104º~54
• Type: Manually adjustable
• Assembly type: Φ14

General

• Protection class: IP67
• Housing: Metal
• Power supply voltage: DC12V(+/-10%)
• Power consumption: ＜8W
• Working conditions: -40 ~ +60º RH95% max.
• Dimensions: ￠120x108mm
• Weight: 620g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5908231255129
Parametry	Manufacturer code	KG-D60HD-V-IW
Parametry	Brand	KENIK
Parametry	Model	KG-D60HD-V-IW
